3.2inch TFT display User Guide

Product Description

  • 3.2-inch color screen,support 65K color display,display rich colors
  • 320X240 resolution, optional touch function
  • Using the SPI serial bus, it only takes a few IOs to illuminate the display
  • Easy to expand the experiment with SD card slot
  • Provide a rich sample program
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support

Product Parameters

NameParameter
Display ColorRGB 65K color
SKUhave touch screen: MSP3218
have no touch screen: MSP3217
Screen Size 3.2(inch)
TypeTFT
Driver ICILI9341
Resolution320*240 (Pixel)
Module Interface4-wire SPI interface
Active Area (AA area)48.6x64.8(mm)

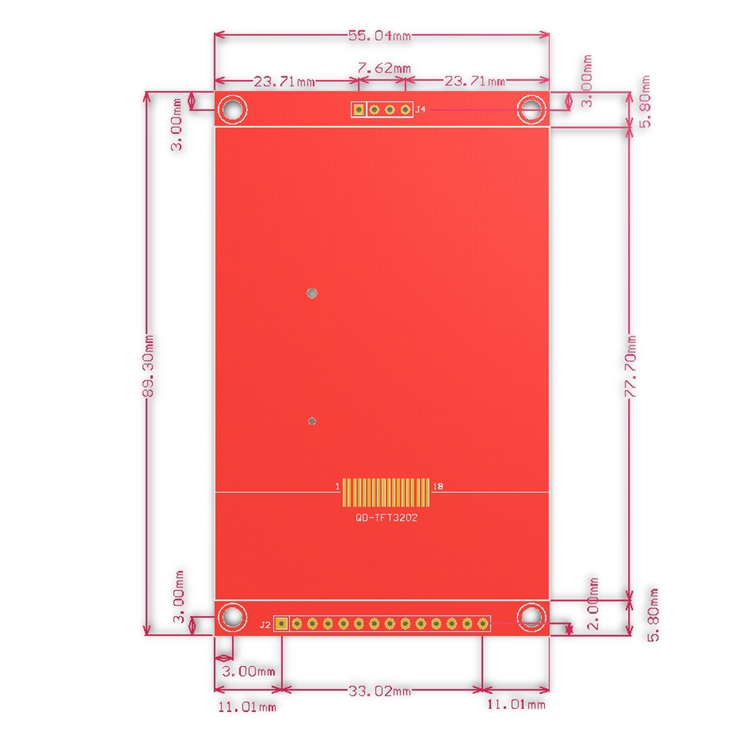

Module PCB Size55.04x89.3(mm)
Operating Temperature-20℃~60℃
Storage Temperature-30℃~70℃
VCC power voltage3.3V~5V
Logic IO port voltage3.3V(TTL)
Power ConsumptionTBD
Rough Weight(Package containing)No touch: 41(g) / With touch: 52(g)

Interface Definition


NumberPin LabelDescription
1VCC5V/3.3V power input
2GNDGround
3CSLCD chip select signal, low level enable
4RESETLCD reset signal, low level reset
5DC/RSLCD register / data selection signal,

high level: register, low level: data

6SDI(MOSI)SPI bus write data signal
7SCKSPI bus clock signal
8LEDBacklight control, high level lighting,

if not controlled, connect 3.3V always bright

9SDO(MISO)SPI bus read data signal, if you do not need to the read function, you can not connect it
(The following is the touch screen signal line wiring, if you do not need to touch function or the module itself does not have touch function, you can not connect them)
10T_CLKTouch SPI bus clock signal
11T_CSTouch screen chip select signal, low level enable
12T_DINTouch SPI bus input
13T_DOTouch SPI bus output
14T_IRQTouch screen interrupt signal, low level when touch is detected
