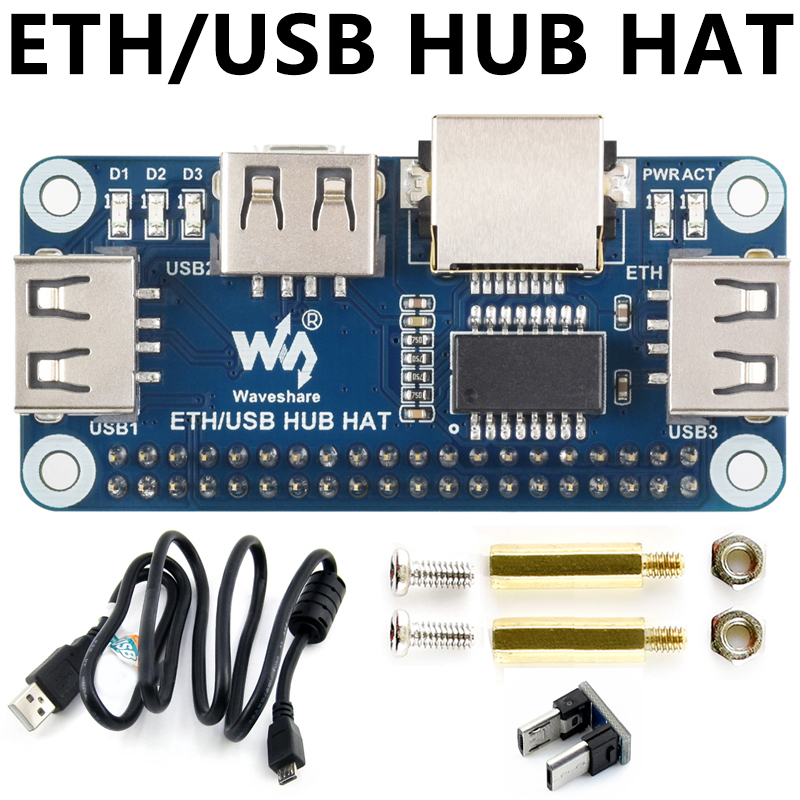

Raspberry Pi Zero Ethernet / USB HUB HAT, 1x RJ45, 3x USB
$14.89
This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.
It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.
Raspberry Pi Zero ETH/HUB Recommend
Ethernet and USB HUB board
Compatible with Raspberry Pi series motherboards
RJ45 Ethernet port × 1 | USB 2.0 ports × 3
Product Features
The ETH/USB HUB HAT is a Raspberry Pi expansion board that integrates Ethernet and USB hub functionality, adding one RJ45 network port and three USB 2.0 ports. It is suitable for use with Zero series motherboards and also supports connection to other Raspberry Pi motherboards via USB cable.
- It features 3 onboard USB expansion ports, compatible with USB 2.0/1.1 transmission.
- The board features an onboard RTL8152B Ethernet chip, supporting one RJ45 port with 10/100M auto-sensing.
- Multiple onboard indicator lights provide easy access to the operating status of the power supply, network port, and USB expansion interface.
RPi Zero series motherboards
The ETH/USB HUB HAT is compatible with motherboards such as the Raspberry Pi Zero, Zero W, Zero WH, and Zero 2W. To use it, connect the module's 40-pin GPIO header to the GPIO socket on the Zero motherboard, and connect the Zero's USB port to the module's USB hub port via the included Micro USB connector. This enables wired networking and USB expansion functionality.
The images are for illustrative purposes only. This product does not include a Raspberry Pi motherboard. Please refer to the configuration list for details.
Other Raspberry Pi motherboards
No GPIO connection is required; simply connect the module to the USB port of the Raspberry Pi B+ / 2B / 3B / 3B+ / 4B motherboard using the included USB cable.
The images are for illustrative purposes only. This product does not include a Raspberry Pi motherboard. Please refer to the configuration list for details.
Interface Extension Introduction
Onboard 1 RJ45 Ethernet port, 10/100M auto-sensing
It features 3 onboard USB ports, compatible with USB 2.0/1.1 transmission.
Resource Introduction
- Raspberry Pi GPIO interface
Easy to connect to Raspberry Pi
- USB expansion interface
There are 3 USB expansion ports, from USB1 to USB3.
- RJ45 Ethernet interface
10/100M adaptive network port
- USB HUB port (back side)
USB port connected to Raspberry Pi：
The RPi Zero/Zero W/Zero WH can be connected via a Micro USB connector.；
RPi B+/2B/3B/3B+ can be connected via Micro USB cable.
- TS8121A
Network Port Filter
- RTL8152B
10/100M Ethernet chip
- FE1.1S
USB HUB chip
- Status indicator lights
PWR: Power indicator light
ACT: Network port status lights
D1 ~ D3: Status indicator lights for USB1 ~ USB3
Product Dimensions
