RDK PoE Module User Guide

Introduction

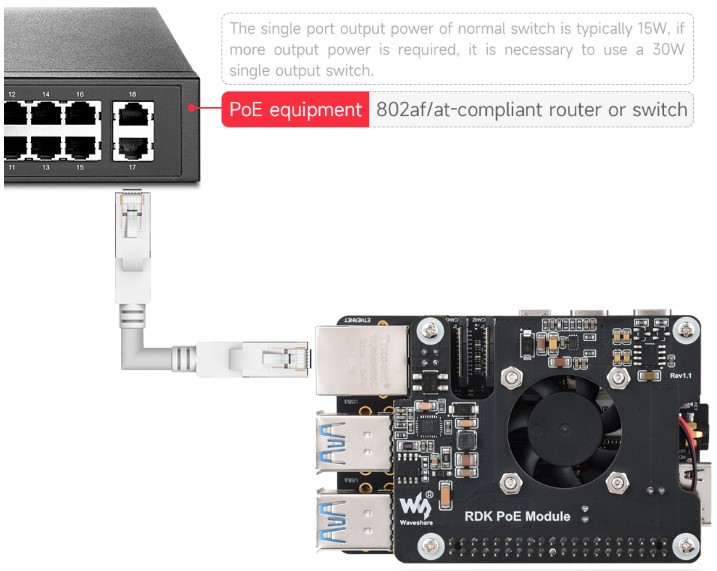

RDK PoE Module is a 802.3af-compliant Power Over Ethernet (PoE) HAT for D-Robotics RDK X5. By using this HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your RDK board in only one Ethernet cable.

Features

  • Based on 40PIN GPIO interface for RDK X5 board
  • Supports Power over Ethernet (PoE), supports IEEE 802.3af/at PoE network standard
  • Adopts fully isolated Switch Mode Power Supply (SMPS) mode power
  • Onboard high-speed active cooling fan, and with metal heatsink, better heat dissipation

Specifications

  • PoE input voltage: 37V ~ 57V DC input
  • PoE-GPIO pin header: 5V 4.5A (MAX)
  • PoE-2P pin header: 12V 2A (MAX)
  • Network standards: Supports IEEE 802.3af/at PoE
  • Product size: 56.5mm × 70.0mm

Usage

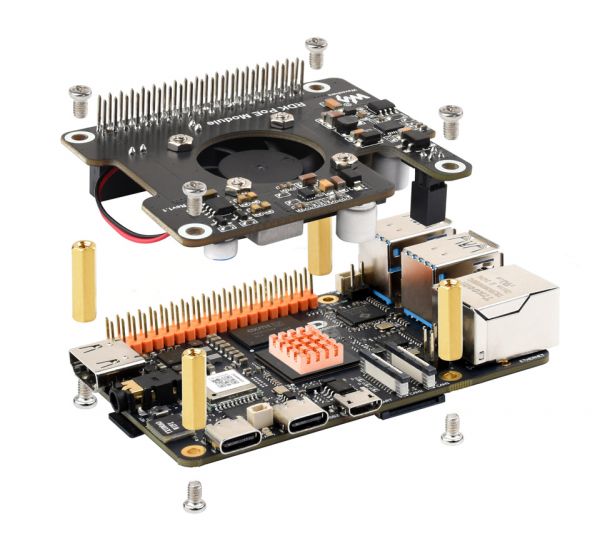

Insert the PoE Module into the 40PIN pin of the RDK motherboard as shown in the figure below.

Installation

Heatsink installation, as shown in the figure below.
Please note whether the pins are properly connected during assembly.

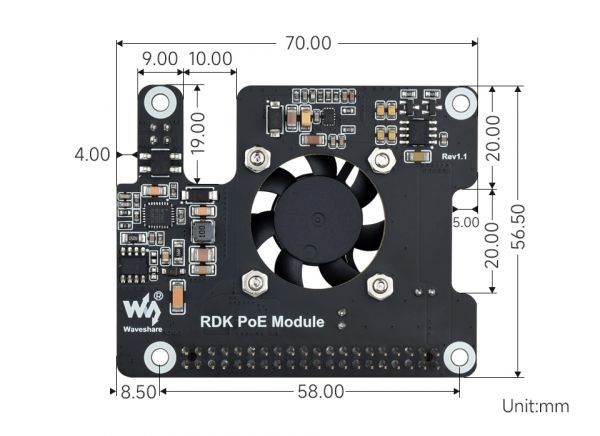

Dimensions


FAQ

Support

Monday-Friday (9:30-6:30) Saturday (9:30-5:30)

Email: services01@spotpear.com

TAG： Raspberry Pi Pico 2 RP2350 GEEK 1.14 inch LCD 240x135 65K SWD/UART/I2C For OpenOCD/CMSIS-DAP 0.49inch OLED Screen Display 64×32 SSD1315 Arduino Raspberry Pi ESP32 Pico STM32 Raspberry Pi 3.97 inch e-Paper link (G) RYBW 800x480 For Arduino / Jetson / STM32 /ESP32 Raspberry Pi 5 ESP-NOW Control ESP32-AI Series User Guide Screen Raspberry Pi 5 PD Induction Raspberry Pi 10.1 inch DSI MIPI LCD TouchScreen Display 10.1inch 720x1280 For Luckfox Lyra RK3506/ESP32-P4/Luckfox Omni3576 Raspberry Pi 10.1 inch DSI LCD TouchScreen Display 800x1280 Also For RK3576/RK3506/ESP32-P4 MK20 Computer AI Deepseek Mechanical Voice Keyboard Linux 20x0.85inch LCD Screen Customize keys + 2.8 inch Secondary Display VGA to RGB 360° ESP32-P4 Smart 86 TV Box Development Board 4 inch 720x720 Display TouchScreen RS485 Relay Camera RJ45 ETH DeepSeek XiaoZhi AI Voice Chat Robot BOX ESP32-S3 Development Board 3.5 inch LCD N16R8 Touchscreen Display 6-Axis /Camera /SD Raspberry Pi 5 2.13Inch E-Paper Industrial grade isolated USB to RS232/485 converter supports USB to 2-way RS232 + 2-way RS232/485 original FT4232HL Robotic Arm Control ESP32-P4 DEV-KIT C6 WiFi6 MIPI DSI 7/10.1 inch Display/CSI Camera/Audio Speaker For AI Deepseek
Price：
$21.37
Model：
RDK PoE Module
Brand：
SpotPear
SKU：
080401300000

RDK X5 PoE Module For Power Over Ethernet/ IEEE 802.3af/at PoE For D-Robotics RDK X5
