Luckfox Pico Rv1106 Core1106 Smart 86 TV Box Development Board With 4 inch LCD Display TouchScreen Relay RS485
$41
Brand：SpotPear
SKU：01054300000
Date：2025-04-30 16:19
Xinghu Core1106 Smart 86 Box Development Board RV1106 0.5/1TOPS ARM Cortex-A7 4 inches 720×720 pixels touch LCD RS485
Luckfox Pico Recommend
【First-level Authorized Agency Certificate】
Xinghu Core1106 series smart 86 box
Intelligent 86 box based on Xinghu Core1106 series modules, supporting secondary development
Empowering smart life and industrial IoT, making scenario-based control within reach

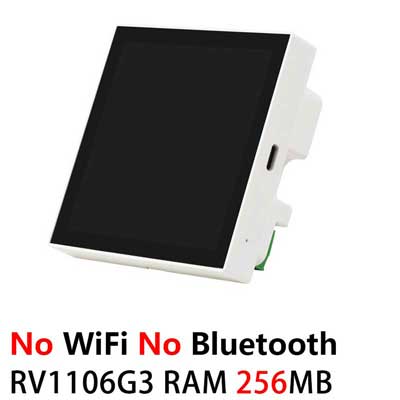

Version selection
| Version | 0208 | 1208 | 0408 | 1408 |
|---|---|---|---|---|
| processor | RV1106G2 | RV1106G3 | ||
| NPU | 0.5TOPS | 1TOPS | ||
| Memory | 128MB DDR3L | 256MB DDR3L | ||
| Wireless Module | - | Wi-Fi 6 and Bluetooth 5.2/BLE | - | Wi-Fi 6 and Bluetooth 5.2/BLE |
4-inch IPS touch screen introduction
170-degree ultra-wide viewing angle
Excellent display performance, high contrast, wide viewing angle
Capacitive 5-point touch screen
Supports 5-point sensitive touch, deeply integrating intuitive operation and fast response, making development efficient and convenient
Note: This product does not include a base, please refer to the configuration list
Screen parameters
name 4-inch IPS touch screen 720×720 Resolution 720×720 Communication interface RGB666 Screen size 4 in Display Panel IPS Touch Type capacitance Touch chip GT911 brightness 400cd/m² Contrast 1000:1 Viewing Angle 170° Dimensions (H×V) 84.0×84.0 (mm) Display size (H×V) 71.93×71.93 (mm) Dot pitch (H×V) 0.0999×0.0999 (mm) Color gamut 68% NTSC
| name | 4-inch IPS touch screen 720×720 |
|---|---|
| Resolution | 720×720 |
| Communication interface | RGB666 |
| Screen size | 4 in |
| Display Panel | IPS |
| Touch Type | capacitance |
| Touch chip | GT911 |
| brightness | 400cd/m² |
| Contrast | 1000:1 |
| Viewing Angle | 170° |
| Dimensions (H×V) | 84.0×84.0 (mm) |
| Display size (H×V) | 71.93×71.93 (mm) |
| Dot pitch (H×V) | 0.0999×0.0999 (mm) |
| Color gamut | 68% NTSC |
Development Board Introduction
Highly integrated, powerful performance
The development board integrates CPU, NPU, ISP and other processors
- Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
- Built-in Rockchip's self-developed 4th generation NPU, high computing precision, supports int4, int8, int16 mixed quantization, RV1106G3 int8 computing power is 1TOPS, RV1106G2 int8 computing power is 0.5TOPS
- Built-in self-developed third-generation ISP3.2, supports 5 million pixels, HDR, WDR, multi-level noise reduction and other image enhancement and correction algorithms
- It has powerful encoding performance and supports intelligent encoding. It can save bitrates according to the scene, saving more than 50% bitrate compared with the conventional CBR mode. It can not only shoot high-definition pictures, but also has smaller video size.
- Built-in 16-bit DRAM DDR3L to meet demanding memory bandwidth requirements
Wi-Fi 6 and Bluetooth modules
Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2/BLE modules
Stable connection, efficient transmission
Note: Only available for Luckfox-Pico-86-Panel-1208 / 1408
Audio Input and Output
Onboard microphone and direct-plug speaker to meet daily audio application scenarios
RS485 interface
Automatically send and receive data, with built-in power isolation, digital isolation, TVS and other protections
Dual relay
Optocoupler isolation to avoid interference from high voltage circuits
100M RJ45 network port
Support 10/100M wired network communication
Note: When connecting the network cable, the depth of the 86 bottom box should be considered. You can choose a short-body crystal head network cable
Installation Diagram
Standard 86 specifications with modular structure design, easy to install
Note: 86 base box and screws are not included
It is recommended to use an 86-type back box with a depth of more than 33mm
If you need to connect to an RJ45 interface, it is recommended to use a bottom box with a depth of ≥ 35mm
If you must use a 33~35mm back box, you should consider using a short-body crystal head
Application Scenario
Resource Overview
- Core1106
RV1106G3 / Rv1106G2 Core Board
Optional Wi-Fi / Bluetooth module
- ACT_LED
The default image is used to indicate the system operation status
- USB-C port
For power supply and program burning
- BOOT button
Press during power-on or reset to enter download mode
- RESET button
Restart the system
- Chip Microphone
- RGB LCD Interface
- RTC Coin Cell Battery Holder
- Audio Interface
MX1.25 2P connector, supports 8Ω 1W speakers
- Debug serial port
SH1.0 3P Connector
- 14Pin multi-function pin
Can be used to connect 86 Panel Bottom Board
- 100M RJ45 network port
- Relay working indicator light
- Power Isolation Module
- Digital Isolators
- Optocoupler Isolation
- Relay
- Relay wiring slot
5.08mm 4pin
- RS485 connection slot
- Power interface
DC 6V~30V wide voltage range input
Product size
