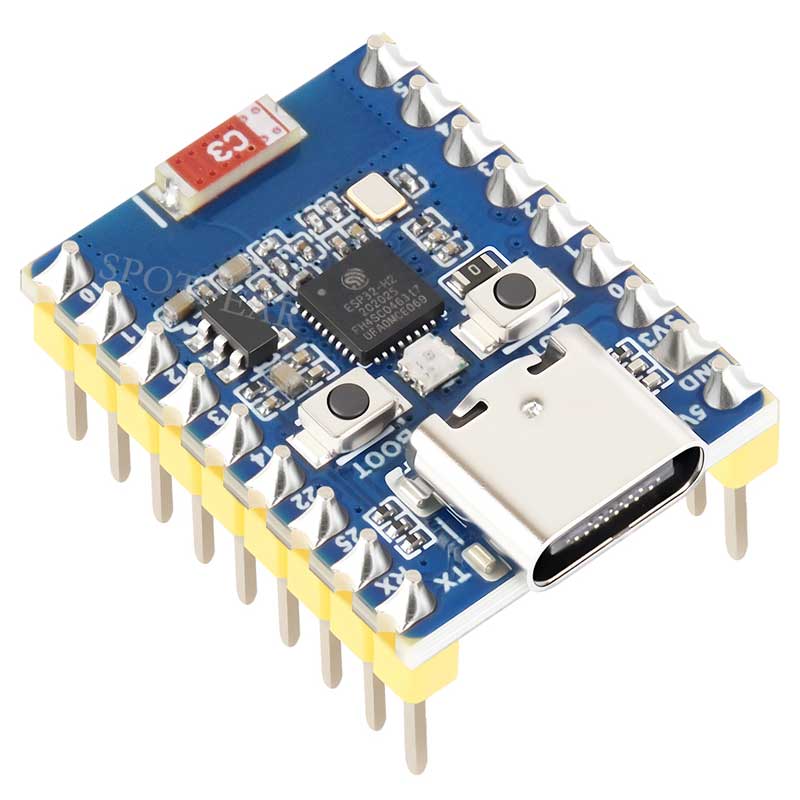

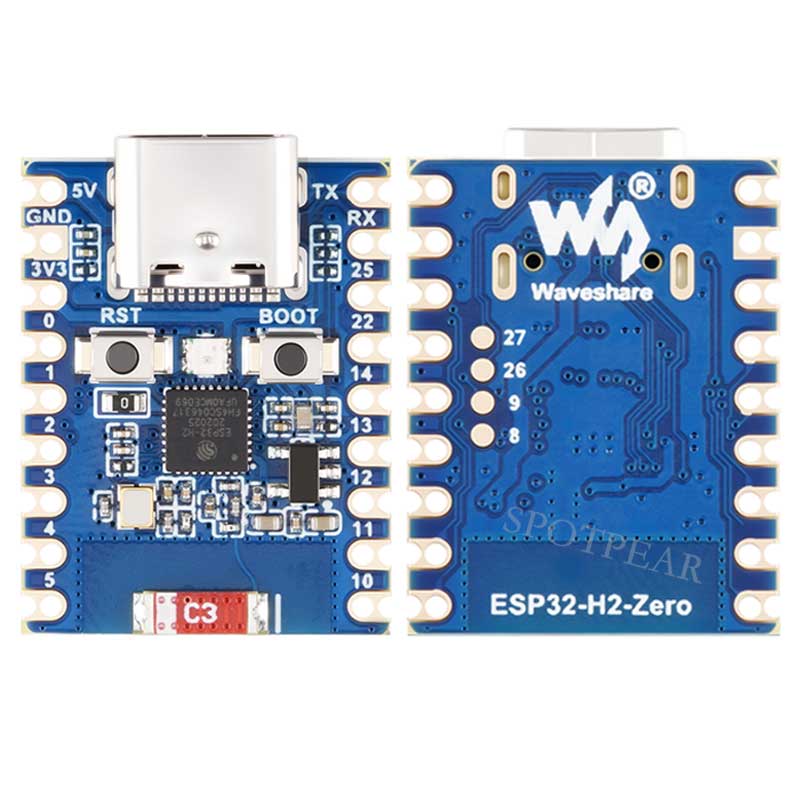

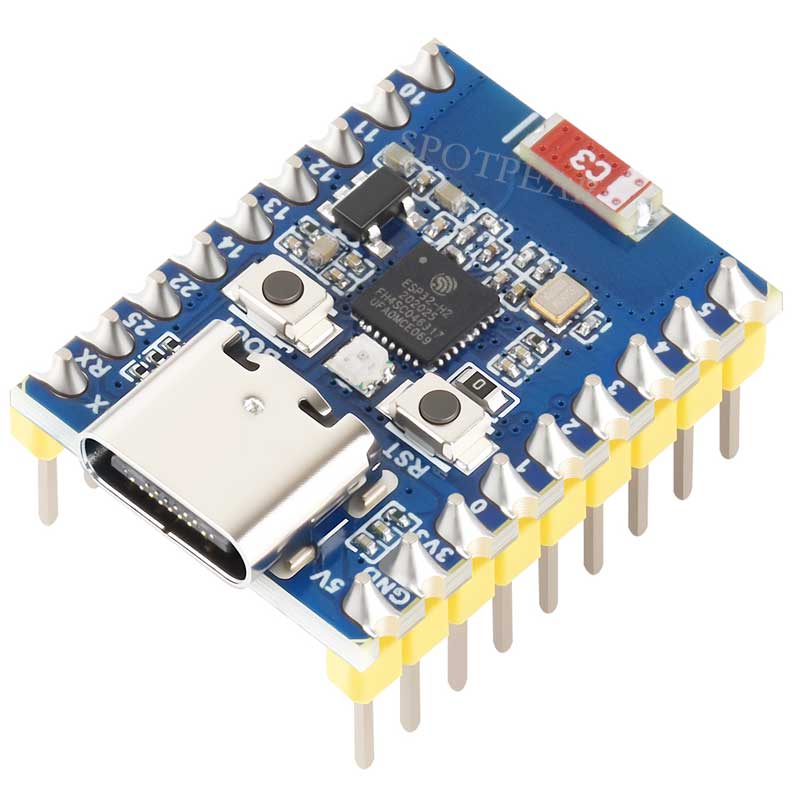

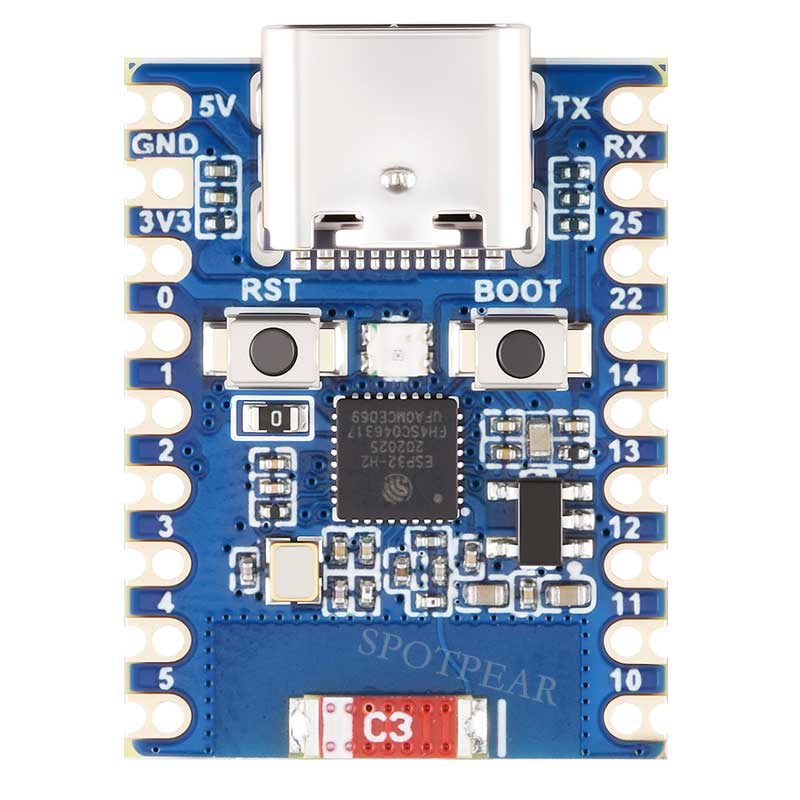

ESP32-H2 mini development board with a 96MHz processor, an onboard ESP32-H2FH4S chip, 4MB of built-in Flash, and support for BLE/Zigbee/Thread wireless communications.

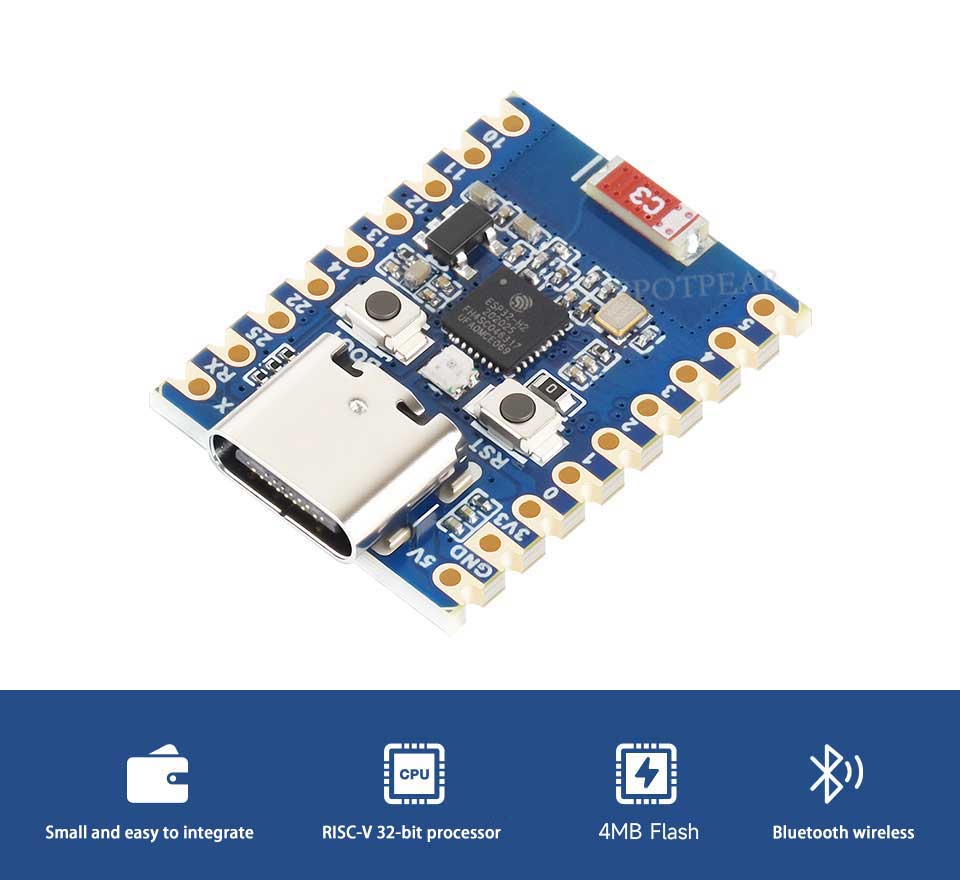

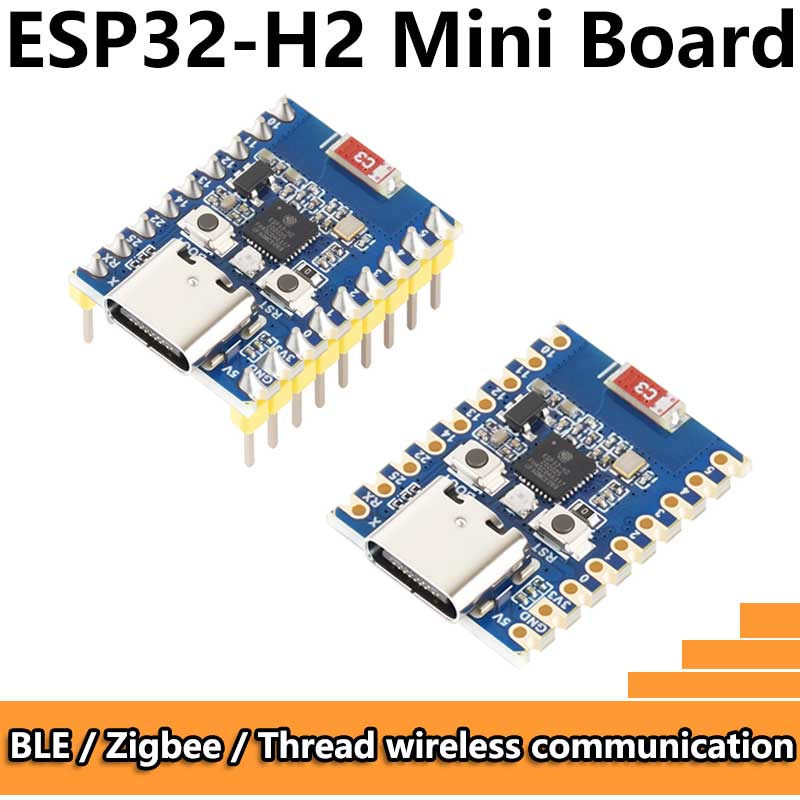

ESP32-H2 Mini Board

Onboard ESP32-H2FH4S chip

Supports BLE / Zigbee / Thread wireless communication

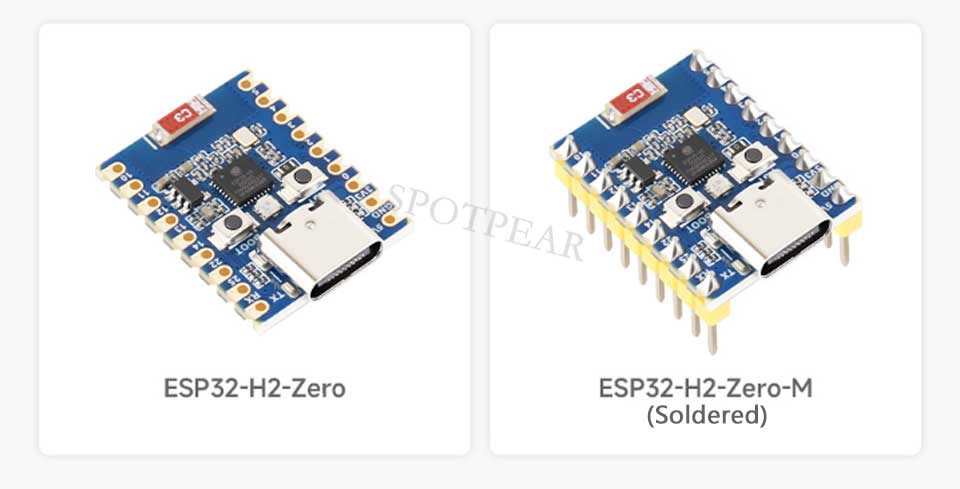

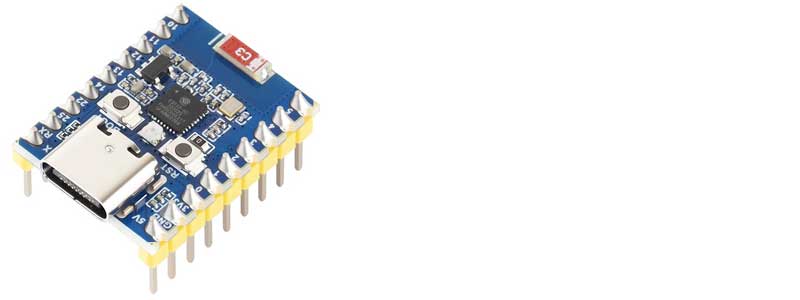

Version selection

Product Features

The ESP32-H2-Zero is an entry-level RISC-V microcontroller development board that integrates Bluetooth Low Energy (BLE) 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). Compact yet powerful, it features a rich set of peripherals for applications in smart home, industrial automation, healthcare, and consumer electronics.
In terms of hardware, it uses the ESP32-H2FH4S chip, which is equipped with a RISC-V 32-bit single-core processor, supports a main frequency of up to 96MHz, has a built-in 4MB Flash, and integrates a rich set of peripherals, including SPI, UART, I2C, I2S, LED PWM and ADC interfaces. It is compatible with and expands a variety of peripheral devices, making it more convenient to use.
For software, you can choose the official ESP-IDF development environment for development. It provides relevant sample programs and tutorials to help users quickly get started with development and apply it to products.。
Main features：

It uses the ESP32-H2FH4S chip, equipped with a RISC-V 32-bit single-core processor with a main frequency of up to 96MHz and built-in 4MB Flash memory.
Integrated BLE 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications for superior RF performance
USB Type-C interface, no need to worry about plugging it in the right or wrong direction
Leads to a wealth of peripheral interfaces with strong compatibility and scalability
Stamp hole design, can be directly welded and integrated into the base plate designed by the user

Supports ESP-IDF, Arduino and other platforms

Complete SDK and open source tutorials are provided to make it easy to get started and can be quickly embedded into applications.

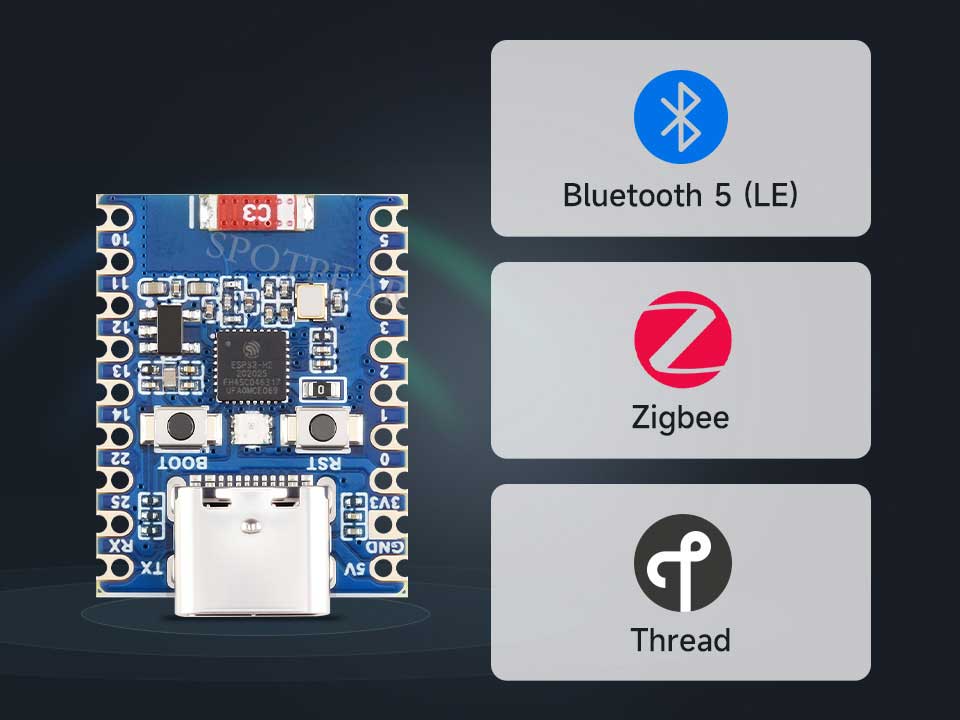

Supports BLE 5

Supports BLE 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread).

The Bluetooth low energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh.

Functional Block Diagram

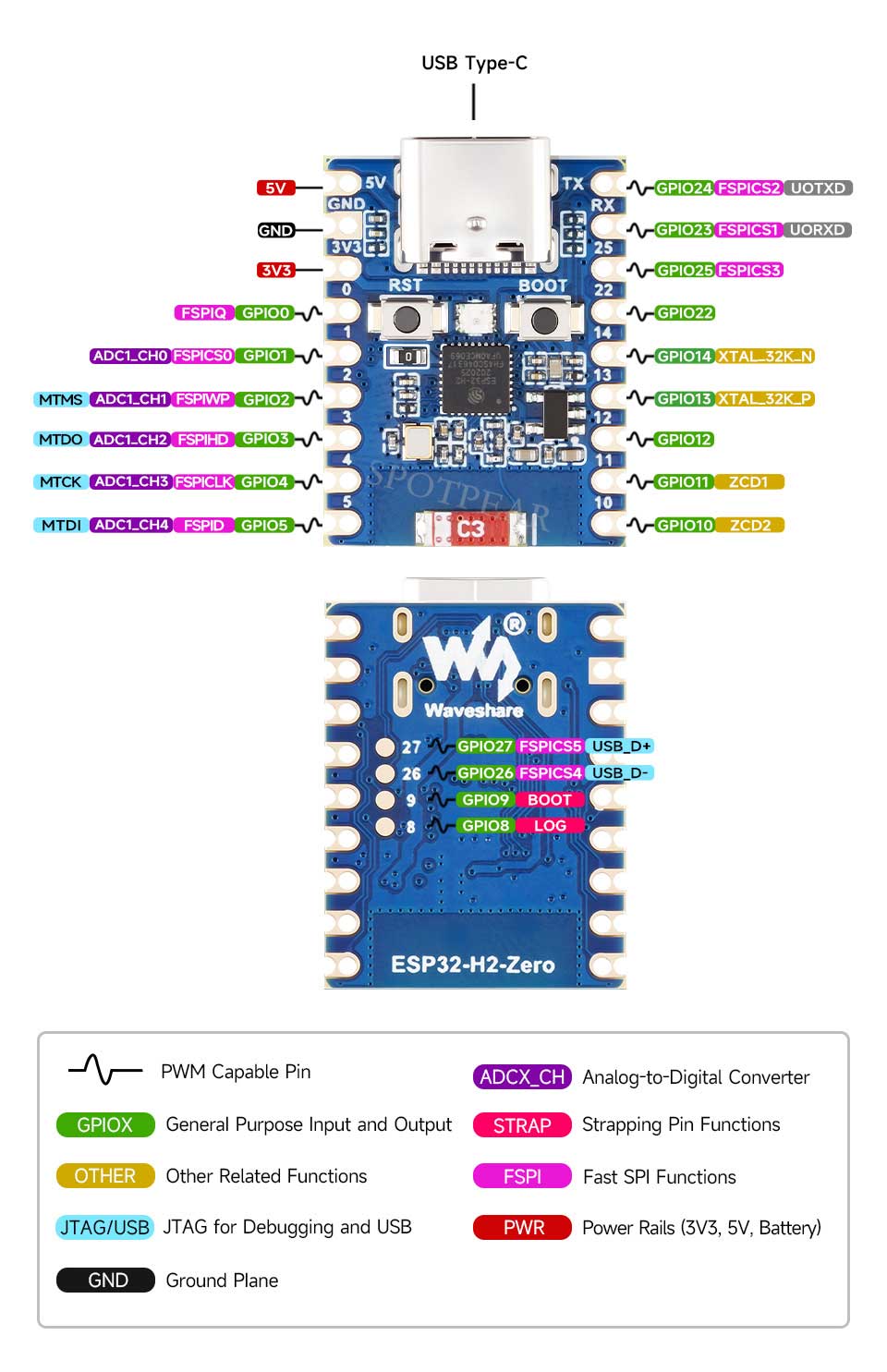

Pin Definition

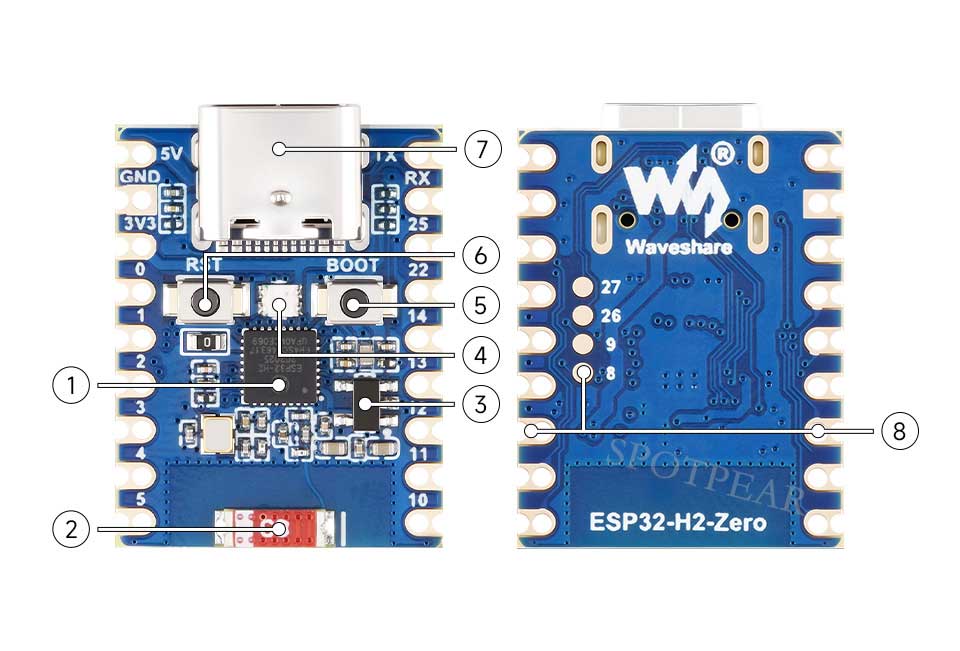

Resource Introduction

ESP32-H2FH4S
Equipped with a RISC-V 32-bit single-core processor, supporting up to 96MHz main frequency
2.4G ceramic antenna
ME6217C33M5G
Low dropout LDO, current (Max) 800mA
WS2812
Cool RGB LED

BOOT button
Press and then press reset to enter download mode
RESET button
USB Type-C port
Used for downloading programs and debugging
ESP32-H2FH4S Pinout

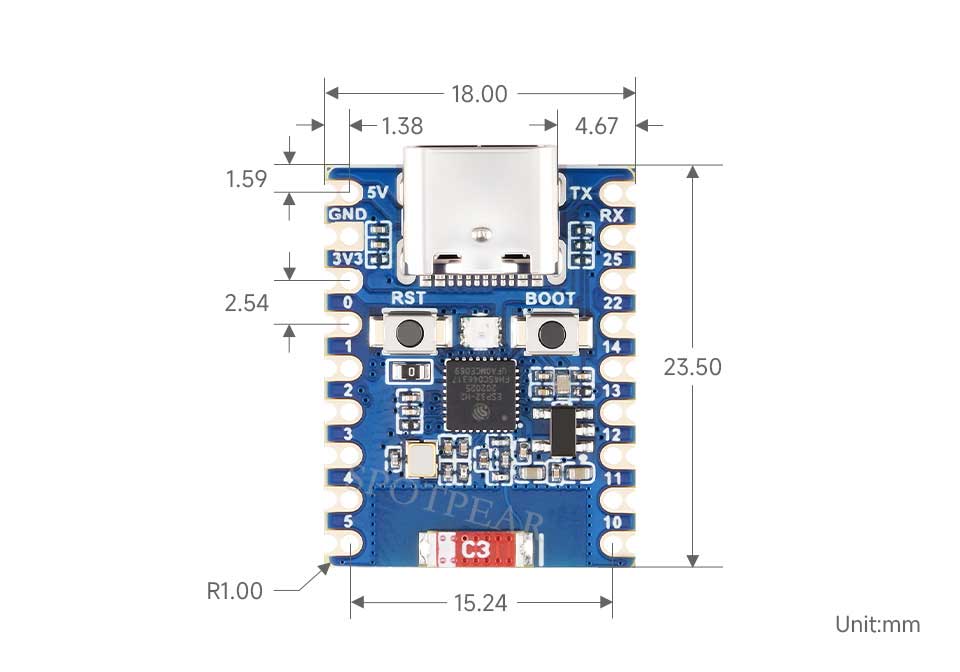

Product size
