Luckfox Lyra Zero W RK3506B Rockchip Linux Board For MIPI/DSI Display Size compatible with Raspberry Pi Zero
$17.9
Luckfox Lyra Zero W by Xinghu, an RK3506B chip-based micro Linux development board, integrates a tri-core Arm Cortex-A7 and an Arm Cortex-M0 processor.
【First-level Authorized Agency Certificate】
Luckfox Lyra Zero W
Luckfox Lyra Zero W is a micro Linux development board based on Rockchip RK3506B chip, designed to provide developers with a simple and efficient development platform. This product supports multiple high-speed interfaces, including MIPI DSI, SDMMC, USB, etc., meeting various application scenarios.The low-speed interfaces adopt Rockchip Matrix IO design, enabling pins supporting this design to share 98 multiplexing functions. They can freely combine PWM, UART, I2C, SPI and I2S, facilitating rapid development and debugging. With integrated wireless communication modules, it is suitable for IoT communication scenarios such as smart homes and industrial control.
Product Specifications
| Specification | Luckfox Lyra Zero W |
|---|---|
| processor | Tri-core Arm Cortex-A7 (1.2GHz) + Arm Cortex-M0 |
| Memory | On - board 512MB DDR3L |
| USB | Native USB OTG 2.0 × 1 Hub - expanded USB HOST 2.0 × 2 |
| Screen interface | MIPI DSI 2-lane |
| GPIO | 28 Rockchip Matrix IO Pins |
| Default Storage Medium | SPI NAND FLASH (256MB) |
| Wireless Communication | On-board 2.4GHz Wi-Fi 6 / Bluetooth 5.2 / BLE |
Highly Integrated, Powerful Performance
- Tri-core ARM Cortex-A7 32-bit cores, integrated with VFP, supporting single-precision and double-precision floating-point operations
- Built-in ARM Cortex-M0 MCU design, supporting SMP and AMP configurations
- Supports the expansion of the DDR3L memory interface to meet various expansion requirements
- The low-speed interface adopts Rockchip Matrix IO design of Rockchip, which can enable a wealth of multiplexing functions to share limited chip pins and make the adaptation of peripheral circuits more flexible.
- Support multiple audio inputs and outputs, and provide high - quality audio playback and recording functions.
- Tri-core ARM Cortex-A7 32-bit cores, integrated with VFP, supporting single-precision and double-precision floating-point operations
- Built-in ARM Cortex-M0 MCU design, supporting SMP and AMP configurations
- Supports the expansion of the DDR3L memory interface to meet various expansion requirements
- The low-speed interface adopts Rockchip Matrix IO design of Rockchip, which can enable a wealth of multiplexing functions to share limited chip pins and make the adaptation of peripheral circuits more flexible.
- Support multiple audio inputs and outputs, and provide high - quality audio playback and recording functions.
Develop more simply
Integrate Micro SD card slot, DSI interface, USB-C HOST interface and MX1.25 USB HOST interface
Wi-Fi 6 and Bluetooth module
Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2/BLE Bluetooth module.
Stable connection and efficient transmission.
Antenna switching
It can flexibly switch between external antennas and onboard patch antennas to meet various usage scenarios.
MIPI DSI 2-lane interface
Small in size, powerful in performance, easily drives large screens
The illustrated screen resolution is 800 × 1280, and the maximum resolution it can support is 1280 × 1280@60Hz.
Rockchip Matrix IO pins
Rockchip Matrix IO shares 98 multiplexing functions, allowing for free configuration of the distribution of functional pins.
Suitable for more application scenarios
Pin definition

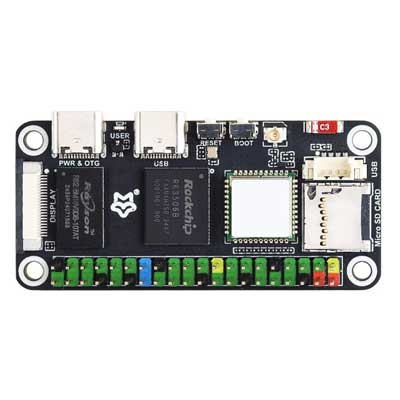

Resource Introduction
- USB USB-C OTG0 interface
Can be used for power supply and program burning
- USER-LED
The default image is used to indicate the system's operating status.
- USB USB-C HOST interface
Can be used to connect to USB peripherals
- RESET button
- BOOT button
Press when powering on or resetting to enter the download mode.
- Antenna interface
- Patch antenna
- DSI screen interface
MIPI DSI 2-lane
- 512MB DDR3L
- RK3506B
Multi-core heterogeneous SoC, with three built-in cores: ARM Cortex-A7 + ARM Cortex-M0
- Wi-Fi / BT module
2.4G Wi-Fi 6 / BT 5.2 / BLE module
- MX1.24 4P Interface
Supports conversion to USB-A HOST interface or for screen power supply
- Micro SD card socket
- 40PIN GPIO interface
Compatible with some Raspberry Pi HAT expansion boards
- USB HUB chip
- PMIC
3-channel power management chip
- W25N02KV
256MB SLC NAND FLASH
