IMX415 8MP USB Camera (B) User Guide

Specifications

Type	Parameter
Pixels	8MP
Sensor Chip	IMX415
Interface Type	USB2.0 Type-C
Camera Specifications	Sensor Size	1/2.8inch
	Aperture (FNO)	2.2
	Focal Length (EFL)	3.3 mm
	Field of View (FoV)	93.5°(D) × 85.2°(H) × 55.5°(V)
	TV Distortion	-0.4%
	Focus Type	Autofocus
Image Capability	Supported Format	MJPG
	Still Image Resolution	3840× 2160
	Video Frame Rate	30 FPS 3840 × 2160 30 FPS 2880 × 2160 30 FPS 2048 × 1536 60 FPS 1920 × 1080
Audio	Onboard Dual Microphones
Operating Voltage	5V ± 5%
Operating Temperature	0°C - 50°C
Module Dimensions	38.00 × 38.00 mm

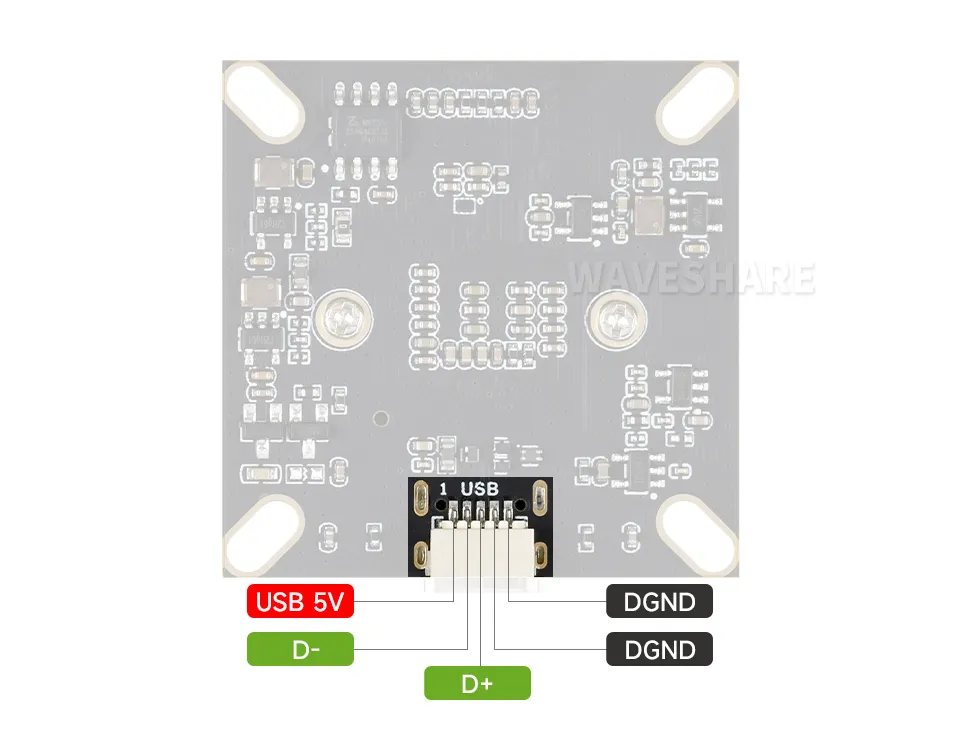

Pinout Definition

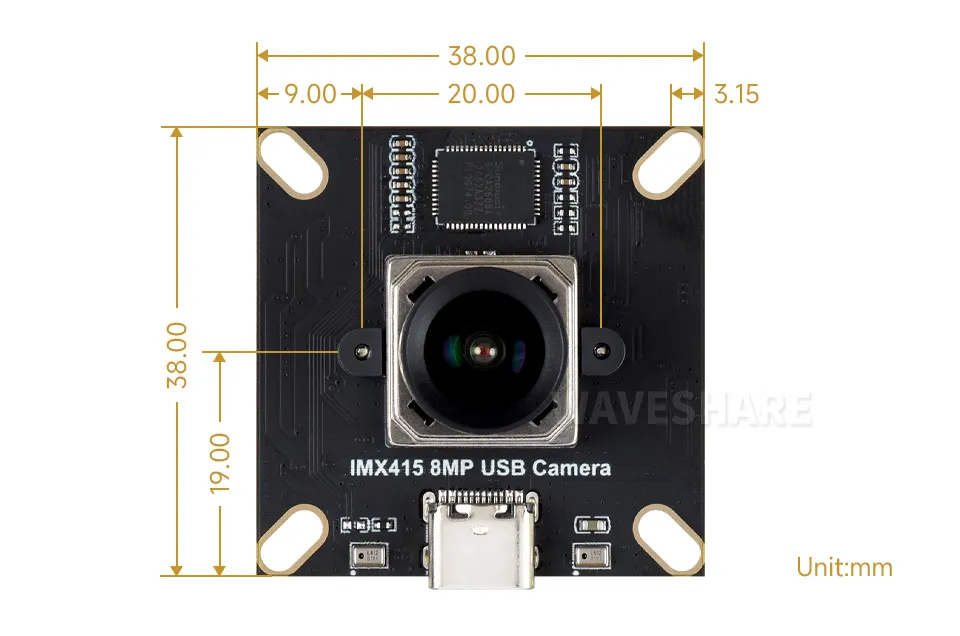

Dimensions

Working with Windows PC

Test Software

Most current Windows 10 systems come with a built-in camera application. You can directly open this default Windows camera app for testing. If you are using Windows 7, or if the system does not have a Camera app, you can download and install the AMCAP test software provided by us from Resources and Documents.

Testing Steps

Windows Built-in Camera Application

Search for "Camera" and open the app.

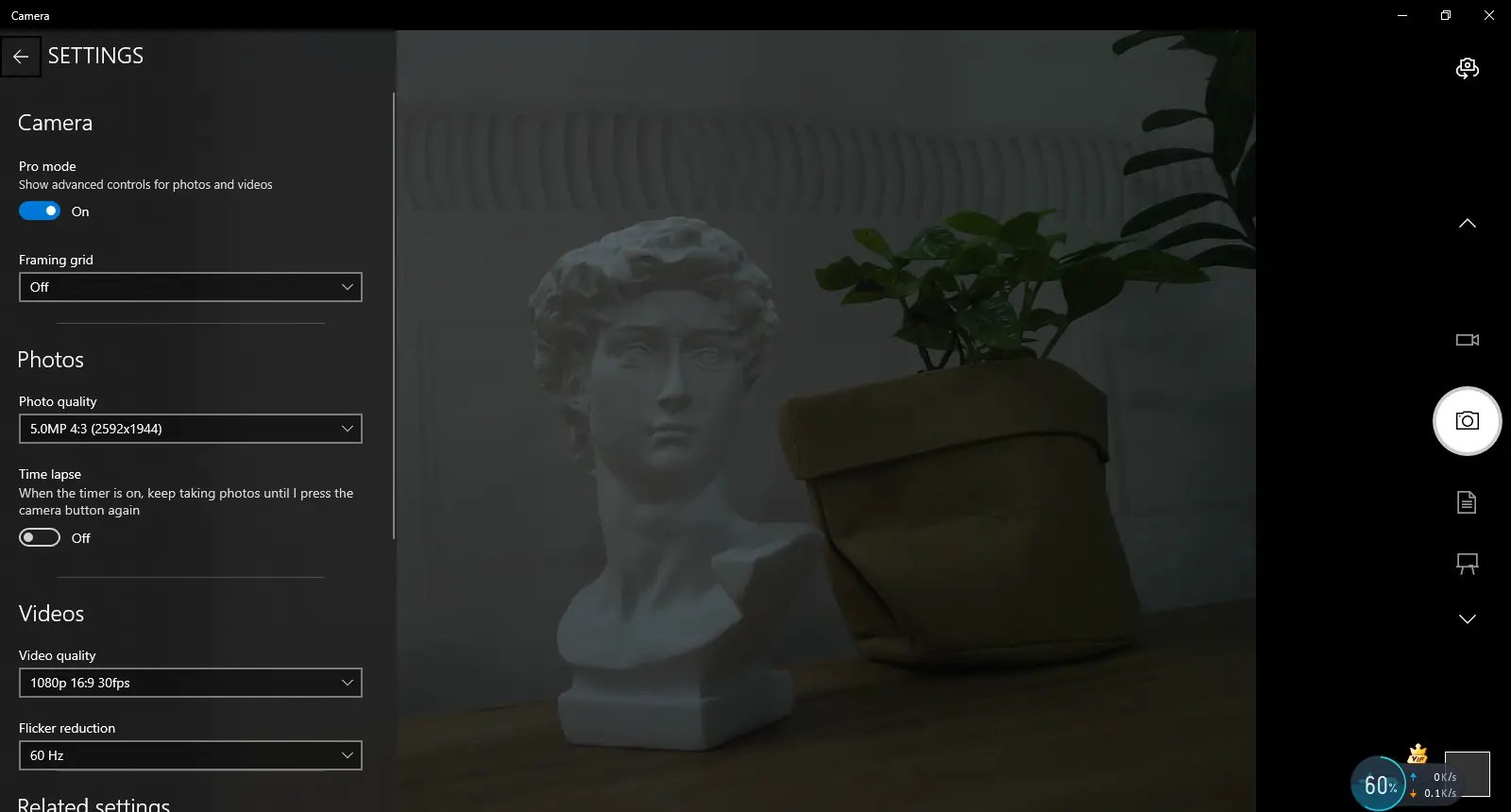

Click the gear icon in the top-left corner to open the settings interface, where you can set the resolution for photos or videos.
Click the video or photo icon on the right to switch between recording and capturing modes.

Amcap Software

Download and install the Amcap software.

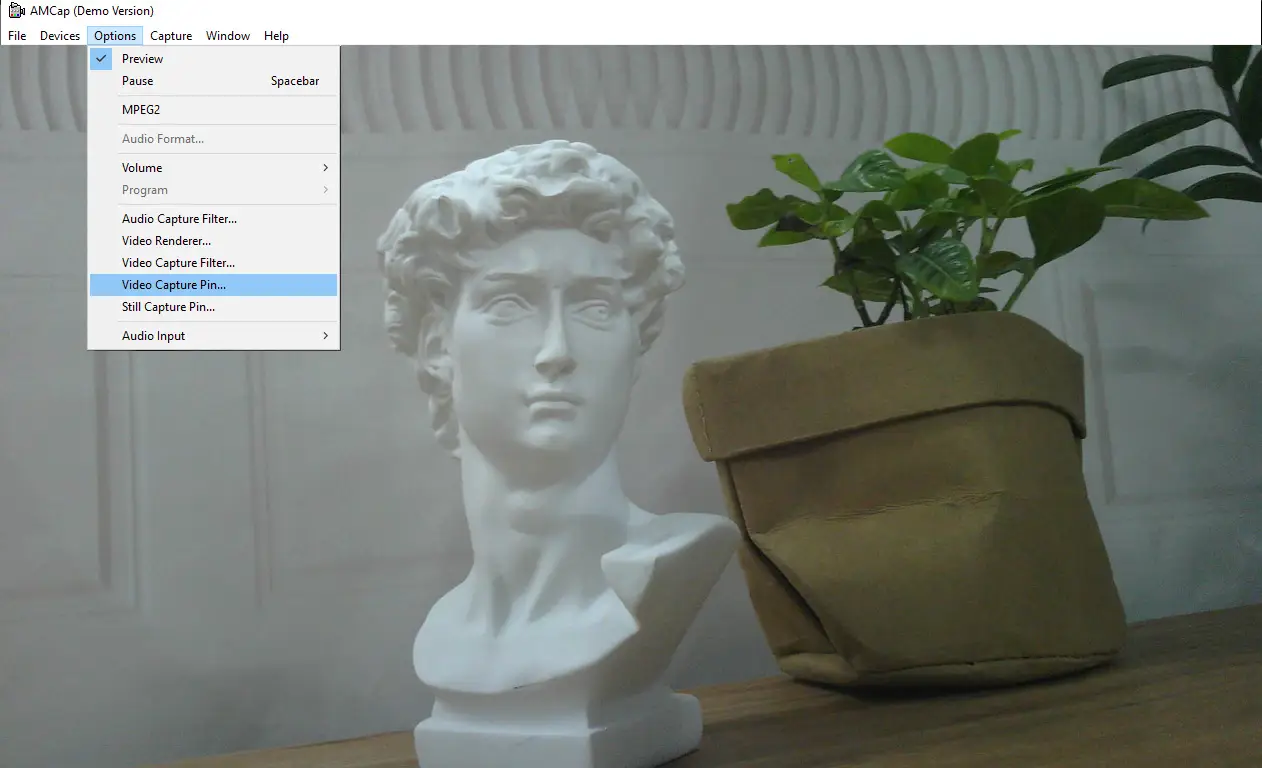

Click the "Options" menu, then select "Video Capture Pin..." or "Still Capture Pin..." to configure image and video parameters.

Working with Linux Embedded Board

Software Environment

On Linux embedded boards such as Raspberry Pi, Jetson Nano, and RDK, some systems support the UVC protocol by default, allowing image preview testing with OpenCV. To properly preview the image, please connect a display to the board.

Testing Steps

Open a terminal and enter the following command to install OpenCV:
```
sudo apt-get install python3-opencv
```

Download the example and test.

wget https://files.waveshare.com/wiki/common/Usb_camera_examples.zip
unzip Usb_camera_examples.zip
cd Usb_camera_examples
sudo python3 Usb_camera_examples.py

Resources

1. Example

USB Camera Test Scripts

2. Software Tools

Amcap Software
