【Resource Overview】

【Xiaozhi uses】

Note: This operation is only required for the first time use, and there is no need to repeat it later.

】Xiaozhi firmware needs to be configured for use

[] After powering on, connect your phone to WIFI: Xiaozhi-xxxx

After the connection is successful, wait for a while and the network configuration page will pop up, automatically searching for hotspots in the current environment

Select your local area network WIFI or mobile hotspot and enter the password (or manually enter the account password above) to complete the network configuration.

(Note: The mobile phone hotspot WIFI frequency band must be 2.4GHz, turn off the mobile phone hotspot for 5G 6G compatibility)

After the network configuration is completed, the screen will obtain the device code.

For devices without a screen: The device code will be announced by voice. Remember the device code announced by voice as it will be used for activation later.

】Click to enter Xiaozhi backstage

[] Click to enter控制台

】Register an account

Telephone area codes for some countries :

+86 Mainland China、+852 Hong Kong China、+853 Macau China、+886 Taiwan China、+1 United States/Canada、+44 United Kingdom、+33 France、+39 Italy、+49 Germany、+48 Poland、+41 Switzerland、+34 Spain、+60 Malaysia、+61 Australia、+62 Indonesia、+63 Philippines、+64 New Zealand、+65 Singapore、+66 Thailand、+81 Japan、+82 South Korea、+84 Vietnam、+91   India、+92 Pakistan、+234 Nigeria、+880 Bangladesh、+966 Saudi Arabia、+971 United Arab Emirates、+55 Brazil、+52 Mexico、+56 Chile、+54 Argentina、+20 Egypt、+27 South Africa、+254 Kenya、+255 Tanzania。。。。

Other countries are being continuously updated. Go to the website -> console -> mobile phone number drop-down box to view the latest list of supported countries.

】Click Add Device Activation

Enter the device code displayed on the screen (or the voice broadcast device code recorded previously)

Restart the device, wait for the connection, and you can start using it. At this time, you need to press the Boot button to manually wake up and start the conversation. Voice wake-up requires voiceprint recognition

】Boot button location reference

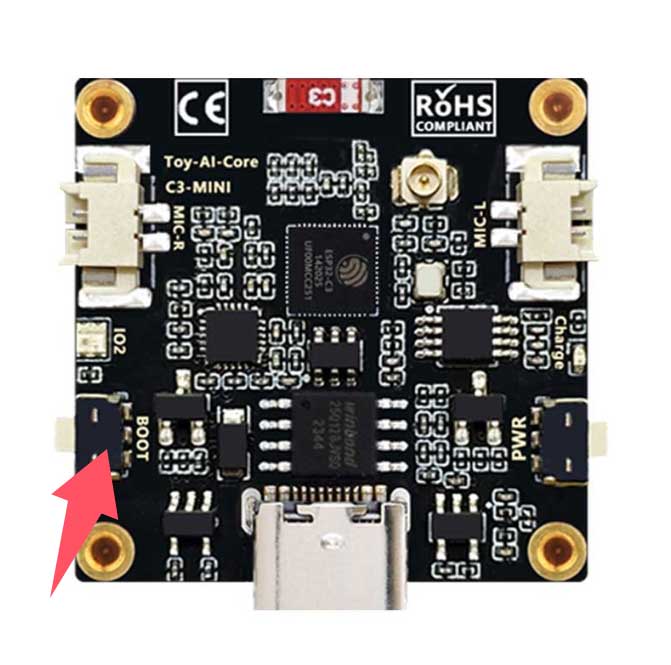

[] Boot Location

】Selecting characters and AI

Click OK, and then power off and restart to take effect.

】Unbind device

【Restore factory firmware】

】Firmware Download

】Download and open the burning software

Burning tool

】How to use

Just burn the factory firmware, as shown in the picture

Burn successfully, power on again

【Xiaozhi Compilation】

Note: Ignore for beginners. Programmers/developers compile tutorial materials

】Compilation environment installation：Download and install ESP-IDF

】Compiled by Xiaozhi

[] Download source code

xiaozhi-esp32-2.0.3

Enter the terminal and open IDF 5.3 or double-click the ESP IDF5.3 Powershell on the desktop

The directory I unzipped is different from yours. Please enter the directory you just unzipped.：

cd F:\project\esp32\ESP32AI\AW1\xiaozhi-esp32-main\xiaozhi-esp32-main

[] Set chip type

Enter the following command again to set the chip to C3

idf.py set-target esp32c3

After Success

[] Change the compiler board type

The default compiled firmware is for breadboard. You need to enter idf.py menuconfig to select the corresponding board model.

Enter 【Xiaozhi Assistant】-》【Spotpear-ESP32-83-1.28-Box】(press the Enter key on the keyboard to enter the option)

Select the board firmware to be compiled and press the 'S' key on the keyboard to save and then press Esc to exit menuconfig

[] Change the wake word

(It can be changed or not according to the needs)

[] Start Compiling

Enter idf.py build again to compile

[] Start burning

enter：idf.py build flash monitor

Press the Enter button to burn.

【Hardware Materials】

】Schematic

Toy-AI-Core-C3-MINI

】Dimension Drawing

Toy-AI-Core-C3-MINI.step

Toy-AI-Core-C3-MINI.DWG
