PocketTerm35
Portable Handheld Linux Terminal
Portable Raspberry Pi computer

* for reference only, please refer to the package content for detailed part list.
Features
The PocketTerm35 is a handheld computer designed specifically for the Raspberry Pi 4B and Pi 5. It provides a complete Linux desktop experience, enabling you to enter commands, run development tools, or execute daily computing tasks directly in the terminal at any time. Features a compact 93.5 × 168.5 × 37 mm design, equipped with a 3.5inch 640 × 480 optical bonding touch display. Portable and lightweight, it is an ideal tool for geeks, developers, and electronics enthusiasts.
Selection Guide
| KIT | CONTENT |
|---|
| PocketTerm35-Pi4 | Built-in Pi 4B-2GB, comes with a pre-installed 64GB system TF card and a 5000mAh Lithium Batt |
| PocketTerm35-Pi5 | Built-in Pi 5-1GB, comes with a pre-installed 64GB system TF card and a 5000mAh Lithium Batt |

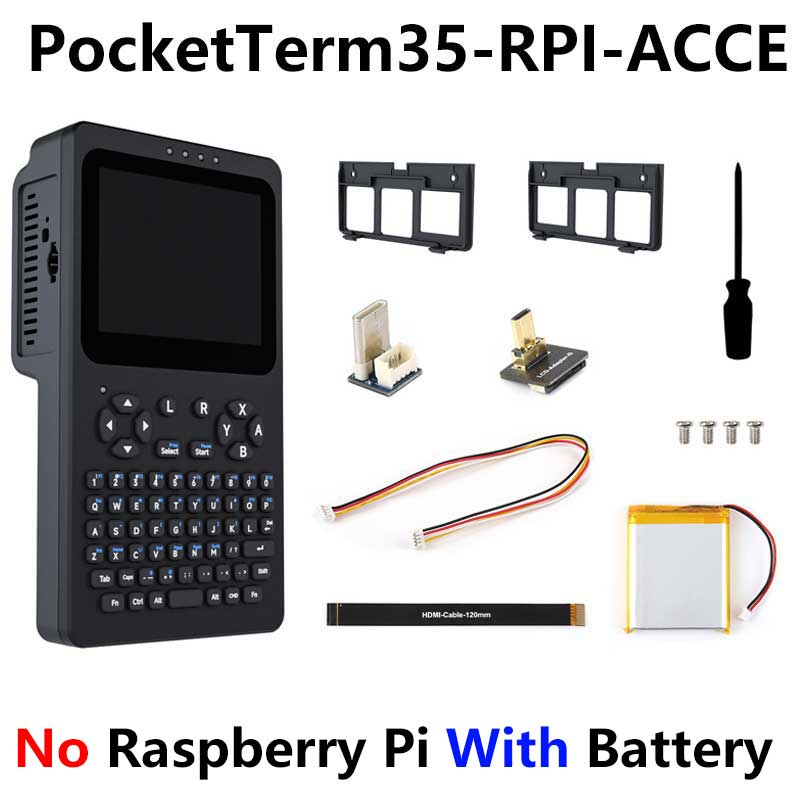

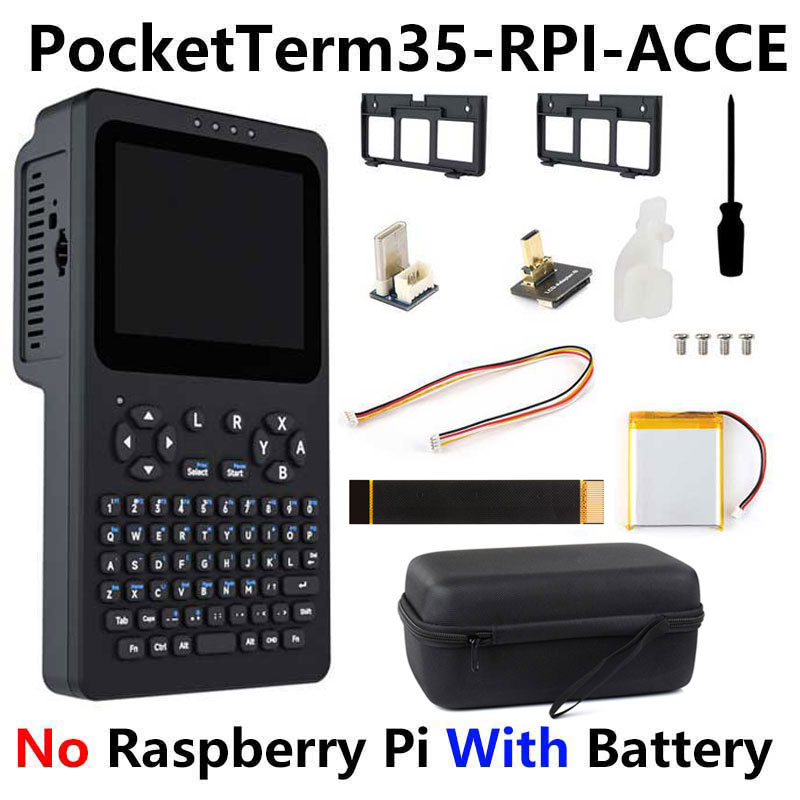

| PocketTerm35-RPI-ACCE | Accessory Kit B (without Raspberry Pi board and TF card, with 5000mAh Lithium Batt) |
| PocketTerm35-RPI-ACCE-EN | Accessory Kit A (without Raspberry Pi board, TF card, and 5000mAh Lithium Batt) |
Specifications| COMPATIBLE BOARD | Supports Raspberry Pi 4B / 5 |
|---|
| MCU | Built-in RP2040 MCU for controlling functions such as the keyboard, brightness, and volume |
|---|
| DISPLAY | 3.5inch 640 × 480 IPS display, supports HDMI interface |
|---|
| TOUCHSCREEN | 5-point capacitive touch, optical bonding, G + G toughened glass panel, 6H hardness, I2C header |
|---|
| AUDIO | Built-in 8Ω 2W speaker, 4PIN PH1.25 header, supports 3.5mm audio output |
|---|
| KEYBOARD | 67 keys QWERTY silicone keyboard |
|---|
| POWER | Supports external USB-C charging port Built-in 2PIN PH2.0 Batt header, Lithium Batt is optional UPS power management supports charging and using simultaneously |
|---|
| POWER CONTROL | Short press: turn on power Double click: turn off power |
|---|
| CASE MATERIAL | CNC-machined aluminum front cover PC + ABS plastic back cover |
|---|
Touch DisplaySuitable For Terminal Operations, Command-Line Input,
And Graphical Interface Browsing

Convenient Keyboard Input
A 67 Keys Standard-Layout Silicone Keyboard, Suitable For Code Entry,
Executing Commands, And Editing Programs

Built-In UPS Power Management System
Supports Seamless Switching Between Batt And External Power,
Enhancing System Reliability

Game Support
Supports Handheld Gaming, Compatible With The RetroPie System

Application Scenarios

Interface Introduction

Outline Dimensions

[] PocketTerm35-Pi4
[] PocketTerm35-Pi5
[] PocketTerm35-RPI-ACCE

[] PocketTerm35-RPI-ACCE-EN
