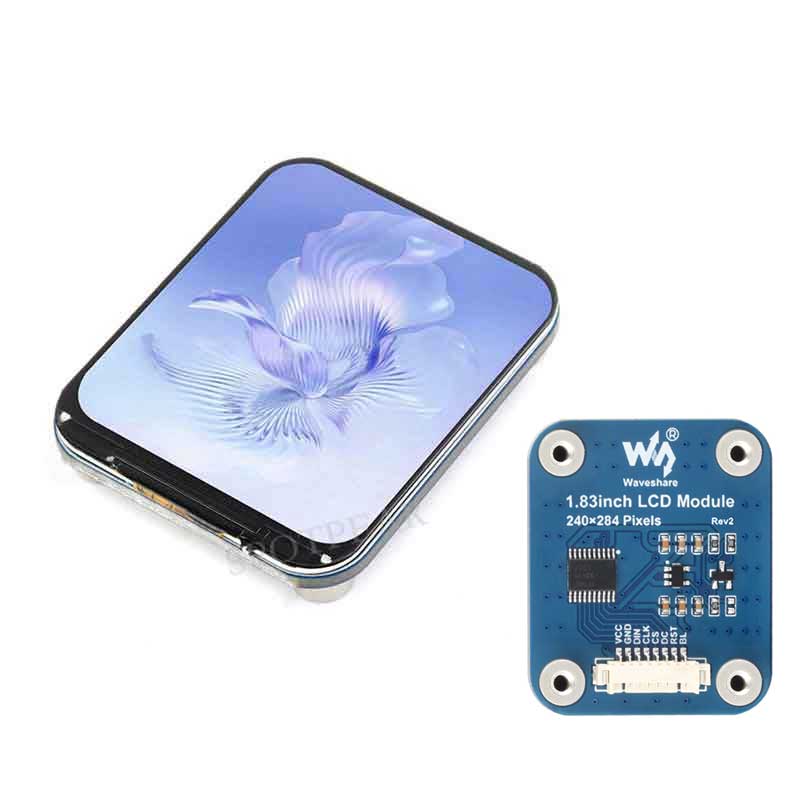

1.83inch LCD Screen Display 240×284 ST7789B For Arduino /Raspberry Pi /ESP32S3 /Pico /STM32

1.83inch LCD Screen Display 240×284 ST7789B For Arduino /Raspberry Pi /ESP32S3 /Pico /STM32

$8.9

Brand：Spotpear

SKU：0601041

Date：2024-04-15 15:24

Part Number：

1.83inch-LCD-Module

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

1.83inch LCD Display Module, 240×284 Resolution, SPI Interface, IPS LCD, 65K Colors, Rounded Corners, Micro LCD Display

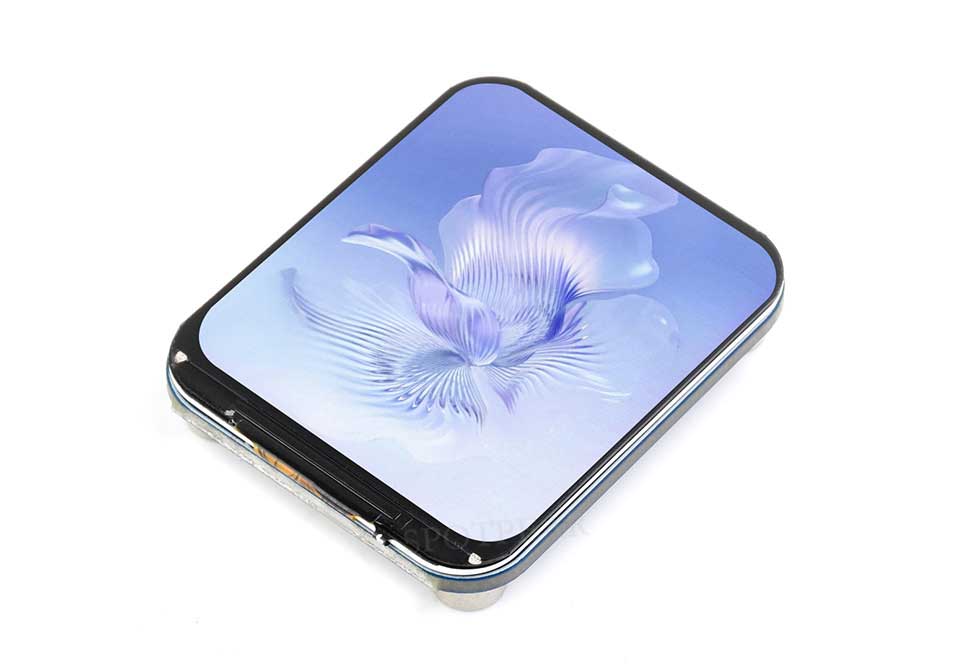

1.83inch LCD Display Module

Embedded ST7789B Driver Chip, Using SPI Interface

Comes with examples for Raspberry Pi, Arduino, STM32, etc.

Note: The Rev2 version currently on sale uses a different LCD panel from the old version (without a Rev marking). For details, please refer to the Wiki.

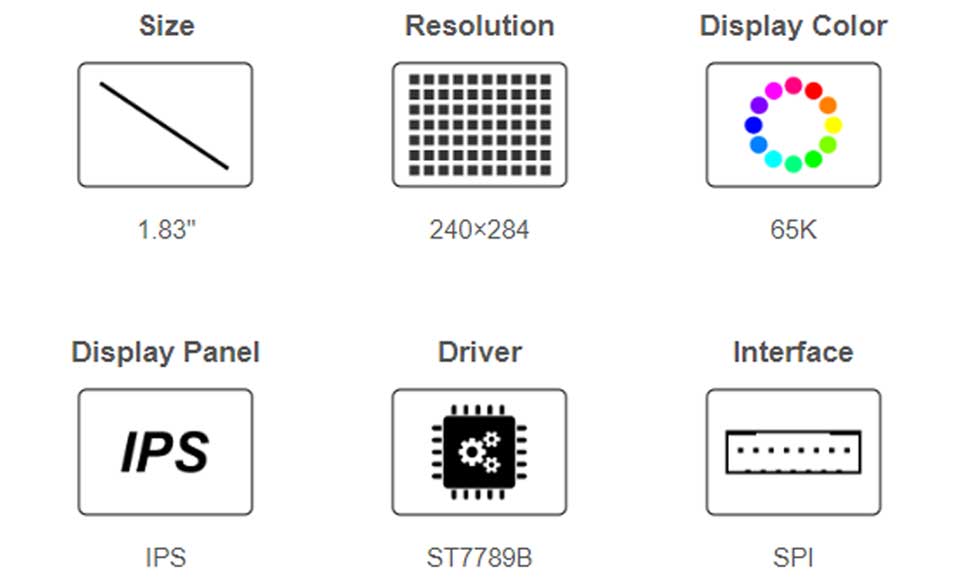

Features At A Glance

240×284 resolution, 65K colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32/ESP32, etc.)

Specifications

OPERATING VOLTAGE	3.3V / 5V	RESOLUTION	240 × 284 pixels
COMMUNICATION INTERFACE	4-wire SPI	DISPLAY SIZE	29.52 x 34.93mmmm
DISPLAY PANEL	IPS	PIXEL SIZE	0.126 × 0.126mm
DRIVER	ST7789B	MODULE SIZE	33.00 × 40.00mm

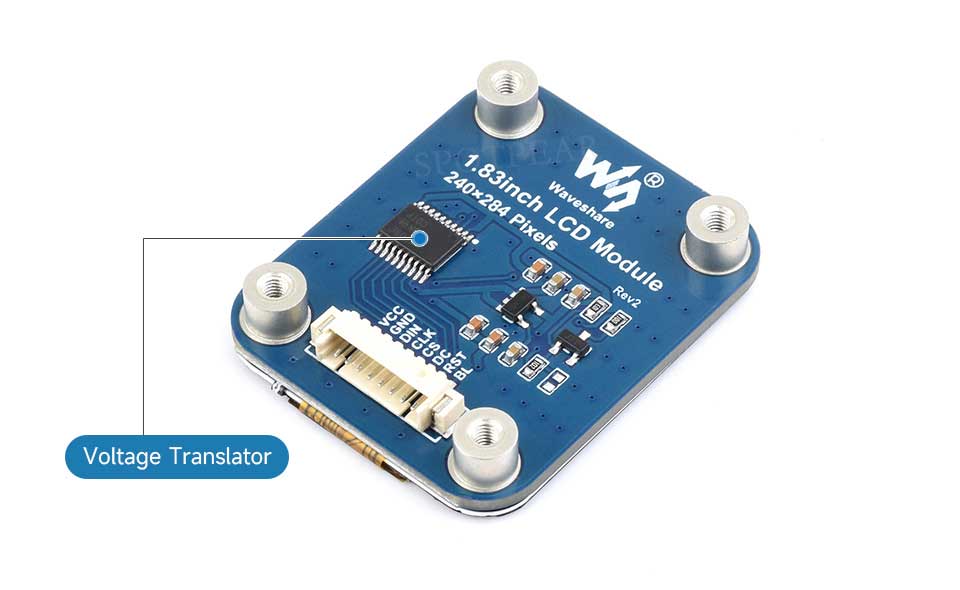

Onboard Voltage Translator

Compatible With 3.3V / 5V Power Input

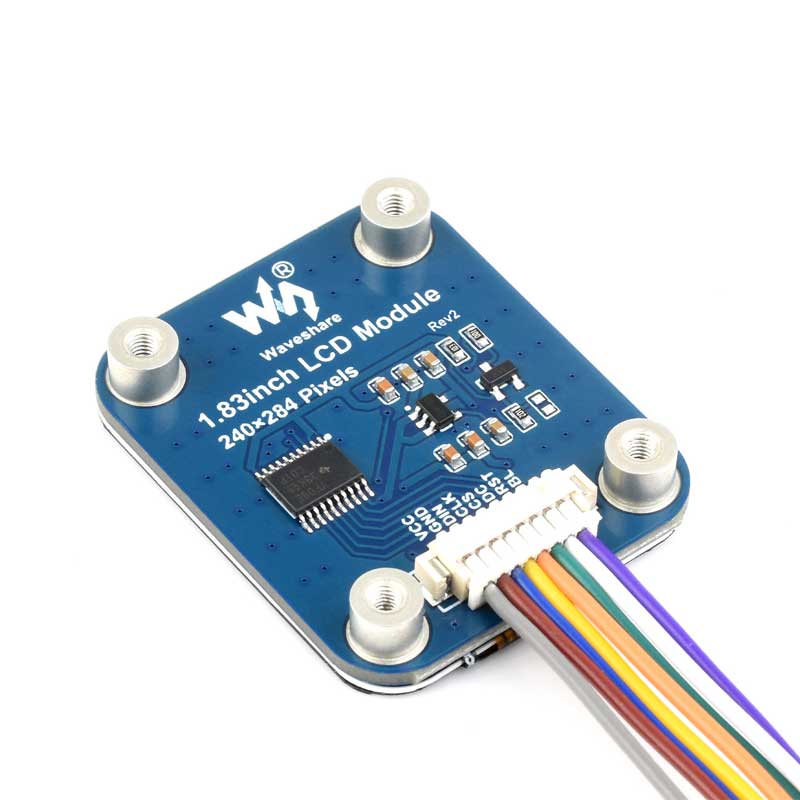

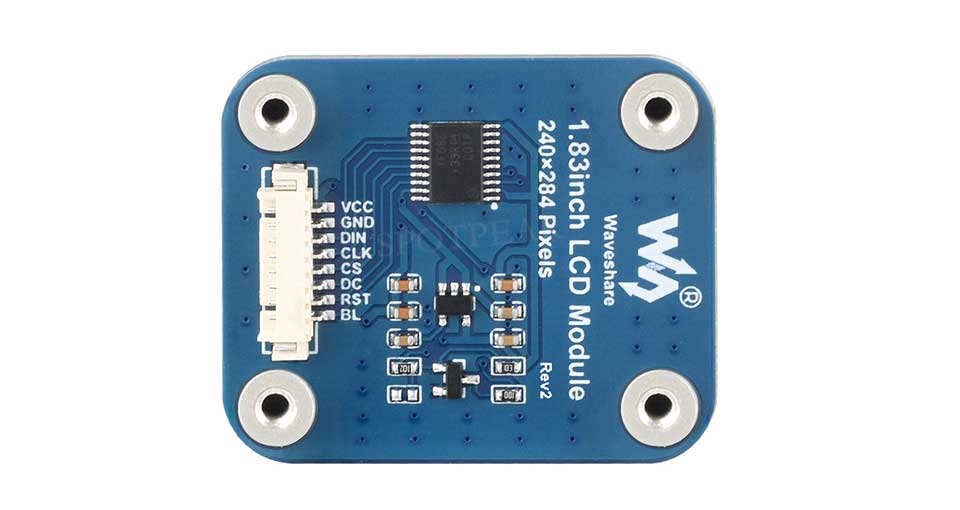

Onboard SPI Control Interface

For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

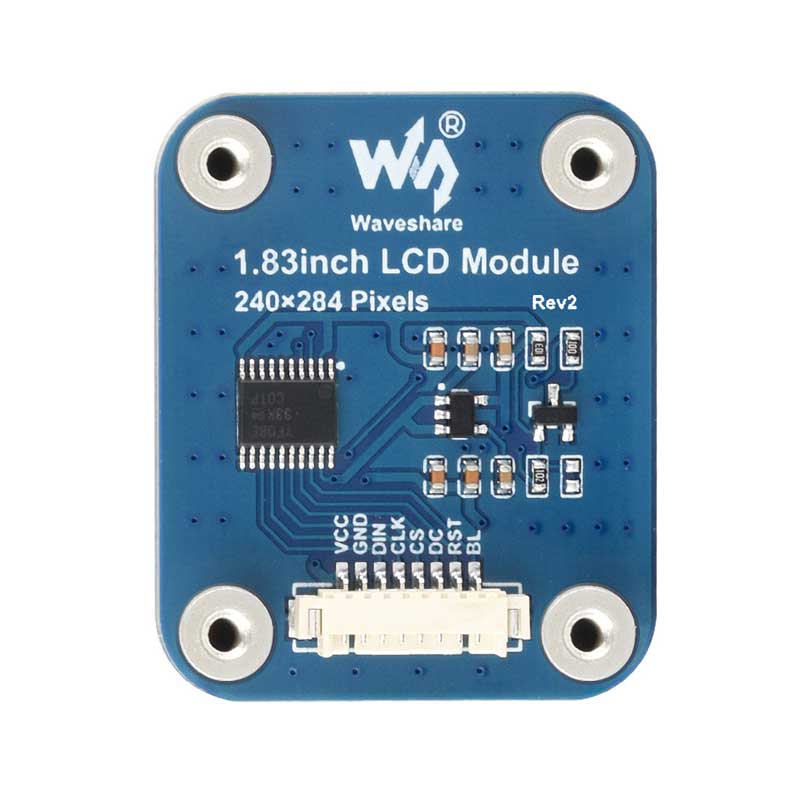

VCC	Power (3.3V / 5V input)
GND	Ground
DIN	SPI data input
CLK	SPI clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active
BL	Backlight

Hardware Connection

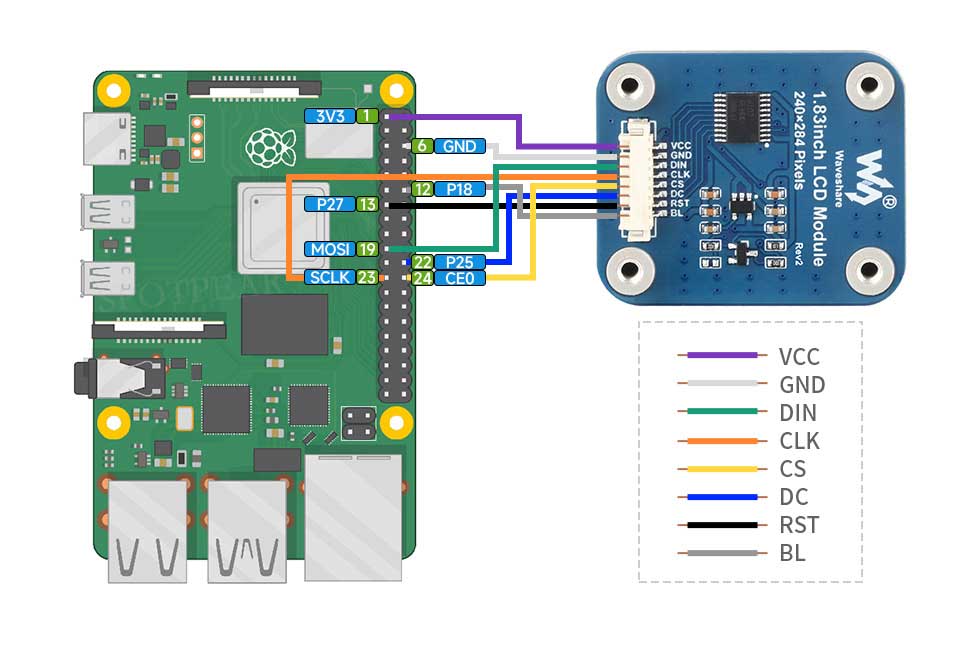

Connecting with Raspberry Pi

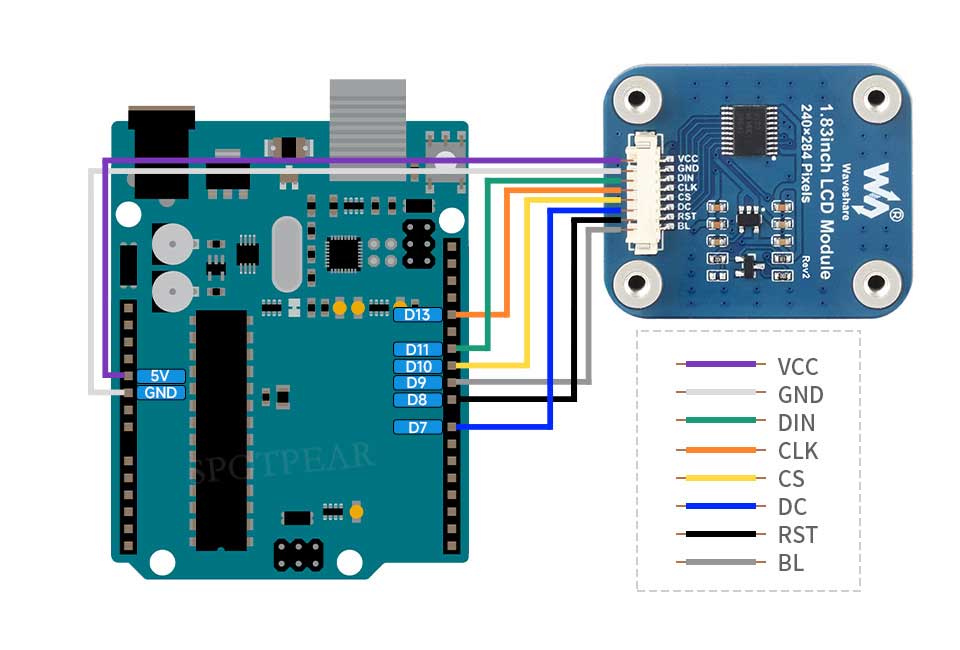

Connecting with Arduino board

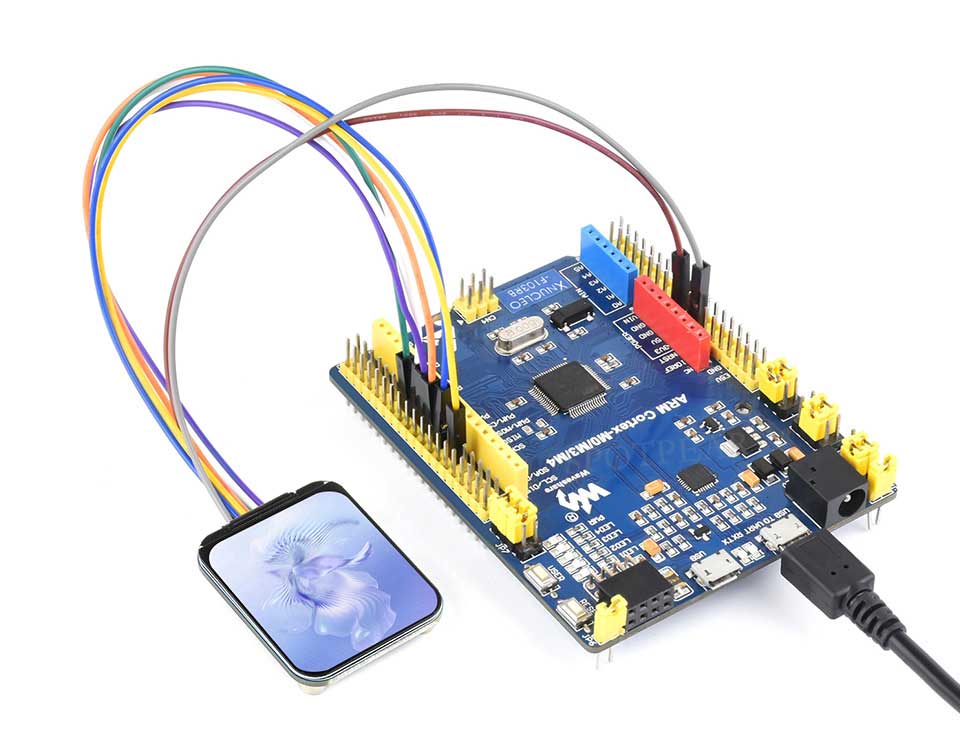

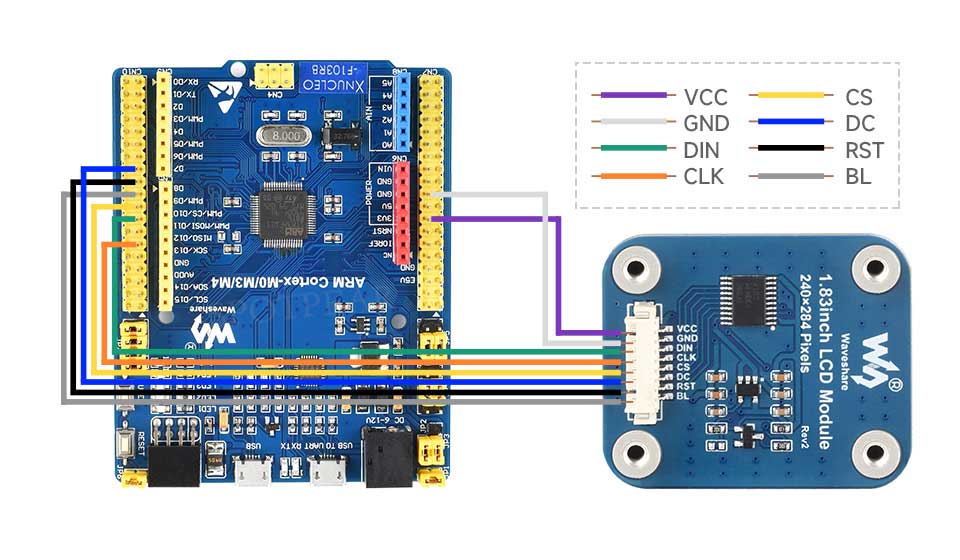

Connecting with STM32

Usage Example

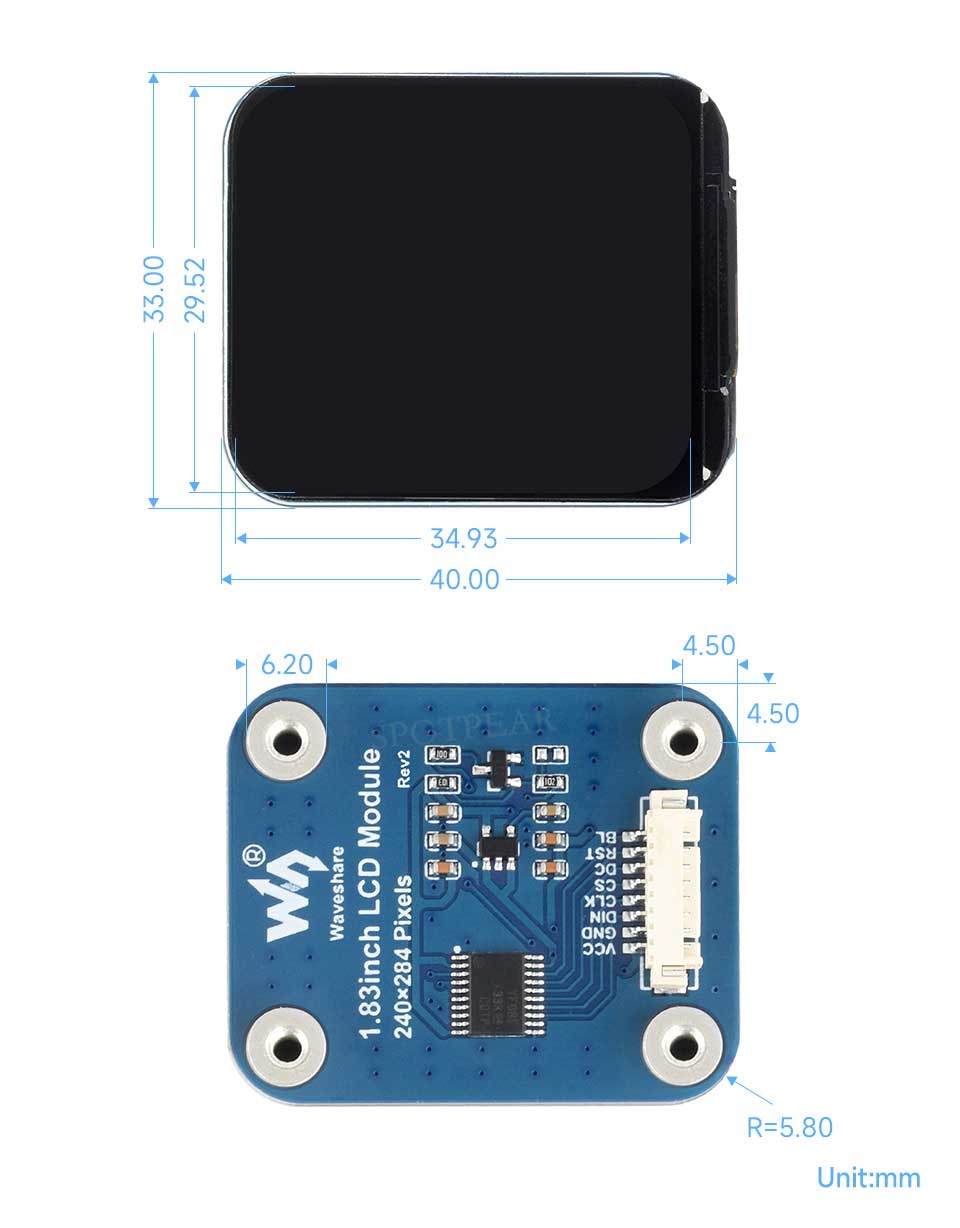

Outline Dimensions

[] 1.83inch LCD Module x1

[] GH1.25 8PIN cable ~20cm x1
