1.46inch Touch LCD Display Module, 412 × 412 Resolution, 16.7M Color, QSPI And I2C Communication Interfaces, Built-in SPD2010 Driver Chip

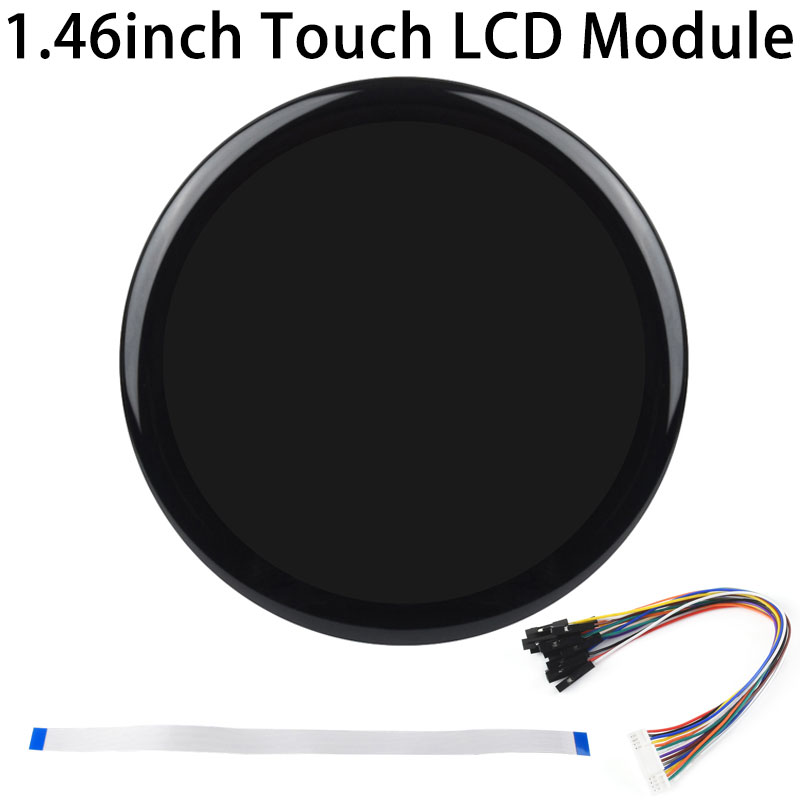

1.46inch Touch LCD Display Module

Built-In SPD2010 Display And Touch Controller Chip, Supporting QSPI
And I2C Communication Interfaces

Comes with examples for Raspberry Pi, ESP32-S3, Pico, Arduino, STM32, etc.

Features

412 × 412 resolution, 16.7M colors, clear and colorful displaying effect
High touch screen transmittance, fast response and long lifetime
Built-in SPD2010 display and touch controller chip, using QSPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi / Raspberry Pi Pico / ESP32-S3 / Arduino / STM32
Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino / STM32)

Specifications

DRIVER IC	SPD2010
OPERATING VOLTAGE	3.3V / 5V	RESOLUTION	412 × 412 pixels
DISPLAY INTERFACE	QSPI	TOUCH INTERFACE	I2C
DISPLAY PANEL	IPS	TOUCH TYPE	Capacitive touch
DISPLAY SIZE	36.96 × 36.96 (mm)	BRIGHTNESS	450 cd/㎡
MODULE SIZE	44.77 × 44.77 (mm)

Onboard Voltage Translator

Compatible With 3.3V / 5V Power Input

QSPI And I2C Control Interfaces

Options For 15PIN Connector Or 18PIN FPC Slot For Connecting
The LCD To The Host Board

PIN	DESCRIPTION	15PIN PIN NO.	18PIN PIN NO.
VCC	Power (3.3V / 5V input)	1	1
GND	Ground	2	3
LCD_IO0	QSPI data pin 0	3	5
LCD_IO1	QSPI data pin 1	4	6
LCD_IO2	QSPI data pin 2	5	7
LCD_IO3	QSPI data pin 3	6	11
LCD_SCLK	QSPI clock pin	7	4
LCD_CS	LCD chip selection, low active	8	9
LCD_TE	LCD tearing effect synchronization signal	9	10
LCD_RST	LCD reset pin, low active	10	8
LCD_BL	LCD backlight pin	11	2
TP_SDA	Touch panel data pin	12	14
TP_SCL	Touch panel clock pin	13	13
TP_RST	Touch panel reset pin, low active	14	12
TP_INT	Touch panel interrupt pin	15	15

Usage Examples

Connecting with ESP32-S3-DEV-KIT

Connecting with ESP32-S3-LCD-Driver-Board

* for reference only, please refer to the package content for the detailed part list.

Outline Dimensions

[] 1.46inch Touch LCD Module
