2-Ch GMSL Camera Adapter Board, Equipped With MAX9296A Deserializer, High-Speed And Low-Latency Serial Transmission, Compatible With Raspberry Pi 5 and Jetson Orin Nano/NX

Jetson GMSL Camera Recommend

MAX9296-GMSL-Camera-Board

MAX9296-GMSL-DESER-MODULE

ISX031C-GMSL-Camera-H100

2-Ch GMSL Camera Adapter

MAX9296A Deserializer, Compatible With Raspberry Pi 5 And Jetson Orin Nano/NX

Features

The MAX9296-GMSL-DESER-MODULE is a GMSL camera adapter that allows up to two GMSL cameras to be connected to the host board such as Raspberry Pi 5, Jetson Orin Nano and Jetson Orin NX. Compatible with both GMSL1 and GMSL2 protocol interfaces through software configuration. Adopts MAX9296A chip, specially designed for applications that require high-bandwidth and low-latency video transmission. Suitable for automatic driving, machine vision, intelligent security and other fields.
GMSL (Gigabit Multimedia Serial Link) is a high-speed serial transmission technology designed for high-bandwidth multimedia data transmission, with the advantages of long-distance, low-delay, high anti-interference and simple wiring. It is mainly used in automotive electronics and industrial applications, and is capable of transmitting high-definition video, audio, and data signals over one cable. By using coaxial or twisted-pair cables, GMSL can achieve long-distance signal transmission.

Key features include:

Supports simultaneous access to two GMSL cameras (ISX031)
Adopts MAX9296A serializer solution
Supports Raspberry Pi 5, Jetson Orin Nano, and Jetson Orin NX

Specifications

DESERIALIZER	MAXIM (ADI) MAX9296A
HOST SUPPORT	Raspberry Pi 5, Jetson Orin NX / Nano development kit
SERIALIZER MODEL SUPPORT	MAX9295, MAX96717, MAX96705, etc.
GMSL INPUT	2-ch GMSL2 (compatible with GMSL1) cameras
INPUT INTERFACE	2 × MATE_AX FAKRA Z connectors
OUTPUT INTERFACE	2 × 22PIN CSI interfaces
GMSL CAMERA SUPPORT	ISX031
POWER SUPPLY	5V input

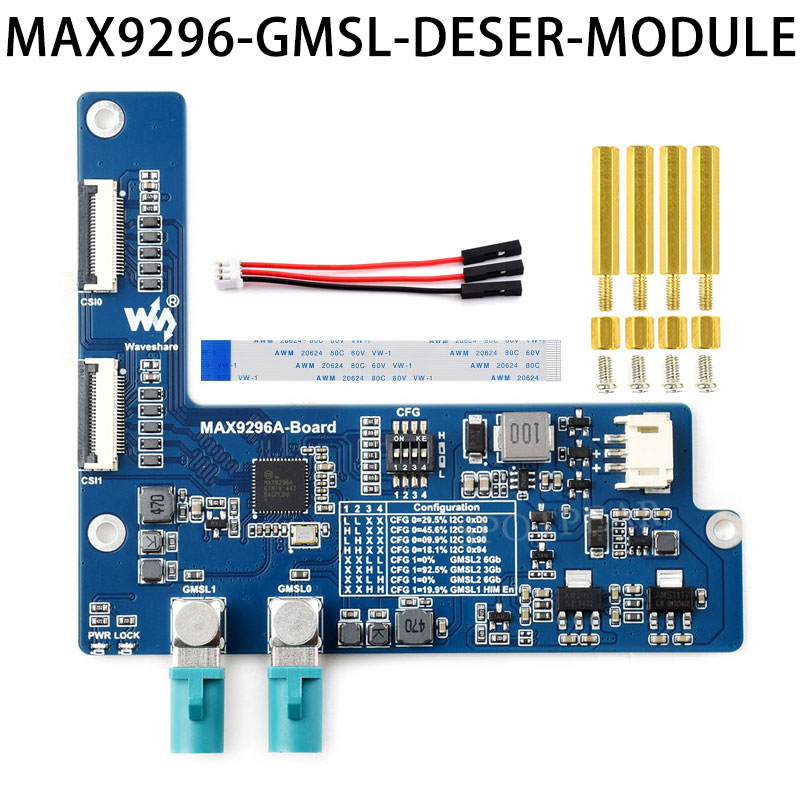

What’s On Board

Application Scenarios

Application Example

* for reference only, the Jetson Orin NX Kit and GMSL cameras are NOT included, please check the Package Content for the detailed part list.

Outline Dimensions

[] MAX9296-GMSL-DESER-MODULE
