Development Board Introduction

This product is a multimedia development board based on the ESP32-P4. It offers a rich set of human-computer interaction interfaces, including MIPI-CSI (with integrated image signal processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI. It also supports USB OTG 2.0 HS and Ethernet, and features a 40-pin GPIO expansion header compatible with some Raspberry Pi Pico expansion boards, enabling a wider range of applications. The ESP32-P4 is equipped with a RISC-V dual-core processor, supports up to 32MB of PSRAM, and features peripherals such as USB 2.0, MIPI-CSI/DSI, and H.264 encoding, meeting the needs of low-cost, high-performance, and low-power multimedia development. Furthermore, the ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure data and operational security. ESP32-P4-ETH is designed for high-performance and high-security applications, meeting the needs of embedded systems in human-computer interaction, edge computing, and I/O expansion.
Main features：

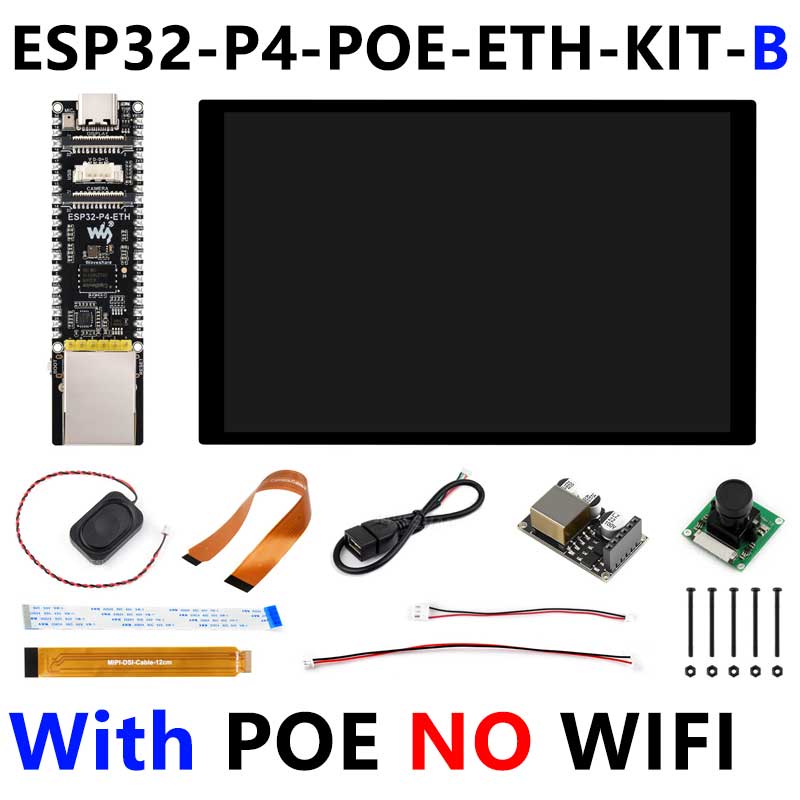

Package Selection

Examples of meal combinations

DSI capacitive touch screen

IPS fully laminated tempered glass panel with a 178° wide viewing angle and 10-point touch support for clear images and an excellent visual experience.

Screen model	10.1-DSI-TOUCH-A
Resolution	800 × 1280 (H × V)
Communication interface	MIPI-DSI (2-lane)
brightness	400cd/m² (Support customized 1000cd/m² high brightness version)
touch chip	GT9271
Dimensions	147.0 × 239.0 (mm)
Display size	135.36 × 216.58 (mm)
Pixel size	0.1692 (H) × 0.1692 (V) (mm)
Contrast	800:1
Operating temperature	0℃ ~ 60℃

(Only Development Board Package B comes with a screen)

Raspberry Pi Camera Model B

5 megapixels | Manual focus

Compatible with Raspberry Pi series motherboards

The pictures are for display only. Please refer to the configuration list for detailed configuration.

Flexible power supply options

Supports PoE and USB Type-C interface power supply
