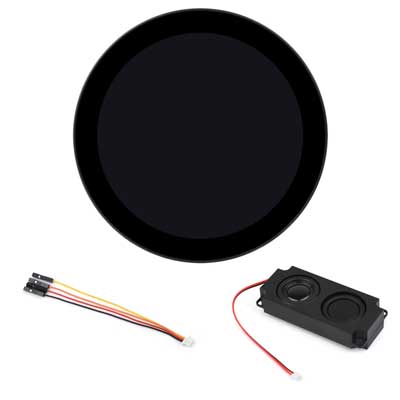

ESP32 P4 Development Board WIFI6 4 inch LCD Round Display 4inch TouchScreen 720×720 Dual Microphones

ESP32 P4 Development Board WIFI6 4 inch LCD Round Display 4inch TouchScreen 720×720 Dual Microphones

$72

Brand：SpotPear

SKU：020805400000

Date：2025-05-22 16:32

Part Number：

ESP32-P4-WIFI6-Touch-LCD-4C

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

ESP32-P4 4-inch LCD touchscreen development board 720×720 resolution 170° viewing angle Fully laminated tempered glass panel Onboard dual microphones External speaker Supports Wi-Fi 6 Bluetooth 5 (LE)

ESP32-P4 Recommend

ESP32-P4-NANO

ESP32-P4-Module-DEV-KIT

ESP32-P4-WIFI6-Touch-LCD-3.4C

ESP32-P4-WIFI6-Touch-LCD-4C

7-DSI-TOUCH-A 7inch-DSI-LCD-(H)

8-DSI-TOUCH-A

10.1-DSI-TOUCH-A

Round LCD Touch Screen Development Board

ESP32-P4 based 4-inch round screen development board

Product Features

This series of products is a dual-core and single-core RISC-V high-performance development board based on the ESP32-P4 chip. It is equipped with a 4-inch 720 × 720 resolution IPS circular touch screen; it supports a variety of human-computer interaction interfaces, including MIPI-CSI (integrated image signal processor ISP), it also supports USB OTG 2.0 HS for high-speed connection, and has an onboard 40PIN GPIO expansion interface, which is compatible with some Raspberry Pi HAT expansion boards to achieve a wider range of application adaptation. The ESP32-P4 chip integrates digital signature peripherals and a dedicated key management unit to ensure the security of data and operations. It is designed for high-performance and high-security applications, and fully meets the higher requirements of embedded applications for human-computer interface support, edge computing capabilities, and IO connection characteristics.

High-performance MCUs with RISC-V 32-bit dual-core and single-core processors
128 KB HP ROM，16 KB LP ROM，768 KB HP L2MEM，32 KB LP SRAM，8 KB TCM
Powerful image and voice processing capabilities, image and voice processing interfaces include JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP), H264 video encoder
32MB PSRAM is stacked inside the chip package, and 32MB Nor Flash is integrated outside the package
Common peripheral interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG HS, SDIO 3.0 TF card slot, dual microphones (supporting echo cancellation), speaker terminals and RTC battery terminals are brought out on the board
The board leads out 2 * 20 rows of sockets, leading out 28 remaining programmable GPIO interfaces
Security mechanisms: secure boot, flash encryption, hardware encryption accelerator, and hardware random number generator. Hardware access protection is also supported to implement access rights management (APM) and privilege separation
170° ultra-wide viewing angle
Excellent display performance, high contrast, wide viewing angle
Capacitive 10-point touch screen
Supports 10-point sensitive touch, deep integration of intuitive operation and fast response, making development efficient and convenient
1、Supports 10-point touch. The actual number of touch points depends on the software system.
2、Tempered glass panel, hardness up to 6H
3、The screen is fully laminated, the display is good, and it is dustproof
Highly integrated, powerful performance
Adopt ESP32-P4-Core module integrated design, built-in ESP32-P4, 32MB Nor Flash
Wi-Fi 6 and Bluetooth modules
The onboard ESP32-C6-MINI module expands 2.4GHz Wi-Fi 6 and Bluetooth 5 (LE) for ESP32-P4, and uses the SDIO interface protocol for communication, providing stable connection and efficient transmission.
Audio Input and Output
Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit
Meet daily audio application scenarios

Support AI voice interaction
Supports mainstream AI platforms and can be connected to online large model platforms
such as Doubao, DeepSeek and other AI models
Application Scenario
Resource Overview
ESP32-P4-Core
Integrated ESP32-P4NRW32, 32MB NOR Flash
ESP32-C6-MINI-1 module
SDIO interface protocol, expansion board Wi-Fi 6, Bluetooth 5 (LE)
MIPI CSI interface
15Pin 1.0mm pitch, supports MIPI-2lane camera
ES7210 echo cancellation algorithm chip
Echo cancellation algorithm chip, which can be used to eliminate echo and improve audio acquisition accuracy
Type-C port
USB 2.0 Full Speed interface, can be used for power supply, program burning and debugging
RTC socket
Connect a rechargeable RTC battery (only rechargeable RTC batteries are supported)
Type-C interface USB TO UART
Can be used for power supply, program burning and debugging
Power LED Light
Power indicator
Type-A port USB OTG
USB OTG 2.0 High Speed interface
ES8311 low power audio codec chip
Used to process audio encoding and decoding
speaker
PH 2.0 2P connector, supports 8Ω 2W speakers (recommended)
Chip Microphone
Microphone input and echo cancellation
MIPI DSI LCD interface
Connecting to a MIPI 2-lane display
SH1.0 4Pin socket
Used to burn firmware to ESP32-C6 modules
SH1.0 4Pin socket
Bring out the ESP32-P4 serial port for programming and debugging
40PIN expansion interface
2.54mm pitch, pins are compatible with some Raspberry Pi HAT expansion boards (pin header adapter required)
BOOT button
Press when powering on or resetting to enter download mode
Micro SD card slot
SDIO 3.0 interface protocol
RESET button
Product size
