【Board Specifications】

[] ESP32-S3-GEEK is a geek development board designed by Waveshare, onboard USB-A port, 1.14inch LCD screen, TF card slot, and other peripherals. Supports 2.4GHz WiFi and BLE 5, with integrated 16MB Flash & 2MB PSRAM, provides I2C port, UART port, and GPIO header, bringing more possibilities for your project.

[] Key features include:

[] Adopts ESP32-S3R2 chip with Xtensa® 32-bit LX7 dual-core processor, capable of running at 240 MHz

[] Built in 512KB SRAM, 384KB ROM, 2MB of on-chip PSRAM, and onboard 16MB Flash memory

[] Onboard 1.14inch 240×135 pixels 65K color IPS LCD display

[] Integrated 2.4GHz WiFi and Bluetooth LE wireless communication

-WiFi supports Infrastructure BSS in Station, SoftAP, and Station + SoftAP modes

-WiFi supports 1T1R mode with data rate up to 150 Mbps

-Bluetooth supports high power mode (20dBm)

-Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna

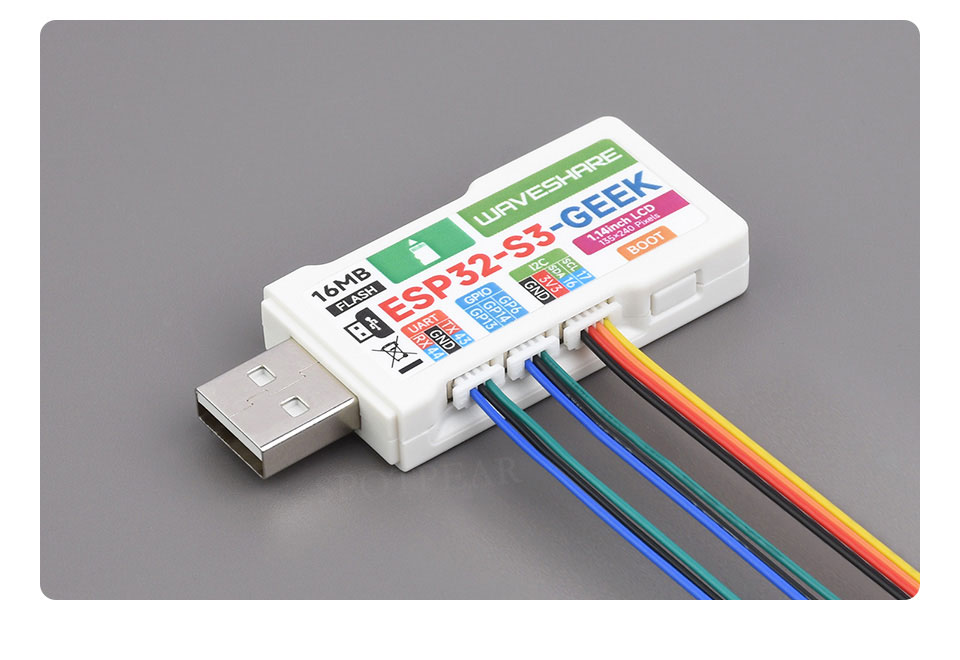

[] Onboard 3PIN UART port, 3PIN GPIO header and 4PIN I2C port

[] Equipped with plastic case and cables

[] Provides online open-source demo and resources, more convenient for learning and development

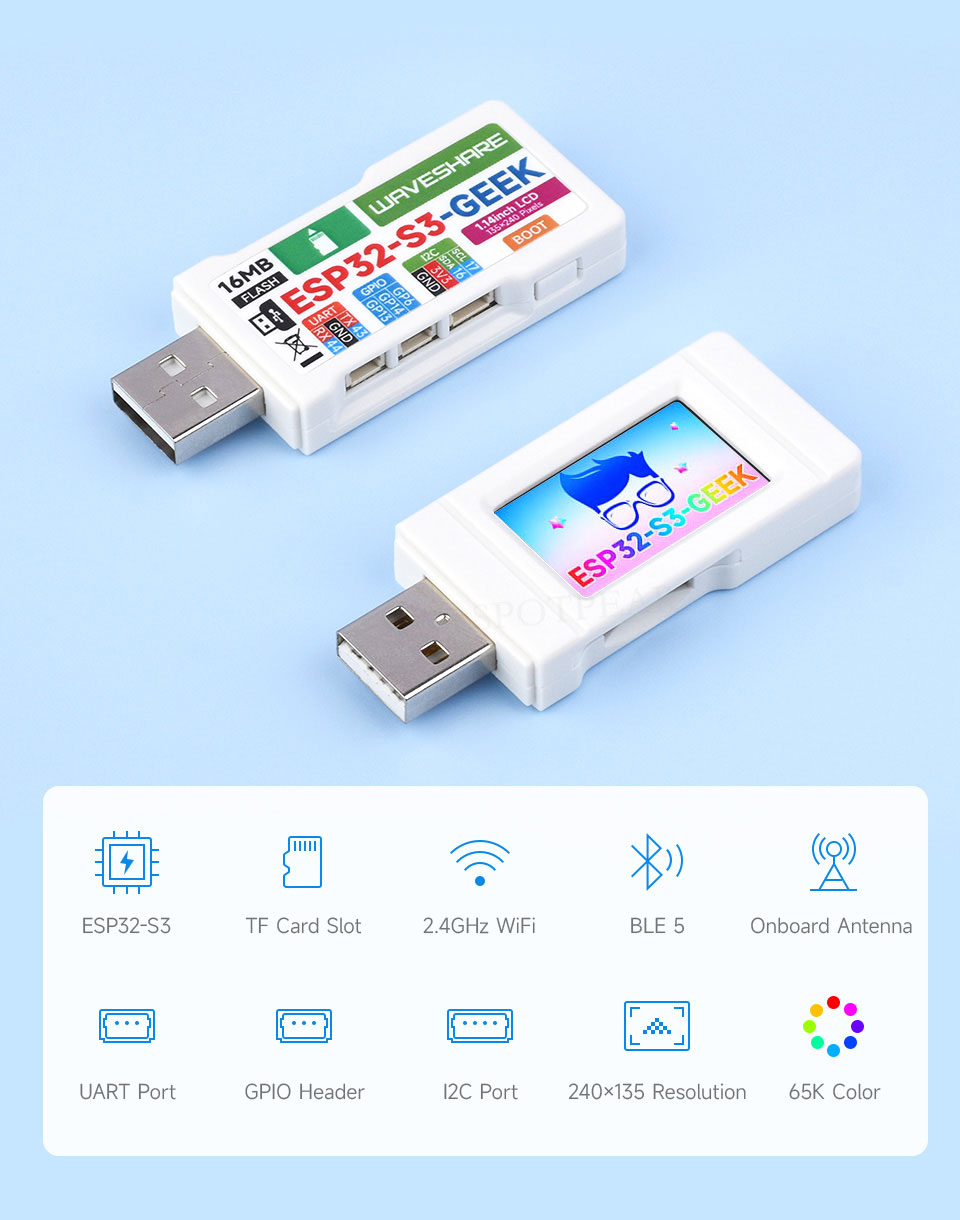

【Combines Multi Functions In One】

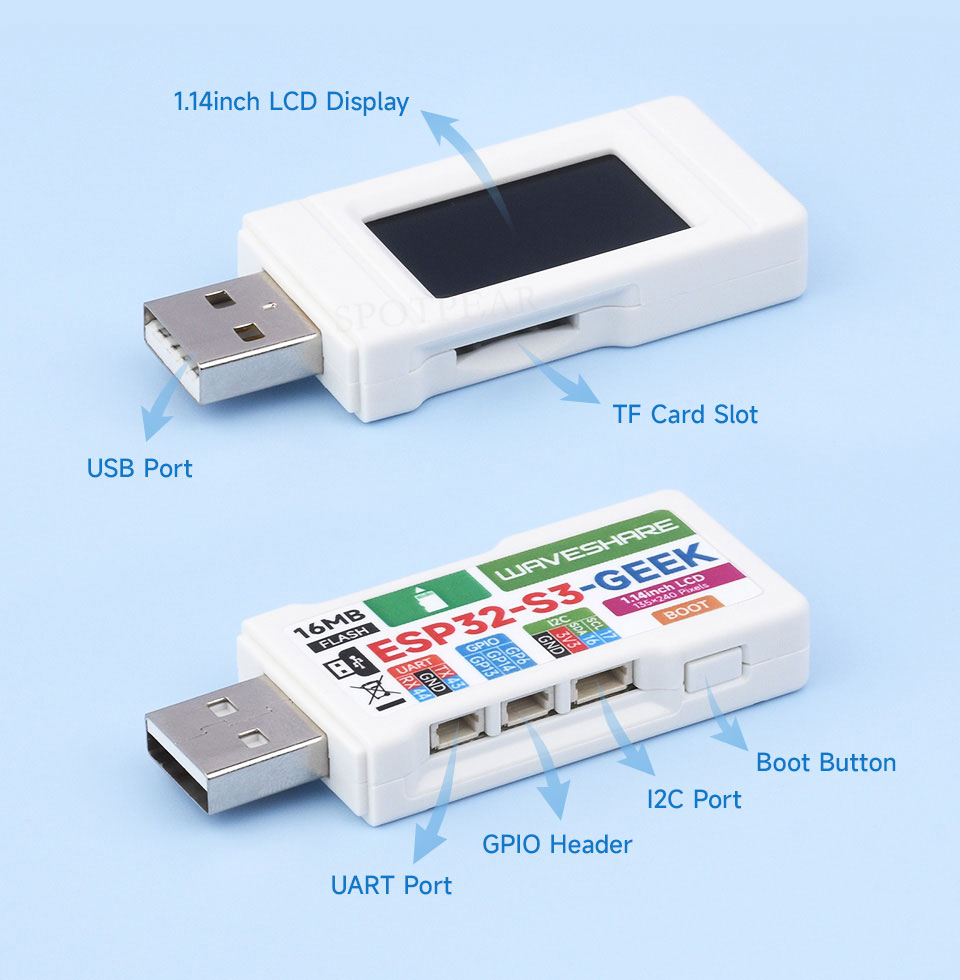

[] Onboard Multi Interfaces And 1.14inch LCD Display, Combines With WiFi & Bluetooth For More Possibilities

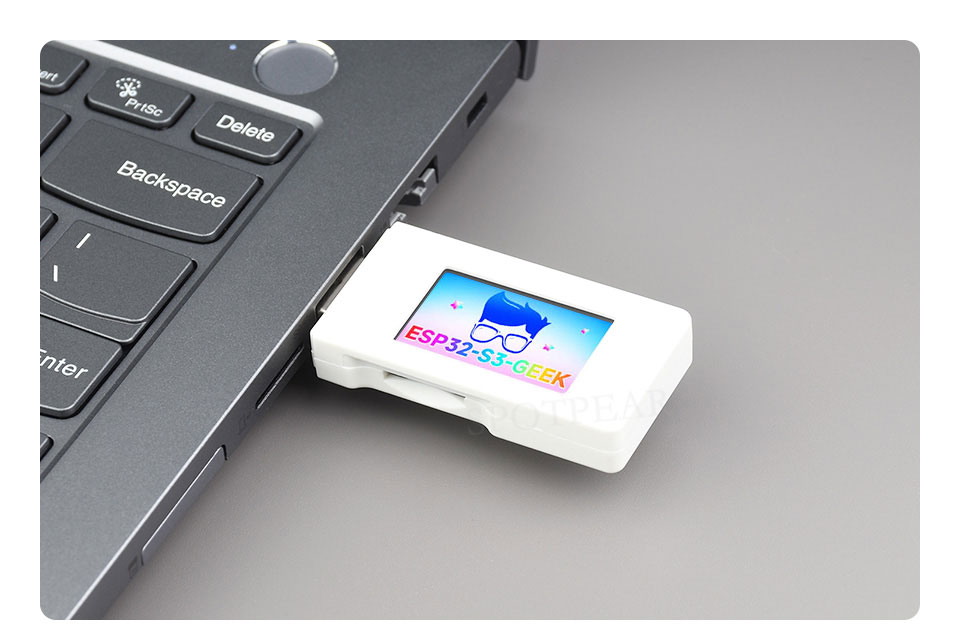

【Application Example】

[] Suitable For Creative Applications Such As Wireless USB Flash Drives, USB WiFi/Bluetooth, USB Dongle Based On ESP32-S3, As Well As For Introductory Programming Learning, Etc.

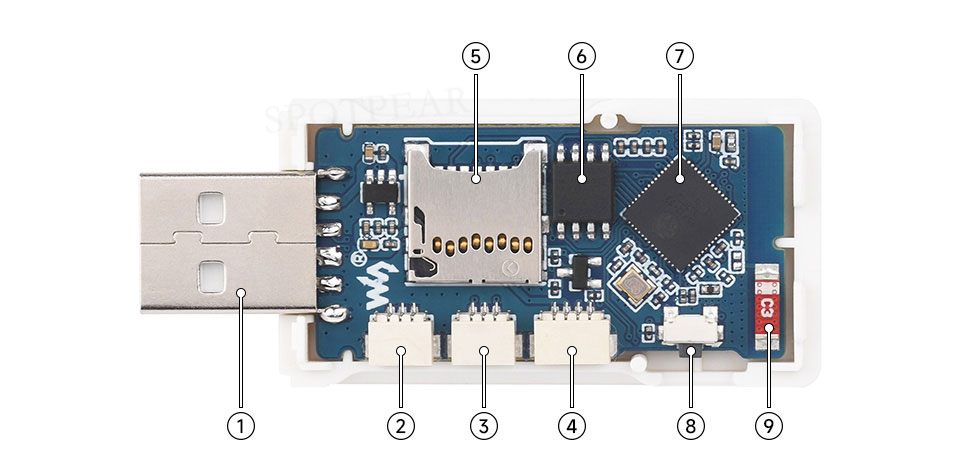

【Onboard Resources】

1. USB-A interface

2. UART port

3. GPIO header

4. I2C port

5. TF card slot

6. W25Q128JVSIQ: 16MB NOR-Flash

7. ESP32-S3

8. BOOT button

9. Onboard antenna

【Outline Dimensions】

[] ESP32-S3-GEEK and cables x1
