WP5335 User Guide

Overview

Introduction

The WP5335 is a high-performance PWM-controlled digital servo with a compact form factor that is reliable and durable. The servo has a fast response speed and a high torque output with a stall torque of up to 35kg.cm. In terms of control, the servo adopts the control signal of pulse width modulation, which can achieve an angle control range of 180°. Its internal control system uses a digital comparator architecture to ensure precise angle control and stable performance. At the same time, the servo is also equipped with an electronic protection function, which can automatically output protection torque during stalling, effectively protecting the safe operation of the servo and the system. WP5335 is suitable for robots, robotic arms, RC vehicles, remote control engineering models, and other application scenarios that require high performance and durability.


Features

  • High Torque Output: With 7.4V operating voltage, the stall torque can reach 35kg.cm
  • Copper-Aluminum Gears, Dual Ball Bearings: Adopts a combination of copper and aluminum teeth, and the gear shaft is thickened to 2.0. Optimized center distance, double ball bearing design, longer life.
  • Digital Comparator: With a digital comparator control system, it realizes precise angle control and positioning to ensure accurate and stable movement.
  • High Flexibility: With a 180° rotation angle and adjustable control parameters, it can adapt to various needs.


Specifications

WP5335 Parameters
Electrical parametersOperating voltage range4V-8.4VMechanical specificationsDimensions55*20*43(mm)
No-load speed0.192sec/60°(52RPM)@7.4VMechanism limit angleUnlimited
No-load current180mA@7.4VBearing typeBall bearing
Stall torque35kg.cm@7.4VWeight67±1g
Stall current3.9A@7.4VOutput shaft25T/5.9mm
Static current6mA@7.4VReduction ratio1/356
Rated load11.8kg.cm@7.4VGear backlash≤0.5°
Rated current1200mA@7.4VLinkage play
Kt constant10kg.cm/AAngle sensorCarbon film potentiometer


Pinout Definition

NameColorDescription
GNDBrownPower Negative
VCCRedPower Positive (4-8.4V)
SignalYellowPWM control signal input


Control Features

  • Control signal: PWM
  • Control system type: Digital comparator
  • Operating angle: 180°
  • Bilateral angle difference​: ≤1°
  • Centering Deviation: ≤1°
  • Neutral position: 1500μsec
  • Dead band width: ≤4μsec
  • Pulse width range: 500→2500μsec


Working with Raspberry Pi

You can use the Servo Driver HAT in conjunction with a Raspberry Pi to drive the WP5335 PWM servo.

Power Supply Description

  • Connect the battery to the extension board and servo through the green terminal (VIN and GND) on the right. The input voltage range of this terminal is 6~12V. The input voltage is regulated by the onboard 5V voltage regulator to provide a 5V power supply to the servo, with a ​​maximum output current of 3A​​.
  • Please use independent power supply for Raspberry Pi and do not reverse power supply from the servo expansion board to Raspberry Pi, as such power supply is unsafe.
Note: If connecting a high-power servo, there may be insufficient power supply because the entire board is powered by 5V. This 5V powers both the Raspberry Pi and the servo. If the power is too high, it can lower the Raspberry Pi's 5V power supply, causing under-voltage and a reboot of the Raspberry Pi. Remove the on-board 0R resistor and connect the right-side green VIN terminal to an external power source (6-12V).


Hardware Connection

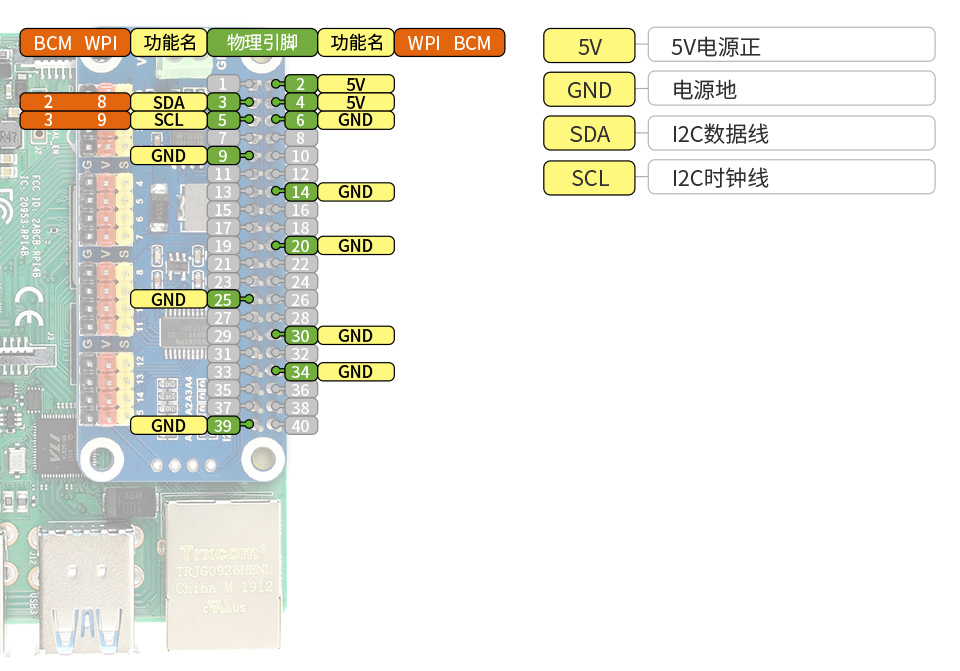

According to the figure below, the 40PIN interface of the Servo Driver HAT is defined as follows:

  • Connection between Servo Driver HAT and Raspberry Pi
Servo extension board pinsRaspberry Pi pinsDescription
VCC3.3V or 5VExpansion board power supply (3.3V recommended)
GNDGNDShared ground
SDASDA (GPIO2)I2C data pin
SCLSCL (GPIO3)I2C clock pin


Software Configuration

Enable I2C Interface

Open the Raspberry Pi terminal and input the following command to enter the configuration interface:

sudo raspi-config

Select "Interface Options" -> "I2C" -> "Yes" to enable the I2C interface


After startup, enter the following command to restart the Raspberry Pi:

sudo reboot


Python Demo

1. Download the demo and unzip it

sudo apt-get install p7zip-full
Wget https://files.waveshare.com/wiki/common/Servo_Driver_HAT.7z
7zr x Servo_Driver_HAT.7z -r -o./Servo_Driver_HAT
sudo chmod 777 -R Servo_Driver_HAT
cd Servo_Driver_HAT/Raspberry\ Pi/

2. Run test demo

#If it is python2
cd python/
sudo python PCA9685.py
#If it is python3
cd python3/
sudo python3 PCA9685.py

Result: The servo is connected to channel 0, and the servo of channel 0 rotates from 0° to 180°, then from 180° to 0°, and the cycle is repeated.
