Camera Module 3 Sensor Assembly User Guide

Overview

Specifications

  • Sensor: Sony IMX708
  • Resolution: 11.9 million pixels
  • Horizontal/vertical: 4608 × 2592 pixels
  • Sensor size: 7.4mm diagonal
  • Pixel size: 1.4μm×1.4μm
  • The standard model integrates an infrared cut-off filter, while the NoIR model does not have one
  • Phase detection autofocus
  • Operating temperature: 0°C ~ 50°C

Module Comparison

StandardNoIRWideWide NoIR
Focus range10 cm~∞10 cm~∞5 cm~∞5 cm~∞
Focal length4.74 mm4.74 mm2.75 mm2.75 mm
Diagonal viewing angle75°75°120°120°
Horizontal viewing angle66°66°102°102°
Vertical viewing angle41°41°67°67°
Aperture value (F-stop)F1.8F1.8F2.2F2.2
Infrared sensingNoYesNoYes

Working with Raspberry Pi

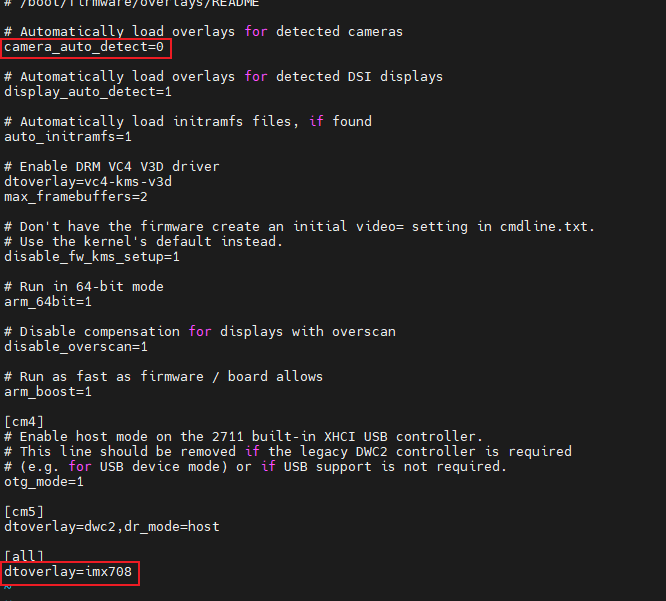

Edit/Configure File

sudo vi /boot/firmware/config.txt
  1. Change camera_auto_detect=1 statement to camera_auto_detect=0
  2. Add the statement dtoverlay=imx708 at the end of the line, save, and reboot


Check Current Camera Device

rpicam-hello --list-camera

You can see the camera model and resolution

Available cameras
-----------------
0 : imx708 [4608x2592 10-bit RGGB] (/base/axi/pcie@1000120000/rp1/i2c@80000/imx708@1a)
    Modes: 'SRGGB10_CSI2P' : 1536x864 [120.13 fps - (768, 432)/3072x1728 crop]
                             2304x1296 [56.03 fps - (0, 0)/4608x2592 crop]
                             4608x2592 [14.35 fps - (0, 0)/4608x2592 crop]

Camera Preview

  • Note: The test screen is output to the HDMI screen, so you need to connect the screen to the Raspberry Pi first when testing
rpicam-hello -t 0

Continuous Autofocus and Preview

 rpicam-hello --autofocus-mode continuous -t 0
