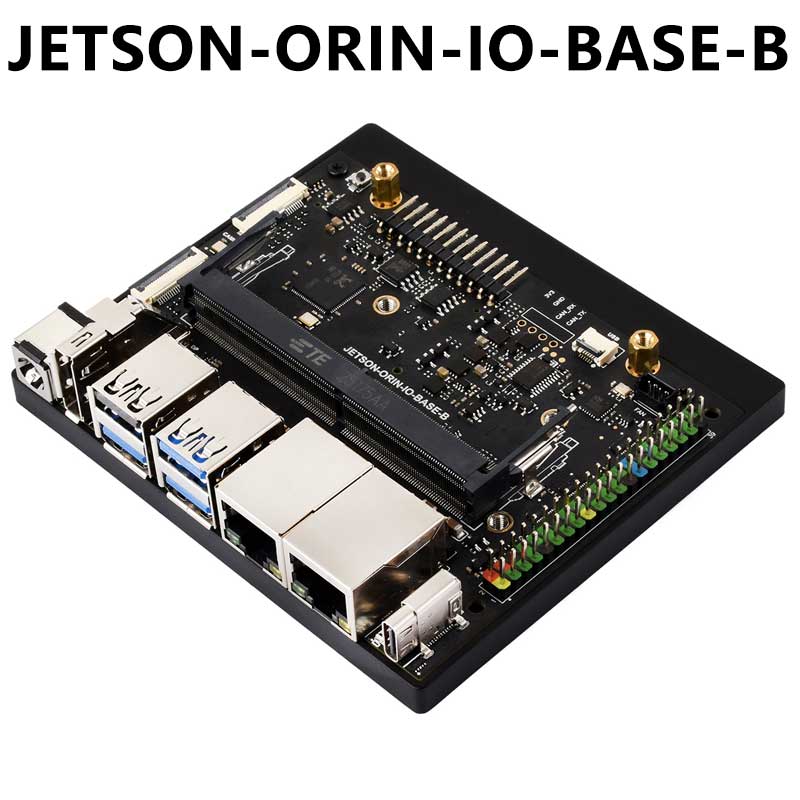

JETSON-ORIN-IO-BASE-B
Jetson Orin Nano / NX SPOTPEAR Adapter Baseboard

Support Orin core modules

Connecting to the camera
Expanded two CSI interfaces for face recognition, road sign recognition, line recognition, and license plate recognition
AI intelligent application scenarios

Note: You need to purchase an adapter cable to connect to the camera
Seven USB ports
Four-way Type-A + one-way Type-C + two-way USB2.0 cable
It can connect to a variety of peripherals, the USB 3.2 Gen 2 interface supports up to 10Gbps data transmission, the Type-C interface can be used for system burning, and it has two USB2.0 cable interfaces on board.

4K HD output
Supports DisplayPort high-definition interface

Color 40-pin GPIO interface
Use color to distinguish and expand resources such as I2C, SPI, I2S, UART and GPIO

Flexible storage and wireless expansion
The baseboard expands with two M.2 Key M ports for connecting solid-state drives.
It also extends with an M.2 Key E port for connecting wireless network cards, reducing device cable constraints.

The pictures are for display only. This product does not include a solid-state drive or wireless network card.
Resource Introduction

- 260-pin DO-DIMM connector
For connecting to Jetson Orin Nano/NX modules
- 12-pin pin header
Pins for the power button, reset button, debug serial port, force recovery setting, auto power-on enable, and power indicator light are included.
- Onboard power button
- 2-way 22-pin CSI camera interface
- DC power connector
Supports wide voltage, supports access to 9V ~ 19V voltage, and the interface size is 5.5 × 2.5 plug
- DisplayPort
Support for 4K displays
- 4 USB Type-A ports
3-way USB 3.2 Gen2 supports 10Gbps data transfer,
1 USB2.0 port supports 480Mbps data transmission
- 2.5G network port
RJ45 2.5G Ethernet port
- Ethernet interface
RJ45 Gigabit Ethernet port
- USB Type-C port
Can be used for system burning and data communication
- 40-pin pin header
- 4-pin PWM fan connector
- 2-way USB2.0 cable interface
- M.2 Key E
Wireless network card
- 2-way M.2 Key M
Compatible with NVMe solid-state drives
- RTC backup battery connector
PH1.25 2P
Product size
