ESP32-C5 Dual-Band Wi-Fi 6 Development Board with 240MHz RISC-V Processor. ESP32-C5-WROOM-1 Series Modules. Multi-Protocol RISC-V MCU.

ESP32-C5 Dual-Band Wi-Fi 6 Board

Supports development environments such as ESP-IDF and Arduino

Onboard ESP32-C5-WROOM-1 series module

Version selection

Product Features

The ESP32-C5-WIFI6-KIT is a development board designed by Weixue Electronics based on the ESP32-C5-WROOM-1 module, specifically for dual-band Wi-Fi and multi-protocol IoT gateway scenarios. The ESP32-C5 is Espressif's single-core RISC-V chip, supporting Wi-Fi 6 dual-band (2.4GHz and 5GHz). It also integrates BLE 5, Zigbee, and Thread protocols, making it a flexible smart home hub or cross-protocol communication gateway. Equipped with a 240MHz RISC-V processor, 384KB of SRAM, 16MB of Flash, and 4MB or 8MB of PSRAM (optional), it can stably handle concurrent multi-protocol stacks and moderate-load applications. Developers can leverage mature development frameworks such as ESP-IDF or Arduino for rapid prototyping and product implementation, making it suitable for practical IoT scenarios such as smart gateways and multi-protocol device access.
Key features:

Uses the ESP32-C5-WROOM-1 series module, equipped with a RISC-V 32-bit processor with a main frequency of up to 240MHz
Integrates 384KB SRAM, 320KB ROM, and 16MB Flash, and provides optional versions of 4MB or 8MB PSRAM
Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (with support for Zigbee 3.0 and Thread) wireless communications for excellent RF performance
Onboard battery charging management module, reserved 3.7V MX1.25 lithium battery interface, can be powered by external battery
Reversible USB Type-C port
Leading out a variety of peripheral interfaces, stamp hole design, convenient for welding and integration into the baseboard designed by the user
Supports multiple low-power working states and can flexibly adjust the balance between communication distance, data rate and power consumption to meet the power consumption requirements of various application scenarios

Supports ESP-IDF, Arduino

Complete SDK and open source tutorials are provided to make it easy to get started and can be quickly embedded into applications

Based on ESP32-C5

Espressif's ESP32-C5 is a multi-protocol RISC-V MCU that supports dual-band Wi-Fi 6,
Bluetooth (LE) and Zigbee/Thread, designed for IoT applications requiring efficient wireless transmission

Supports dual-band Wi-Fi 6 / BLE 5 / Thread / Zigbee

Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications for excellent RF performance

Functional Block Diagram

Pinout

Pin interface compatible with ESP32-S3-DevKitC-1 development board

Resource Introduction

Product Display

Product size

[] ESP32-C5-WIFI6-KIT-N16R4

[] ESP32-C5-WIFI6-KIT-N16R4-M

[] ESP32-C5-WIFI6-KIT-N16R8

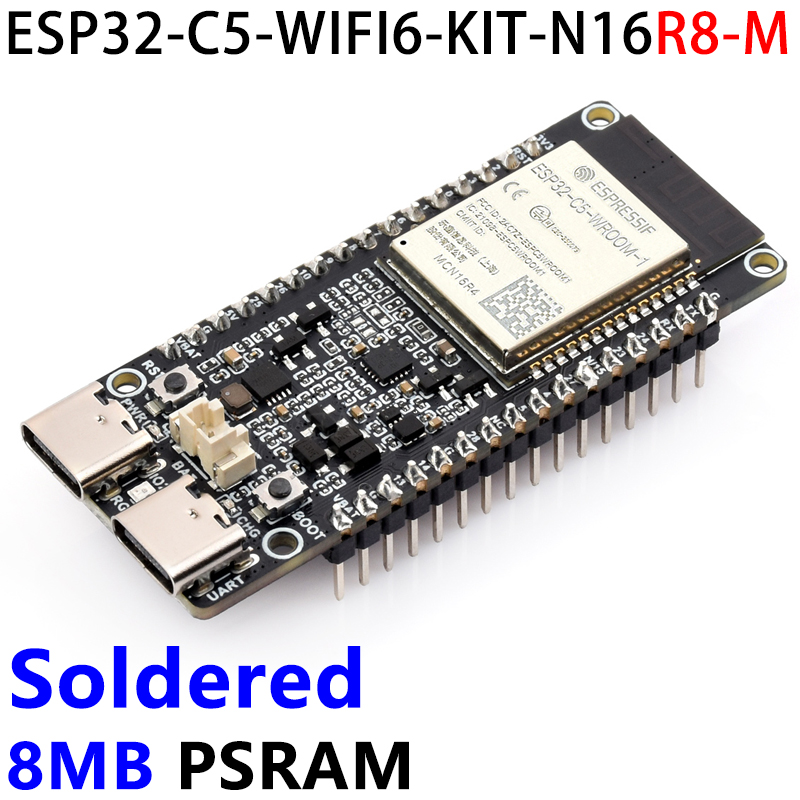

[] ESP32-C5-WIFI6-KIT-N16R8-M
