Electronic EYE 0.71 inch Round Double LCD Display Dual Screen For Arduino Raspberry Pi ESP32 Pico STM32
Electronic EYE 0.71 inch Round Double LCD Display Dual Screen For Arduino Raspberry Pi ESP32 Pico STM32
Electronic EYE 0.71 inch Round Double LCD Display Dual Screen For Arduino Raspberry Pi ESP32 Pico STM32
Electronic EYE 0.71 inch Round Double LCD Display Dual Screen For Arduino Raspberry Pi ESP32 Pico STM32
Electronic EYE 0.71 inch Round Double LCD Display Dual Screen For Arduino Raspberry Pi ESP32 Pico STM32

Electronic EYE 0.71 inch Round Double LCD Display Dual Screen For Arduino Raspberry Pi ESP32 Pico STM32

$13.9

Brand：WaveShare
SKU：030502900000
Date：2024-12-05 00:00
Part Number：
0.71inch-Dual-Eye-LCD-Moudle
No：
- +
In Stock
Add to cart
Ask a Question

Electronic EYE 0.71inch Round Double LCD Display Screen Arduino Raspberry Pi ESP32 Pico STM32

【Ntoes】

[] It Can not be used alone. It Can not display after power on.

[] It needs to be used with an additional motherboard such as Arduino/STM32

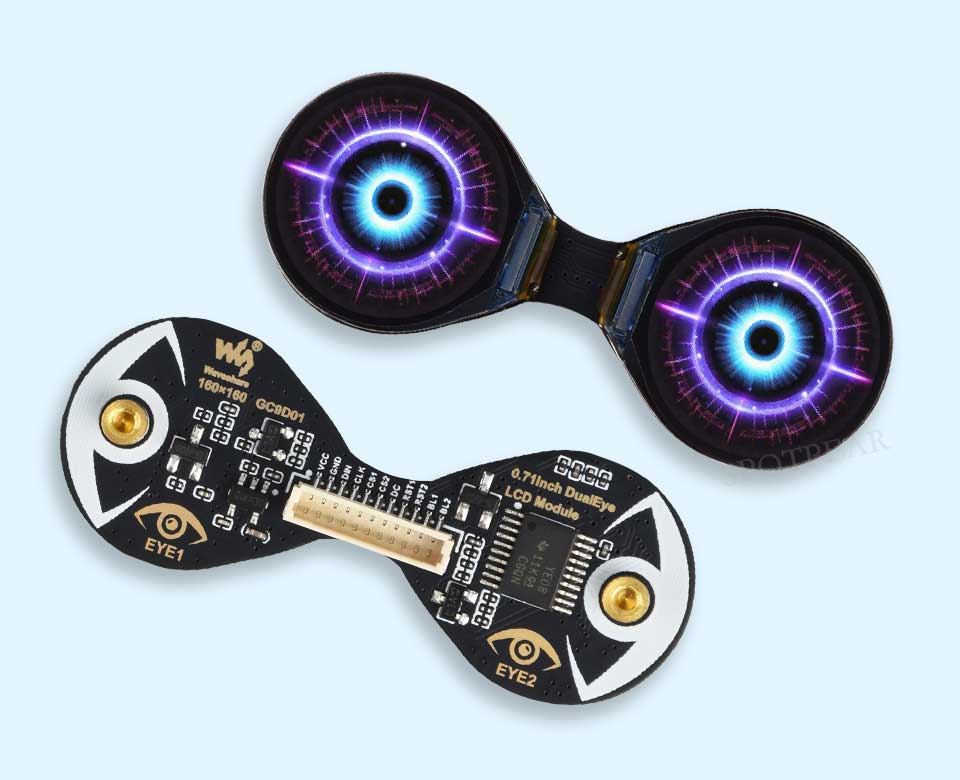

【Product display】


* for reference only, the ESP32-C3-Zero is NOT included.

0.71inch Double Eye LCD Module

IPS Panel, 160×160 Resolution, Embedded GC9D01 Driver, Using SPI Bus

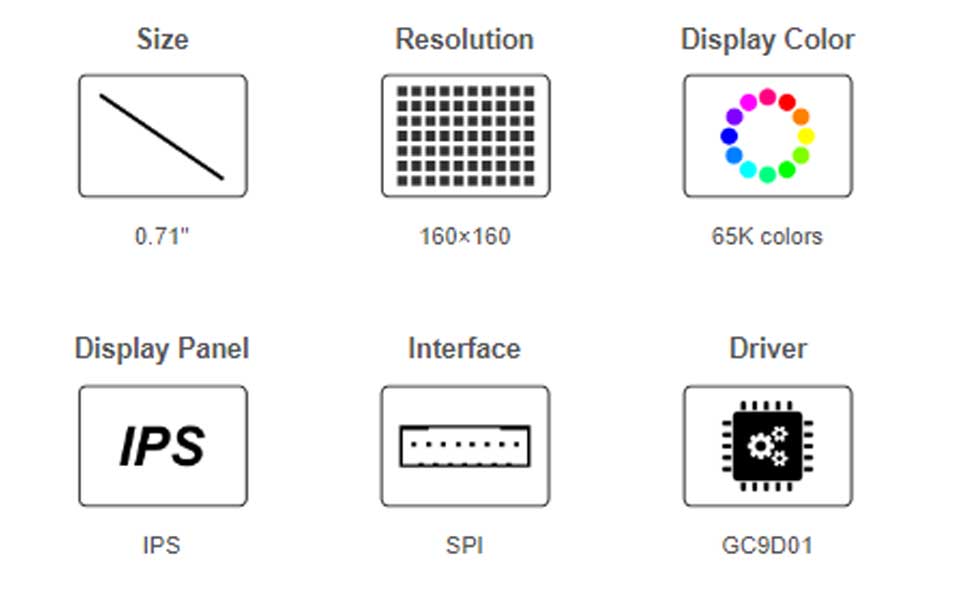

Features At A Glance
  • The double eye LCD module consists of two 0.71inch round LCD displays, IPS panel, wide viewing angle
  • 160×160 resolution, 65K colors, clear and colorful displaying effect
  • SPI interface, minimizes required IO pins, supports controller boards like ESP32 / Arduino
Specifications
OPERATING VOLTAGE3.3V / 5VRESOLUTION160 × 160 pixels
COMMUNICATION INTERFACESPIDISPLAY SIZE18 × 18 (mm)
DISPLAY PANELIPSPIXEL PITCH37.5 × 112.5 (μm)
DRIVERGC9D01DIMENSIONS20.00×51.00 (mm)

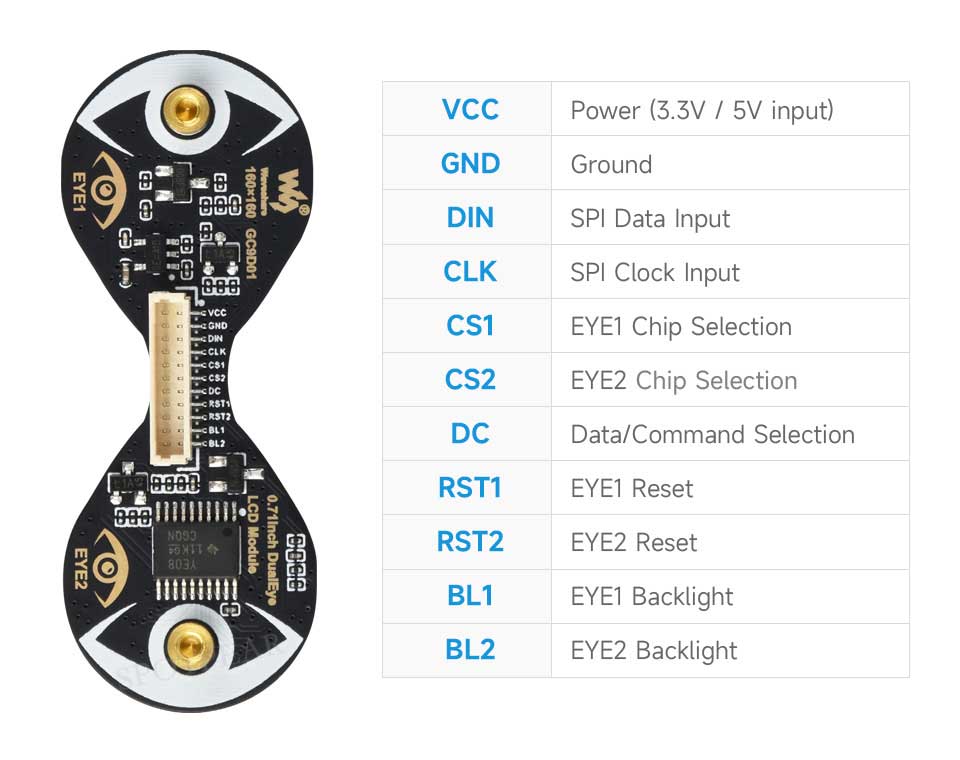

Controlled Via SPI Bus

Supports Controller Boards Like ESP32 / Arduino

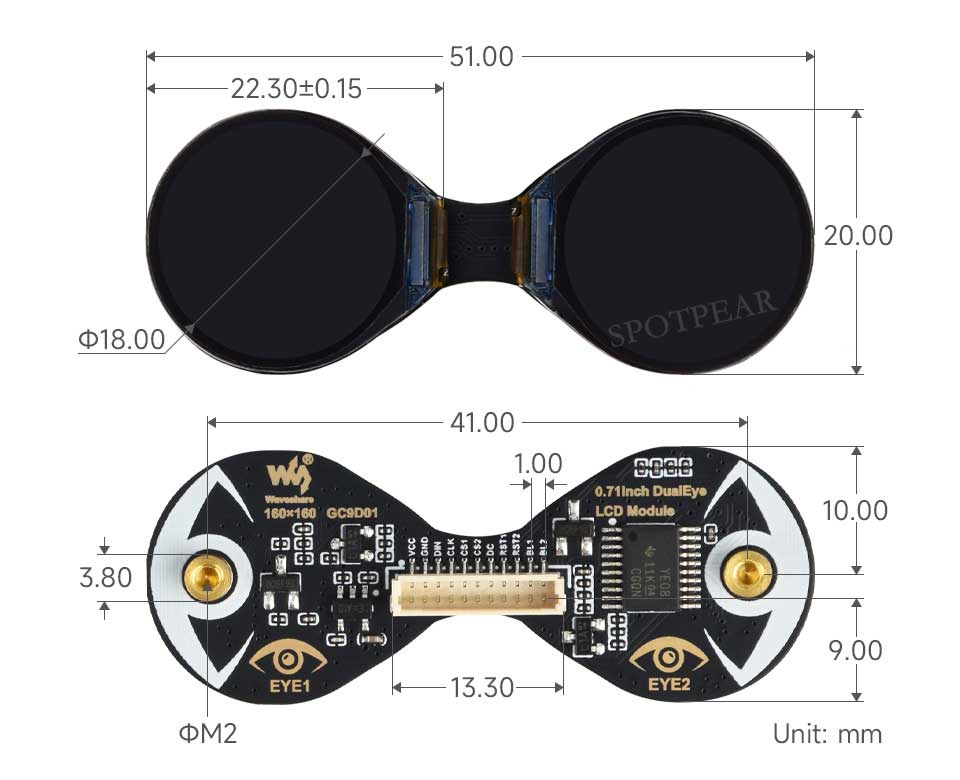

Outline Dimensions
