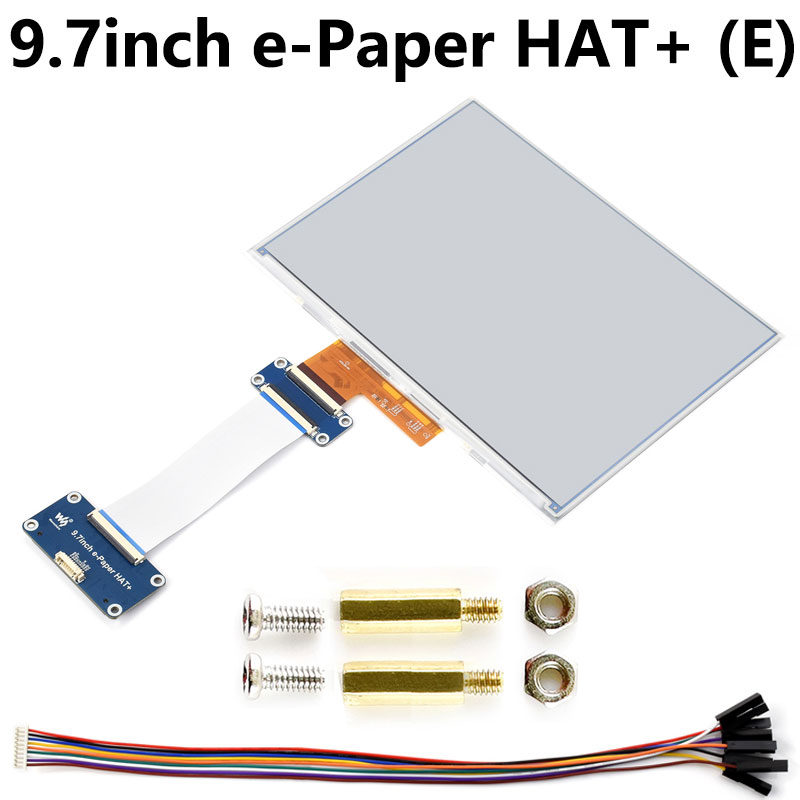

Raspberry Pi 9.7 inch e-Paper HAT+ (E) E-Ink E6 Full color 1120x784 Screen Display For Arduino /STM32 /ESP32/Jetson Nano

Raspberry Pi 9.7 inch e-Paper HAT+ (E) E-Ink E6 Full color 1120x784 Screen Display For Arduino /STM32 /ESP32/Jetson Nano

$122.9

Brand：SpotPear

SKU：010610100000

Date：2026-09-29 14:25

Part Number：

9.7inch e-Paper (E) 9.7inch e-Paper HAT+ (E)

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

9.7inch E Ink Spectra 6 (E6) Full Color Display, 1120×784 Pixels, SPI Communication Interface, Optional For HAT+ Standard Driver HAT, E-ink Display

9.7″ Full Color E-Paper Display

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for shelf labels, industrial instruments...

Version Options

Features At A Glance

Adopts E Ink Spectra 6 (E6) technology, featuring high contrast and high color saturation
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with online development resources and manual (e-Paper driver HAT circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / ESP32 / STM32)
Optional for e-Paper Driver HAT:
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi and Jetson Nano series boards
- Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
- Adapting SPI interface for connecting with controller boards like Raspberry Pi / Jetson Nano / Arduino / ESP32 / STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

OPERATING VOLTAGE	Raw display: 3.3V	DISPLAY COLOR	E6 full color (E Ink Spectra 6)
OPERATING VOLTAGE	with Driver HAT: 3.3V/5V	DISPLAY COLOR	E6 full color (E Ink Spectra 6)
INTERFACE	3-wire SPI, 4-wire SPI	GREY SCALE	2
OUTLINE DIMENSIONS	Raw display: 210.8 × 154.9 × 0.74mm	FULL REFRESH TIME	30s
OUTLINE DIMENSIONS	e-Paper driver HAT: 65.00 × 30.50mm	FULL REFRESH TIME	30s
DISPLAY SIZE	201.60 × 141.12mm	TOTAL REFRESH POWER	<0.6W
DOT PITCH	0.18 × 0.18mm	STANDBY CURRENT	<0.01uA (almost none)
RESOLUTION	1120 × 784 pixels	VIEWING ANGLE	>170°

E Ink Spectra 6 Technology

E Ink Spectra 6 is a newly launched full color e-paper technology that brings fresh vitality to the e-paper industry with excellent color performance, high resolution and high contrast.
Adopts red, yellow, and blue as the primary colors, it offers more possibilities for e-paper color display, featuring high contrast and high saturation to make images clearer and colors brighter.

More Advanced Performance

The Resolution Is Up To 200ppi, Features A Wider Range Of Operating Temperature And Faster Screen Refresh Time. And It Is More Power-Saving, Aligning With ESG Trends For Energy Efficiency And Carbon Reduction

Innovative Microcup Full Color Technology Platform

Using White, Red, Yellow, And Blue Charged Particles To Produce Six Primary Colors, And Employing Dithering Technology To Create Vivid And Saturated Full Color Images.

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Optional For E-Paper Driver HAT

Standard Raspberry Pi 40PIN GPIO Header, Suitable For Raspberry Pi And Jetson Nano Series Boards

* for reference only, the Raspberry Pi is NOT included.

Onboard SPI Control Interface
On E-Paper Driver HAT

For Use With Controller Boards Like Raspberry Pi / Jetson Nano / Arduino /
ESP32 / STM32

PWR	Power control pin
BUSY	Busy status output
RST	External reset, low active
DC	Data / Command selection (high for data, low for command)
CS	SPI chip selection (low active)
SCLK	SPI SCLK pin
DIN	SPI MOSI pin
GND	Ground
VCC	3.3V/5V

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Outline Dimensions

[] 9.7inch e-Paper (E)

[] 9.7inch e-Paper HAT+ (E)
