1.85inch Touch LCD Display Module, 360 × 360 Resolution, 262K Color, QSPI And I2C Communication, Built-in ST77916 Display Driver Chip And CST816S Touch Control Chip

1.85inch Touch LCD Display Module

Built-In ST77916 Display Driver Chip And CST816S Capacitive Touch Control Chip

Comes with examples for ESP32, Raspberry Pi Pico, and STM32, etc.

Features

360 × 360 resolution, 262K colors, clear and colorful displaying effect
High touch screen transmittance, fast response and long lifetime
Built-in ST77916 display driver chip and CST816S capacitive touch control chip, using QSPI and I2C communication respectively, minimizes the required IO pins, supports controller boards like ESP32-S3 / Raspberry Pi Pico / STM32, etc
Comes with online development resources and manual (examples for ESP32 / Raspberry Pi Pico / STM32, etc)

Specifications

OPERATING VOLTAGE	3.3V / 5V	RESOLUTION	360 × 360 pixels
BRIGHTNESS	450 cd/㎡	CONTRAST	1200:1
DISPLAY DRIVER IC	ST77916	TOUCH DRIVER IC	CST816S
DISPLAY INTERFACE	QSPI	TOUCH INTERFACE	I2C
DISPLAY PANEL	IPS	TOUCH TYPE	Capacitive touch
DISPLAY SIZE	45.68 × 45.68 (mm)	DISPLAY COLOR	262K
MODULE SIZE	55 × 55 (mm)

Onboard Voltage Translator

Compatible With 3.3V / 5V Power Input

QSPI And I2C Control Interfaces

Onboard 15PIN GH1.25 And 18PIN FPC Connectors For Host Board Connection

PIN	DESCRIPTION	15PIN PIN NO.	18PIN PIN NO.
VCC	Power (3.3V / 5V input)	1	1
GND	Ground	2	3
LCD_IO0	QSPI data pin 0	3	5
LCD_IO1	QSPI data pin 1	4	6
LCD_IO2	QSPI data pin 2	5	7
LCD_IO3	QSPI data pin 3	6	11
LCD_SCLK	QSPI clock pin	7	4
LCD_CS	LCD chip selection, low active	8	9
LCD_TE	LCD tearing effect synchronization signal	9	10
LCD_RST	LCD reset pin, low active	10	8
LCD_BL	LCD backlight pin	11	2
TP_SDA	Touch panel data pin	12	14
TP_SCL	Touch panel clock pin	13	13
TP_RST	Touch panel reset pin, low active	14	12
TP_INT	Touch panel interrupt pin	15	15

Usage Examples

ESP32-S3-DEV-KIT

ESP32-S3-LCD-Driver-Board

* for reference only, please refer to the package content for the detailed part list.

Outline Dimensions

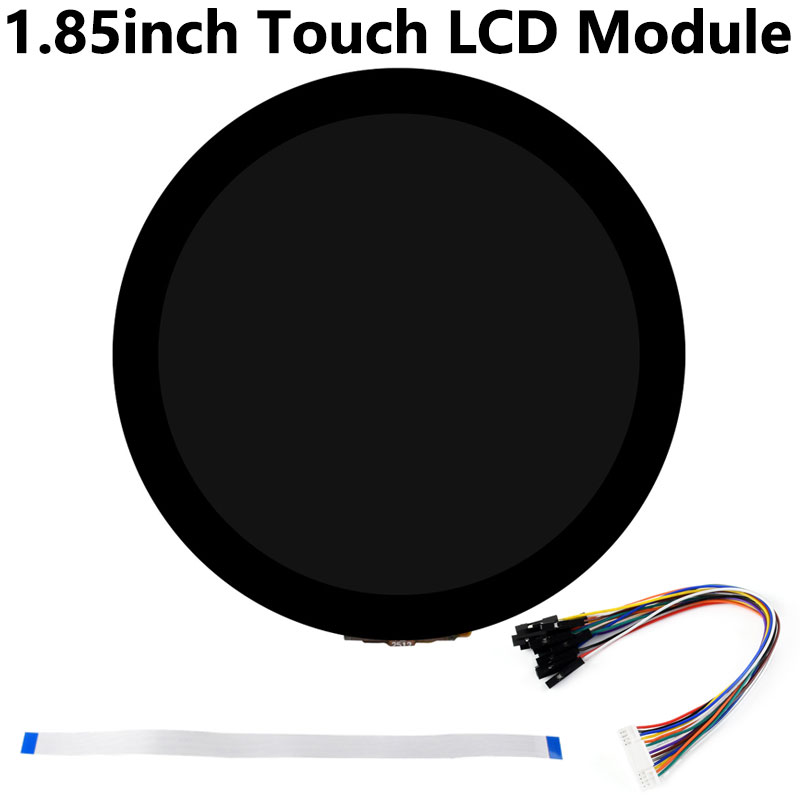

[] 1.85inch Touch LCD Module
