Raspberry Pi CM5 Gigabit Ethernet Port Industrial Computer with RJ45 Aluminum Alloy Radiating Case

Raspberry Pi CM5 Gigabit Ethernet Port Industrial Computer with RJ45 Aluminum Alloy Radiating Case

$82.99

Brand：SpotPear

SKU：010537900000

Date：2026-09-07 16:21

Part Number：

CM5-HMI-BOX-A CM5-HMI-BOX-B

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

Industrial Computer For Raspberry Pi Compute Module 5 (NOT included), 1000M Ethernet RJ45 port, Supports RS485 And 4G/5G Communication

Industrial Computer Based On
Compute Module 5

Designed For Raspberry Pi Compute Module 5

* the Raspberry Pi CM5 is NOT included.

Version Options

All versions come with an aluminum alloy case and power supply adapter,
please refer to the package content for the detailed part list.

Specifications

CM5 SOCKET	Suitable for all variants of Compute Module 5
NETWORKING	1000M Ethernet RJ45 port
USB	USB 3.2 Gen1 port × 2
USB	USB 2.0 port × 2
VIDEO	HDMI port × 1, supports 4K display output
M.2	M.2 M KEY (PCIe Gen2/3 × 1, 2230 / 2242 / 2260 / 2280)
M.2	M.2 B KEY, supports connecting 4G / 5G communication module
STORAGE	TF card socket for Compute Module 5 Lite (without eMMC) variants
SERIAL INTERFACE	Options for 2 × RS485 + 2 × RS232 version or 4 × RS485 version
SERIAL INTERFACE	1 × CAN with up to 1Mbps communication rate
DIGITAL INPUT/OUTPUT	2 × digital outputs + 2 × digital inputs
ANALOG INPUT	2 × ADC analog inputs (Supports 4 ~ 20mA current acquisition by desoldering components)
FAN HEADER	5V, 2 × 4PIN JST-SH PWM fan headers (Select one)
BUZZER	1-ch controllable buzzer
OTHER	Onboard EEPROM and encryption chip
POWER INPUT	7V ~ 36V wide voltage range screw terminal, 5V 5A Type-C port
DIMENSIONS	132.50 × 92.00 × 34.50 (mm)

Connecting With Compute Module 5

Standard CM5 Socket Suitable For Compute Module 5 Lite / EMMC Series Module

* for reference only, please refer to the package content for detailed part list

4G / 5G Module Compatibility

Compatible With Communication Modules With M.2 B KEY Interface

* An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2, SIM8260G-M2, and SIM8262E-M2.

Supports Connecting To M.2 NVMe Drive

Faster Reading/Writing Speed Compared To The TF Card Slot Of Raspberry Pi, Greatly Improving Reading/Writing Efficiency Of The System Or Files, Supports Booting Pi5 From NVME Solid State Drive

* for reference only, please refer to the package content for detailed part list.

Applicable M.2 Drive Sizes

NVMe Drive Slot Support

* Only supports the NVMe Protocol Solid State Drives.

Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

Supports Rail Mounting And VASE Mounting

Reserved Rail-Mount Buckle And VASE Mounting Holes For More Convenient Installations

* for reference only, comes with rail-mount buckle and is compatible with VESA mounting.

Heat Dissipation Design

Aluminum Alloy Case Enables Large-Area Heat Conduction And Dissipation, Combined With Heat Sink Fins, Better Heat Dissipation

What's On Board

CM5 socket
suitable for all variants of Compute Module 5
TF card slot
for connecting a TF card with pre-burnt system (Lite variant ONLY)
Type-C port
for power supply, eMMC flashing, or USB OTG
FAN connector
for connecting cooling fan, 5V, 4PIN JST-SH PWM fan connector (parallel with fan connector ⑧, only one connector can be used to connect a fan at a time)
Serial communication indicators
Dual MIPI interfaces
for connecting to DSI displays or CSI cameras
RTC Batt header
supports RTC Batt for powering the RTC
FAN connector
for connecting cooling fan, 5V, 4PIN JST-SH PWM fan connector (parallel with fan connector ④, only one connector can be used to connect a fan at a time)
5V output header
PSW power button
Long press to force power off, short press to soft power off or on
BOOT button
press before powering on to enter the burning mode
System function indicators
M.2 M KEY
supports 2280 / 2260 / 2242 / 2230 NVMe Solid State Drives or AI modules

M.2 B KEY
supports connecting 4G/5G communication module
RS485 terminal resistor jumper
No function for RS232
RS485 / RS232 interface
Options for 2 × RS485 + 2 × RS232 version or 4 × RS485 version
CAN terminal resistor jumper
Multi-function interface
1 × CAN interface with up to 1Mbps, 2 × digital inputs, 2 × digital outputs, and 2 × analog inputs
DC power screw terminal
supports DC 7V ~ 36V power supply
Buzzer
Power-Loss protection capacitors
Charging enable jumper
Set the jumper to ON to charge the supercapacitor. Charging automatically stops when the capacitor is fully charged
HDMI port
supports 4K output
Dual USB 3.0 ports
2 × USB 3.2 Gen1 Type-A port with up to 5Gbps rate
Dual USB 2.0 ports
2 × standard USB 2.0 Type-A port
1000M Ethernet RJ45 port
supports 10M / 100M / 1000M network connections
Nano SIM card slot

How To Install

* for reference only, please refer to the package content for detailed part list.

Application Example

Suitable For Raspberry Pi Applications In Remote Communication Or Other Industrial Situations

* for reference only, the display, keyboard, and mouse are NOT included, please purchase separately.

Outline Dimensions

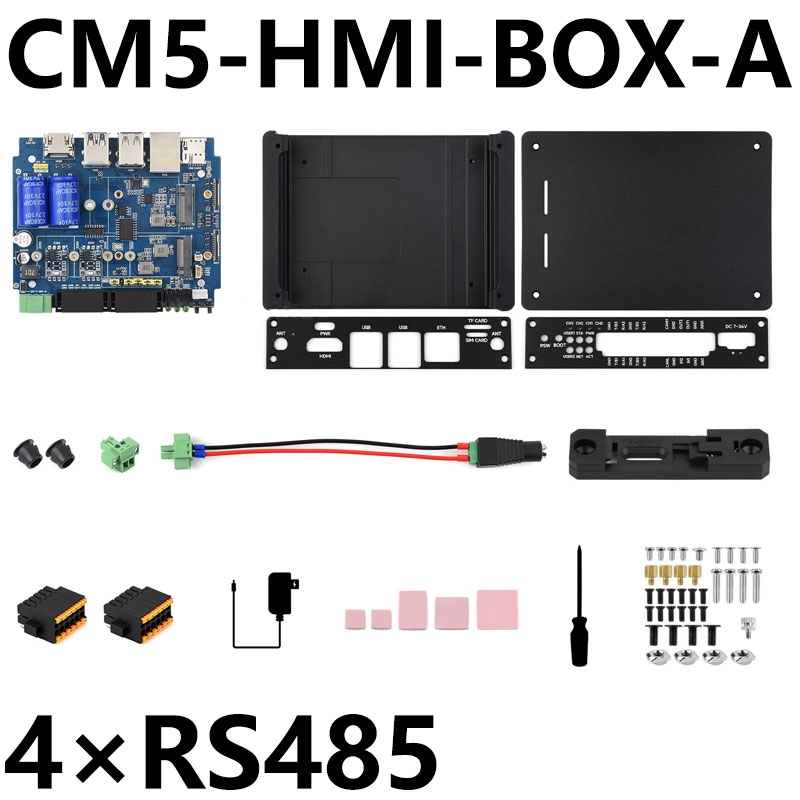

[] CM5-HMI-BOX-A

[] CM5-HMI-BOX-B
