Luckfox Lyra Pi series is a cost-effective Linux development board based on Luckfox Core3506 series modules, designed to provide developers with a simple and efficient development platform. This product supports a variety of high-speed interfaces, including MIPI DSI, RMII, SDIO and USB, which can meet a variety of application scenarios. The low-speed interface adopts Rockchip Matrix IO design, which enables the pins supporting this design to share 98 multiplexing functions, and can freely combine PWM, UART, I2C, SPI and I2S, etc., for rapid development and debugging.

Development board version

Selection comparison

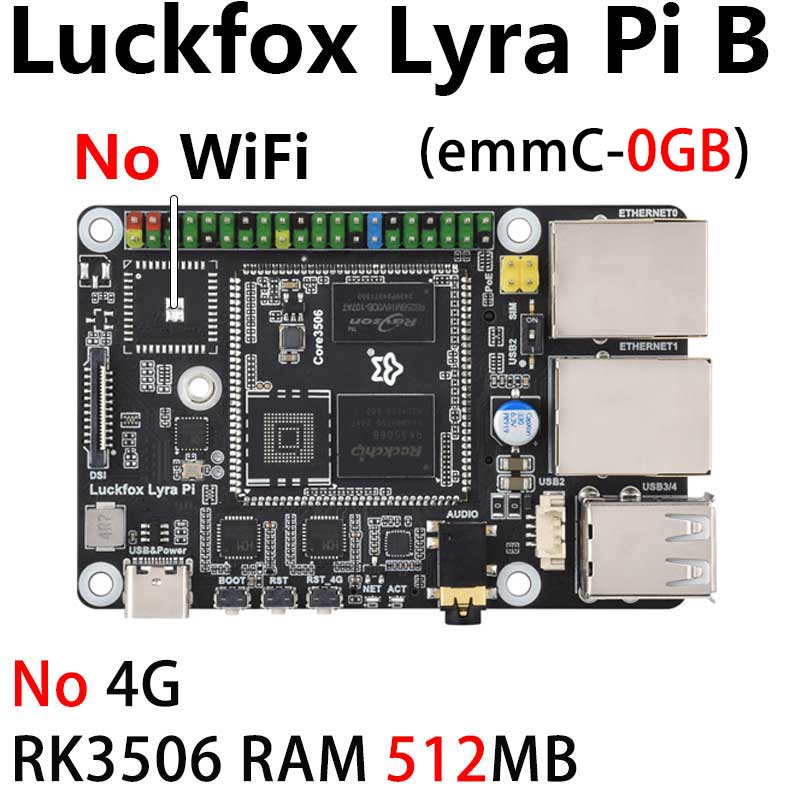

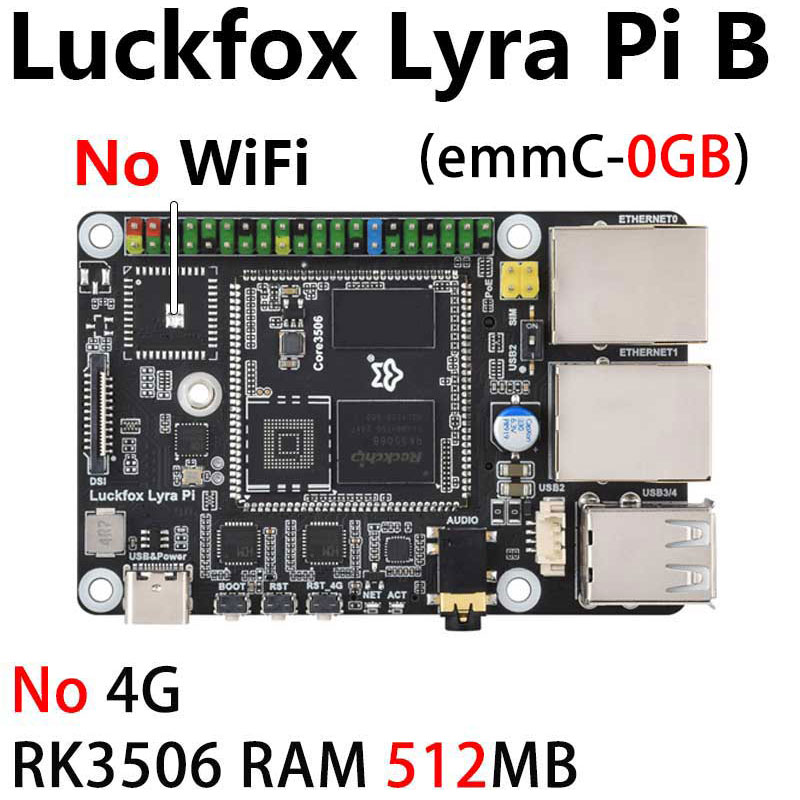

model	PI A	PI B	PI A W	PI B W
processor	Tri-core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0
Memory	Onboard 512MB DDR3L
USB	Native USB OTG2.0 × 1 HUB expansion USB HOST2.0 × 3
Screen interface	MIPI DSI 2-lane
GPIO	23 Rockchip Matrix IO pins + 5 GPIO pins
Default storage medium	eMMC (8GB)	Micro SD card (Need to be purchased separately)	eMMC (8GB)	Micro SD card (Need to be purchased separately)
Wireless network	-		Onboard 2.4GHz Wi-Fi 6 / Bluetooth 5.2 / BLE

SIM7600G-H-M.2

SIM7600G-H-M.2 is an LTE Cat 4 module that supports wireless communication modes such as LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS and EDGE. It uses an M.2 form factor and can be integrated into the Luckfox Lyra Pi series.

Wi-Fi 6 and Bluetooth modules

Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2/BLE modules

Stable connection, efficient transmission

Reserved PoE module interface

The power supply mode of the development board is more flexible

USB Expansion

Expand 2 × USB-A HOST and MX1.25 USB ports through USB HUB

4G module M.2 interface

The MX1.25 USB interface can be switched to the 4G module M.2 interface through the DIP switch

Only supports the 4G module SIM7600G-H-M.2
