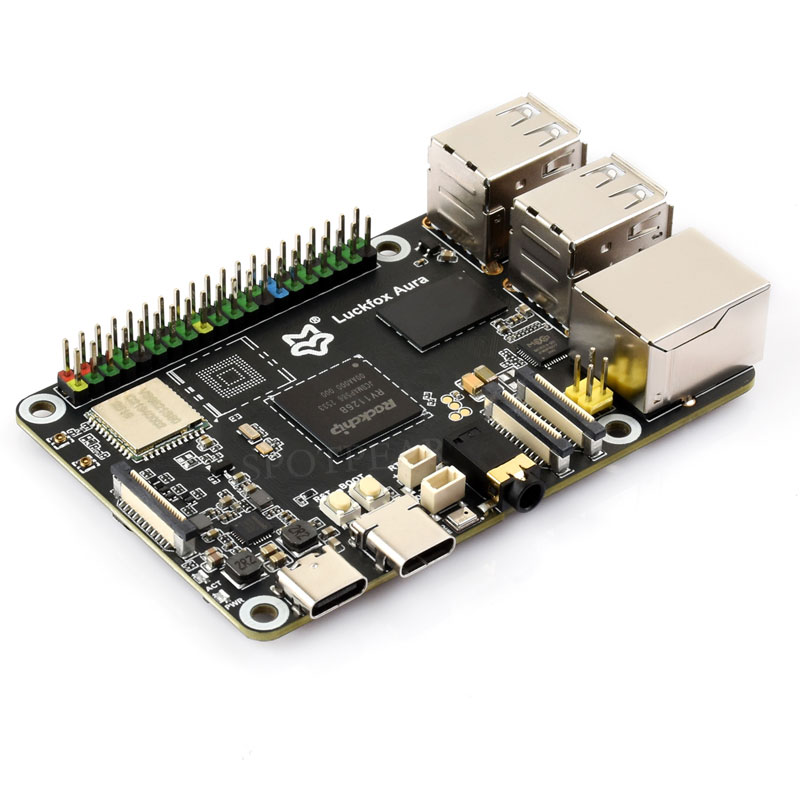

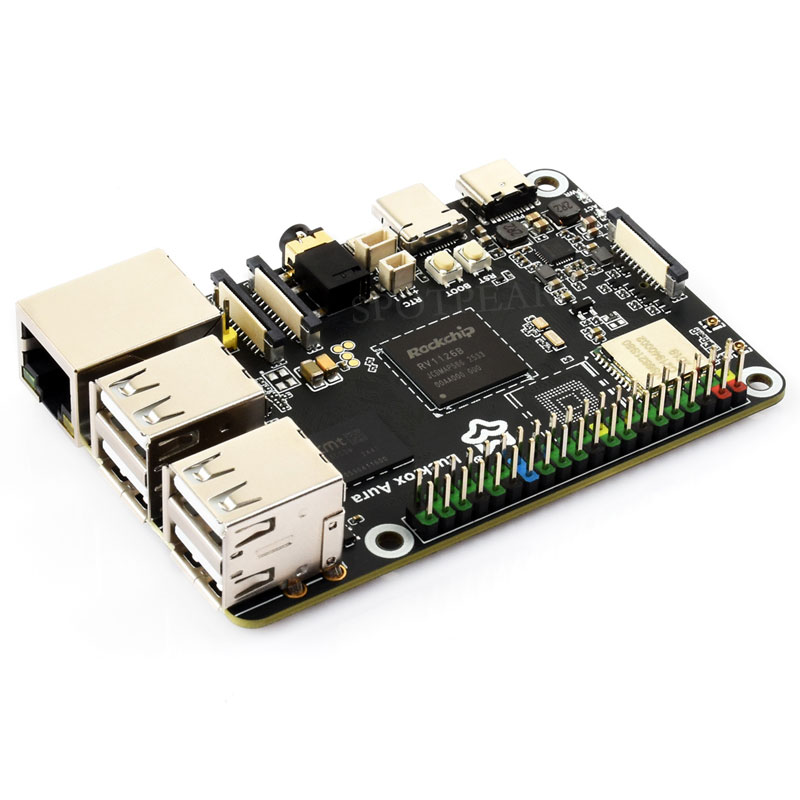

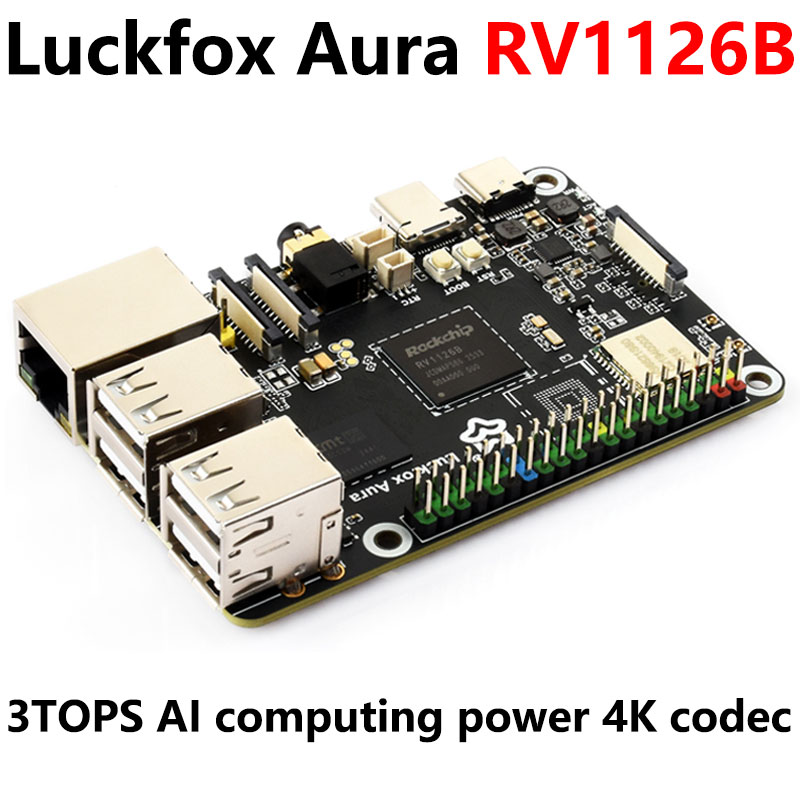

Luckfox Aura
High-Performance Linux Development Board Based on Rockchip RV1126B

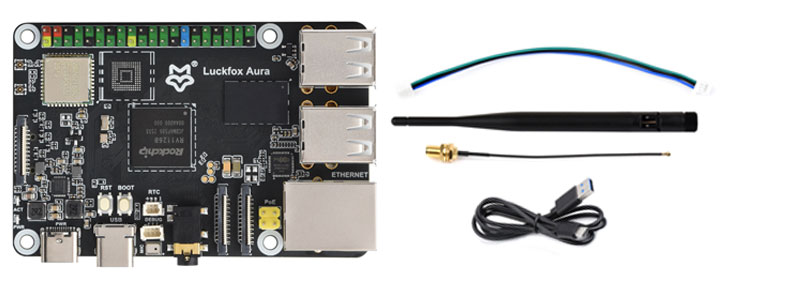

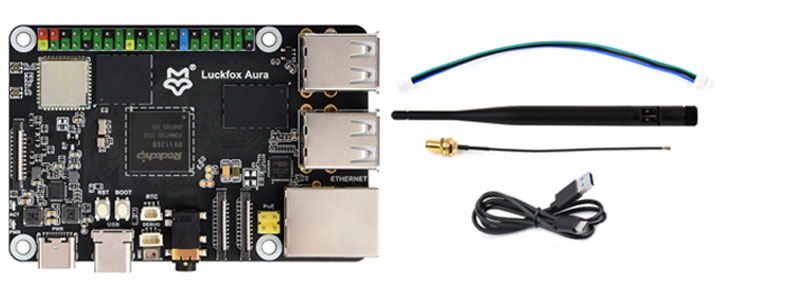

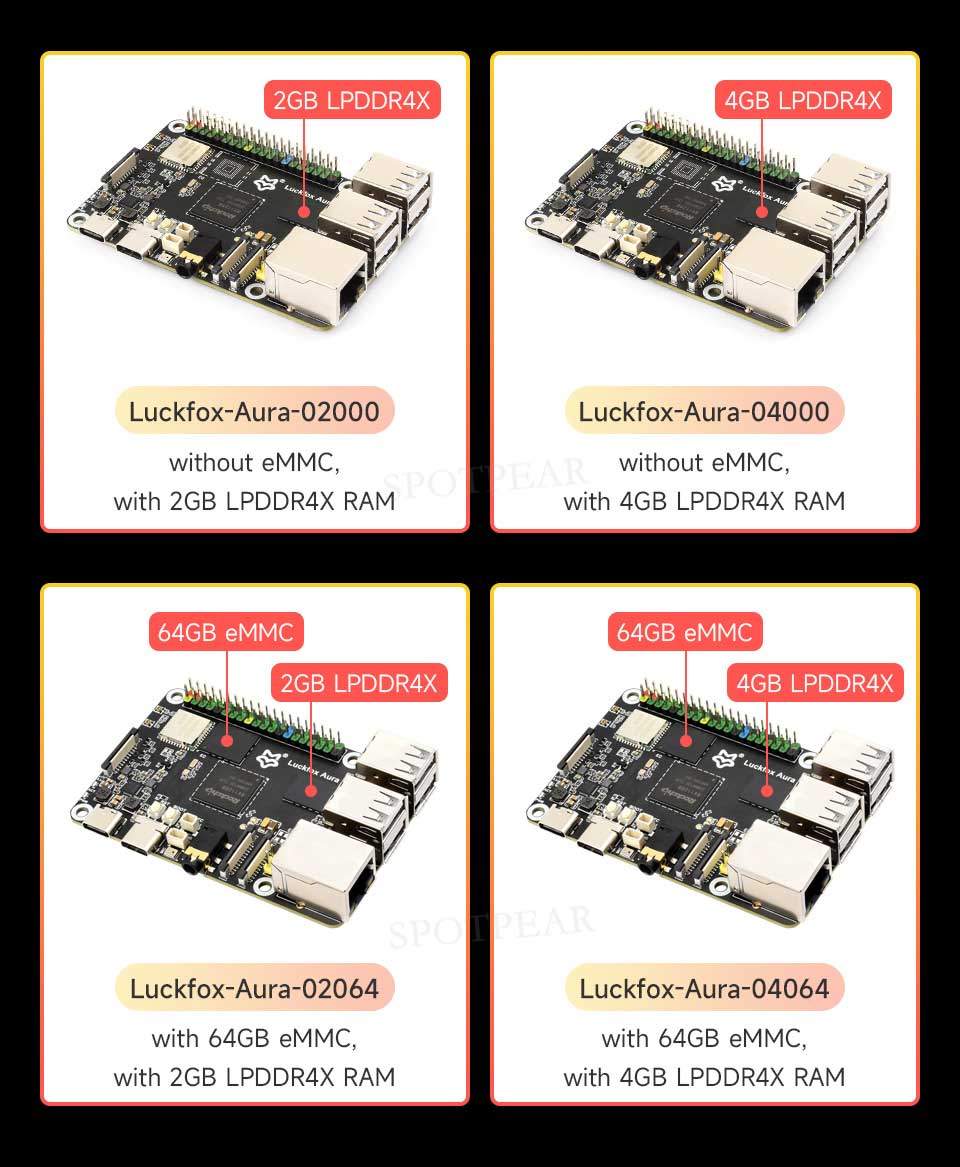

Version Options

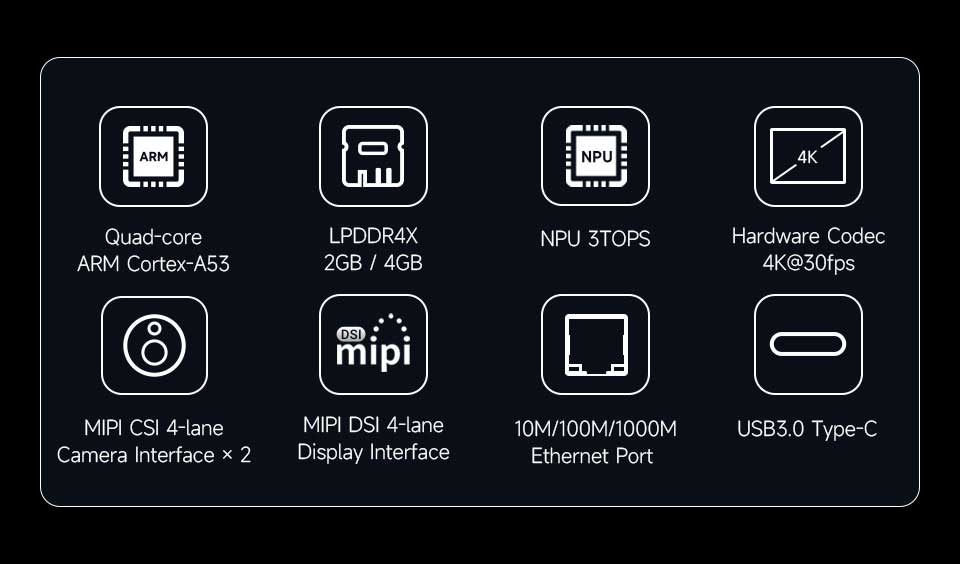

Specifications
| Processor | Quad-core Arm Cortex-A53@1.6GHz |
| RAM | Options for 2GB / 4GB LPDDR4X RAM |
| Flash Memory | Options for 0GB / 64GB eMMC Flash |
| NPU | 3 TOPS@INT8, supports INT4, INT8, INT16, FP16 mixed operation |
| ISP | Supports 12MP cameras, supports multiple algorithm accelerators, including HDR, 3A, LSC, 3DNR, 2DNR, sharpening, defogging, fisheye correction, and gamma correction, integrates 8MP AI-ISP for enhanced spatial noise reduction and image enhancement effect |
| Video | Decoding: 4K@30fps (H.265/HEVC, H.264/AVC)
Encoding: 4K@30fps (H.265/HEVC, H.264/AVC) |
| Storage | TF card slot |
| Video Output | 4-lane MIPI DSI (1920x1080@60fps) interface × 1 |
| Video Input | 4-lane MIPI CSI camera interface × 2 |
| USB | USB3.0 OTG Type-C port × 1
USB2.0 HOST Type-A port × 4 |
| Audio | Onboard microphone
3.5mm headphone / microphone jack |
| GPIO | 40PIN header (compatible with some Raspberry Pi HATs) |
| System | Buildroot, Debian |
| Power Input | 5V DC |
| Others | 2PIN SH1.0 RTC Batt header |
| SARADC × 7 |
Low Power Quad-Core AIoT Processor
Equipped With High-Performance RV1126B Processor, Integrated With Quad-Core Cortex-A53 Processor, Providing Strong Performance And High Energy Efficiency
3 TOPS Computing Power
Equipped With 3 TOPS Computing Power, Easy To Convert A Variety Of Neural Network Models Based On TensorFlow, MXNet, PyTorch, And Caffe Frameworks, Supports Running Large Language Models And Visual Language Models
Supports 4K Encoding And Decoding
Supports 4K@30fps H.264/H.265 Hardware Encoding And Decoding Capabilities,
Easy To Deal With HD Video Tasks

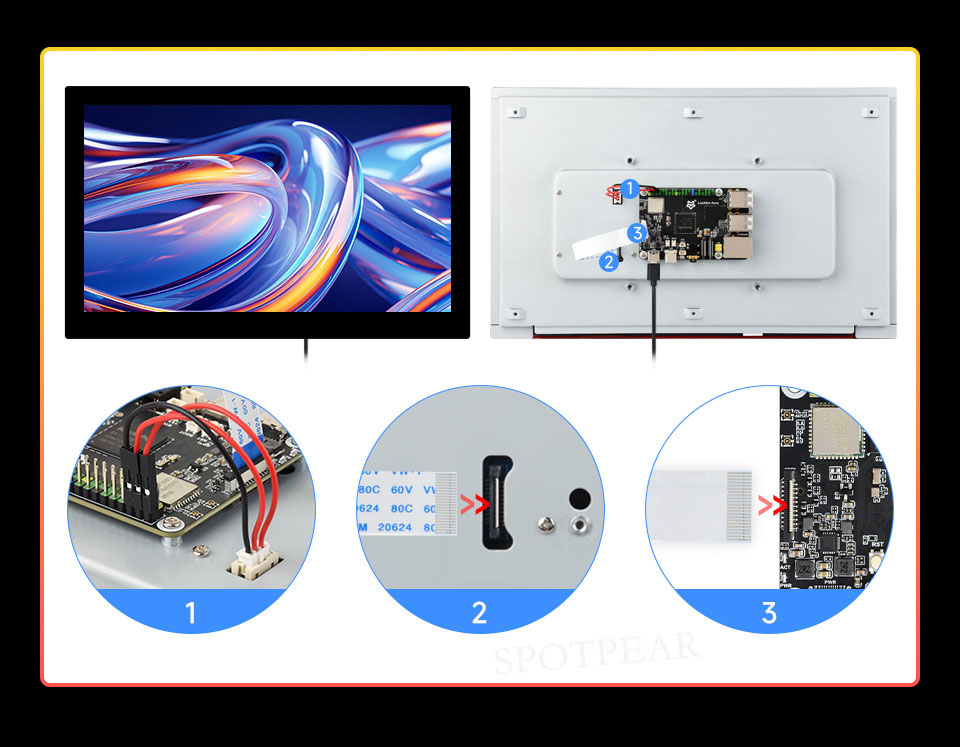

MIPI DSI 4-Lane Interface
Powerful Performance, Easy To Drive Large Screens
* Supports up to 1920 × 1080@60Hz resolution.
for reference only, the 13.3inch DSI LCD is not included.

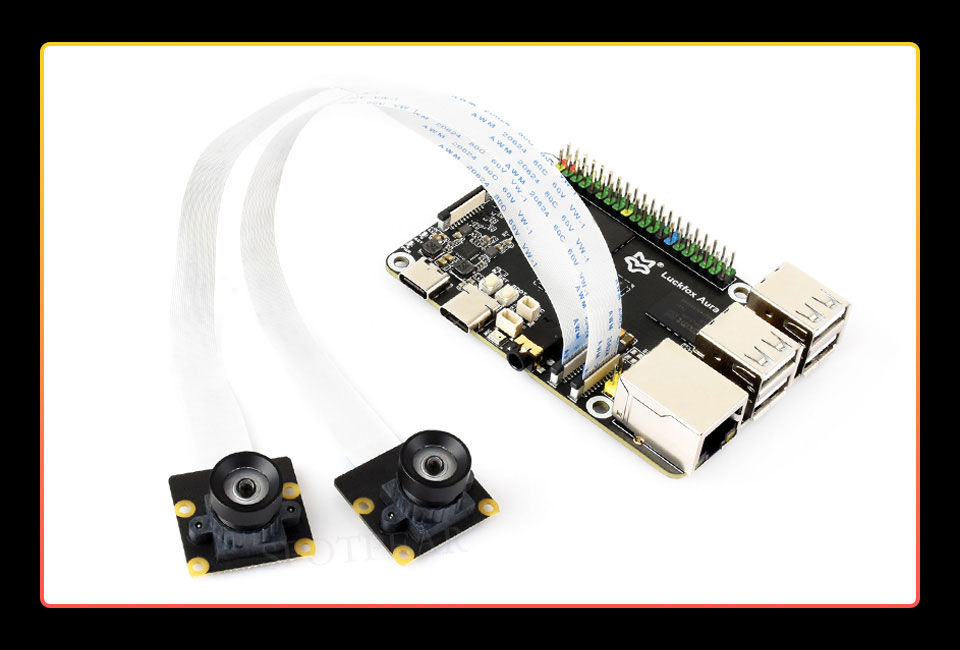

MIPI CSI 4-Lane Dual Camera Interfaces
Suitable For AI Vision Applications Such As Visual Robotics,
Depth Vision, And Stereo Vision
*for reference only, please refer to the package content for detailed part list.

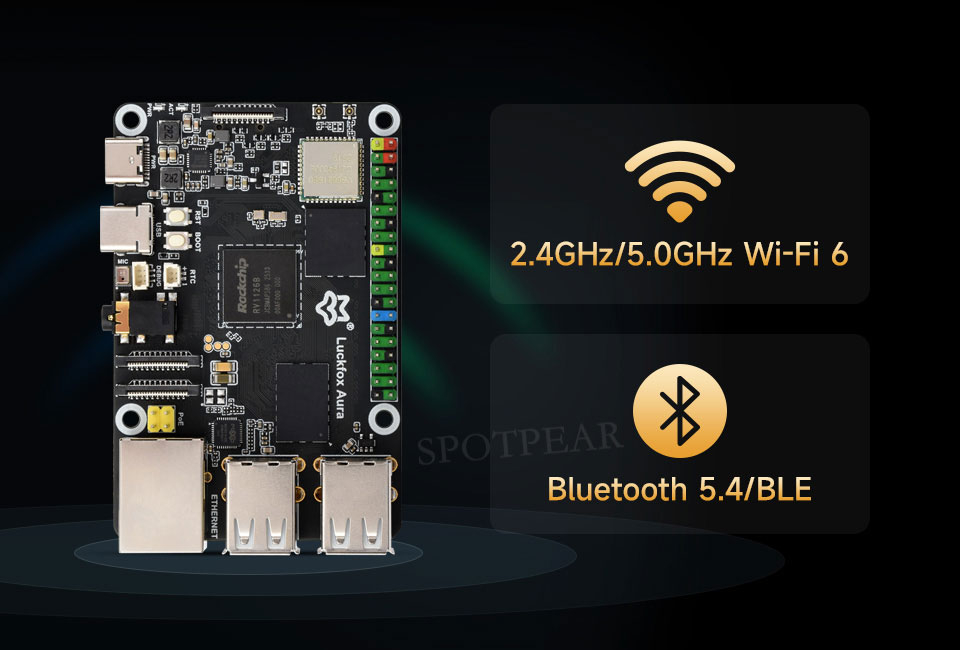

Wi-Fi 6 And Bluetooth Module
Onboard 2.4GHz/5GHz Wi-Fi 6 And Bluetooth 5.4/BLE Bluetooth Module,
Providing Stable Connection And Efficient Transmission

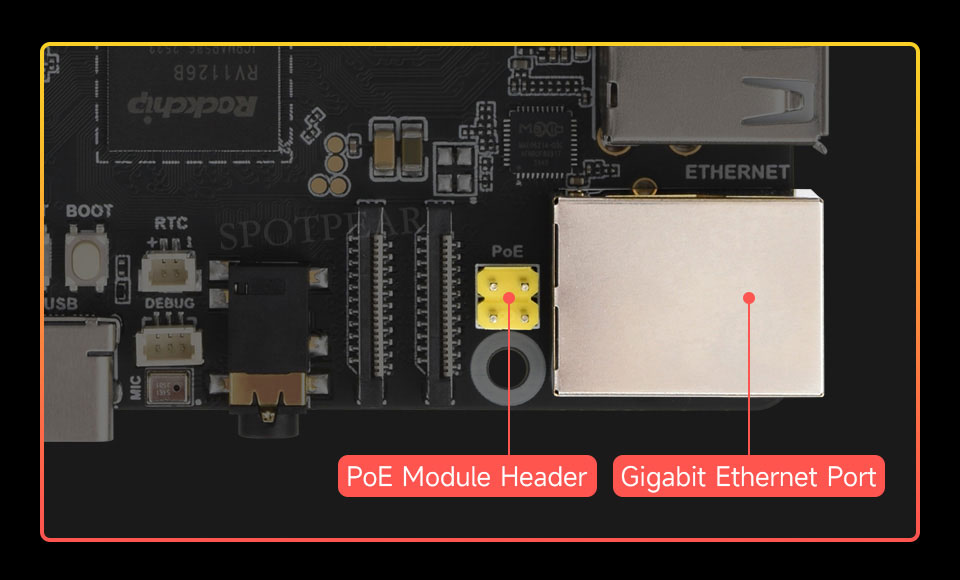

Gigabit PoE Ethernet Port
Supports 10M/100M/1000M Ethernet Port To Meet File Transfer And Video Streaming Needs, With Reserved PoE Module Header For More Flexible Power Supply
Audio Interfaces
Onboard Microphone + 3.5mm Headphone / Microphone Jack, Meets A Variety Of Audio Application Scenarios
Application Examples

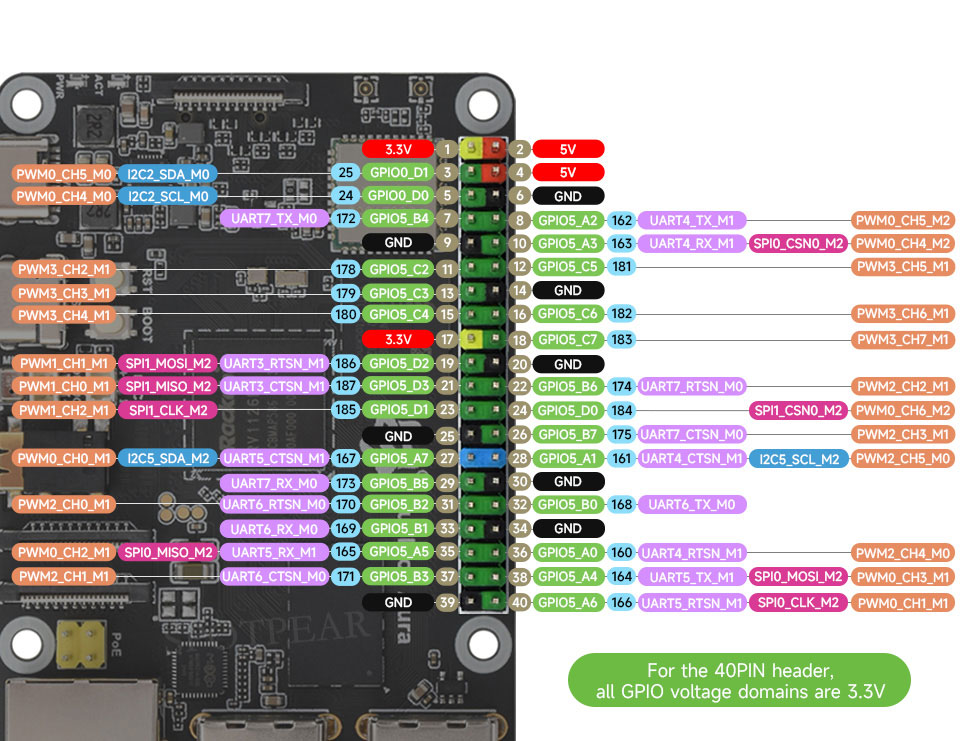

Pin Definition

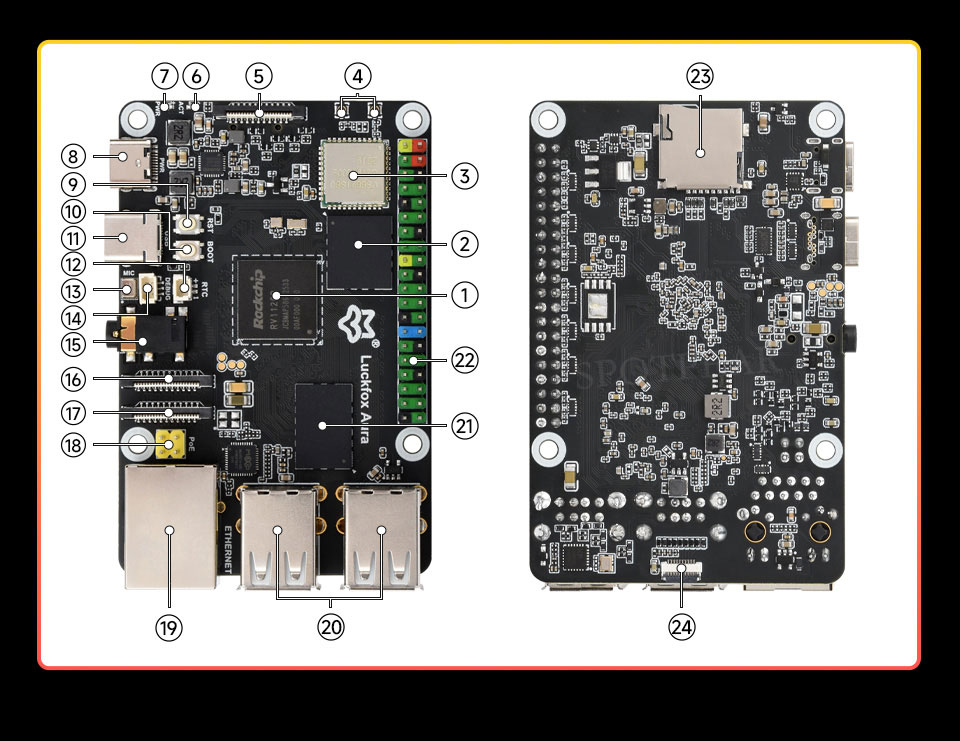

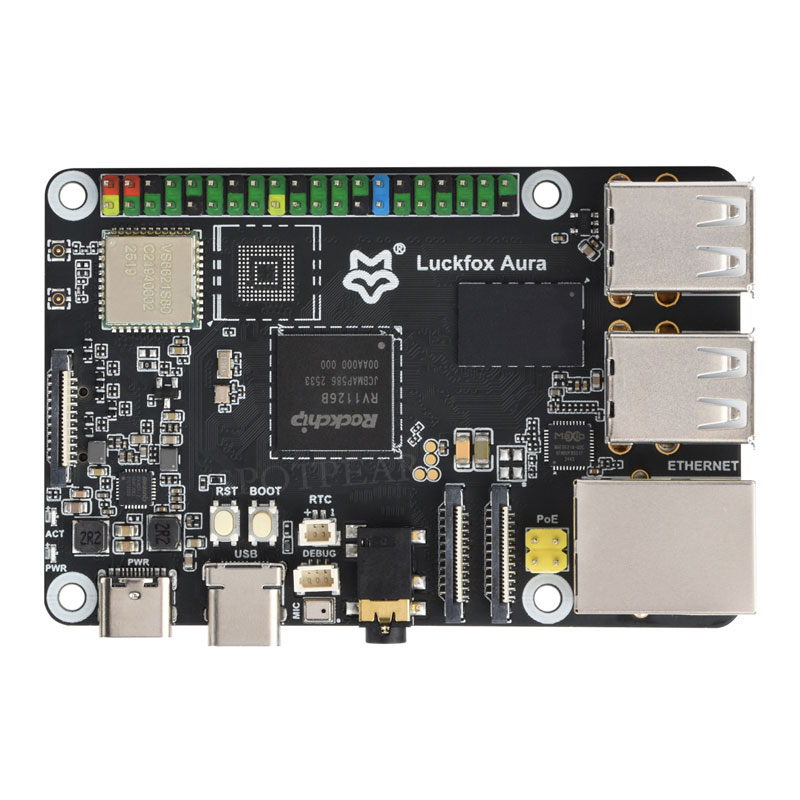

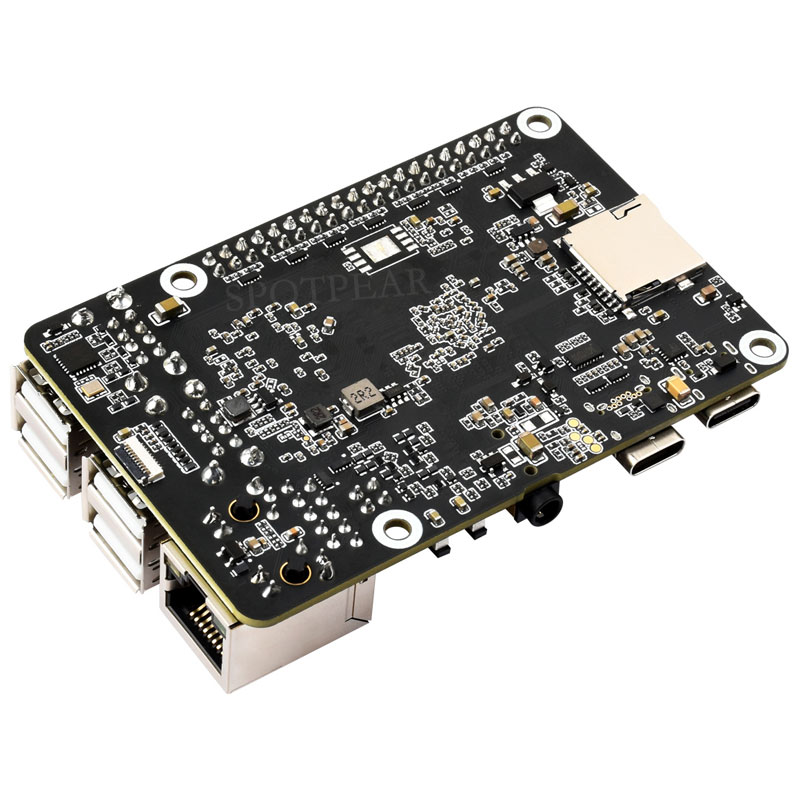

What's On Board
- RV1126B
built-in quad-core ARM Cortex-A53 - eMMC (options for 0GB / 64GB)
- Wi-Fi / BT module
2.4GHz / 5GHz Wi-Fi 6 + BT 5.4 / BLE module - Wi-Fi / BT module antenna connectors
- DSI display interface
- USER-LED
for indicating system operating status in the default image - POWER-LED
for indicating power supply status - USB-PWR
for 5V DC power supply - RESET button
- BOOT button
Press it when powering on or resetting to enter download mode - USB3.0 OTG Type-C port
for programming, emulating USB devices, or connecting USB peripherals
- RTC header
- Onboard microphone
- DEBUG header
- 3.5mm headphone / microphone jack
supports audio capture or output - CSI-0 camera interface
enabled by default - CSI-1 camera interface
- PoE module header
- Gigabit RJ45 Ethernet port with LED indicators (PoE-enabled)
supports power supply via PoE switch with network cable - USB2.0 HOST Type-A ports
expands 4-ch Type-A ports via USB-HUB chip - LPDDR4X (options for 2GB / 4GB)
- 40PIN GPIO header
compatible with some Raspberry Pi HATs - TF card slot

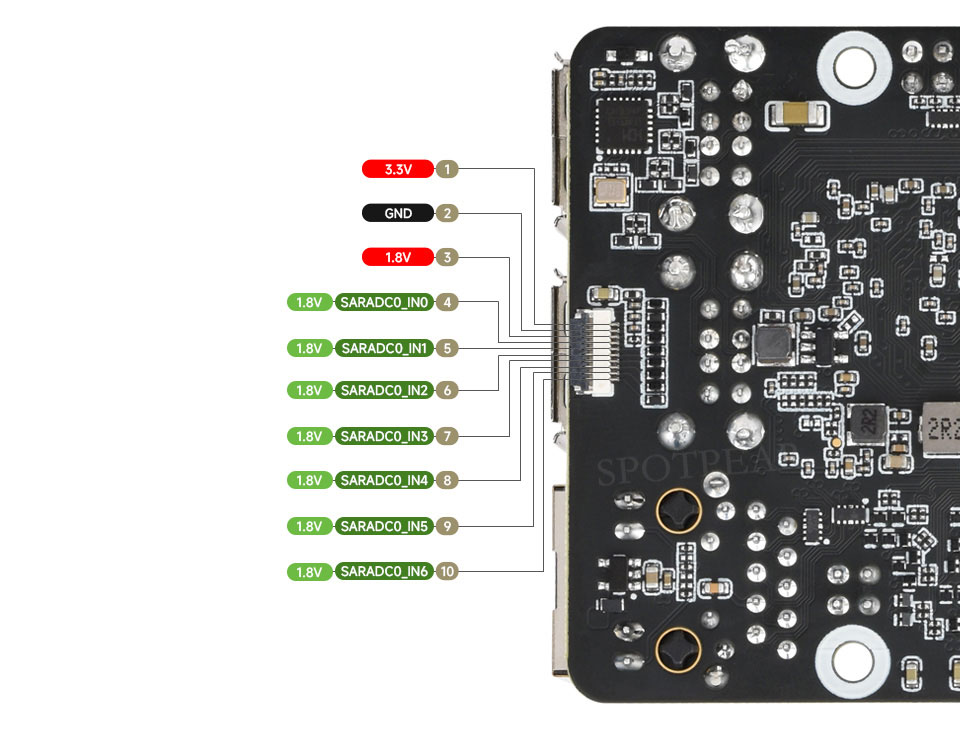

- SARADC interface
