Luckfox Core1106D Core Board Based On Rockchip RV1106 Chip, With External DDR RAM, 8GB eMMC/256MB SPI NAND, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors

Core1106D

Based On The Rockchip RV1106 Chip

The Core1106D is a high-performance, highly expandable core board based on the Rockchip RV1106 series chips, featuring external DDR RAM. It provides a convenient platform for developers to design their own hardware, enabling quick design verification or direct integration into products, thereby shortening the R&D cycle.
Adapting various interfaces via castellated holes, such as MIPI CSI, RGB LCD, GPIO, UART, SPI, I2C, USB, Ethernet port, and SDIO, etc. which is suitable for a variety of application scenarios. Options for 256MB / 512MB external DDR RAM and 8GB eMMC / 256MB SPI NAND onboard storage to meet different needs.

Version Options

Highly Integrated And Powerful Performance

Integrates CPU, NPU, ISP And Other Processors

Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106 is 1 TOPS
Built-in self-developed third-generation ISP3.2, supports 8MP, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, which can save more than 50% bit rate of the conventional CBR mode, enabling high-definition video quality while efficiently utilizing storage space

Wi-Fi 6 / Bluetooth Module

Onboard 2.4GHz Wi-Fi 6 And Bluetooth 5.2/BLE Module, Providing Stable Connection And Efficient Transmission

Application Scenarios

Product Show

Development Resources

Complete Software And Hardware Resources And An Active Community
Help Secondary Development

Parameter Comparison

CPU	RV1106
Processor	Cortex A7 at 1.2GHz
RAM	External DDR3, options for 256MB / 512MB
NPU	1TOPS, supports int4, int8, int16
ISP	Supports 8M at 15fps input
Video encoding	Hardware encoding, supports MJPEG, H264, H265
Display interface	Parallel RGB 18-bit × 1
Camera interface	MIPI CSI 2-lane × 2 or MIPI CSI 4-lane × 1
Microphone	Analog differential MIC interface × 2
Audio output	LINEOUT × 1
USB	USB 2.0 Host/Device × 1
wireless module	2.4GHz Wi-Fi 6 / Bluetooth 5.2 / BLE
Ethernet port	10/100M Ethernet controller and embedded PHY
Default storage	Options for eMMC (8GB) or SPI NAND (256MB)
Other resources	I2S × 3, I2C × 5, SPI × 2, SDIO × 2, ADC × 2, UART × 6, PWM × 12
Dimensions	30 × 30 (mm)
Castellated holes	112PIN

* Some pin resources are multiplexed, please refer to wiki for detailed pin definitions.

Ordering Codes

What's On Board

RV1106
vision processor SoC with built-in ARM Cortex-A7 core
DDR3 RAM
options for 256MB / 512MB
Antenna connector
IPEX 1.0

Wi-Fi / Bluetooth module
2.4G Wi-Fi 6, Bluetooth 5.2/BLE module
PMIC
3-ch power management chip
256MB SPI NAND
(for Core1106DxxN256 versions only)
8GB eMMC
(for Core1106Dxx08 versions only)

Outline Dimensions

[] Core1106D1408

[] Core1106D1808

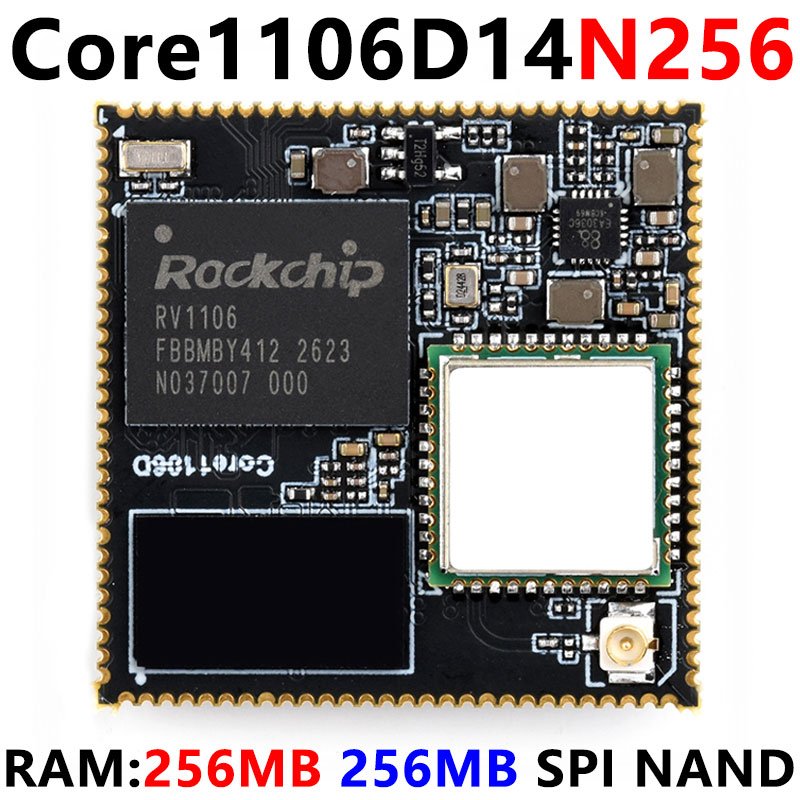

[] Core1106D14N256

[] Core1106D18N256
