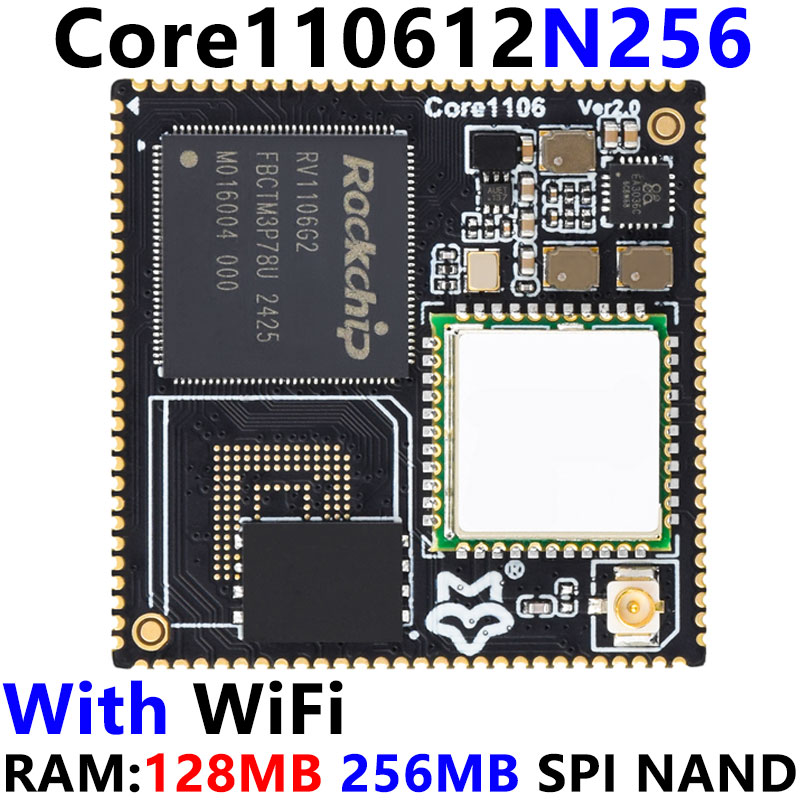

Luckfox Pico Core1106 RV1106 Linux Rockchip Core Board

Luckfox Pico Core1106 RV1106 Linux Rockchip Core Board

$44.9

Brand：Luckfox

SKU：080302200000

Date：2025-01-09 18:00

Part Number：

Core11060208【RAM128-No Wifi】 Core11061208【RAM128-With Wifi】 Core11060408【RAM256-No Wifi】 Core11061408【RAM256-With Wifi】 Core110602N256【RAM128-No Wifi】 Core110612N256【RAM128-With Wifi】 Core110604N256【RAM256-No Wifi】 Core110614N256【RAM256-With Wifi】

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

This product is a high-performance and highly scalable core board based on Rockchip's RV1106 series chips. It is designed to provide developers with convenience for independent hardware design, and can quickly verify the design solution or directly apply it to the product, shortening the R&D cycle. The core board leads to multiple interfaces such as MIPI CSI, RGB LCD, GPIO, UART, SPI, I2C, USB, Ethernet and SDIO through stamp hole connection, which is suitable for a variety of application scenarios. Wireless modules are optional, and two core options, RV1106G2 and RV1106G3, are provided to meet different needs.

Luckfox Pico Recommend

LuckFox Pico Mini

Luckfox-Pico

Luckfox-WebBee

Core1106

Luckfox Pico Pro/Max

Luckfox Pico Ultra RV1106G3 Top-Ver

Luckfox Pico Ultra B RV1106G2

Luckfox-Pico-Ultra-POE-Module

Luckfox-Pico-Pi-A-B

Luckfox Pico Zero

Luckfox PicoKVM

Luckfox-Pico-86-Panel-0208 4in 720x720

LF-WIFI-A

Luckfox-MINI-CASE-A

Luckfox-Pico-Cable

RJ45 For Milk V Duo/LuckFox Pico

SC3336-3MP-Camera-B

MIS5001-5MP-Camera

ISG1321 Camera

Luckfox Pico Ultra 4inch 480x480

Luckfox Pico Ultra 4inch 720x720

Luckfox-Pico-Ultra-W-LCD-Kit

Luckfox-Pico-Ultra Speaker

【First-level Authorized Agency Certificate】

Core1106

Based on Rockchip RV1106 chip

This product is a high-performance and highly scalable core board based on Rockchip's RV1106 series chips. It aims to provide developers with convenient hardware design capabilities, enabling rapid verification of designs or direct application to products, thus shortening the development cycle. The core board features multiple interfaces via stamp-hole connections, including MIPI CSI, RGB LCD, GPIO, UART, SPI, I2C, USB, Ethernet, and SDIO, suitable for various application scenarios. Optional default storage media and wireless modules are available, offering two core options: RV1106G2 and RV1106G3, to meet different needs.

Version Selection

Highly integrated, powerful performance

SoC integrates processors such as CPU, NPU, and ISP.

Single-core ARM Cortex-A7 32-bit core, integrating NEON and FPU.
Built-in Rockchip's self-developed 4th generation NPU, it boasts high computational precision and supports mixed quantization of int4, int8, and int16. The RV1106G3 has an int8 computing power of 1 TOPS, while the RV1106G2 has an int8 computing power of 0.5 TOPS.
Built-in Rockchip's self-developed 3rd generation ISP3.2, supporting 5-megapixel resolution and various image enhancement and correction algorithms such as HDR, WDR, and multi-level noise reduction.
It boasts powerful encoding performance, supports intelligent encoding, and adaptively saves bitrate based on the scene, achieving over 50% bitrate savings compared to conventional CBR mode. It efficiently utilizes storage space while achieving high-definition image quality.
The built-in 16-bit DDR3L DRAM can meet demanding memory bandwidth requirements.

Wi-Fi 6 and Bluetooth module

Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2/BLE modules ensure stable connectivity and efficient transmission.

Typical application areas

Product Showcase

Development materials provided

Complete software and hardware documentation and an active community facilitate secondary development.

Resource Introduction

RV1106G2 / RV1106G3
Visual processor SoC with built-in ARM Cortex-A7 core
PMIC
3-channel power management chip
8GB eMMC storage chip

256MB SPI NAND memory chip
Wi-Fi / BT module
2.4G Wi-Fi 6, Bluetooth 5.2/BLE module
Antenna Interface
IPEX 1.0

Hardware resource table

CPU	Optional RV1106G2 (0.5 TOPS, 128MB DDR3L) or RV1106G3 (1 TOPS, 256MB DDR3L)
processor	Cortex A7 @1.2GHz
ISP	Supports input of 5M @30fps
Video encoding	Hardware encoding, supports MJPEG, H264, and H265.
Display Interface	Parallel RGB 18-bit × 1
Camera interface	MIPI CSI 2-lane × 2 or MIPI CSI 4-lane × 1
microphone jack	Analog differential microphone interface × 2
Audio output interface	LINEOUT × 1
USB interface	USB 2.0 Host/Device
wireless module	Optional 2.4GHz Wi-Fi 6 / Bluetooth 5.2 / BLE
Ethernet interface	10/100M Ethernet controller and embedded PHY
Default storage medium	Optional eMMC (8GB) or SPI NAND (256MB)
Other resources	I2S × 3，I2C × 5，SPI × 2，SDIO × 2， ADC × 2， UART × 6， PWM × 12
Core board size	30 × 30 (mm)
stamp perforation	112 Pin

Some pin resources are reused; see the wiki for pin definitions.

Product Dimensions

[] Core11060【RAM128/256-No Wifi-8GB eMMC】

[] Core11061【RAM128/256-With Wifi-8GB eMMC】

[] Core110614N256【RAM128/256-No Wifi- 256MB SPI NAND】

[] Core110614N256【RAM128/256-With Wifi- 256MB SPI NAND】
