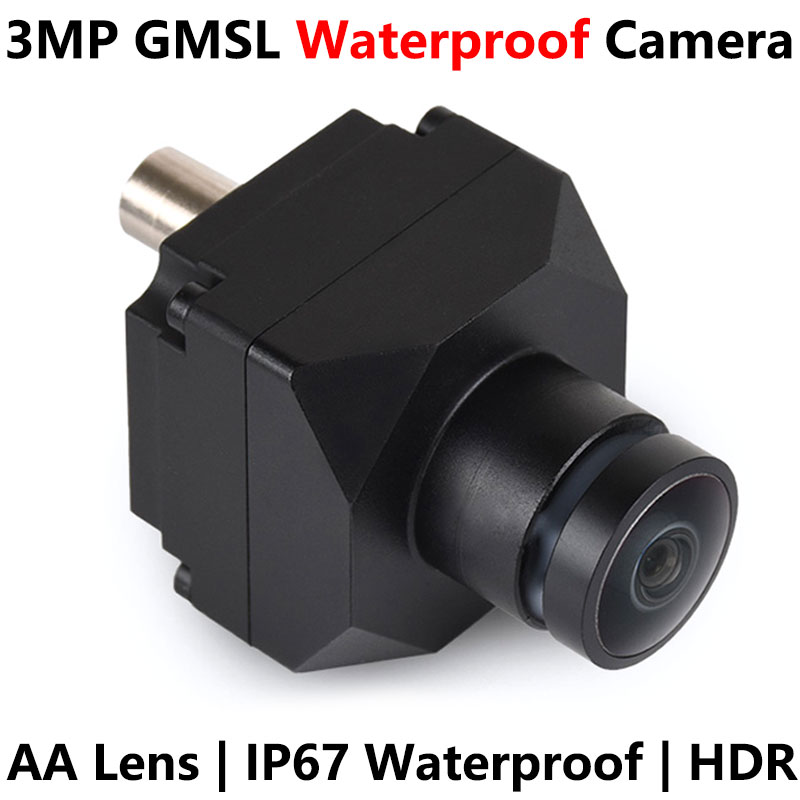

GMSL Camera 3MP Automotive Image Sensor IP6 Waterproof For Jetson Orin

GMSL Camera 3MP Automotive Image Sensor IP6 Waterproof For Jetson Orin

$199.99

Brand：SpotPear

SKU：050115900000

Date：2026-10-23 15:57

Part Number：

GMSL-3MP-Camera-A

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

3MP GMSL2 Camera Module, Automotive-Grade Image Sensor, Built-in ISP, AA Lens, IP67 Protection

GMSL Camera Recommend

MAX9296-GMSL-Camera-Board

MAX9296-GMSL-DESER-MODULE

MAX9296-GMSL-HAT

ISX031C-GMSL-Camera-H100

ISX031-GMSL-Camera-H100

GMSL-1MP-Dual-Camera-A

GMSL-3MP-Camera-A

GMSL 3MP CAMERA

3MP | IP67 Protection | GMSL2 Communication Protocol

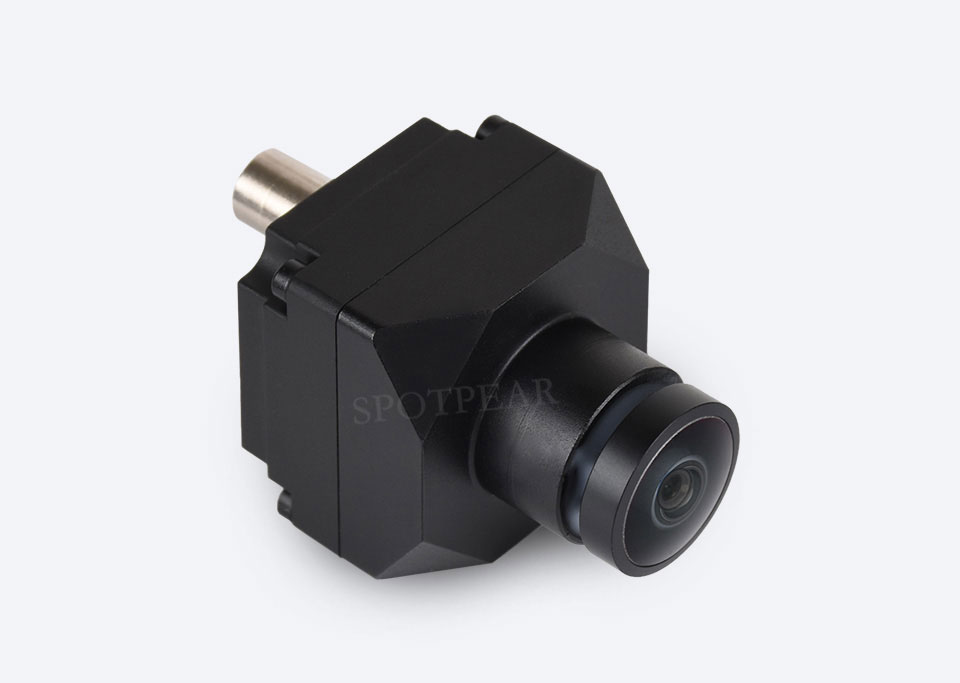

Product Introduction

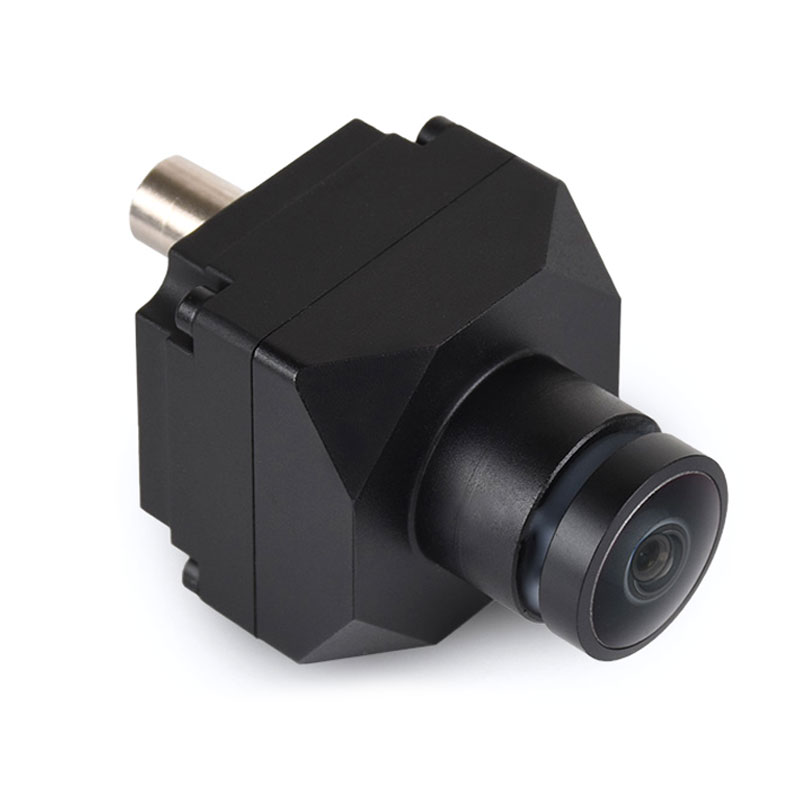

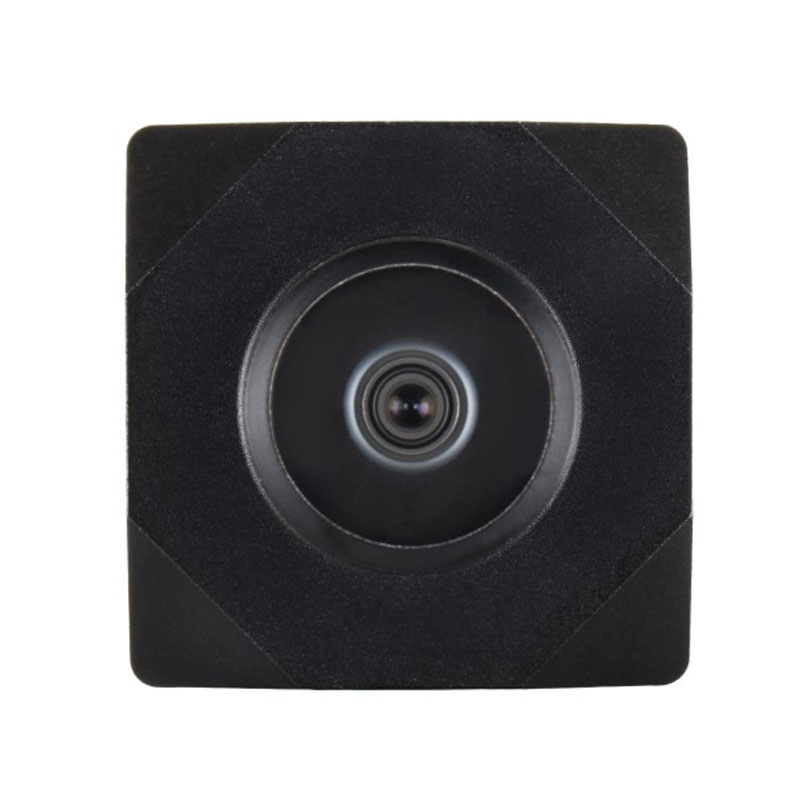

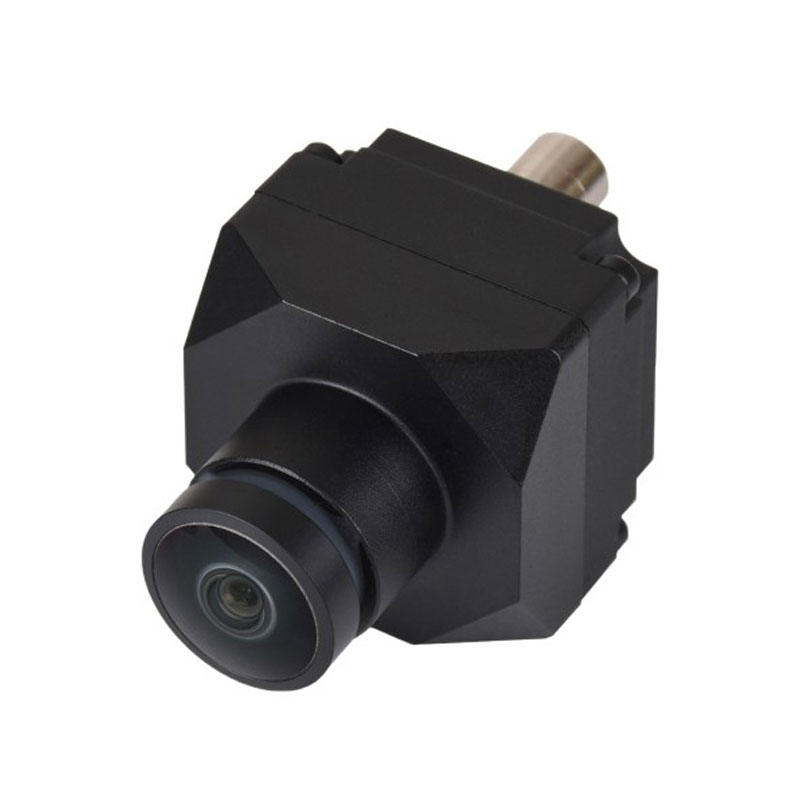

The GMSL-3MP-Camera-A camera module adopts a 3MP automotive-grade CMOS image sensor and integrates the MAXIM MAX96717G GMSL serializer. It includes a professionally calibrated image signal processor (ISP), delivering clear and stable image quality. The entire unit features an IP67-rated case and comes with an AA lens, and each unit is precisely focused and glue-secured before shipment, making it well-suited for automotive and other demanding applications.

Specifications

PRODUCT		GMSL-3MP-Camera-A
SENSOR	MODEL	3MP RGGB
	RESOLUTION	1920 × 1536
	CMOS SIZE	1/2.44inch
	PIXEL SIZE	3.0 × 3.0 (um)
CAMERA	FOV	120°(H) × 92.6°(V)
	APERTURE	1.6
	FOCAL LENGTH	3.02mm
ISP		Built-in
FRAME RATE		1920 × 1536 at 30fps
HIGH DYNAMIC RANGE		Supported
DYNAMIC RANGE		120dB
OUTPUT FORMAT		YUV422 at 8bit
SERIALIZER	MODEL	MAXIM MAX96717G
SERIALIZER	I2C ADDRESS	0x80 (8-bit address)

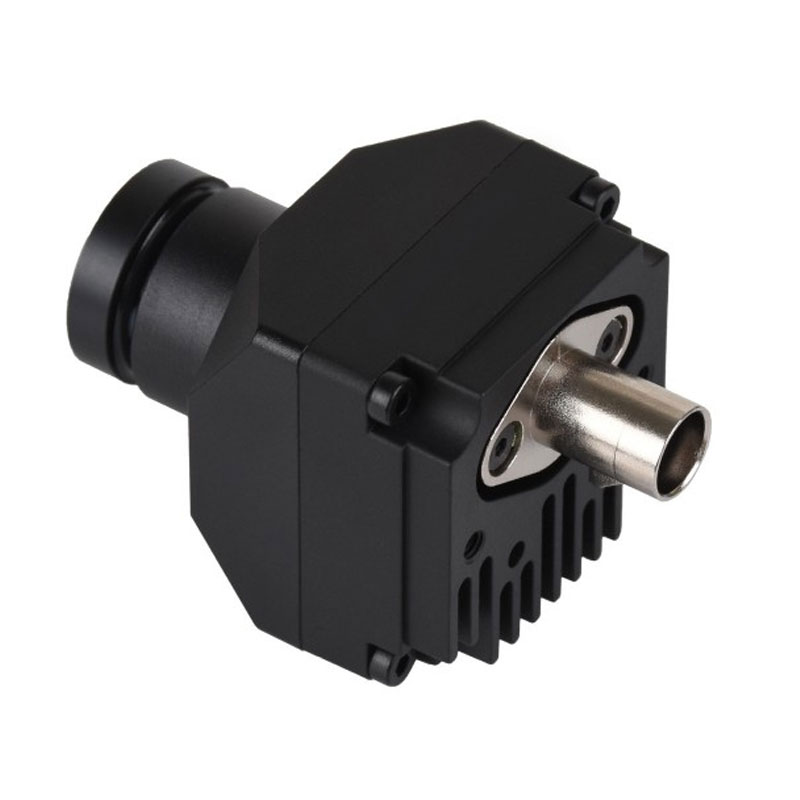

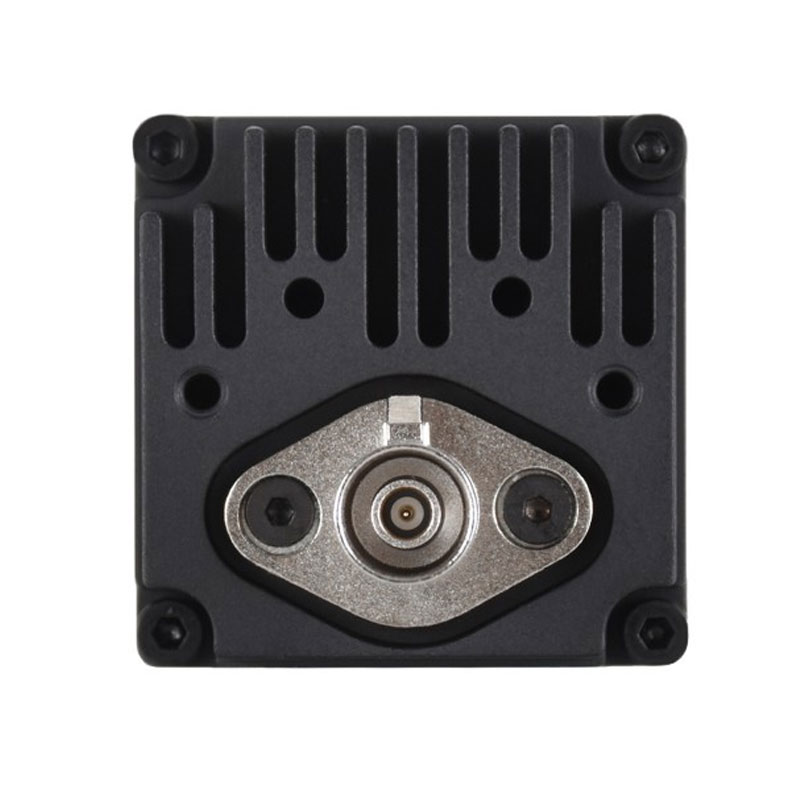

CAMERA INTERFACE		Fakra Z-Coded connector
OPERATING VOLTAGE		9 ~ 12V PoC
OPERATING CURRENT		< 340mA at 12V
OPERATING TEMPERATURE		-40°C ~ 85°C
PROTECTION GRADE		IP67

Clear And Smooth Image Capture

Adopts a 3MP automotive-grade CMOS image sensor
Ultra-wide FoV with a horizontal field of view (HFoV) of up to 120°, providing a wider view of the surroundings
Built-in ISP optimizes image quality and reduces the processing load on the host controller

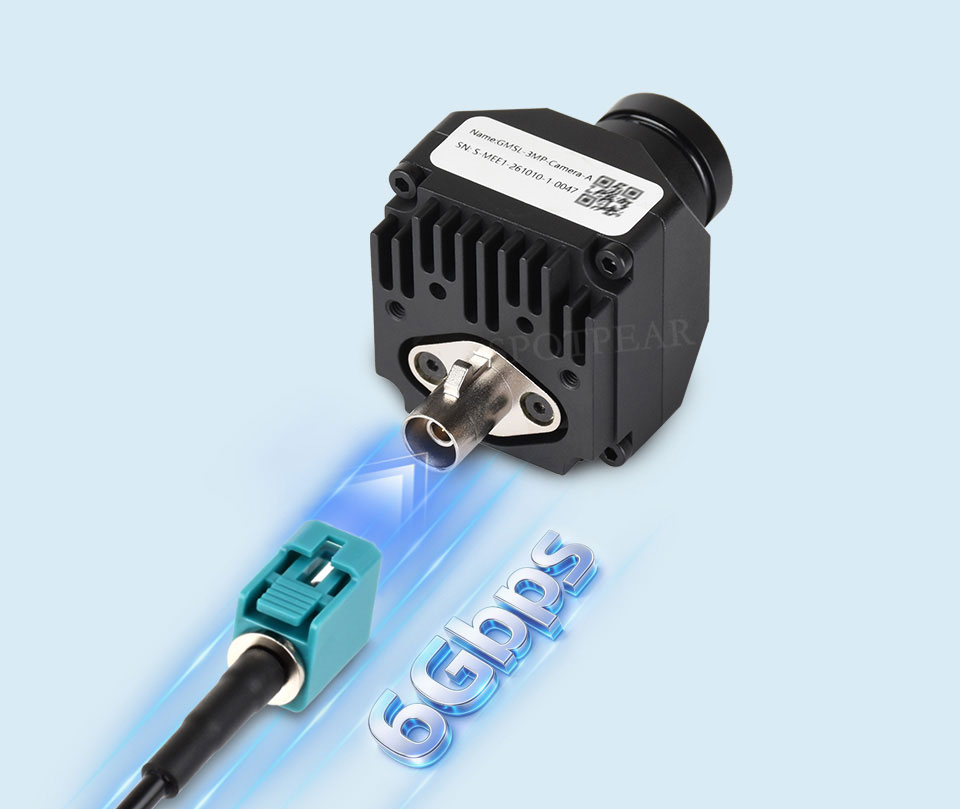

GMSL2 High-Bandwidth Transmission

Adopts the GMSL2 protocol with a data rate of up to 6Gbps
High bandwidth, low latency, secure connection, and strong immunity to interference
Supports long-distance transmission and enables remote deployment over a single coaxial cable

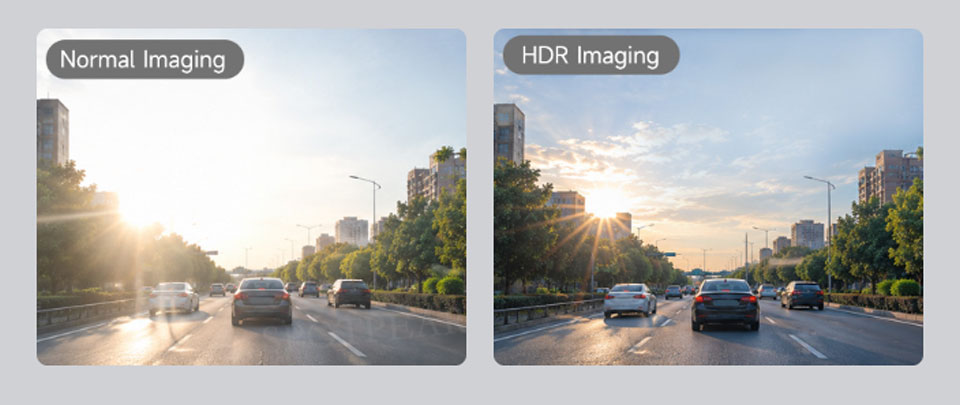

High Dynamic Range Imaging

Supports 120dB HDR, Preserving Details In Both Shadows And Highlights, Even In Challenging Scenes With Intense Light, Backlighting, Or High Contrast

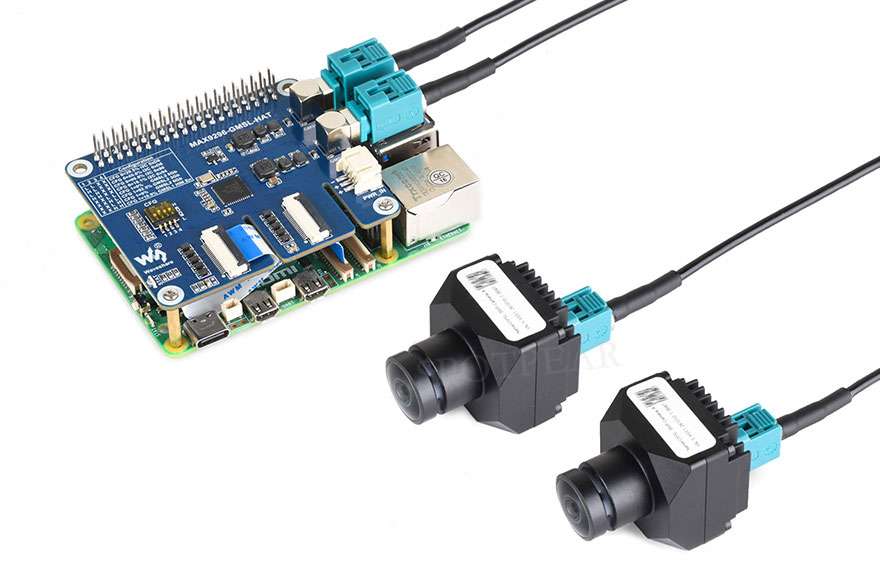

Application Example

* for reference only, the Raspberry Pi 5 and GMSL camera expansion board are NOT included, please check the Package Content for the detailed part list.

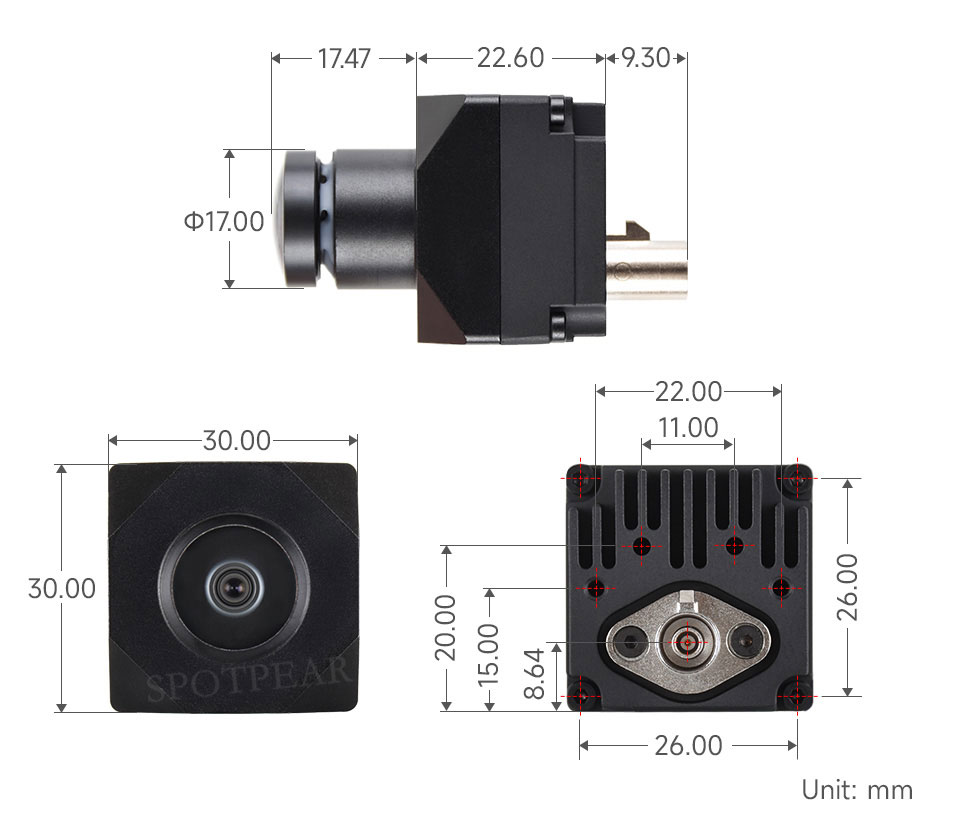

Outline Dimensions

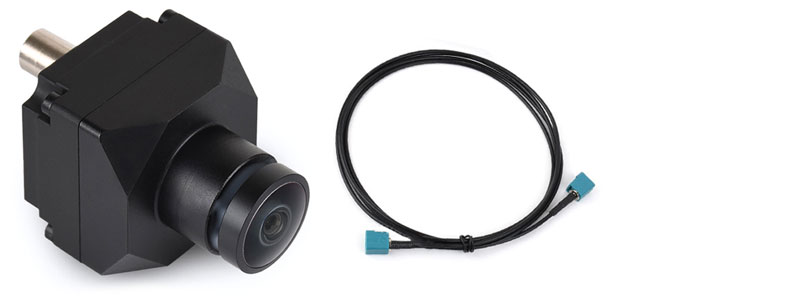

[] GMSL-3MP-Camera-A
