NanoKVM-Lite User Guide

1. Introduction


The NanoKVM is an IP-KVM product based on the LicheeRV Nano, inheriting its compact size and powerful features.

NanoKVM includes an HDMI input interface that can be recognized as a monitor by a computer, capturing the computer's screen. It has a USB 2.0 interface to connect to the computer host, recognized as HID devices like keyboard, mouse, and touchpad, and uses extra storage space on the Micro SD card, mounted as a USB flash drive. It comes with a 100 Mbps Ethernet port for video and control signal transmission. Additionally, the Full version features an ATX power control interface (USB-C form) for remote control and monitoring of the host's power status. Under the Full version's shell, there is an OLED display for showing the device's IP and KVM-related status.

To meet different user needs, NanoKVM is available in two versions:

  • NanoKVM Lite: Basic version suitable for DIY enthusiasts and enterprises with bulk requirements.
  • NanoKVM Full: Complete version with a sleek shell and full accessories, including a pre-installed system image card, recommended for individual users.

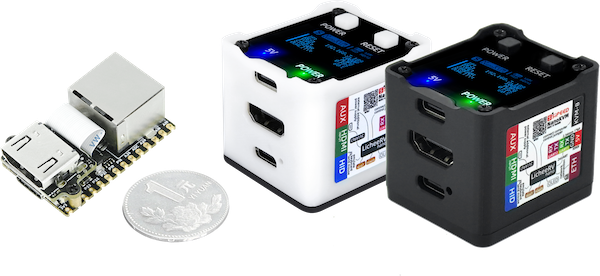

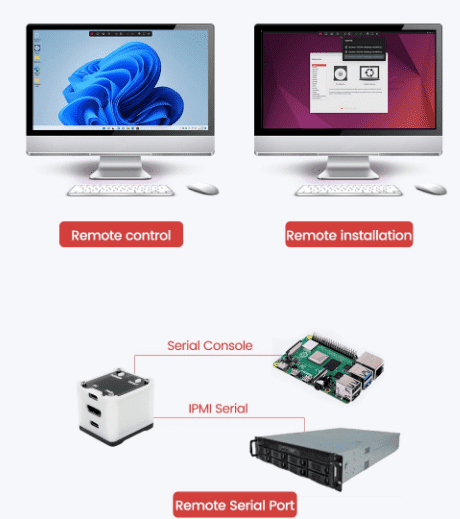

2. Use Cases


  • Server Management: For real-time monitoring and control of servers.
  • Remote Desktop and Power Control: Provides remote control functionality without requiring the host to be networked or run specific software.

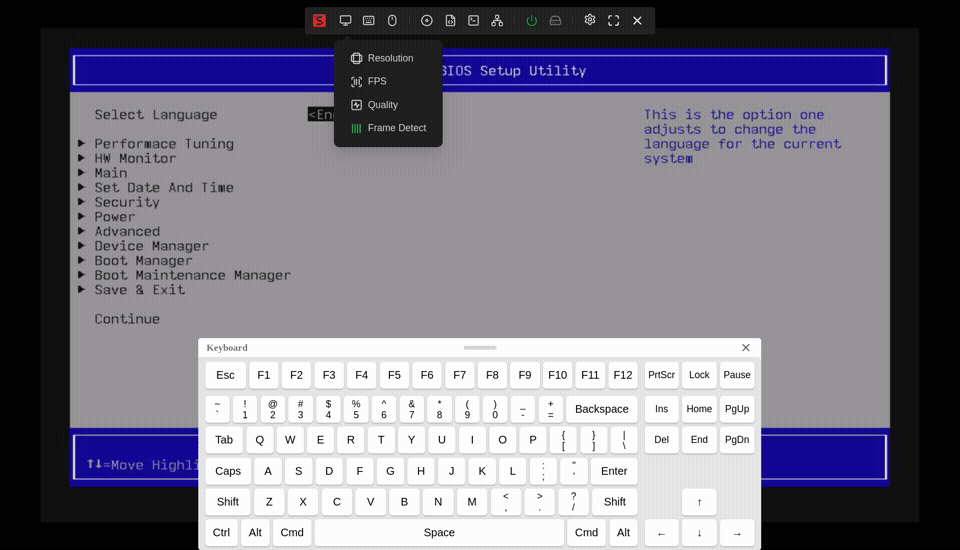

  • Remote Installation: Simulates a USB flash drive to mount installation images and set up the system, also allows BIOS access.
  • Remote Serial Port (Not exposed in Full beta version): Provides two serial ports for IPMI use or connecting other development boards for web-based serial terminal interaction. More features are coming soon (e.g., live streaming), stay tuned.


3. Specifications

ProductNanoKVM (Lite)NanoKVM (Full)PiKVM V4
Computing UnitLicheeRV Nano (RISCV)LicheeRV Nano (RISCV)CM4 (ARM)
Resolution1080P @ 60fps1080P @ 60fps1080P @ 60fps
Video EncodingMJPEG, H264 (WIP)MJPEG, H264 (WIP)MJPEG, H264
Video Latency90-230ms90-230ms100-230ms
UEFI/BIOS
Emulated USB Keyboard/Mouse
Emulated USB Storage
IPMI
Wake-on-LAN
Tailscale
WebSSH
Custom Scripts-
ETH100M/10M100M/10M1000M/100M/10M
ATX Power ControlNone, user-configurableUSB interface IO control boardRJ45 interface IO control board
OLED DisplayNone, user-expandable128x64 0.96" white128x32 0.91" white
Serial Terminal2 channels2 channels-
Micro SD CardNone, user-providedIncluded, ready to useIncluded
Expansion AccessoriesNonePoEWiFi/LTE
Power Consumption0.2A@5V0.2A@5VPeak 2.6A@5V
Power InputPowered by PC USBPowered by PC USB
Supports auxiliary power
Requires DC 5V 3A
CoolingSilent, fanlessSilent, fanlessRequires active fan cooling
Dimensions23x37x15mm
~1/30 PiKVM V4 size
40x36x36mm
~1/7 PiKVM V4 size
120x68x44mm

4. NanoKVM Hardware and Software Resources

NanoKVM is built on the Sipeed LicheeRV Nano core board. You can find the hardware specifications, schematics, and dimensions here: Click here

NanoKVM Lite consists of the LicheeRV Nano E and HDMItoCSI board, while NanoKVM Full adds the NanoKVM-A/B board and shell to the Lite version. The HDMItoCSI board converts HDMI signals; NanoKVM-A includes OLED, ATX control output (TypeC interface), auxiliary power (TypeC interface), and ATX power/reset buttons; NanoKVM-B connects the A board to the computer's ATX pins for remote power control.

The NanoKVM Cube/PCIe software is now fully open source: KVM application open source locationimage open source location.

The NanoKVM image is built on the LicheeRV Nano SDK and MaixCDK, and it is compatible with materials that use the LicheeRV Nano. Conversely, the KVM software cannot be used with the LicheeRV Nano or other SG2002 products. If you would like to build HDMI input-related applications on the NanoKVM, please contact us for technical support.
NanoKVM-Cube hardware is built on the LicheeRV Nano platform. To coordinate production and maintain consistency with the LicheeRV Nano for the SMT project, the hardware retains the display, touch, MIC, and amplifier circuits. To address potential privacy concerns, versions 2.2.6 of the application and 1.4.1 of the firmware and above will remove the relevant drivers. We will also eliminate these components in future productions.
