SMA Magnetic Mount Antenna Base SMA Connector 3m Coaxial Cable Compatible With Multiple GNSS Positioning Modules
SMA Magnetic Mount Antenna Base SMA Connector 3m Coaxial Cable Compatible With Multiple GNSS Positioning Modules
SMA Magnetic Mount Antenna Base SMA Connector 3m Coaxial Cable Compatible With Multiple GNSS Positioning Modules
SMA Magnetic Mount Antenna Base SMA Connector 3m Coaxial Cable Compatible With Multiple GNSS Positioning Modules
SMA Magnetic Mount Antenna Base SMA Connector 3m Coaxial Cable Compatible With Multiple GNSS Positioning Modules

SMA Magnetic Mount Antenna Base SMA Connector 3m Coaxial Cable Compatible With Multiple GNSS Positioning Modules

$3.9

Brand：SpotPear
SKU：010315300000
Date：2026-02-04 14:38
Part Number：
SMA Magnetic Mount Antenna Base
No：
- +
In Stock
Add to cart
Ask a Question

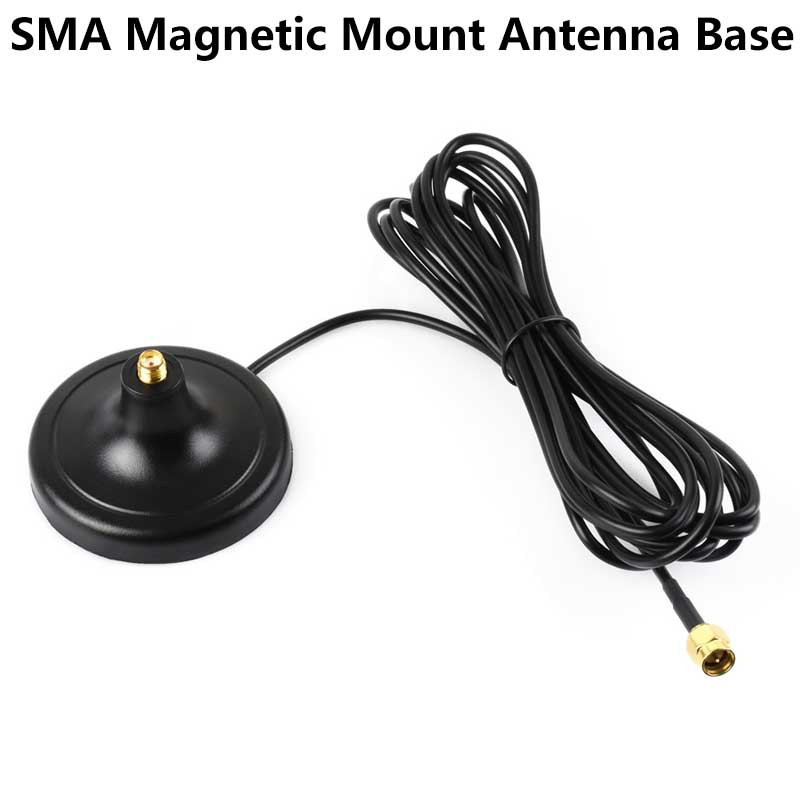

SMA Magnetic Mount Antenna Base SMA Connector 3m Coaxial Cable Compatible With Multiple GNSS Positioning Modules

SMA Magnetic Mount Antenna Base

SMA Connector | 3m Coaxial Cable | Magnetic Base

Specifications
FREQUENCY RANGE0GHz ~ 6GHzINSTALLATIONMagnetic base mounting
IMPEDANCE50ΩCABLERG174 coaxial cable
POWER INPUT (MAX)50WCABLE LENGTH3m
BASE CONNECTORSMA femaleCABLE CONNECTORSMA male
DIMENSIONSΦ60.5 × 36 (mm)OPERATING TEMPERATURE-25℃ ~ +75℃


Connection Examples

Connecting to Q39 GNSS Helical Antenna and Q25 GNSS Helical Antenna


Connecting to 5G/4G/3G/2G External Antenna



Connecting to 5G/4G/3G/GNSS External Antenna

for reference only, please refer to the part list for detailed package content

Outline Dimensions
