Raspberry Pi Pico 2 P2350-Plus Smart Car Kit PicoGo2 Autonomous Driving Learning Car
$49.9
Brand：SpotPear
SKU：021006600000
Date：2025-06-21 10:40
Part Number：

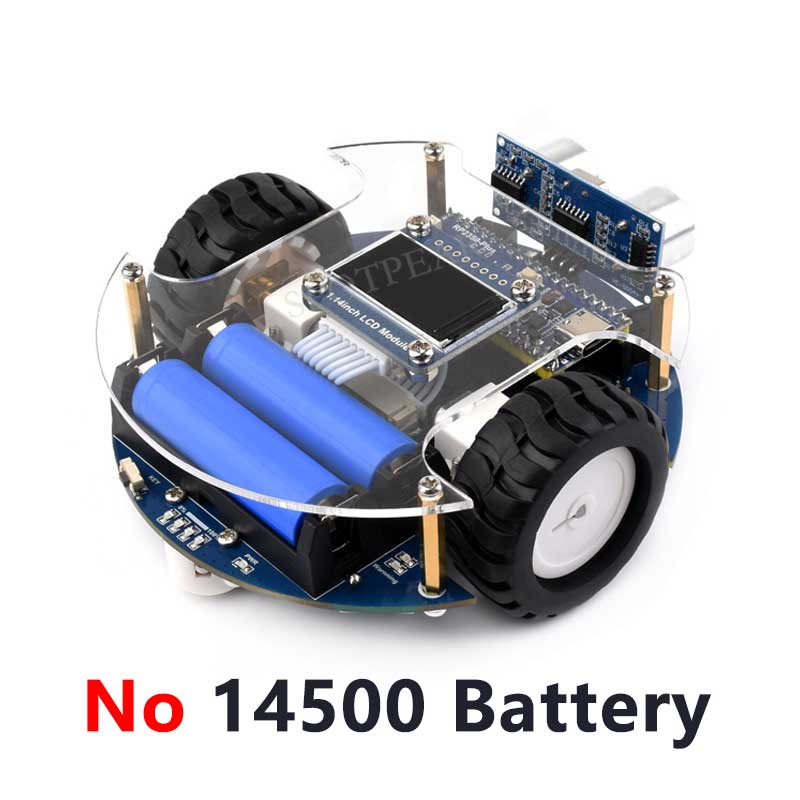

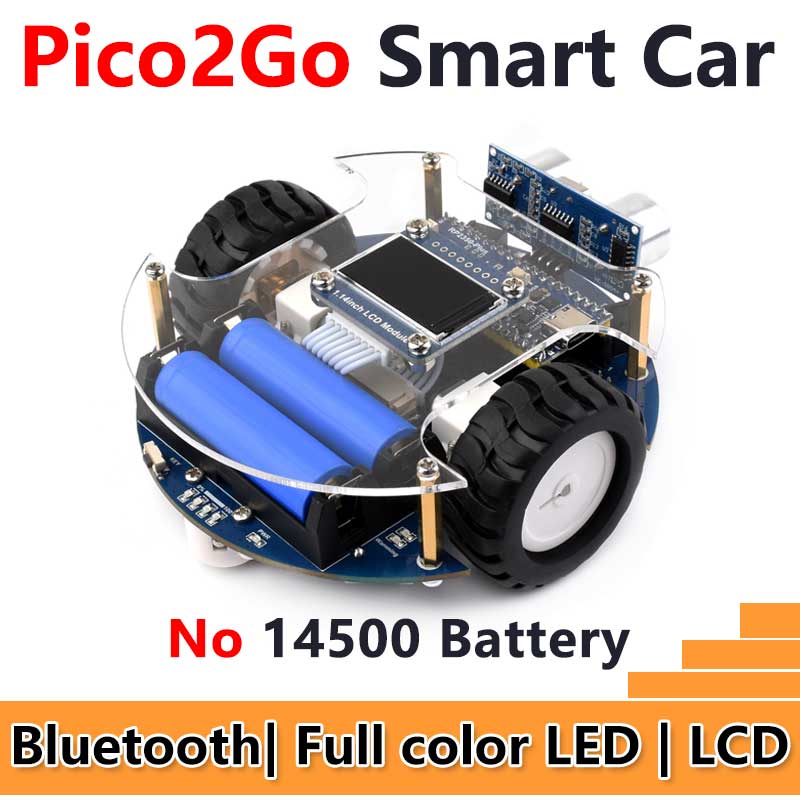

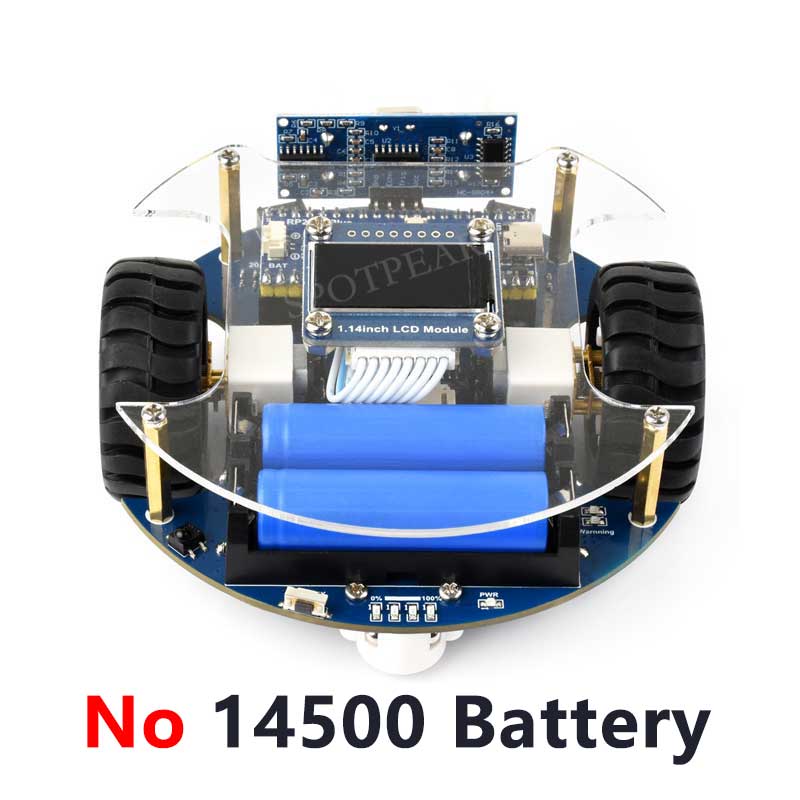

Pico2Go Smart Car An autonomous driving learning car based on RP2350-Plus (including RP2350-Plus main control board)
Pico2Go Smart Car
Intelligent robot based on RP2350-Plus design
Product Features
Smart cars have always been a favorite project for electronics enthusiasts. In Weixue's product line, there are already smart cars based on Raspberry Pi Pico, Zero W, 3B+, 4B and other versions. Now we are launching a version based on RP2350-Plus.
The smart car based on RP2350-Plus mainly includes ultrasonic module, LCD module, Bluetooth module, tracking module and obstacle avoidance module. The functions are highly integrated, and can easily realize intelligent infrared obstacle avoidance, automatic tracking driving, Bluetooth or infrared remote control and other complete functions. The advanced and diverse gameplay allows you to quickly get started with the design and development of smart cars.
Main features：
- Onboard Raspberry Pi Pico interface, suitable for Raspberry Pi Pico series motherboards
- Onboard battery protection circuit to prevent overcharge, over discharge, over current, short circuit and reverse connection, stable and safer operation
- Onboard charging and discharging circuit supports simultaneous charging and discharging, making it convenient to program and debug while charging
- Onboard 5-channel analog output infrared sensor, combined with PID control algorithm, line tracking is more stable
- Onboard tracking, obstacle avoidance and other smart car sensors, no need for cumbersome DuPont wiring
- Equipped with 1.14-inch IPS color LCD module, 240 × 135 resolution, 65K color
- Onboard Bluetooth module, you can use the mobile phone APP to control the movement of the car, the color display of the colored lights and the sound of the buzzer via Bluetooth
- Onboard N20 micro reduction motor, metal gear, low noise, high precision
- Onboard cool colored lights
Smart cars have always been a favorite project for electronics enthusiasts. In Weixue's product line, there are already smart cars based on Raspberry Pi Pico, Zero W, 3B+, 4B and other versions. Now we are launching a version based on RP2350-Plus.
The smart car based on RP2350-Plus mainly includes ultrasonic module, LCD module, Bluetooth module, tracking module and obstacle avoidance module. The functions are highly integrated, and can easily realize intelligent infrared obstacle avoidance, automatic tracking driving, Bluetooth or infrared remote control and other complete functions. The advanced and diverse gameplay allows you to quickly get started with the design and development of smart cars.
Main features：
- Onboard Raspberry Pi Pico interface, suitable for Raspberry Pi Pico series motherboards
- Onboard battery protection circuit to prevent overcharge, over discharge, over current, short circuit and reverse connection, stable and safer operation
- Onboard charging and discharging circuit supports simultaneous charging and discharging, making it convenient to program and debug while charging
- Onboard 5-channel analog output infrared sensor, combined with PID control algorithm, line tracking is more stable
- Onboard tracking, obstacle avoidance and other smart car sensors, no need for cumbersome DuPont wiring
- Equipped with 1.14-inch IPS color LCD module, 240 × 135 resolution, 65K color
- Onboard Bluetooth module, you can use the mobile phone APP to control the movement of the car, the color display of the colored lights and the sound of the buzzer via Bluetooth
- Onboard N20 micro reduction motor, metal gear, low noise, high precision
- Onboard cool colored lights
Based on RP2350-Plus
RP2350-Plus Main Control Board Features：
- Uses the RP2350A microcontroller chip designed by Raspberry Pi
- Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, clock frequency up to 150MHz, allowing users to flexibly switch between the two architectures
- Built-in 520KB SRAM and 4MB on-chip Flash
- USB1.1 host and slave support
- Supports low power sleep and hibernation modes
- Drag-and-drop program downloading via USB recognition as mass storage
- More RP2350-Plus information
Multiple functions are highly integrated
No need for complicated assembly and wiring
Longer battery life, stronger protection
Powered by 2 14500 lithium batteries, supports simultaneous charging and discharging,
Onboard battery protection circuit, prevents overcharging, over-discharging, overcurrent, short circuit and reverse connection,
Works stably and safely, with power indicator and battery voltage monitoring function
Complete functions and diverse gameplay
It's up to youIntelligent infrared obstacle avoidance
The infrared obstacle avoidance module sends infrared light, and obtains obstacle data through the reflected infrared light, so that obstacles can be easily avoided, thus realizing the advanced gameplay of intelligent obstacle avoidance.
Automatic tracking driving
It uses 5-way infrared light detectors to sense and analyze the direction of the black line, and combines the PID algorithm to adjust the direction of the car. It has high sensitivity and more stable line patrol.

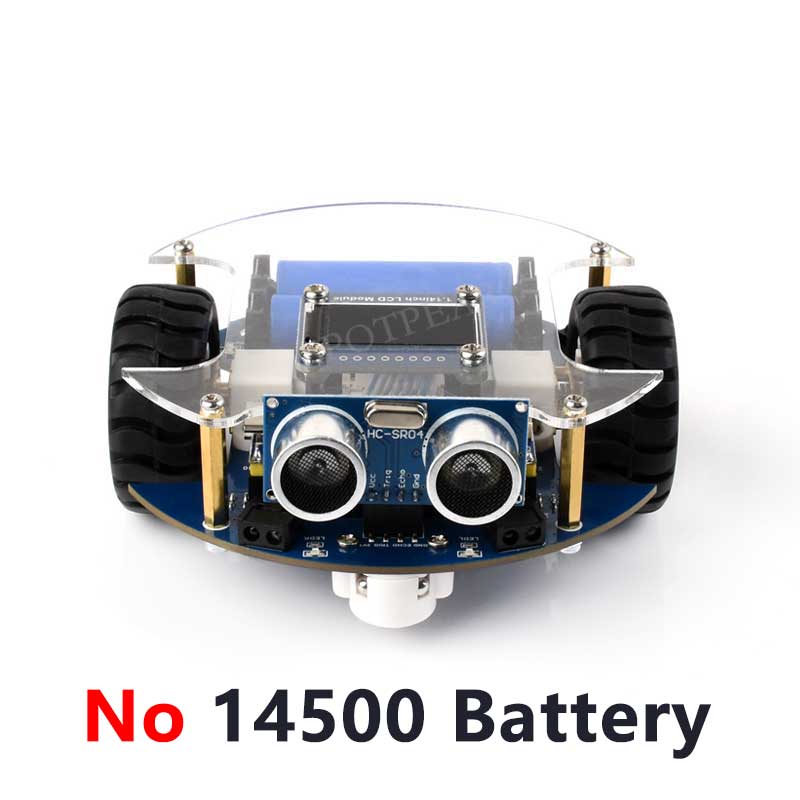

Ultrasonic Sensors
Ultrasonic ranging is fast, convenient and simple to calculate. It is easy to realize functions such as real-time control and ultrasonic obstacle avoidance. Its measurement accuracy meets the requirements of industrial practicality, so it has been widely used in the development of robotics.
Smart Follow
The smart car can detect objects in front of it through ultrasonic and infrared functions, and automatically follow the objects.
Infrared remote control
The smart car is equipped with an infrared receiver. When the infrared remote control sends infrared light containing key information, the smart car will execute corresponding actions, walk or turn instructions.
Mobile Bluetooth remote control
Provides a mobile phone APP to support controlling the movement of the car and the car's peripherals through the mobile phone, such as full-color light color display, buzzer pronunciation, etc.
For more examples, see the sample programs and manuals in the product information
Use Demo
Product size
