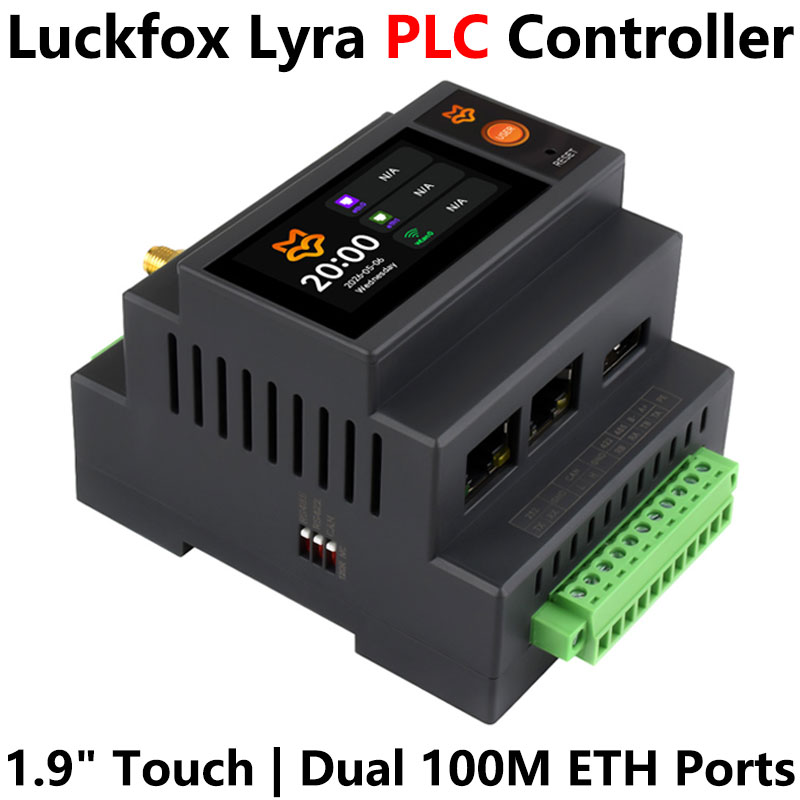

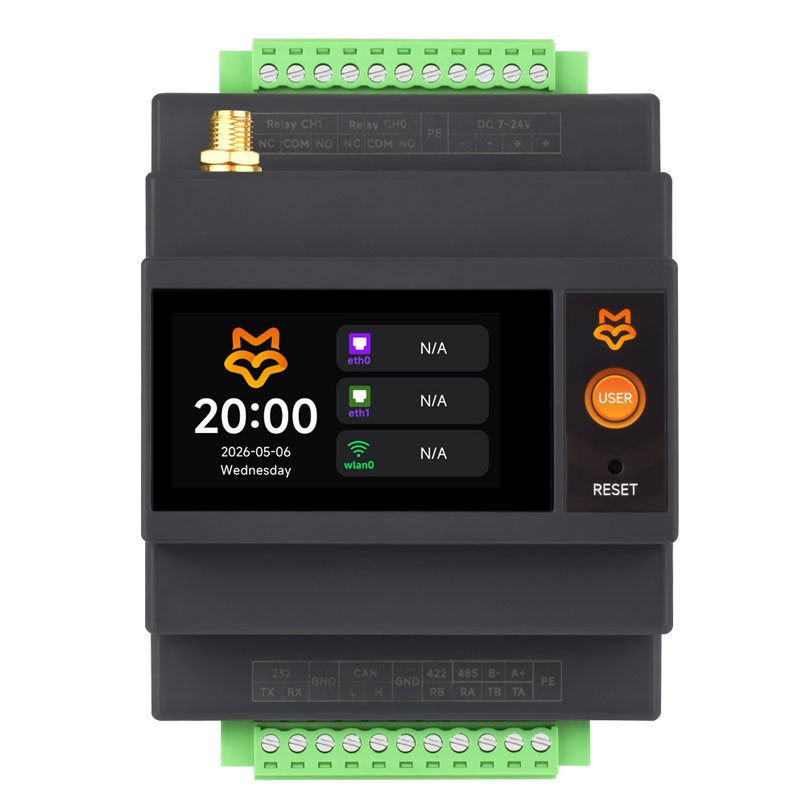

Luckfox Lyra Programmable Logic Controller, Based On RK3506B,Triple-Core ARM Cortex-A7, Onboard 1.9inch LCD Touchscreen And Dual 100Mbps Ethernet Ports, Optional PoE Function

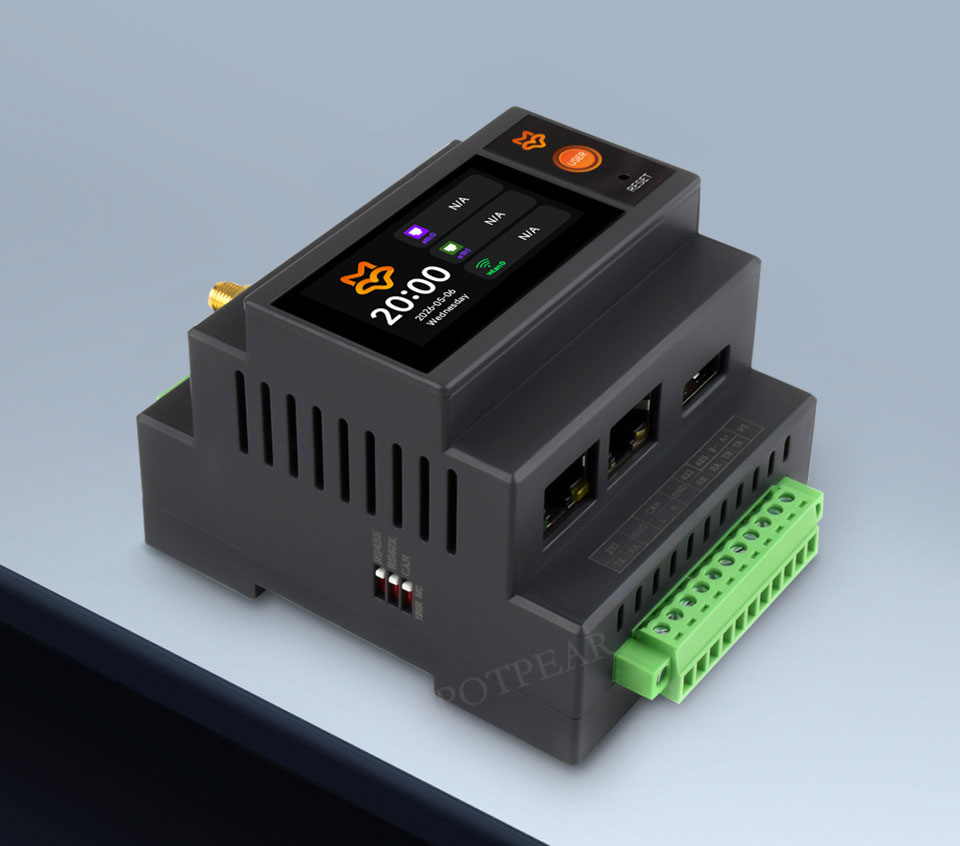

Luckfox Lyra PLC

PLC Based On Luckfox Core3506, Supports Custom Development

Extensive I/O Interfaces and Robust Performance for Industrial Automation

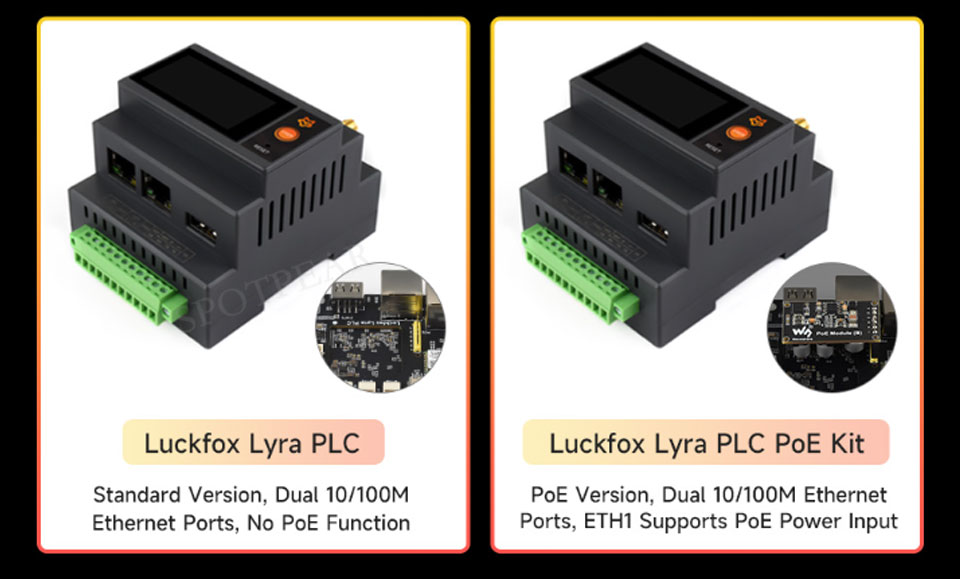

Version Options

Specifications

Processor	RK3506B
CPU	Triple-core ARM Cortex-A7 (1.2 GHz)
RAM	Onboard 512MB DDR3L
Storage	eMMC (8GB)
Display	1.9inch LCD touchscreen, 170 × 320 pixels
USB	USB OTG2.0 × 1 Extended USB HOST2.0 × 1 via HUB
Ethernet	10/100Mbps Ethernet port × 2
Wireless Connectivity	Onboard 2.4 GHz Wi-Fi 6 / Bluetooth 5.2 / BLE
CAN	CAN × 1
Serial Interfaces	RS232 × 1 RS422/RS485 × 1 (Shared port, selectable by wiring)
Relay Channels	2
Relay Contact Form	Normally Open (NO) × 1 Normally Closed (NC) × 1
Relay Contact Rating	≤10A 250V AC or ≤10A 30V DC
Buttons	Custom button × 1 (Used for firmware update by default) RESET button × 1
Power Input	USB-C input: 5 V
	Screw terminal power input: 7–24 V DC (wide input voltage range)
	PoE input (for PoE Version only): compatible with IEEE 802.3af PoE Standard

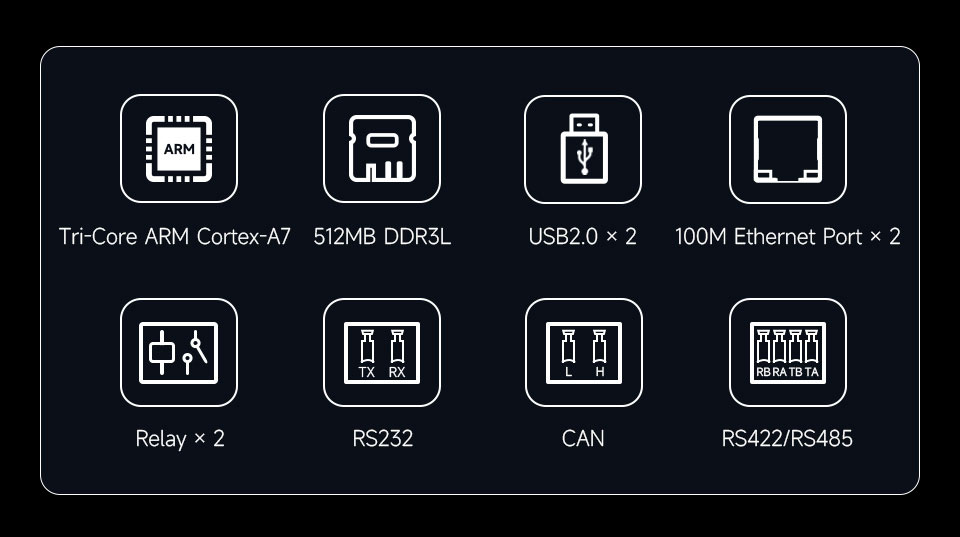

Extensive Peripheral Interfaces

Supports Wired And Wireless Connectivity, Provides RS232 / RS422 / RS485 / CAN / USB And Other Interfaces, Suitable For Data Collection And Reporting, Device Linkage Control, And Protocol Conversion

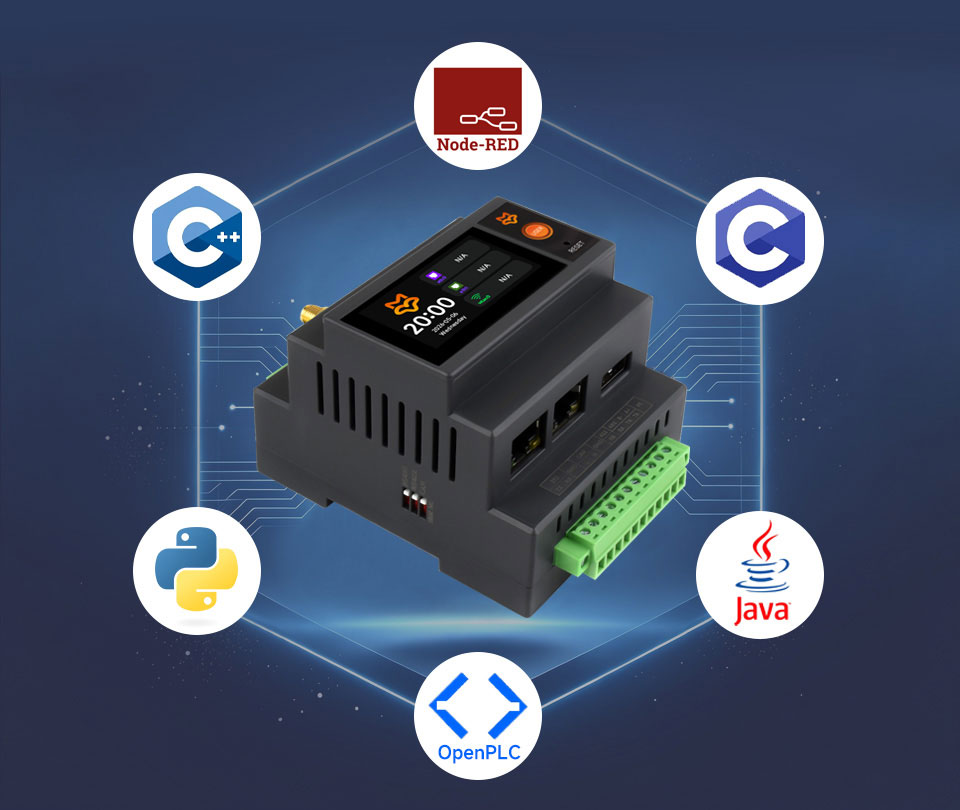

Linux-Based System

Comprehensive Software Ecosystem - Supports Multiple Languages
And Optional Installation Of Node-RED, OpenPLC, And Other Software

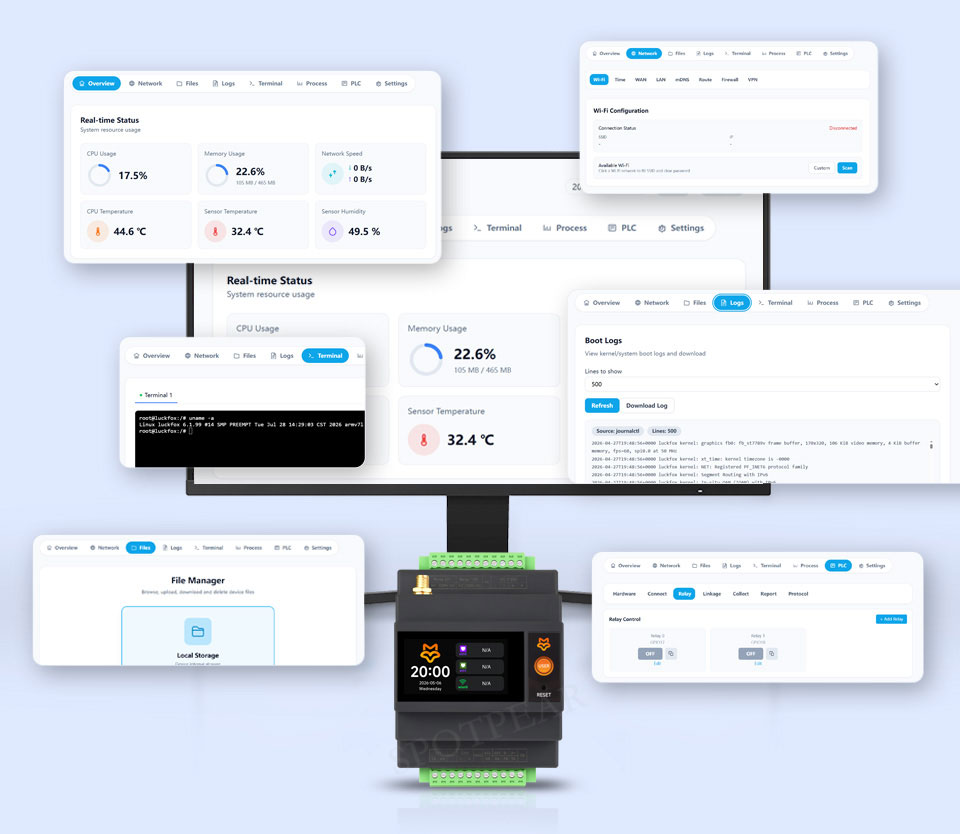

Web-Based Management

Access The Device Management Interface Via A Browser For Quick System Configuration

Remote Management And Maintenance

Multiple Built-In Remote Access Networking Solutions Enable Remote Management And Debugging

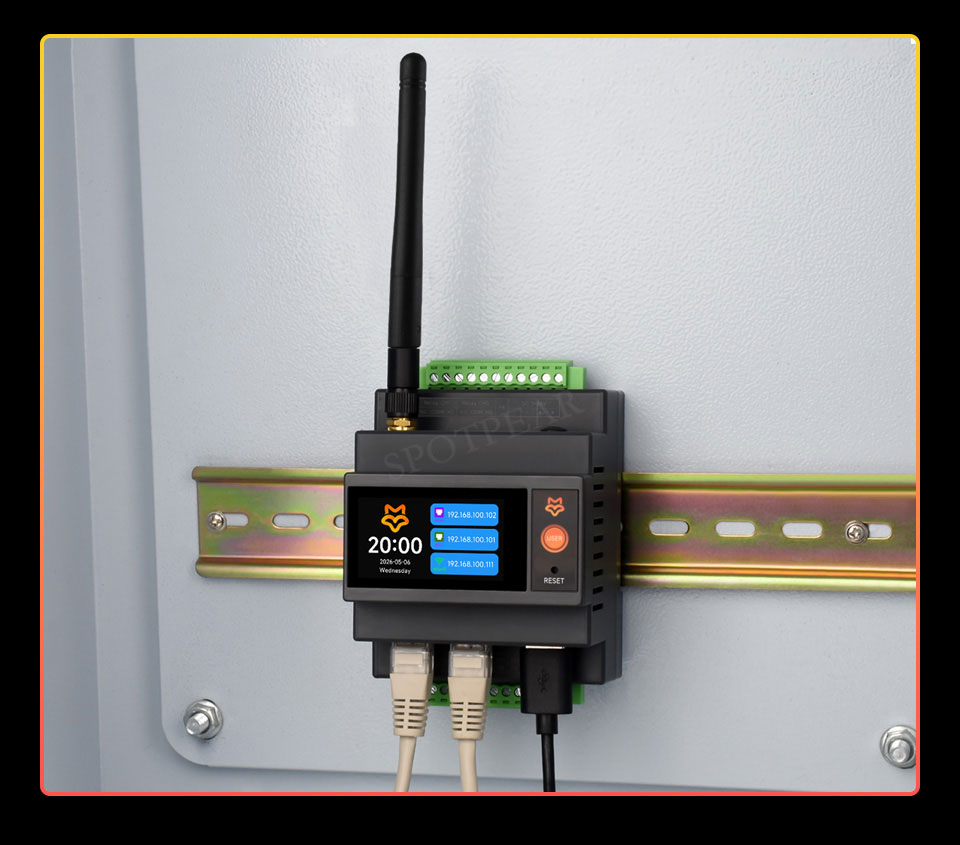

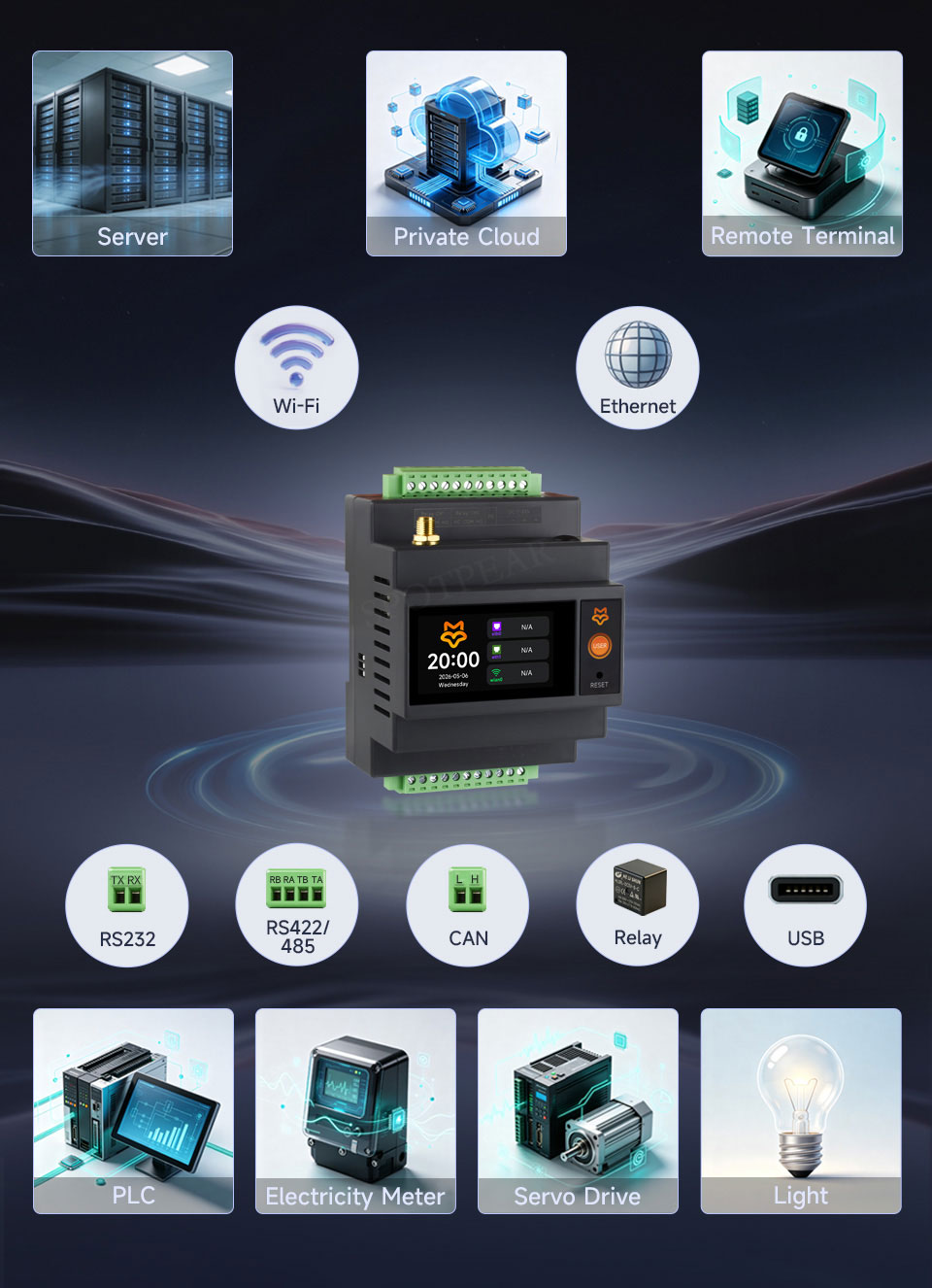

Application Scenarios

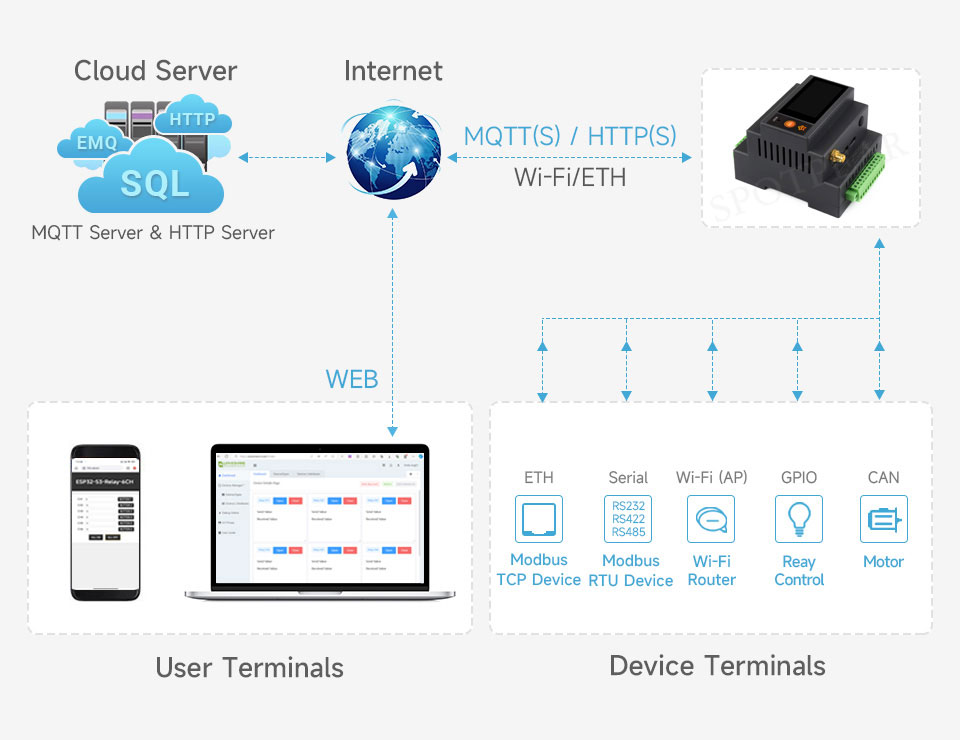

Application Examples

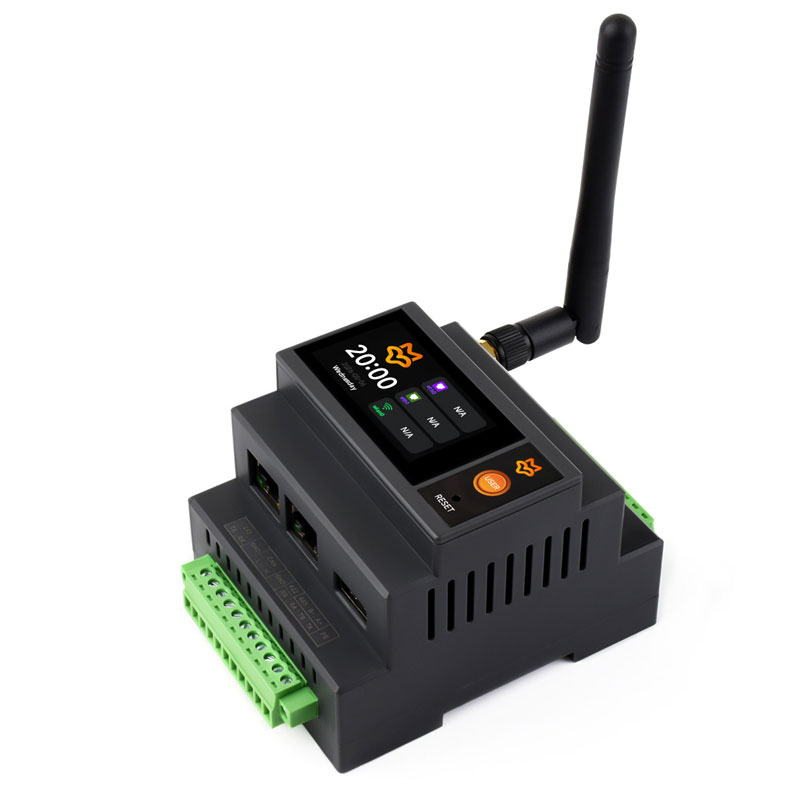

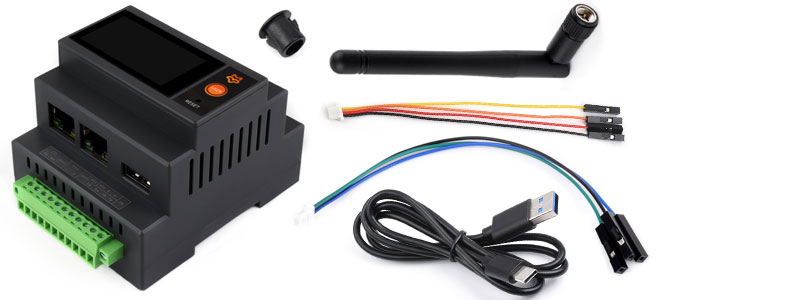

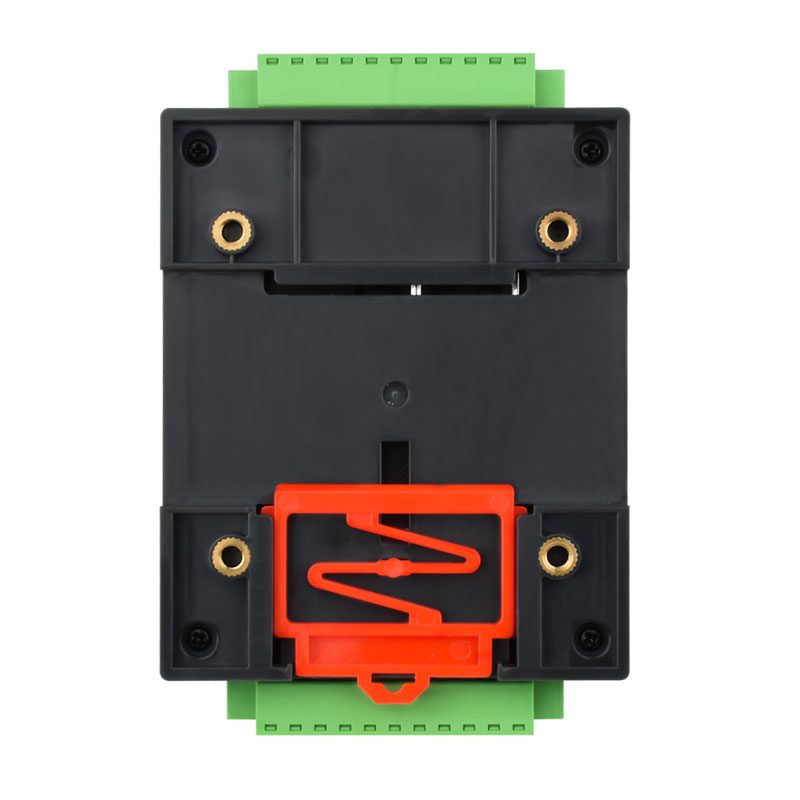

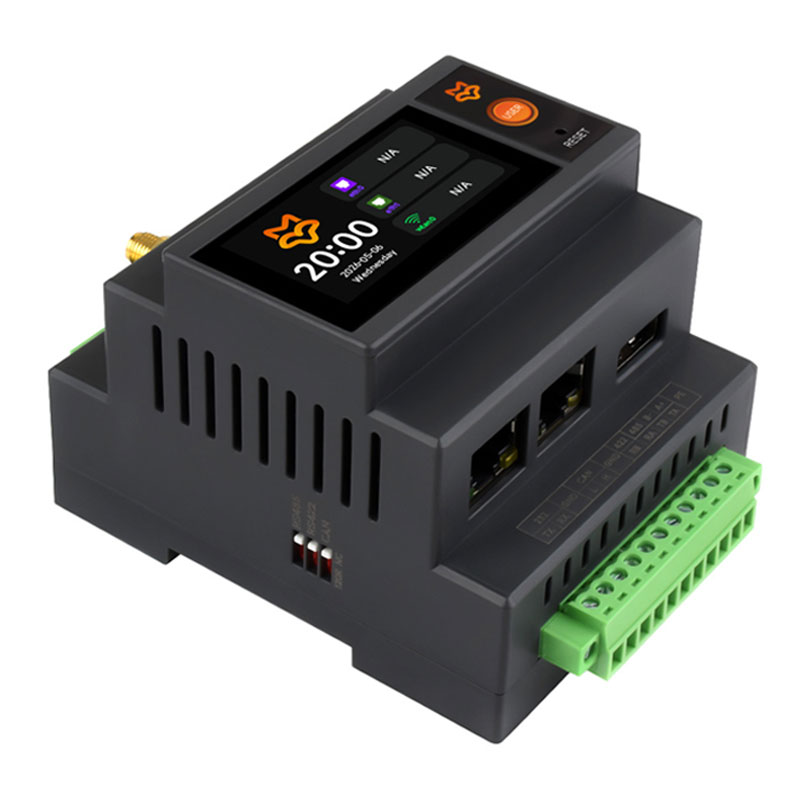

Product Showcase

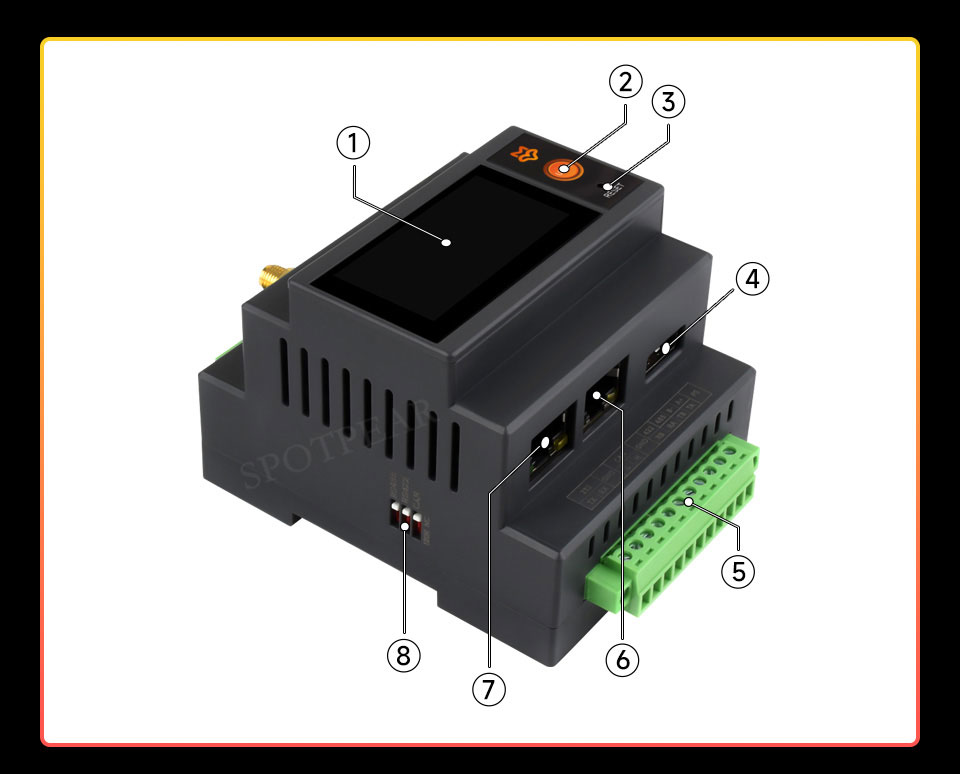

What's On Board

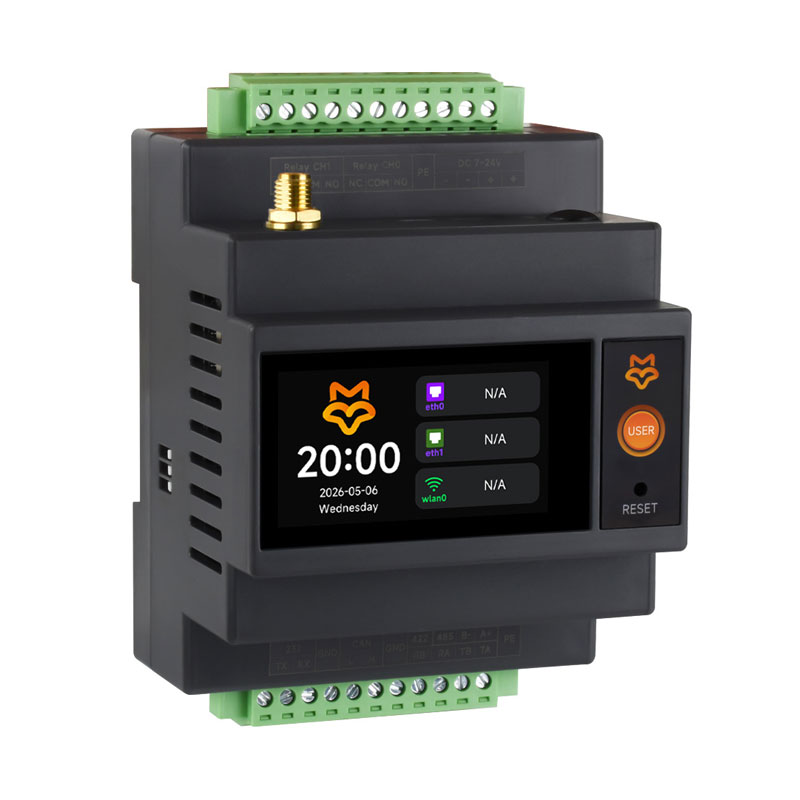

1.9inch LCD touch display
170 × 320 resolution, 262K colors
USER button
Used for firmware update by default; Press it when powering on or resetting to enter download mode
RESET button
Press with a SIM ejector tool (NOT Included) to reboot the system
USB Type-A HOST port

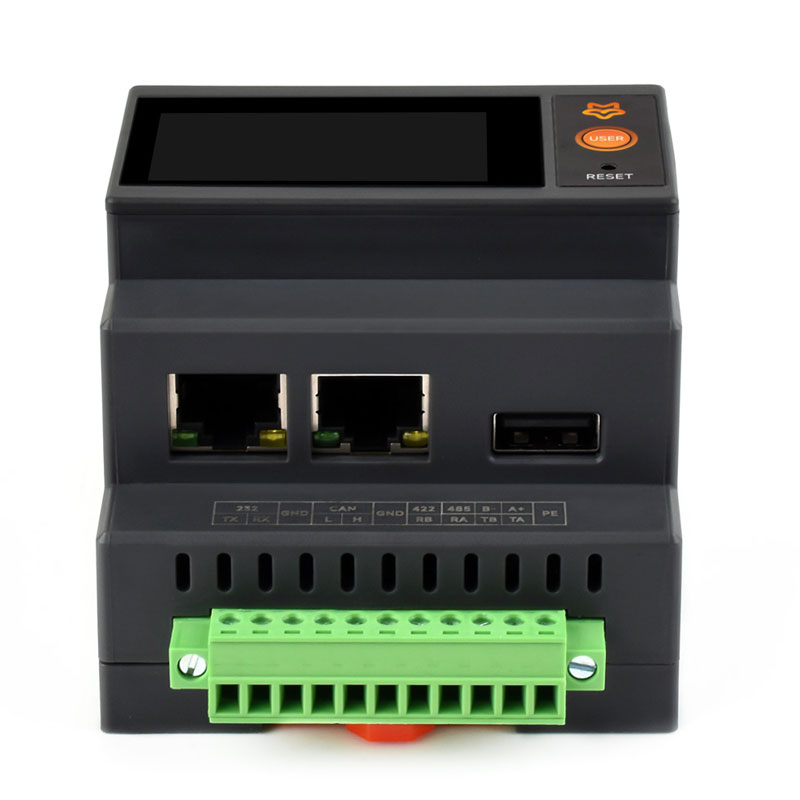

Industrial screw terminal
Includes RS232, RS422/RS485, and CAN interfaces
100 Mbps RJ45 Ethernet port with LED indicators
100 Mbps RJ45 Ethernet port with LED indicators
Standard Version: No PoE support;
PoE Version: Supports power input via Ethernet cable from a PoE switch
Termination resistor switches
Lever the switch down to enable the 120Ω termination resistor for the corresponding interface

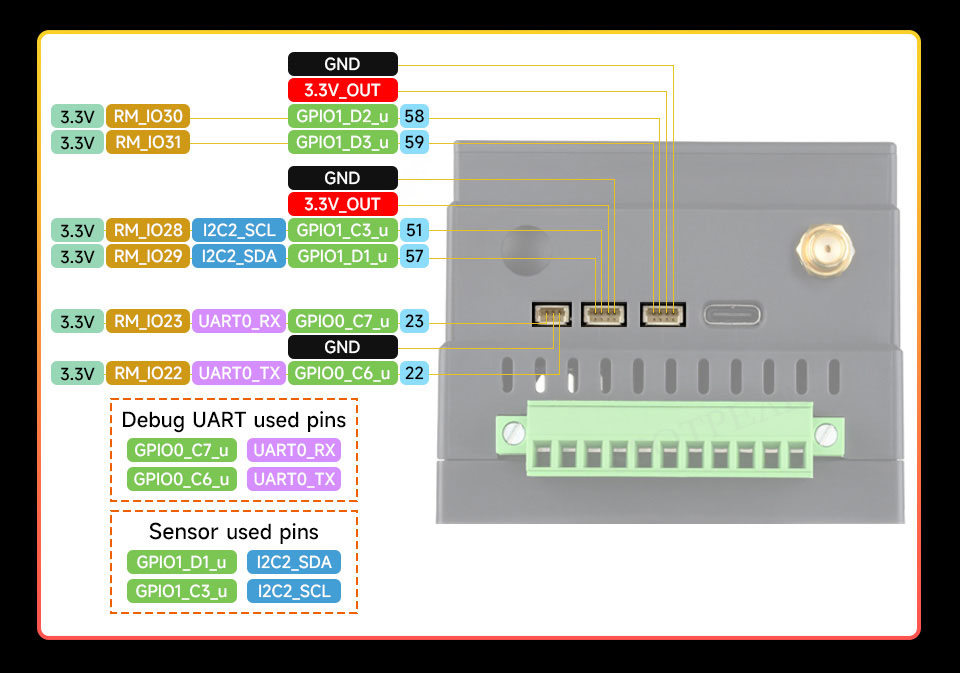

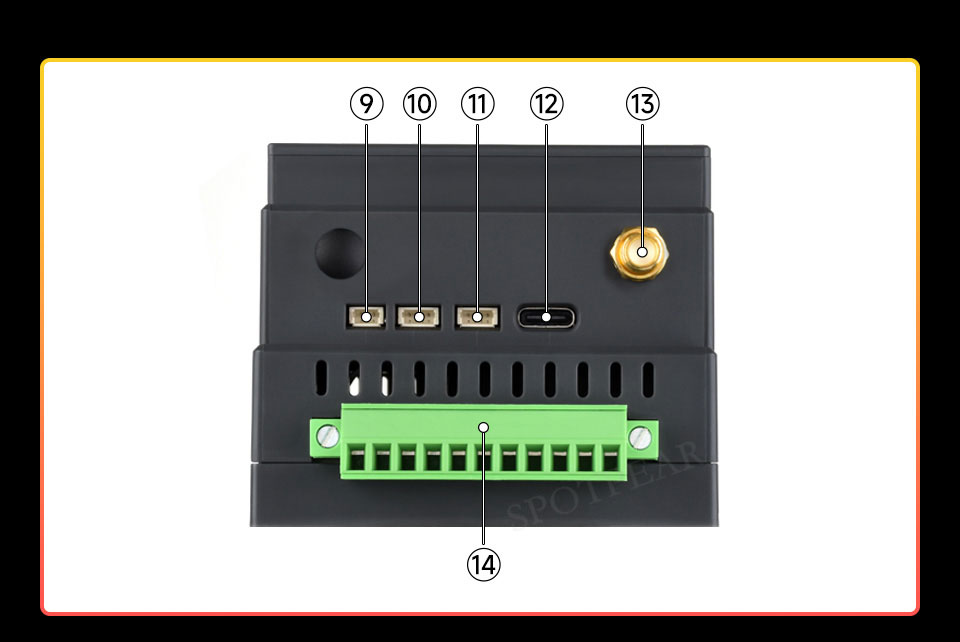

Debug serial port
Expansion I2C interface
Shares the I2C bus with the built-in RTC and temperature & humidity sensor
Expansion I/O interface

USB Type-C OTG0 port
for power input and firmware flashing
Antenna connector

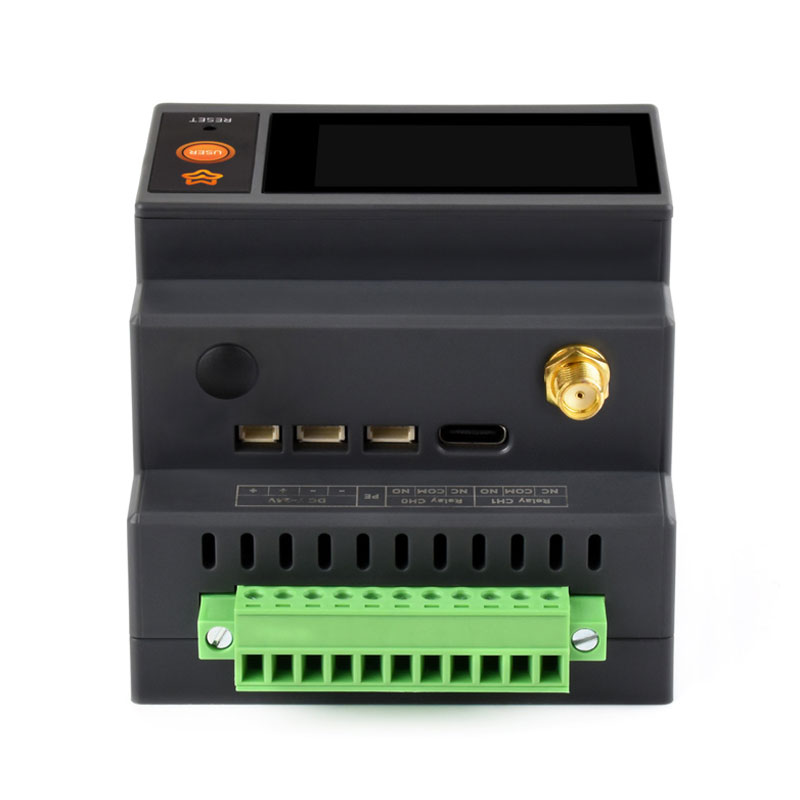

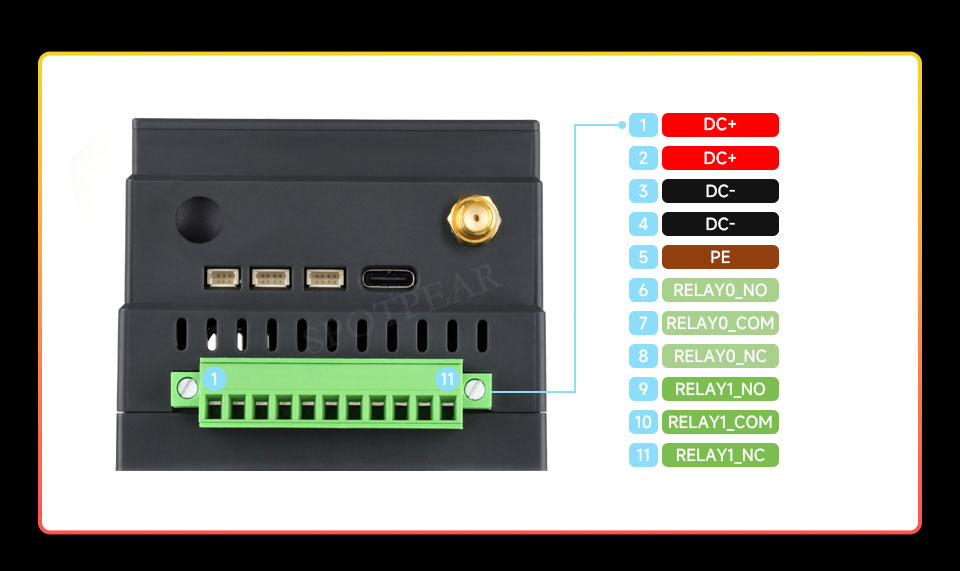

Relay and DC power screw terminal
Includes 2-ch relay channels and a 7~24 V DC wide-range input

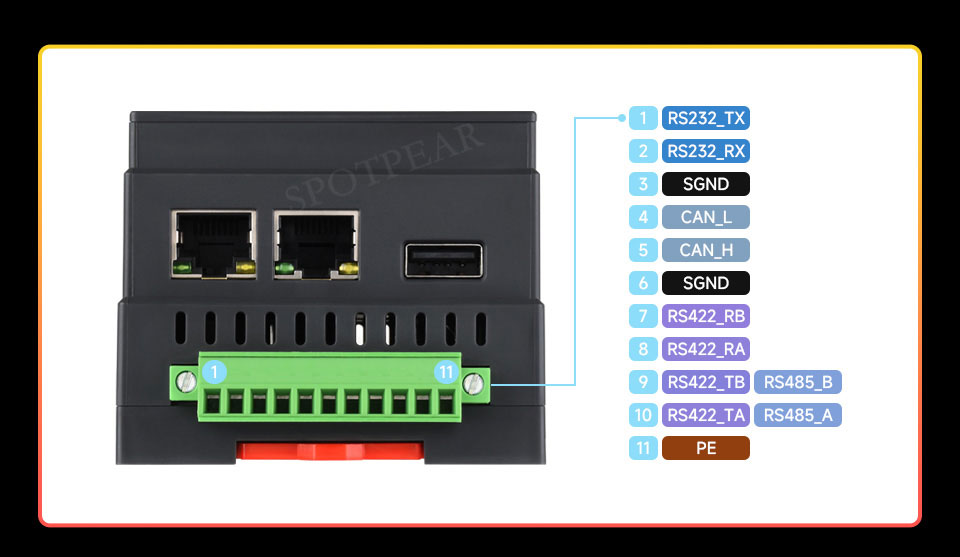

Pinout Definition

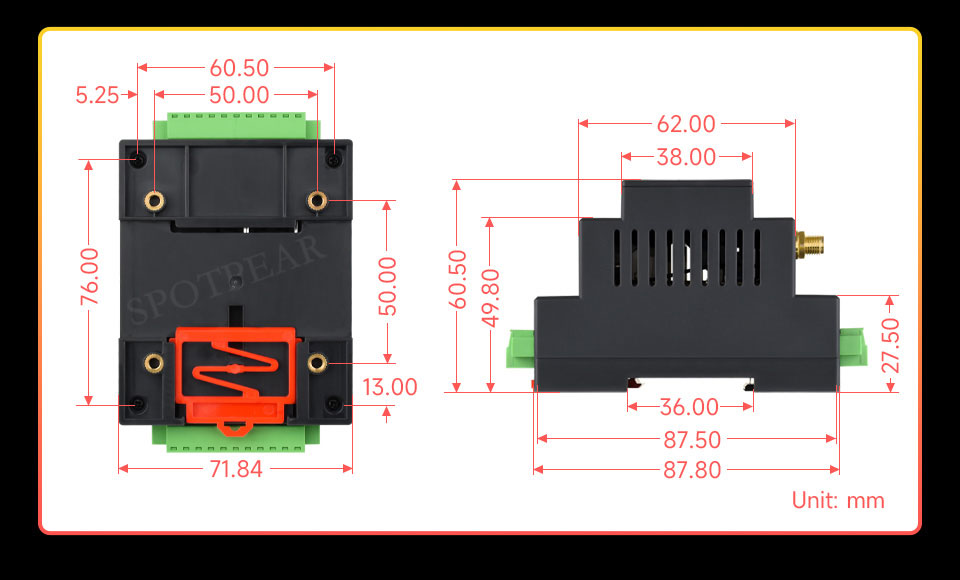

Outline Dimensions
