Jetson Orin NX SUPER 8GB/16GB 117TOPS/157TOPS Dual Ethernet AI Development Board

Jetson Orin NX SUPER 8GB/16GB 117TOPS/157TOPS Dual Ethernet AI Development Board

$1291.49

Brand：SpotPear

SKU：050115300000

Date：2025-11-22 16:18

Part Number：

JETSON-ORIN-NX-8G-ETH-DEV-KIT JETSON-ORIN-NX-16G-ETH-DEV-KIT

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

Jetson Orin NX AI SUPER Developer Dual Ethernet Port KitSuitable for Embedded Systems and Edge SystemsBuilt-in Jetson Orin NX 8/16GB VRAM Core Board

Jetson Series Recommend

Jetson-Nano-Module

Jetson-TX2-NX

Jetson-Xavier-NX-8GB/16GB

Jetson-Orin-Nano-4GB/8GB

Jetson-Orin-NX-8GB/16GB

Jetson-Nano-Developer-Kit-(B01)

JETSON-NANO-DEV-KIT

JETSON-TX2-NX-DEV-KIT

Jetson-Xavier-NX-Developer-Kit

JETSON-XAVIER-NX-DEV-KIT

Jetson-Orin-Nano-Developer-Kit

Jetson Orin Nano Super Developer Kit

NVIDIA Jetson Orin Nano Developer Kit 4GB/8GB AI 40Tops China-Kit For Embedded and Edge Systems

JETSON-ORIN-NANO-4G-ETH-DEV-KIT

JETSON-ORIN-NX-DEV-KIT

JETSON-ORIN-NX-8G-ETH-DEV-KIT

Jetson-AGX-Orin-Developer-Kit

Jetson AGX Thor Developer Kit

For Jetson NANO

For Xavier/TX2 NX

For Orin Nano/NX

JETSON-ORIN-NX-ETH-DEV-KIT

Orin NX Dual ETH Development Kit

This Is Not The N-VIDIA Official Developer Kit

Based on Jetson Orin NX Module, with JETSON-ORIN-IO-BASE-B base board, providing rich peripheral interfaces such as M.2, DP, USB, dual ETH ports, etc., which is more convenient for users to realize the product performance.

This kit includes the Orin NX Module with options for 8GB / 16GB versions, no built-in storage module, provides up to 70 TOPS / 100 TOPS AI performance, and up to 117 TOPS / 157 TOPS after upgrading to the SUPER version, comes with a 256GB NVMe Solid State Drive, high-speed reading/writing, meet the needs of large AI project development.

* for reference only, the actual appearance of the Solid State Drive may be different

This kit also comes with a pre-installed dual-band wireless network card that supports Bluetooth 5.0 and dual-band WIFI, with two additional PCB antennas, for providing high-speed and reliable wireless network connection and Bluetooth communication.

Kit Selection Guide

JETSON-ORIN-NX-ETH-DEV-KIT

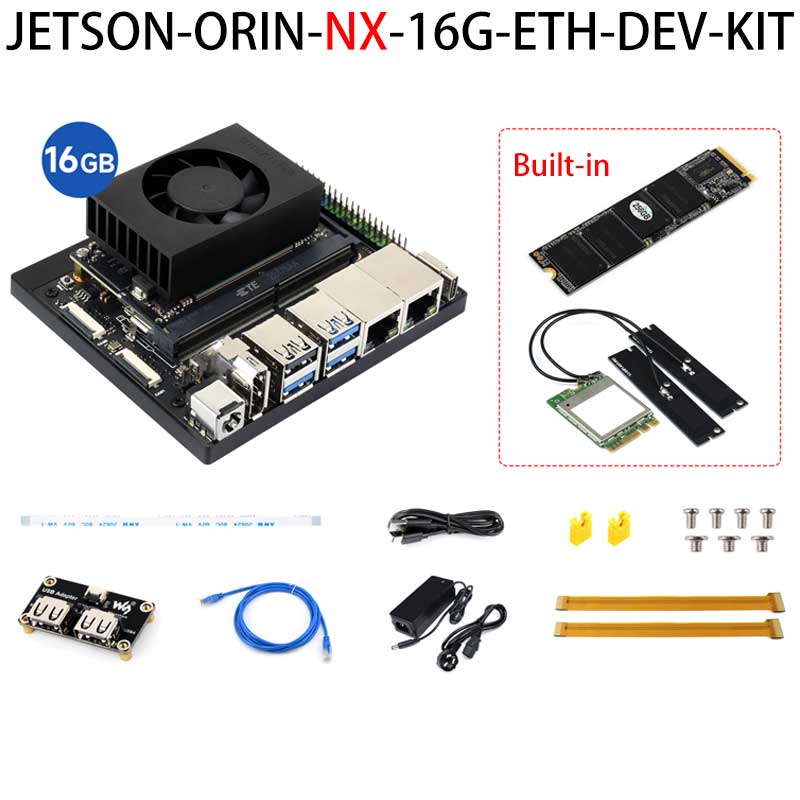

Includes Jetson Orin NX Module (options for 8GB/16GB), JETSON-ORIN-IO-BASE-B base board, cooling fan, 256GB NVMe Solid State Drive, AW-CB375NF dual-band wireless network card, FFC cable, USB cable, USB expansion board, Network cable, power supply adapter, etc.

Specifications

VERSION	8GB*** SUPER	16GB*** SUPER
AI PERFORMANCE	117 TOPS	157 TOPS
GPU	1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores
GPU FREQUENCY	1173MHz (Max)
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3
CPU FREQUENCY	2GHz (Max)
DL ACCELERATOR	1x N-VDLA v2	2x N-VDLA v2
DLA FREQUENCY	1230MHz (Max)
VISION ACCELERATOR	1x PVA v2
MEMORY	8GB 128-bit LPDDR5, 102.4GB/s	16GB 128-bit LPDDR5, 102.4GB/s
STORAGE	Supports external NVMe
POWER	10W \| 15W \| 25W \| 40W
PCIE*	1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint)
USB*	3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0
CSI CAMERA	Up to 4 cameras (8 via virtual channels**) 8 lanes MIPI CSI-2 D-PHY 1.2 (up to 20 Gbps)
VIDEO ENCODE	1x 4K60 (H.265) \| 3x 4K30 (H.265) 6x 1080p60 (H.265) \| 12x 1080p30 (H.265)
VIDEO DECODE	1x 8K30 (H.265) \| 2x 4K60 (H.265) \| 4x 4K30 (H.265) 9x 1080p60 (H.265) \| 18x 1080p30 (H.265)
DISPLAY	1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
OTHER	3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO
NETWORKING	1x GbE
DIMENSIONS	69.6 mm x 45 mm 260-pin SO-DIMM connector
* USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations. Virtual Channels for Jetson Orin NX are subject to change Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features. * Orin NX Module and Waveshare kit: supports upgrading to SUPER image, provides SUPER upgrade tutorial in the wiki (jetpack 6.2 can support upgrading SUPER version);

7 × USB Ports

4 × Type-A + 1 × Type-C + 2 × USB2.0 FFC connectors

Supports Connecting To More Peripherals, USB 3.2 Gen 2 Ports For Data Transmission Up To 10Gbps, Type-C Port Can Be Used For System Burning, And Onboard 2 × USB 2.0 FFC Connectors

Connect To CSI Camera

Expands 2 × CSI Camera Interfaces For AI Applications Such As Face Recognition, Road Sign Detection, Lane Line Detection, And License Plate Recognition

* for reference only, please refer to the package content for detailed part list.

Onboard Dual Ethernet Ports

Expands 1 × RJ45 2.5G Ethernet Port And 1 × RJ45 Gigabit Ethernet Port

* for reference only, please refer to the package content for detailed part list.

4K High Definition Output

Supports DP High-Definition Port

* for reference only, please refer to the package content for detailed part list.

Onboard Resources

Installation Demonstration

Product Show

Outline Dimensions

[] JETSON-ORIN-NX-8G-ETH-DEV-KIT

[] JETSON-ORIN-NX-16G-ETH-DEV-KIT
