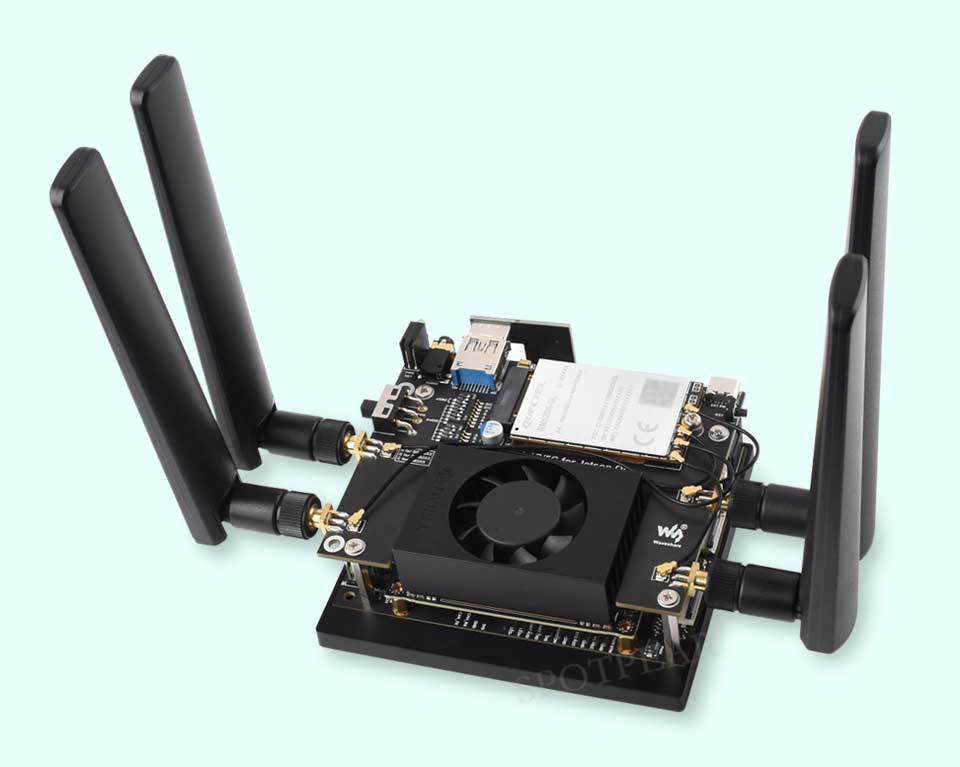

Jetson Orin
5G / 4G / 3G expansion board
Supports 5G/4G/3G networks and GNSS positioning
Based on Quectel RM520N-GL 5G global communication module, supporting 3GPP 16

Product Features
- Based on Qualcomm X62 platform, supports 5G NSA and SA networking, and supports multi-mode and multi-band
- Integrated multi-constellation dual-frequency positioning: GPS, GLONASS, BeiDou, Galileo and QZSS
- The onboard USB 3.1 interface is backward compatible with USB 2.0 and can be used to connect to the Jetson Orin motherboard, computer or Raspberry Pi for high-speed 5G Internet access.
- Onboard M.2 B KEY standard interface and pin setting switch, compatible with optional RM520N-GL / RM530N-GL / RM500U-CNV / EM060K-GL series modules
- Onboard 4-way SMA to IPEX antenna conversion interface, making antenna installation more convenient
- A UART pad interface is reserved to facilitate data transmission and other functions with some modules through this interface
- Onboard one Nano SIM card slot and one eSIM card slot packaged in QFN-8 (5 × 6), dual-SIM single standby, which can be switched and enabled via AT commands
- Onboard power switch, reset button and LED indicator light make it easy to control the module power on and off and check the operating status
- Onboard high-performance power circuitry capable of delivering up to 3A of current
Multi-mode and multi-band
Based on the Qualcomm platform, it supports 5G NSA and SA networking, multi-mode and multi-band, and is suitable for a variety of application scenarios.

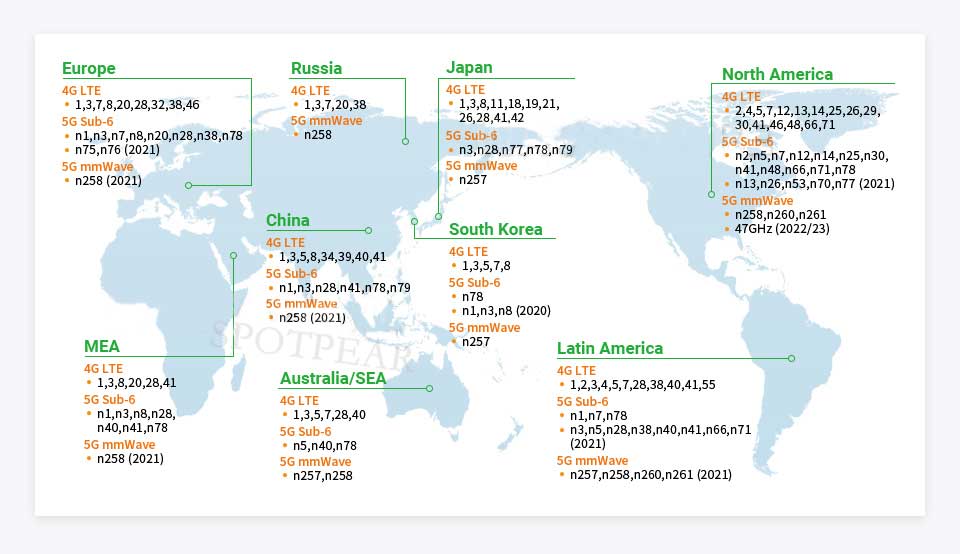

The above image is a reference map of 4G and 5G network frequency bands around the world.
Before use, please confirm that the frequency band used by your local operator is within the module's supported range.

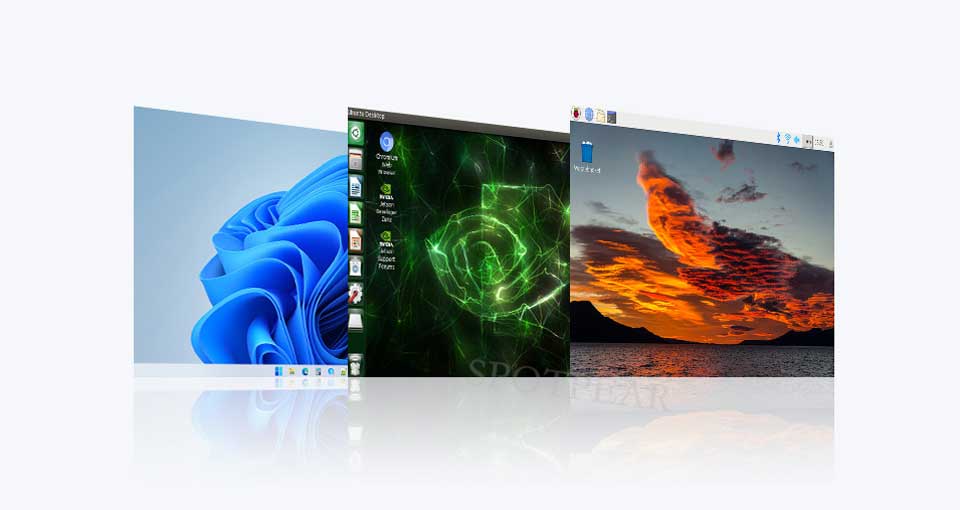

Multi-system compatible, easy to operate
Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, and OpenWRT. Simply plug in the USB port and configure it to achieve high-speed 5G networking.

Enjoy 5G high-speed Internet
Can be connected to the Jetson Orin motherboard, computer or Raspberry Pi for high-speed 5G Internet access
Example of accessing the Internet via Jetson Orin
接 Windows 电脑上网示例

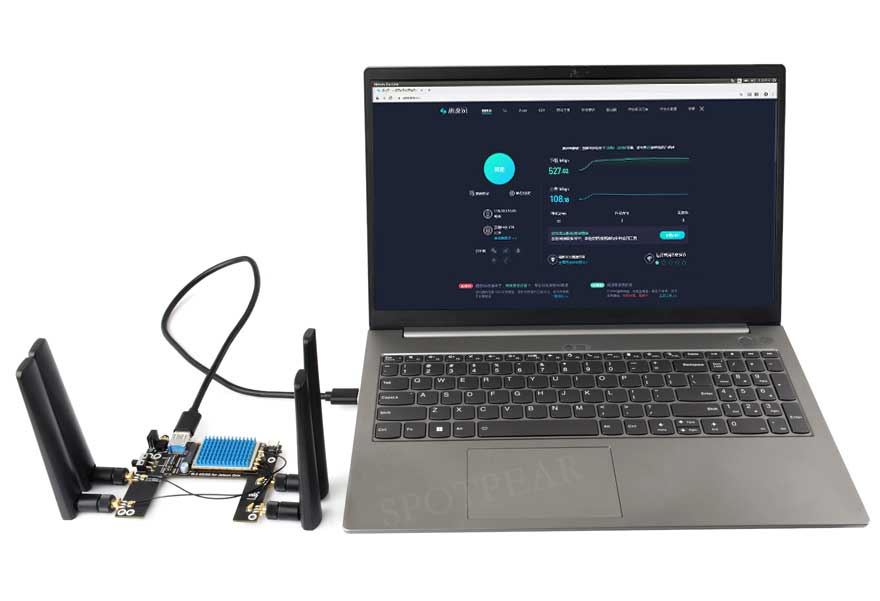

Example of connecting to the Internet from a Windows computer

Actual speed measurements are affected by factors such as network coverage, network congestion, host performance, and base station deployment.

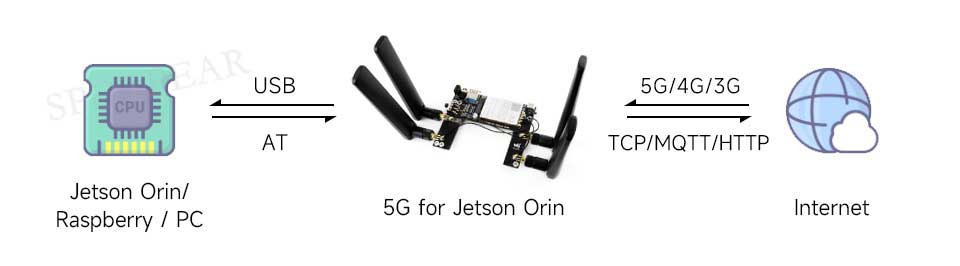

Support cloud platform communication

Application Examples

Resource Introduction

- USB 3.1 interface
Backward compatible with USB 2.0, can be used to connect to various motherboards
- M.2 interface
Compatible with most SIMCom and QUECTEL M.2 packages for 4G/5G modules
- USB Type-C port
5V 3A input, stable and flexible power supply
- Reset switch
One-button reset
- Module fixing hole
Supports 3042/3052 package modules
- Antenna interface
Onboard four antennas
- Module setting switch
A silkscreen switch turned to ON, can be used for SIM7600X / A7906X / SIM7906X / SIM7912X series 4G M.2 modules
B. Turn the silkscreen switch to ON and it can be used with SIM8202X / SIM8200EA / SIM8262X / SIM8260X series 5G M.2 modules.
C silkscreen switch turned to ON, can be used with RM520N-GL / RM530X / EM06X series 5G / LTE-A M.2 modules
- Power switch
If set to USB, the module will be powered by "⑤ USB3.1 port"
If set to EXT PWR, the module will be powered by the external power supply through the "⑥ USB Type-C port"
- pilot lamp
Conveniently view the module operation status
- Audio Interface
SIM82XX and SIM7600X series support audio function, but RM5XX series does not support this audio function.
- eSIM card slot
Package QFN-8 (5 × 6), can be configured through AT commands
- Nano SIM card slot
Onboard two SIM card slots, dual SIM single standby
- Level conversion circuit
- Reserved UART and audio interface pads
- Mounting holes
Mounted to Jetson Orin with screws
- Audio driver circuit
- Power supply circuit
- Fan connector
Can be used to connect to a 5V cooling fan

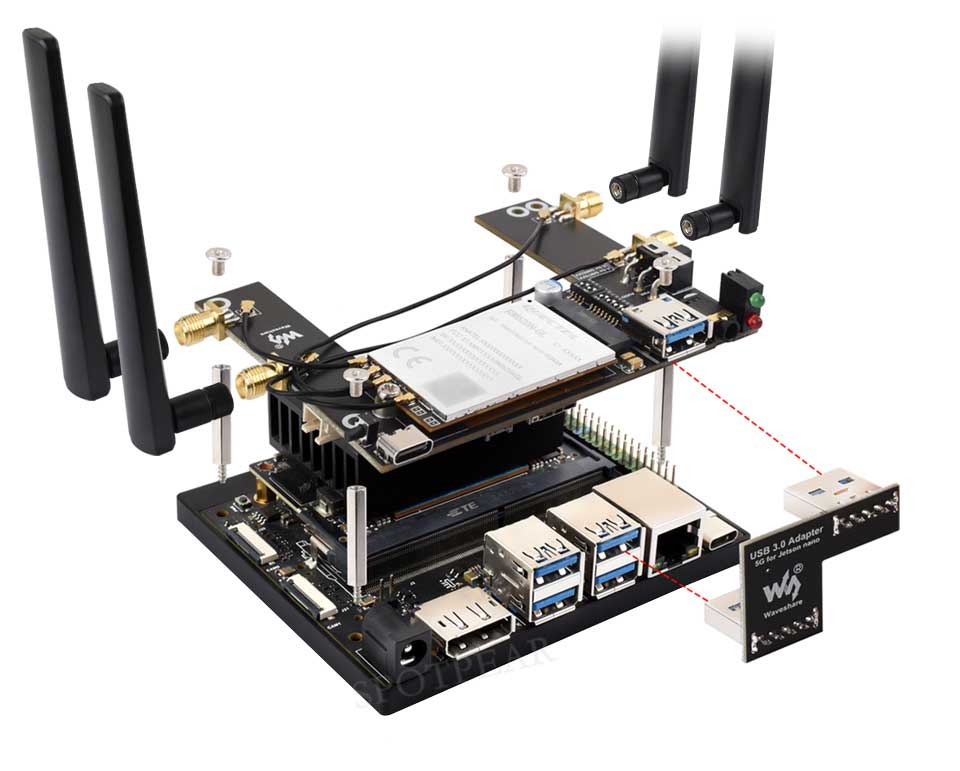

Installation Instructions

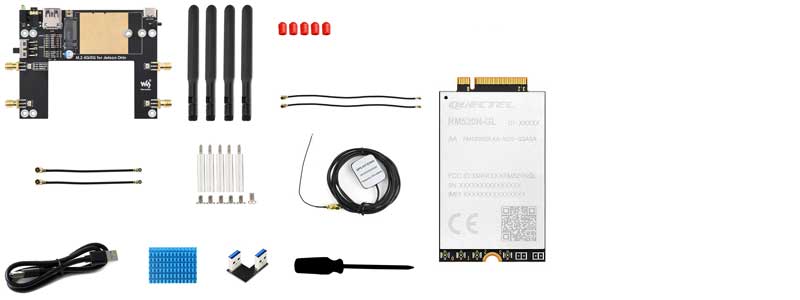

The pictures are for display only. Please refer to the configuration list for detailed configuration.
Product size
