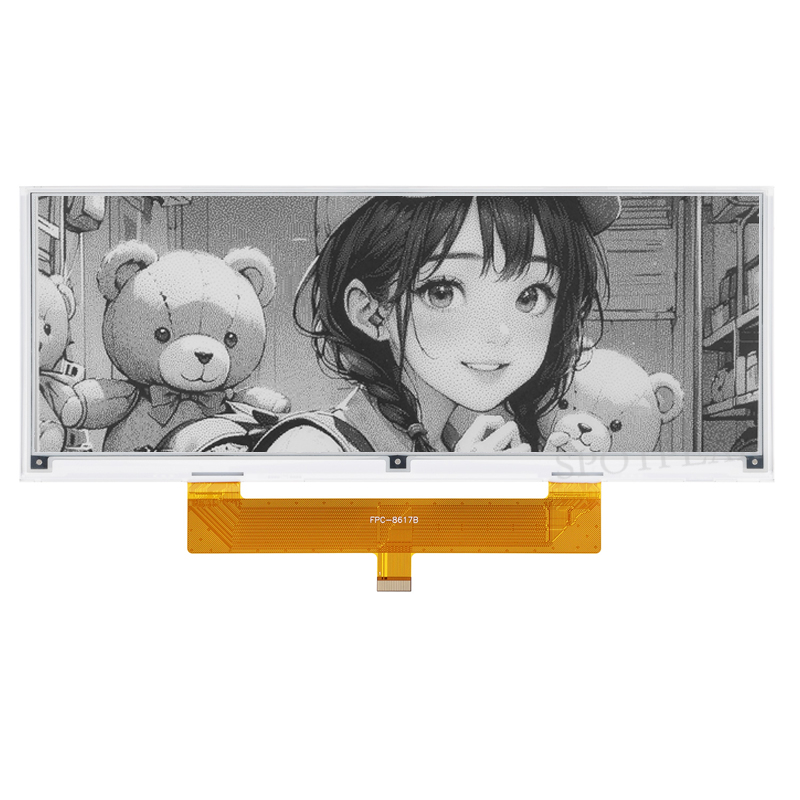

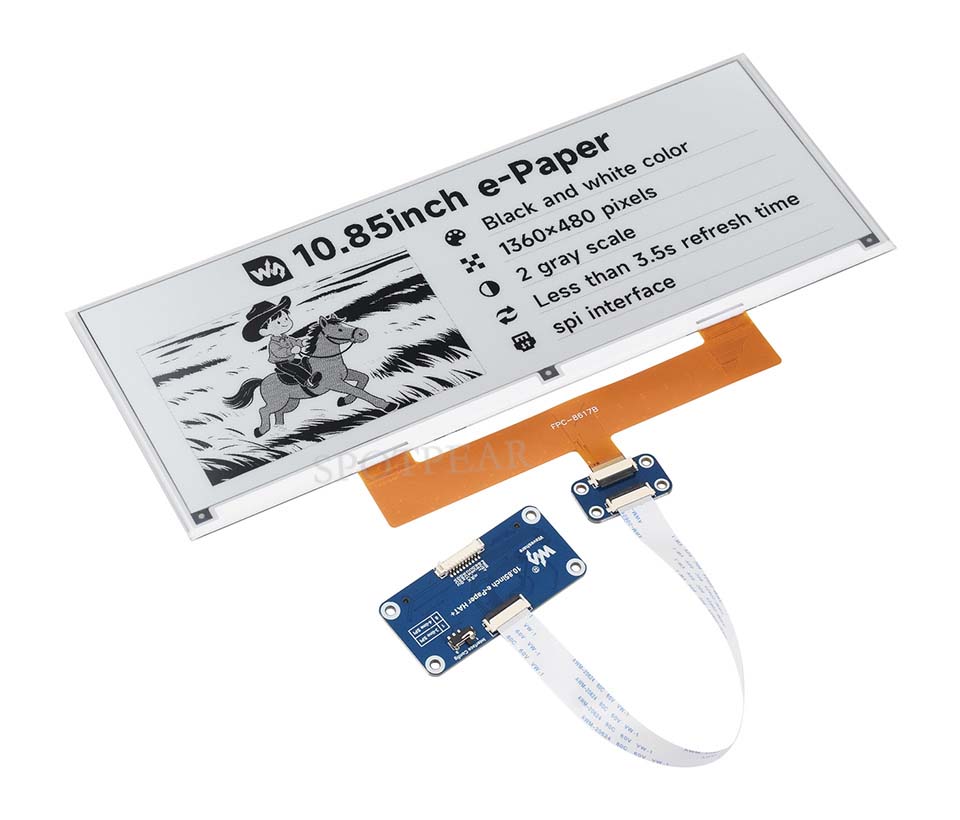

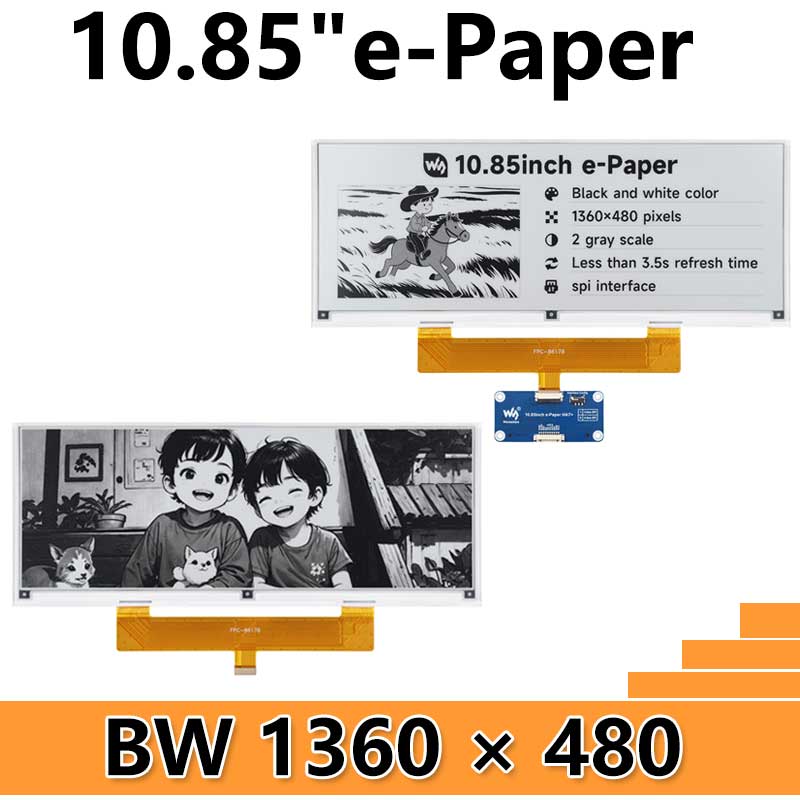

10.85 inch e-Paper black and white electronic ink screen bare screen 1360 × 480 pixels SPI communication based on Raspberry Pi 40PIN GPIO interface design

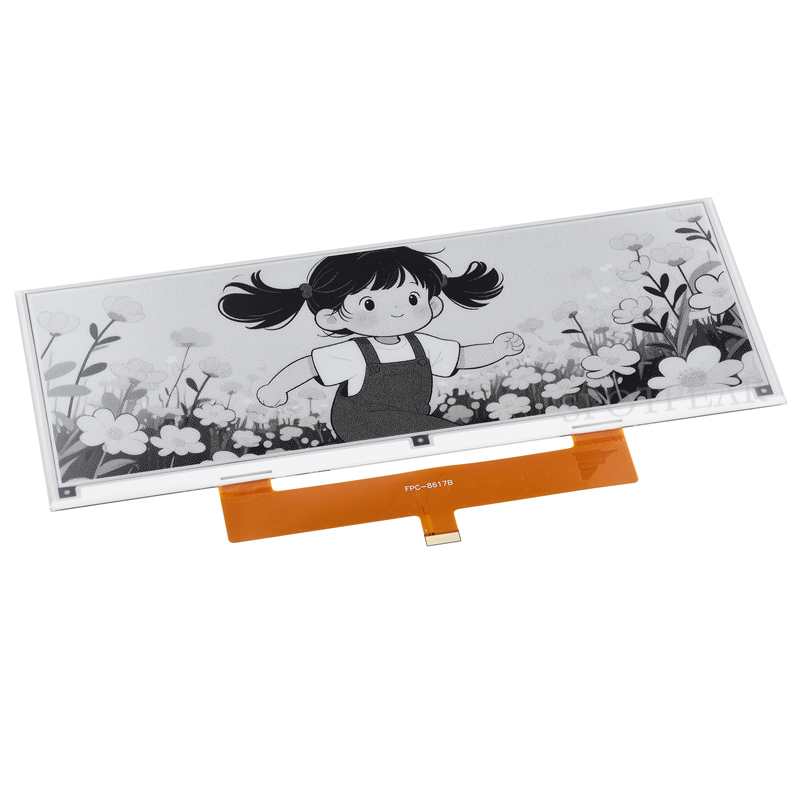

10.85 inch E-ink screen module

Low power consumption, wide viewing angle, clear display even when power is off

For display applications such as shelf labels, industrial instruments, etc.

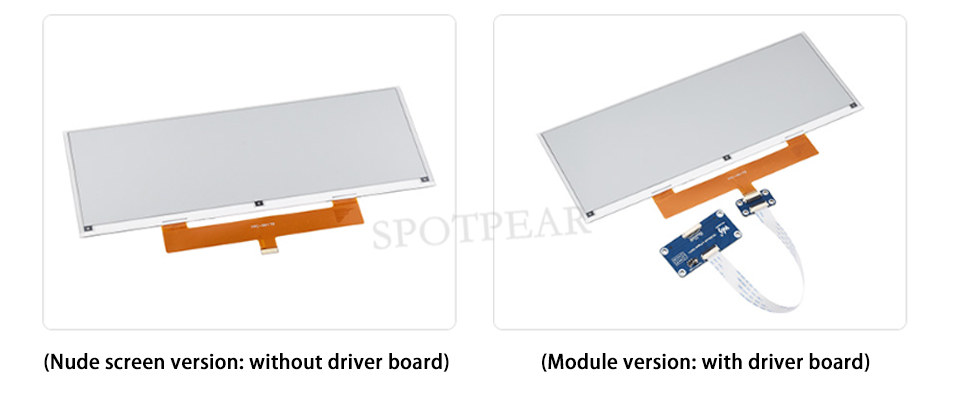

Version selection

Features

No backlight required, the last screen display can be kept for a long time after power failure
The power consumption is very low, basically only consuming power when refreshing
Provides complete supporting manuals: driver board schematics, Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32 and other sample programs
The following applies only to the module version
Based on Raspberry Pi 40PIN GPIO interface design, suitable for Raspberry Pi, Jetson Nano
Adopting the Raspberry Pi HAT+ standard, the expansion board interoperability is improved, helping developers to design and develop faster, use various external devices more easily, and expand the functions and performance of the Raspberry Pi
Reserved SPI communication interface for easy access to Raspberry Pi / Arduino / STM32 / ESP32 and other main control boards
Onboard level conversion chip, compatible with 3.3V and 5V level interfaces

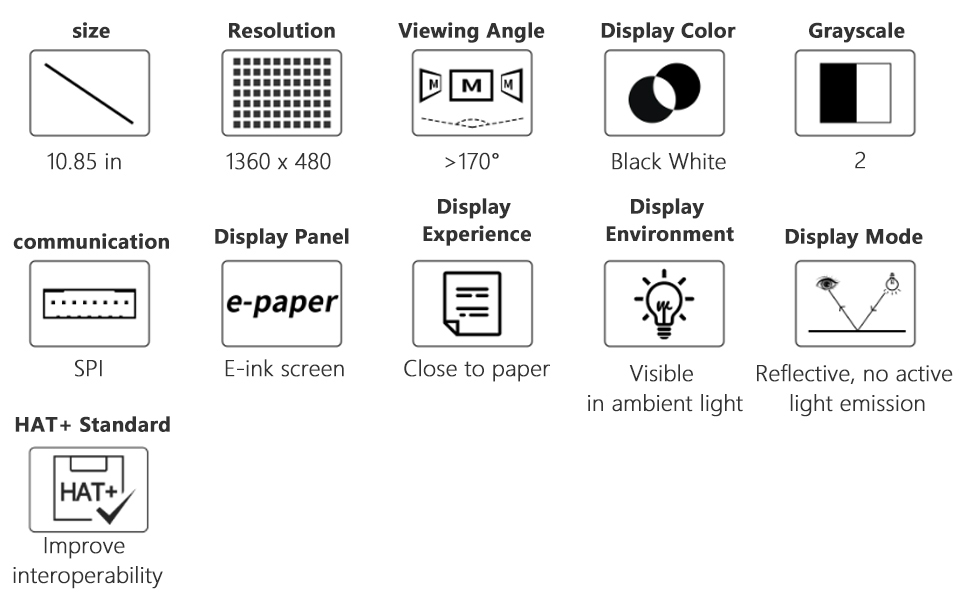

Product Parameters

Operating voltage	Naked screen version：3.3V	Display Color	Black, White
Operating voltage	Module version：3.3V / 5V	Display Color	Black, White
Communication interface	3-wire SPI、4-wire SPI	Grayscale	2
Dimensions (mm)	Naked screen size：270.56 × 105.92 × 1.20	Partial refresh	0.6s
Dimensions (mm)	Module size：65.00 × 30.50	Global Refresh	3.5s
Display size	259.76 × 91.68 (mm)	Refresh power consumption	<50mW
Dot Pitch	0.191 × 0.191 (mm)	Sleep current	<0.01uA (Close to 0)
Resolution	1360 × 480 pixels	Viewing Angle	>170°

Advantages of E-Ink Screen

The electronic ink screen uses "microcapsule electrophoresis display" technology to display images. Its working principle is that charged nanoparticles suspended in liquid migrate under the action of the electric field, and form a display effect close to traditional printed paper through reflection under ambient light. The electronic ink screen can display images clearly under ambient light such as light and natural light, without backlight, and the viewing angle is almost 180°. Because its display effect is comparable to that of traditional paper, it is often used in applications such as readers.

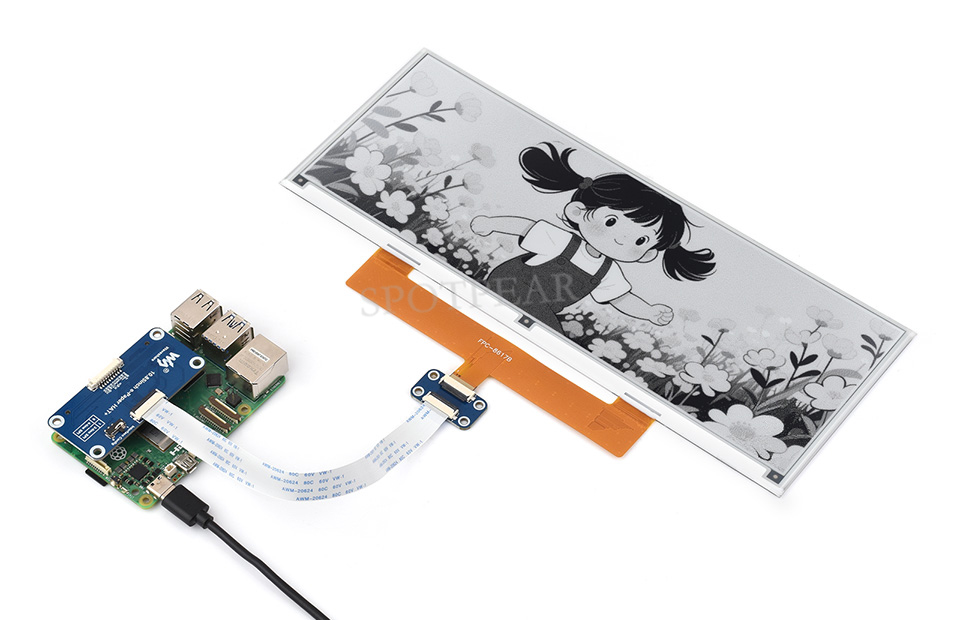

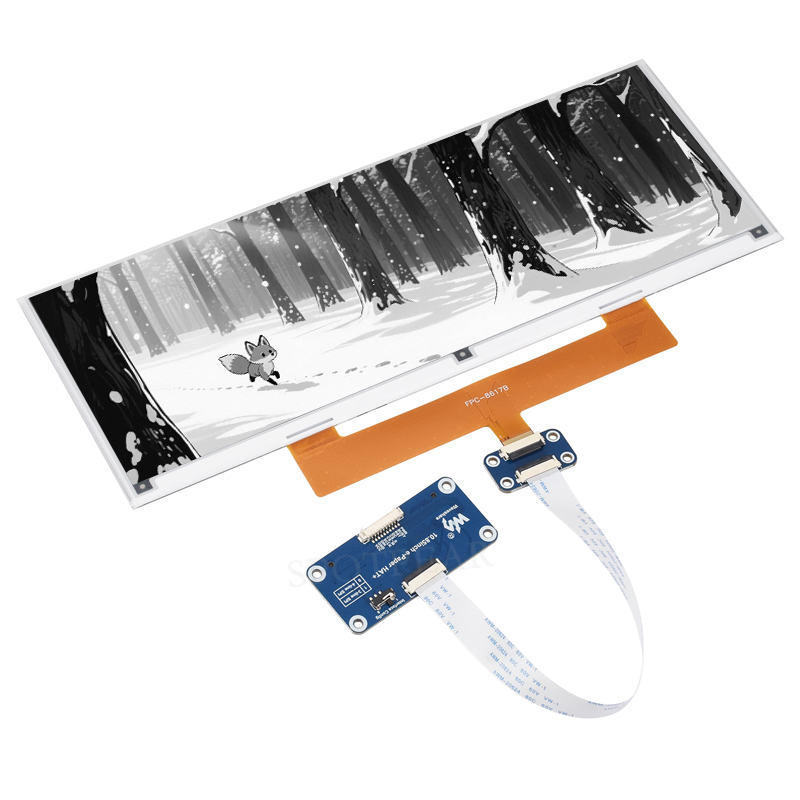

Based on Raspberry Pi 40PIN

Interface design

Applicable to Raspberry Pi series motherboards, Jetson Nano

This product does not include the Raspberry Pi shown in the diagram. If you need one, please purchase it separately.

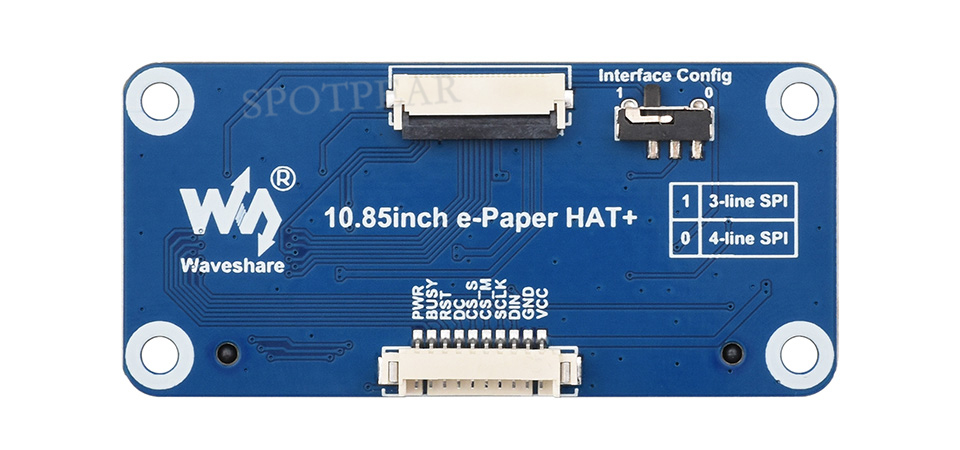

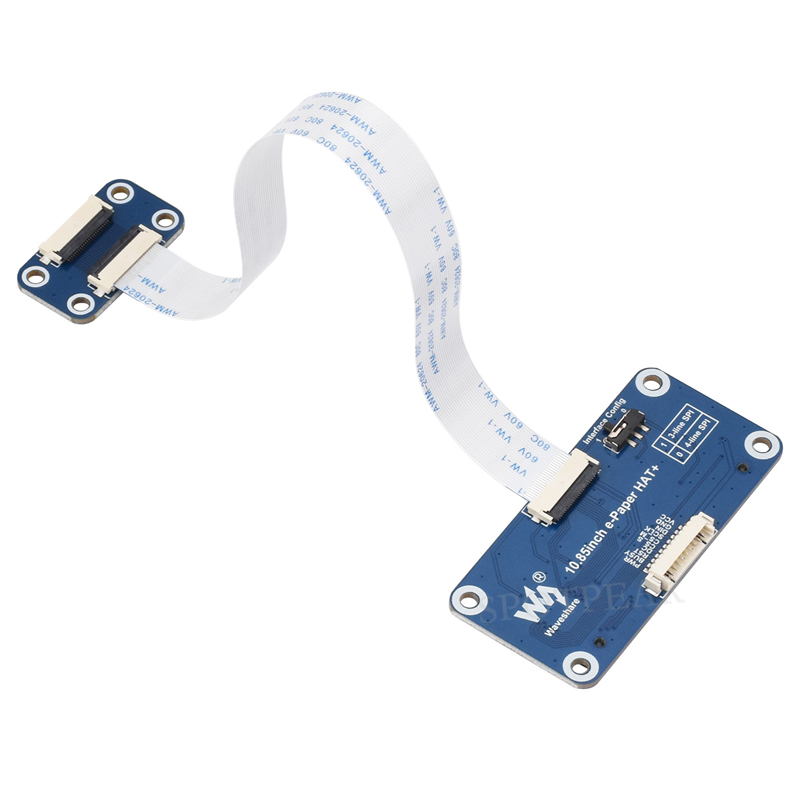

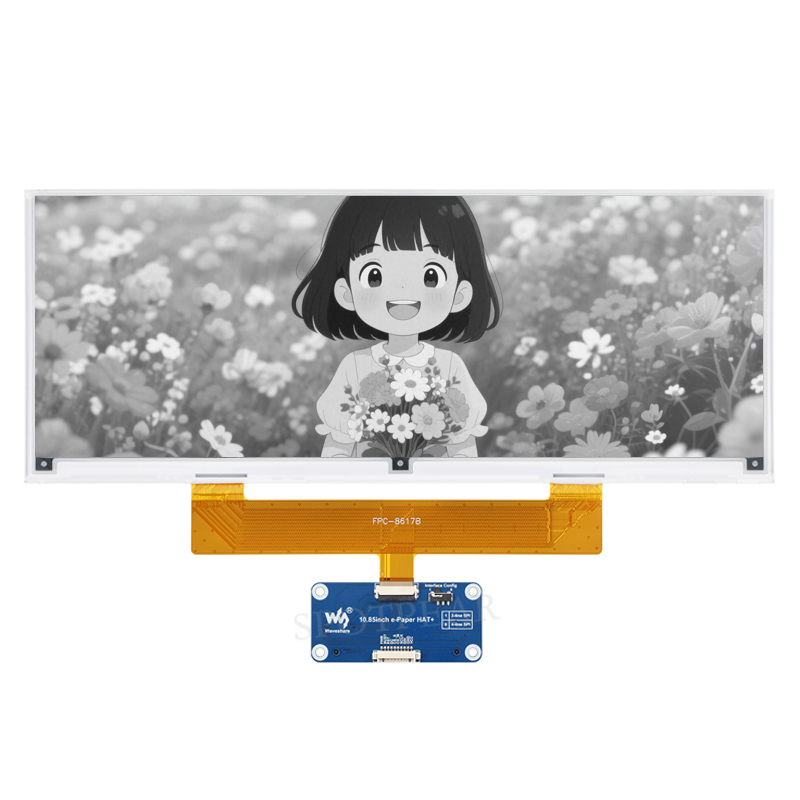

Reserved SPI control interface

Can be connected to Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32 and other main control boards

PWR	Power control pin
BUSY	Busy status output pin
RST	External reset pin (low level reset)
DC	Data/command control pin (high level indicates data, low level indicates command)
CS_S	Screen S zone chip select pin (low level active)
CS_M	Screen M zone chip select pin (low level active)
SCLK	SPI Communication SCK Pin
DIN	SPI communication MOSI pin
GND	GND
VCC	3.3V / 5V

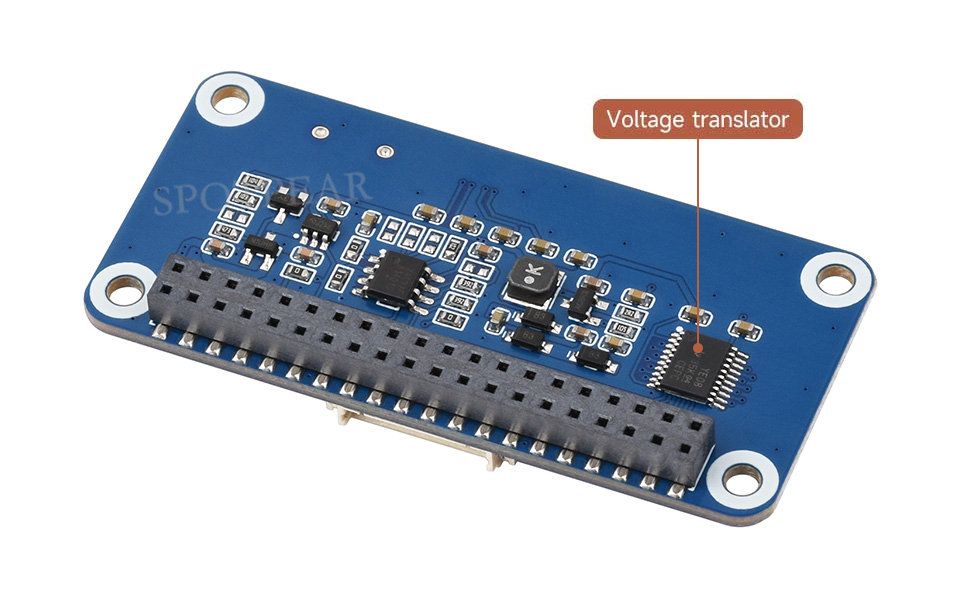

Onboard level conversion chip

Compatible with 3.3V and 5V level interfaces

Application Scenario

Applicable to shopping mall price tags, asset equipment labels, electronic shelves and conference name tags, etc.

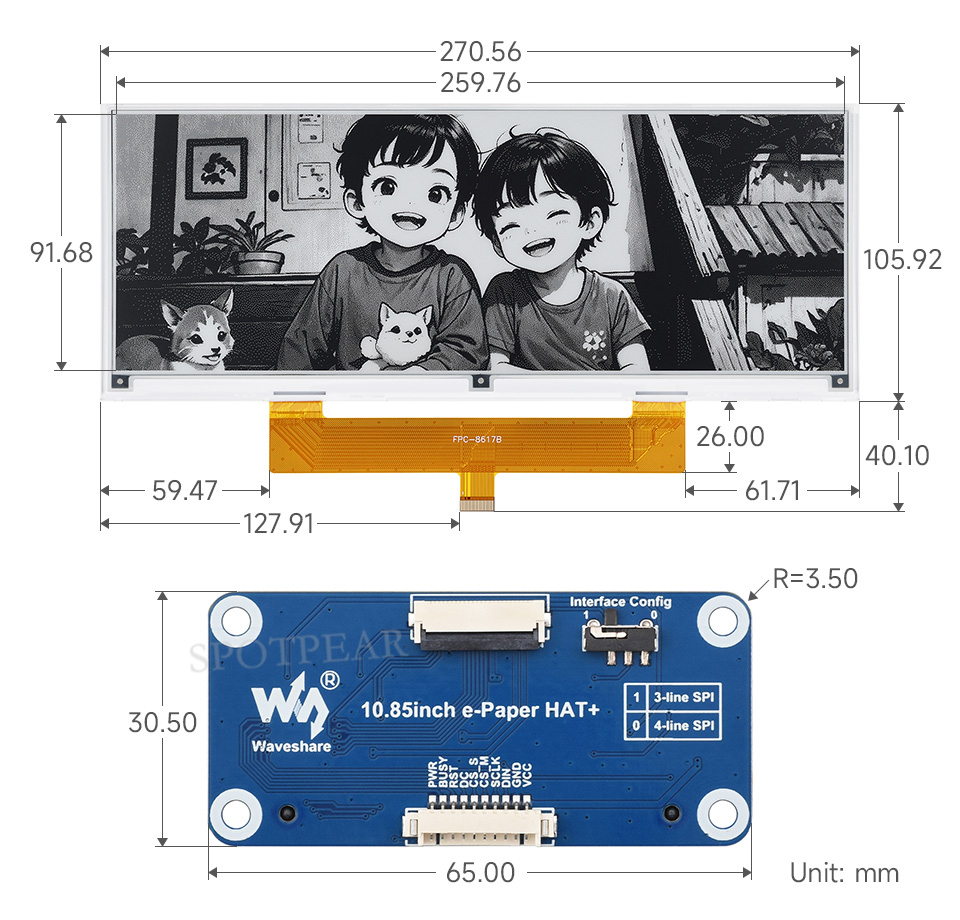

Product size

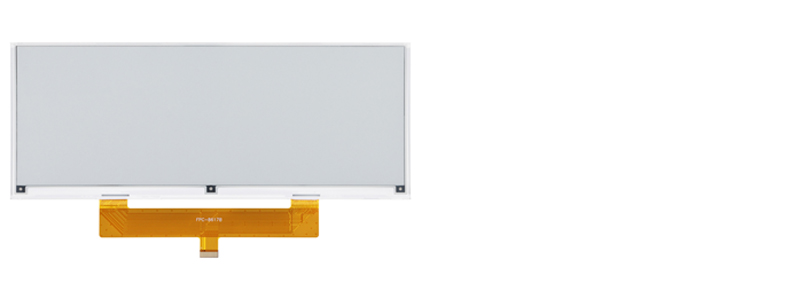

[] 10.85inch e-Paper

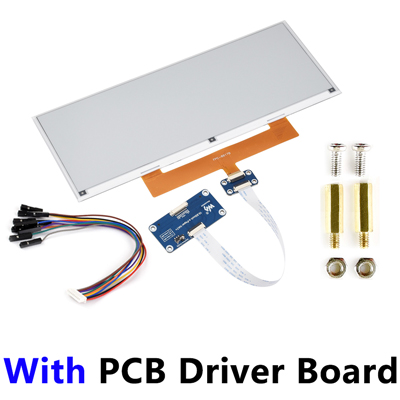

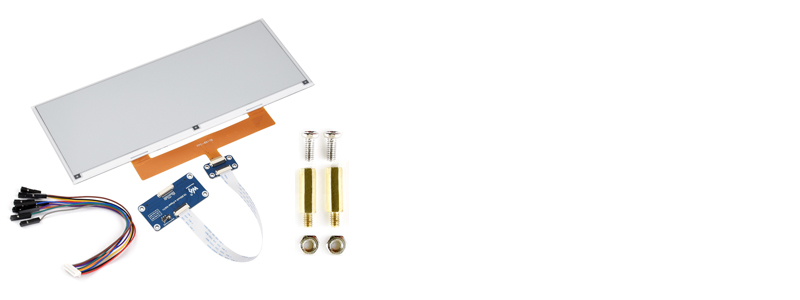

[] 10.85inch e-Paper HAT+
