Features​

Driver Board Features​

• Powered by the ESP32-S3-WROOM-2-N32R16V module, featuring an Xtensa 32-bit LX7 dual-core processor with a main frequency of up to 240MHz
• Integrated 512 KB SRAM, 384 KB ROM, 16 MB PSRAM, and 32 MB Flash
• Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication with excellent RF performance
• USB Type-C interface, eliminating concerns about plug orientation
• Onboard CH343 and CH334 chips, enabling both USB and UART development via a single Type‑C port
• Onboard 13.3E6 e‑Paper interface, supporting direct connection to the 13.3E6 full‑color e‑Paper screen
• Onboard audio codec chip supports voice capture and playback, facilitating AI voice interaction applications
• Onboard efficient charge/discharge management chip ETA6098 and MX1.25 lithium battery connector
• Built-in TF card slot, supports external storage of images or files

e‑Paper Features​

• E Ink Spectra 6 (E6) technology, delivering high‑contrast, high‑saturation color display
• No backlight required; can retain the last displayed content for a long time after power-off
• Very low power consumption, mainly only consumes power during refresh

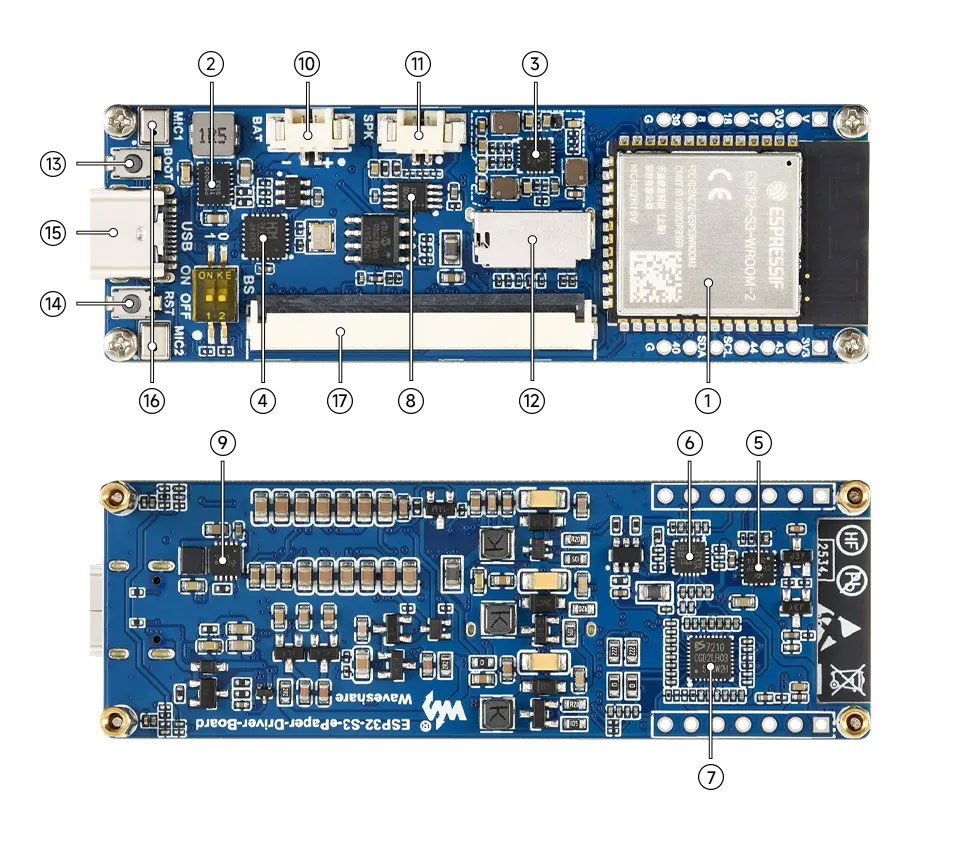

Onboard Resources​

1. ESP32-S3-WROOM-1-N16R8 Wi-Fi and Bluetooth SoC, up to 240MHz operating frequency, stacked with 16MB Flash and 8MB PSRAM
2. TPS63020DSJR DC/DC boost converter
3. EA3036CQBR Power management IC
4. USB HUB Chip
5. USB‑to‑UART Chip
6. ES8311 DAC Audio Codec High-performance, low-power audio digital-to-analog converter
7. ES7210 ADC Audio Codec High-performance, low-power audio analog-to-digital converter, supports multi-microphone input
8. NS4150B Audio power amplifier chip
9. ETA6098 Battery charge/discharge management chip
10. MX1.25 2PIN Lithium Battery Header For connecting a lithium battery
11. MX1.25 2PIN Speaker Header Audio signal output, for connecting external speaker
12. TF Card Slot TF card must be formatted as FAT32 for use
13. BOOT Button Press and hold the BOOT button to power on again to enter download mode
14. Reset Button
15. Type-C Interface ESP32-S3 USB interface for program flashing and serial logging
16. Microphone For audio capture
17. e‑Paper Driver Interface

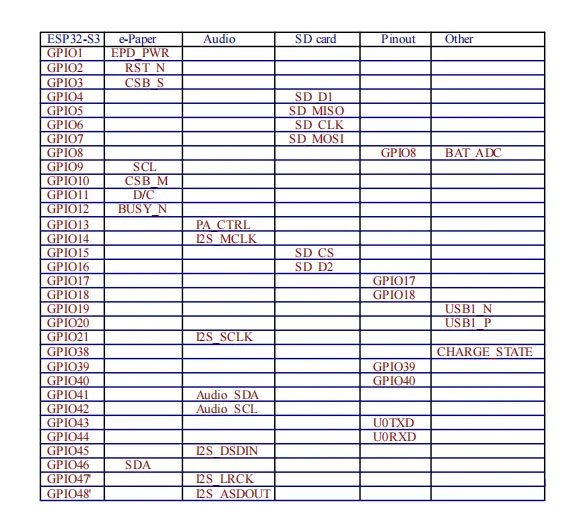

Interface Introduction​

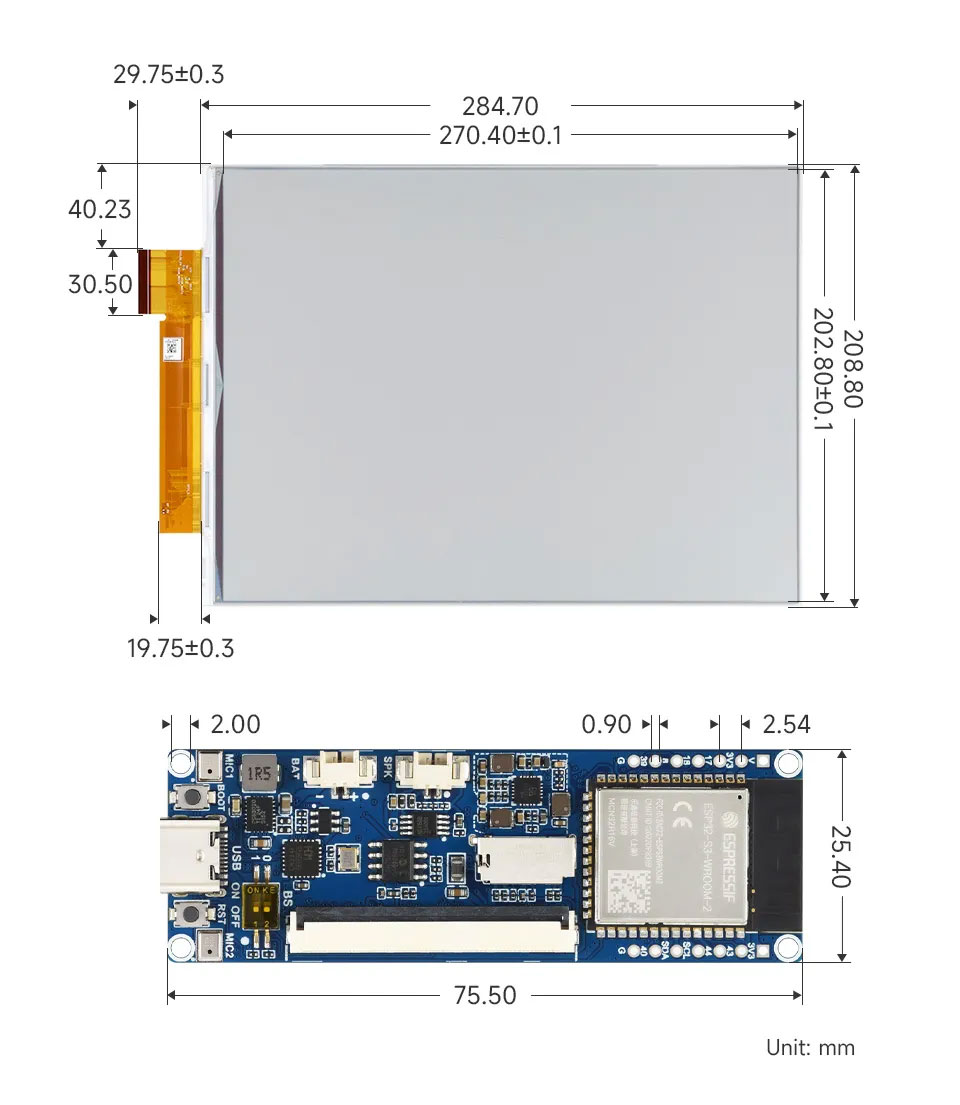

Dimensions​

This chapter contains the following sections. Please read as needed:

• Arduino Getting Started
• Setting Up Development Environment
• Demo

Arduino Getting Started​

New to Arduino ESP32 development and looking for a quick start? We have prepared a comprehensive Getting Started Tutorial for you.

• Section 0: Getting to Know ESP32
• Section 1: Installing and Configuring Arduino IDE
• Section 2: Arduino Basics
• Section 3: Digital Output/Input
• Section 4: Analog Input
• Section 5: Pulse Width Modulation (PWM)
• Section 6: Serial Communication (UART)
• Section 7: I2C Communication
• Section 8: SPI Communication
• Section 9: Wi-Fi Basics
• Section 10: Web Server
• Section 11: Bluetooth
• Section 12: LVGL GUI Development
• Section 13: Comprehensive Project

Note: This tutorial uses the ESP32-S3-Zero as a reference example, and all hardware code is based on its pinout. Before you start, we recommend checking the pinout of your development board to ensure the pin configuration is correct.

Setting Up Development Environment​

1. Installing and Configuring Arduino IDE​

Please refer to the tutorial Installing and Configuring Arduino IDE to download and install the Arduino IDE and add ESP32 support.

Board Installation Instructions for ESP32-S3-ePaper-13.3E6

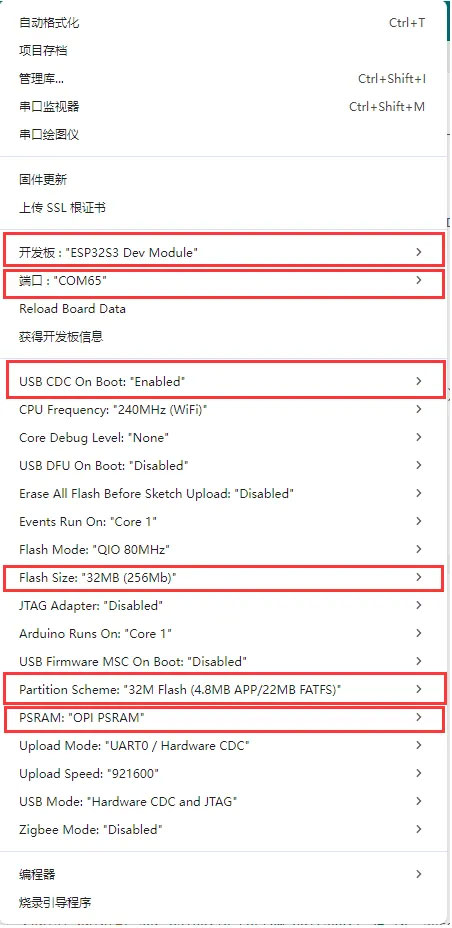

2. Arduino Project Parameter Settings​

Demo​

The Arduino demos are located in the Arduino/examples directory of the demo package.

01_ADC_Test​

Demo Description

• The analog voltage connected through the GPIO is converted to digital by the ADC, and then the actual lithium battery voltage is calculated and printed to the terminal.

Hardware Connection

• Connect the board to the computer using a USB cable

Code Analysis

• adc_bsp_init(void): Initializes ADC1, including creating an ADC one-shot trigger unit and configuring Channel 7 of ADC1.
• adc_get_value(float *value,int *data): Reads the value from Channel 7 of ADC1, calculates the corresponding voltage based on the reference voltage and resolution, and stores it at the location pointed to by the passed pointer. Stores 0 if the read fails.
• adc_example(void* parameter): After initializing ADC1, creates an ADC task. This task reads the ADC value every second and calculates the system voltage from the raw ADC reading.

Operation Result

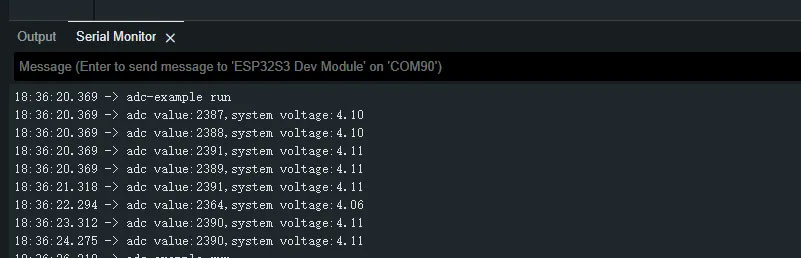

• After the program is compiled and downloaded, you can view the printed ADC values and voltage output by opening the Serial Monitor, as shown in the following image:




02_Audio_out​

Demo Description

• This example drives the ES8311 audio codec to play music.

Hardware Connection

• Connect the board to the computer using a USB cable

Code Analysis

• Configure and initialize the ES8311 audio codec.

    void setup() {
      Serial.begin(115200);
      Wire.begin(I2C_SDA, I2C_SCL);
      pinMode(PA_CTRL, OUTPUT);
      digitalWrite(PA_CTRL, HIGH);
      es8311_codec_init();

      setupI2S();
      Serial.println("I2S Initialized");
    }


• Continuously write built-in audio data to the I2S bus for looped playback.

   i2s.write((uint8_t *)audio_data, AUDIO_SAMPLES * 2);


Operation Result

• The device will play the auido directly without showing content on the screen

03_E-Paper_Example​

Demo Description

• This is a local Arduino example for the 13.3inch E6 e-Paper screen. It performs e‑Paper initialization, clears the screen, displays images, and draws basic graphics and text.

Hardware Connection

• Connect the board to the computer using a USB cable

Code Analysis

• Display a predefined image.

  #if 1   // show bmp
    printf("show bmp1-----------------\r\n");
    EPD_13IN3E_Display(Image6color);
    DEV_Delay_ms(3000);
  #endif


• Draw basic shapes, Chinese/English text, numbers, and refresh the display.

  #if 1   // Drawing on the image
    Paint_NewImage(Image, EPD_13IN3E_WIDTH, EPD_13IN3E_HEIGHT, 90, EPD_13IN3E_WHITE);
    Paint_SetScale(6);
    //1.Select Image
    printf("SelectImage:Image\r\n");
    Paint_SelectImage(Image);
    Paint_Clear(EPD_13IN3E_WHITE);

    // 2.Drawing on the image
    printf("Drawing:Image\r\n");
    Paint_DrawPoint(10, 80, EPD_13IN3E_RED, DOT_PIXEL_1X1, DOT_STYLE_DFT);
    Paint_DrawPoint(10, 90, EPD_13IN3E_BLUE, DOT_PIXEL_2X2, DOT_STYLE_DFT);
    Paint_DrawPoint(10, 100, EPD_13IN3E_GREEN, DOT_PIXEL_3X3, DOT_STYLE_DFT);
    Paint_DrawLine(20, 70, 70, 120, EPD_13IN3E_YELLOW, DOT_PIXEL_1X1, LINE_STYLE_SOLID);
    Paint_DrawLine(70, 70, 20, 120, EPD_13IN3E_YELLOW, DOT_PIXEL_1X1, LINE_STYLE_SOLID);
    Paint_DrawRectangle(20, 70, 70, 120, EPD_13IN3E_BLACK, DOT_PIXEL_1X1, DRAW_FILL_EMPTY);
    Paint_DrawRectangle(80, 70, 130, 120, EPD_13IN3E_BLACK, DOT_PIXEL_1X1, DRAW_FILL_FULL);
    Paint_DrawCircle(45, 95, 20, EPD_13IN3E_BLACK, DOT_PIXEL_1X1, DRAW_FILL_EMPTY);
    Paint_DrawCircle(105, 95, 20, EPD_13IN3E_WHITE, DOT_PIXEL_1X1, DRAW_FILL_FULL);
    Paint_DrawLine(85, 95, 125, 95, EPD_13IN3E_YELLOW, DOT_PIXEL_1X1, LINE_STYLE_DOTTED);
    Paint_DrawLine(105, 75, 105, 115, EPD_13IN3E_YELLOW, DOT_PIXEL_1X1, LINE_STYLE_DOTTED);
    Paint_DrawString_CN(10, 130, "你好 abc", &Font12CN, EPD_13IN3E_BLACK, EPD_13IN3E_WHITE);
    Paint_DrawString_CN(10, 150, "微雪电子", &Font24CN, EPD_13IN3E_WHITE, EPD_13IN3E_BLACK);
    Paint_DrawNum(10, 33, 123456789, &Font12, EPD_13IN3E_BLACK, EPD_13IN3E_WHITE);
    Paint_DrawNum(10, 50, 987654321, &Font16, EPD_13IN3E_WHITE, EPD_13IN3E_BLACK);
    Paint_DrawString_EN(145, 0, "Waveshare", &Font16, EPD_13IN3E_BLACK, EPD_13IN3E_WHITE);
    Paint_DrawString_EN(145, 35, "Waveshare", &Font16, EPD_13IN3E_GREEN, EPD_13IN3E_WHITE);
    Paint_DrawString_EN(145, 70, "Waveshare", &Font16, EPD_13IN3E_BLUE, EPD_13IN3E_WHITE);
    Paint_DrawString_EN(145, 105, "Waveshare", &Font16, EPD_13IN3E_RED, EPD_13IN3E_WHITE);
    Paint_DrawString_EN(145, 140, "Waveshare", &Font16, EPD_13IN3E_YELLOW, EPD_13IN3E_WHITE);

    printf("EPD_Display\r\n");
    EPD_13IN3E_Display(Image);
    DEV_Delay_ms(3000);
  #endif


Operation Result

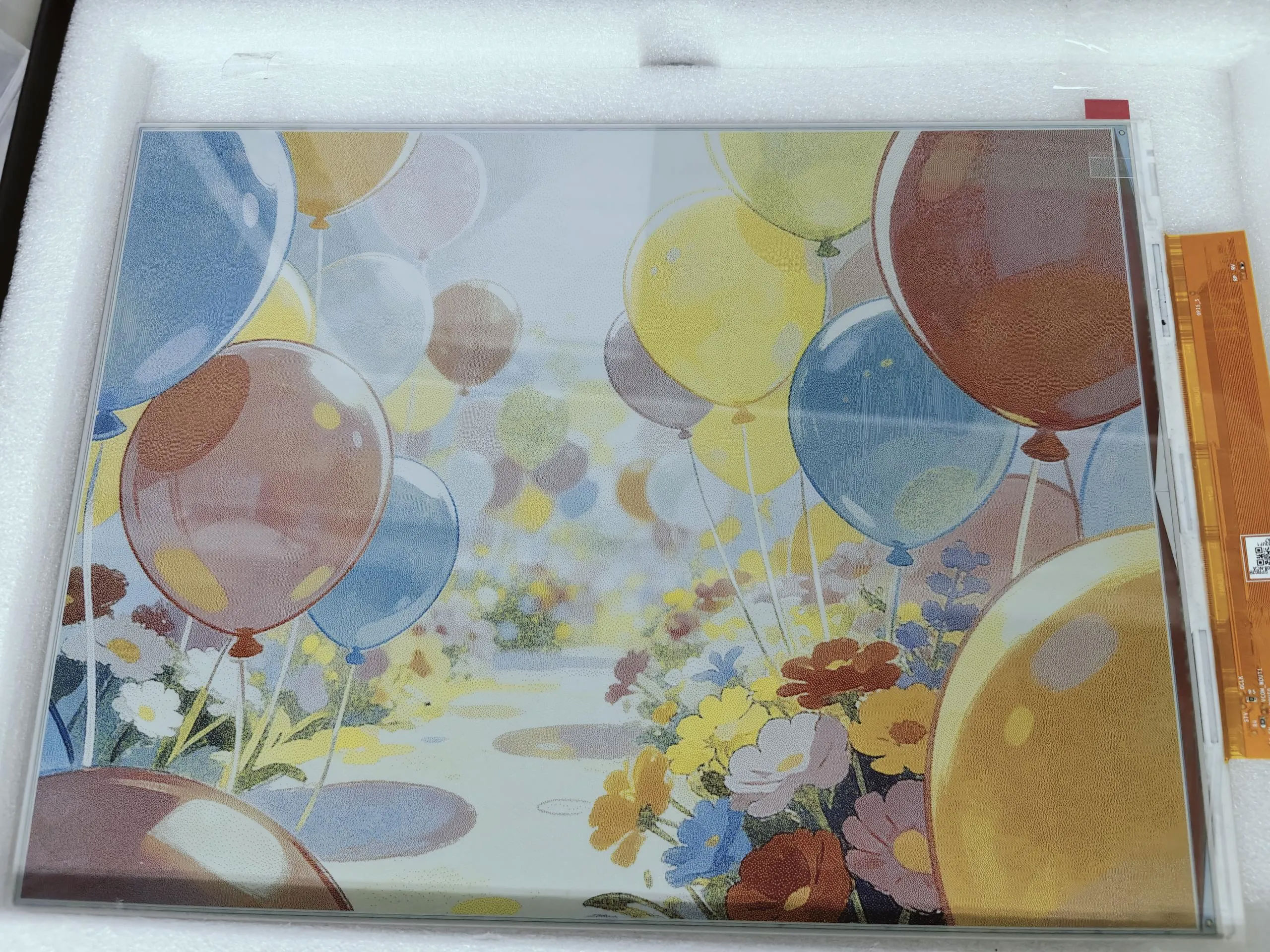

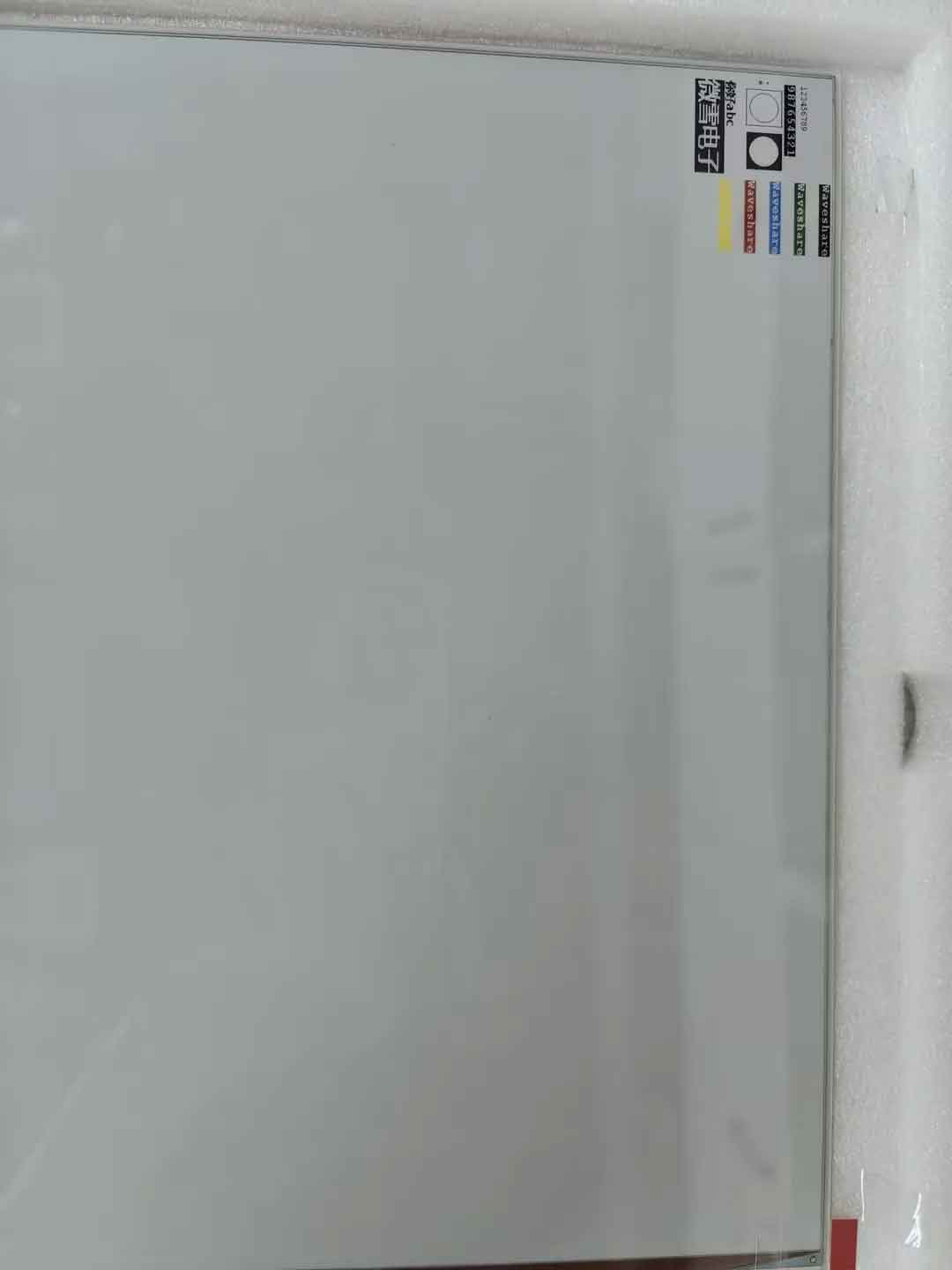

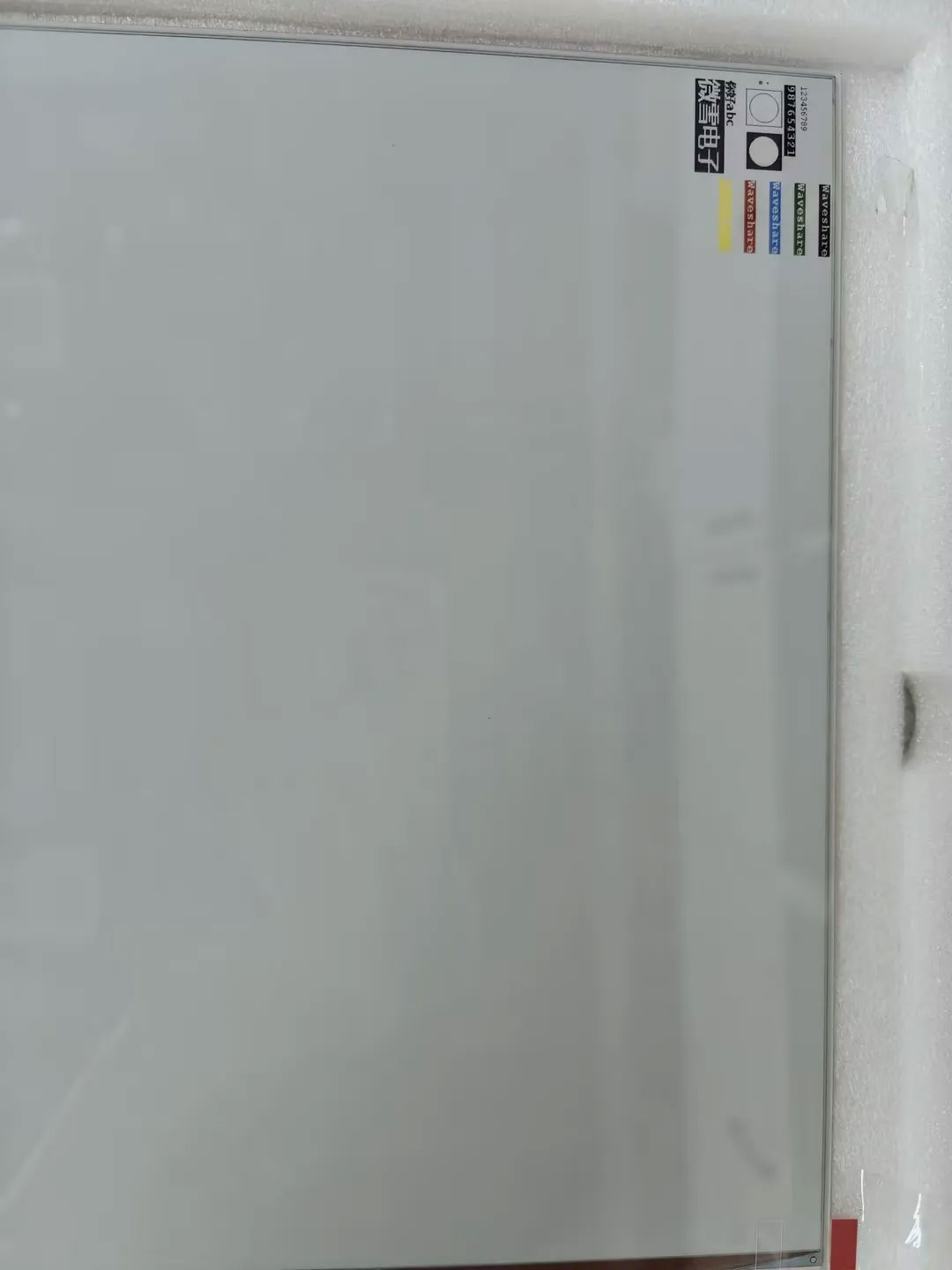

• The screen refreshes, clears, displays an image, and draws basic graphics and text.

04_SD_Test​

Demo Description

• This example reads BMP images from a TF card and refreshes them on the e-Paper display.

Hardware Connection

• Connect the board to the computer using a USB cable
• Insert the TF card module with a TF card containing a bmp folder with images in the root directory.

Code Analysis

• Configure and mount the TF card.

    //sdcard init
    Serial.begin(115200);
    delay(1000);
    SD_MMC.setPins(SD_CLK, SD_CMD, SD_D0, SD_D1, SD_D2, SD_D3);
    if (!SD_MMC.begin( "/sdcard", true)) {
        printf("TF card failed to mount\r\n");
        return;
    }
    printf("TF card success to mount\r\n");


• Read .bmp images from the bmp folder on the TF card.

  Serial.println("Scan the root directory BMP file...");
    File rootDir = SD_MMC.open("/bmp");
    if (rootDir && rootDir.isDirectory()) {
        File file = rootDir.openNextFile();
        while (file && bmpFileCount < 32) {
        if (!file.isDirectory()) {
            String fileName = file.name();
            String fullPath = file.path();
            fileName.toLowerCase();
            if (fileName.endsWith(".bmp")) {
                bmpFilePaths[bmpFileCount++] = MOUNT_POINT + fullPath;
                Serial.printf("find BMP:%s\n", fullPath.c_str());
            }
        }
        file.close();
        file = rootDir.openNextFile();
        }
        rootDir.close();
    }else{
        Serial.println("error : failed to open the root directory!");
    }


Operation Result

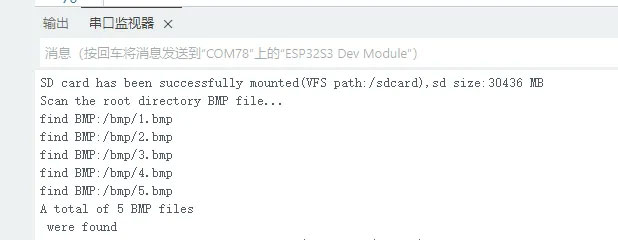

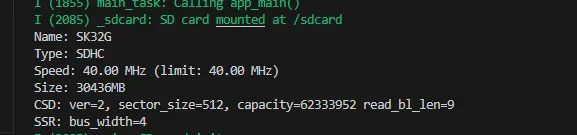

• Serial port prints TF card information.

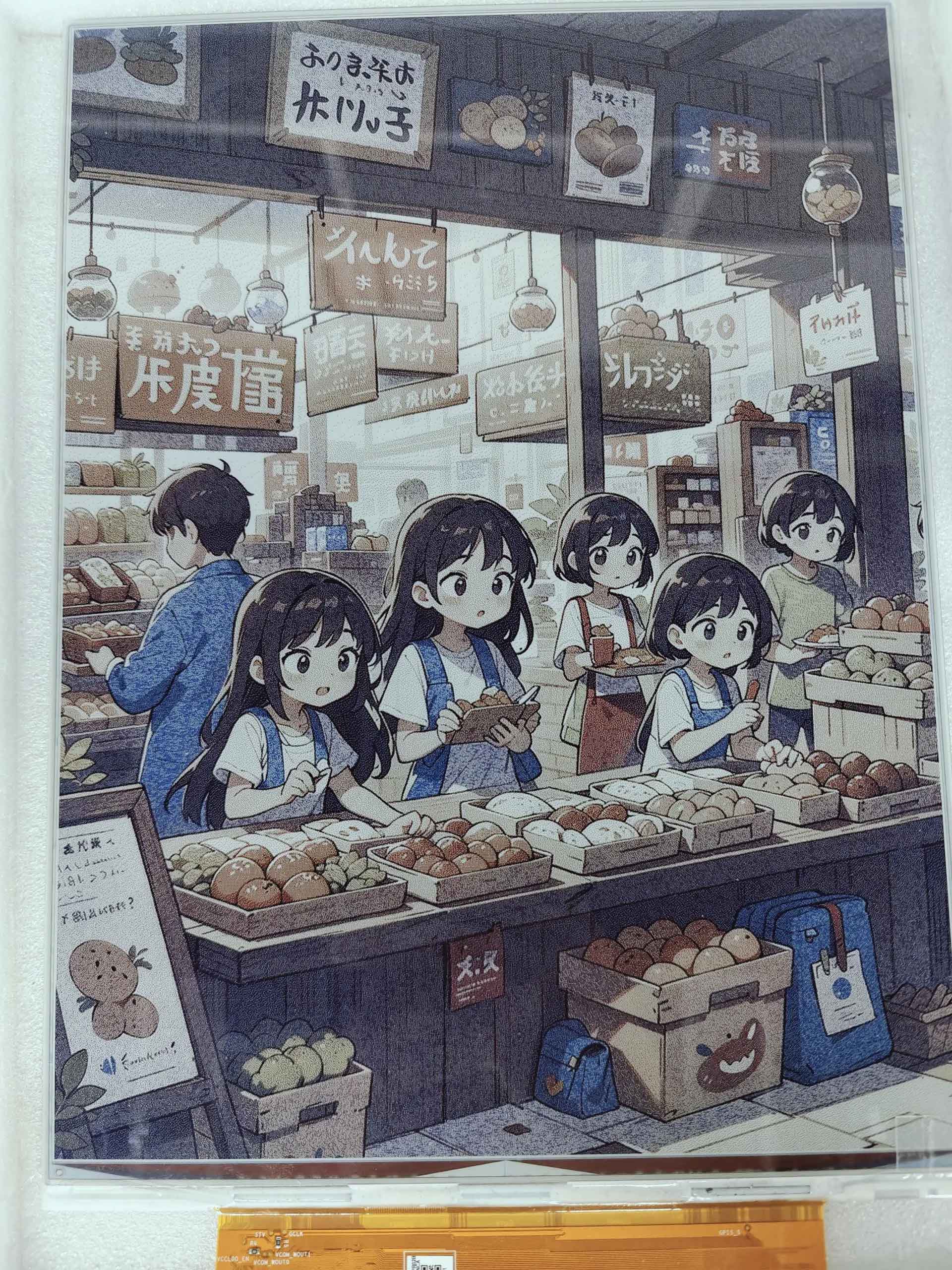

• Reads and displays images from the TF card.





05_Loader_esp32wf​

Demo Description

• WiFi demo
  WARNING

  This module only supports the 2.4GHz network band.

Hardware Connection

• Connect the board to the computer using a USB cable

Code Modification

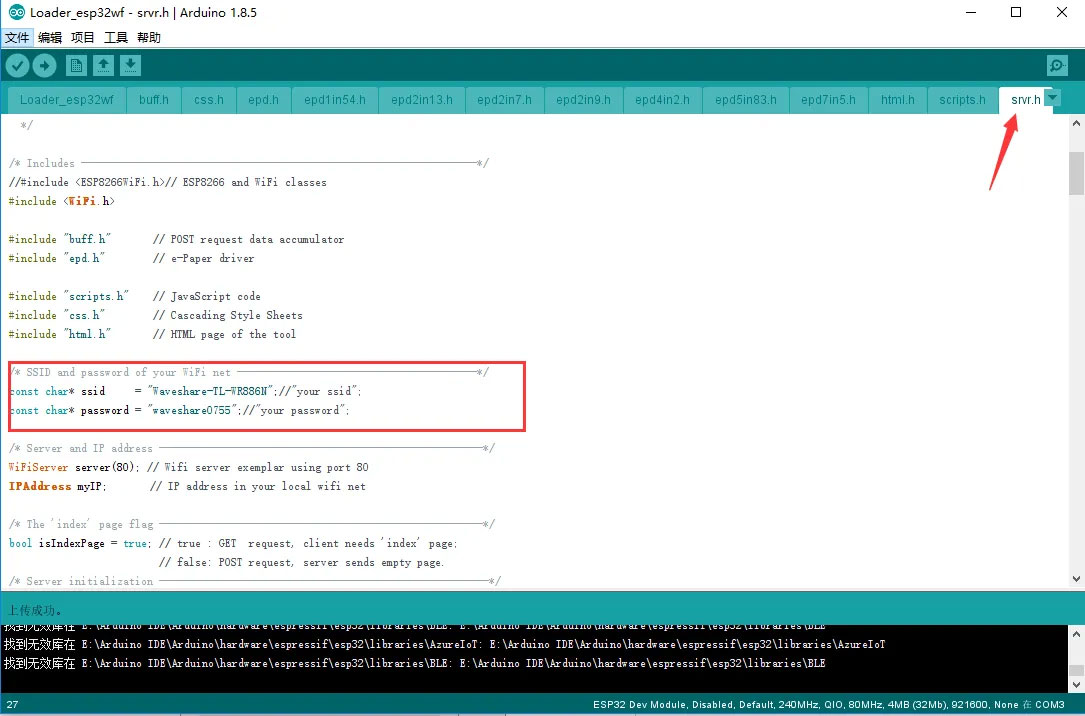

• Open the srvr.h file and change the ssid and password to the actual WiFi username and password being used.

  INFO

  Modify the Wi-Fi username and password at this location to your own router's or mobile hotspot's Wi-Fi credentials. In this program, the ESP32 acts as a client (slave), not an access point; it does not broadcast its own Wi-Fi hotspot.

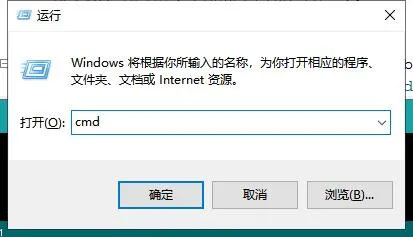

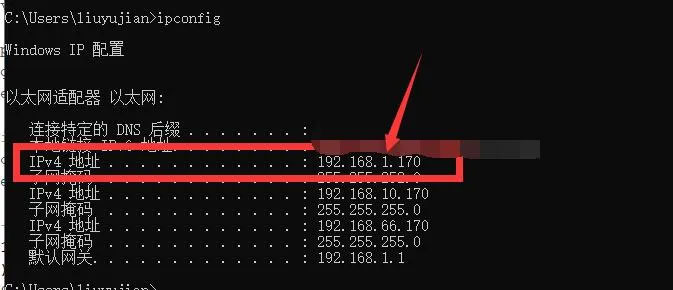

• Press Win + R, type CMD, and open the command prompt to obtain the computer's IP address.






• Open the srvr.h file and modify the network segment shown in the image to match your network segment.

  WARNING

  The ESP32's IP address (the last octet) must be different from the computer's IP address, but the other three octets must be exactly the same.




• Then click Upload to compile and download the program to the ESP32 driver board.

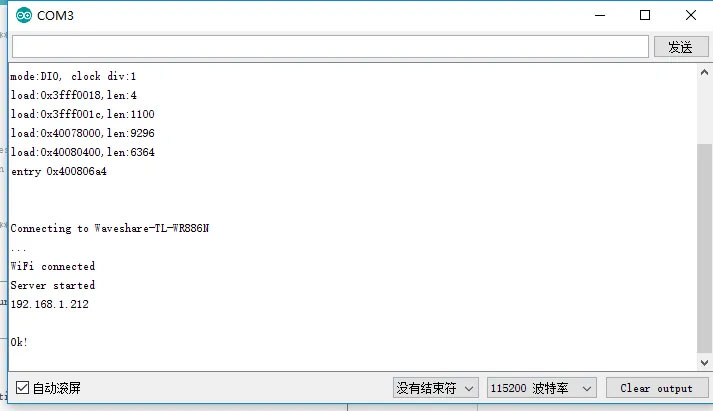

• Open the Serial Monitor, set the baud rate to 115200, and you will see the ESP32's IP address printed:

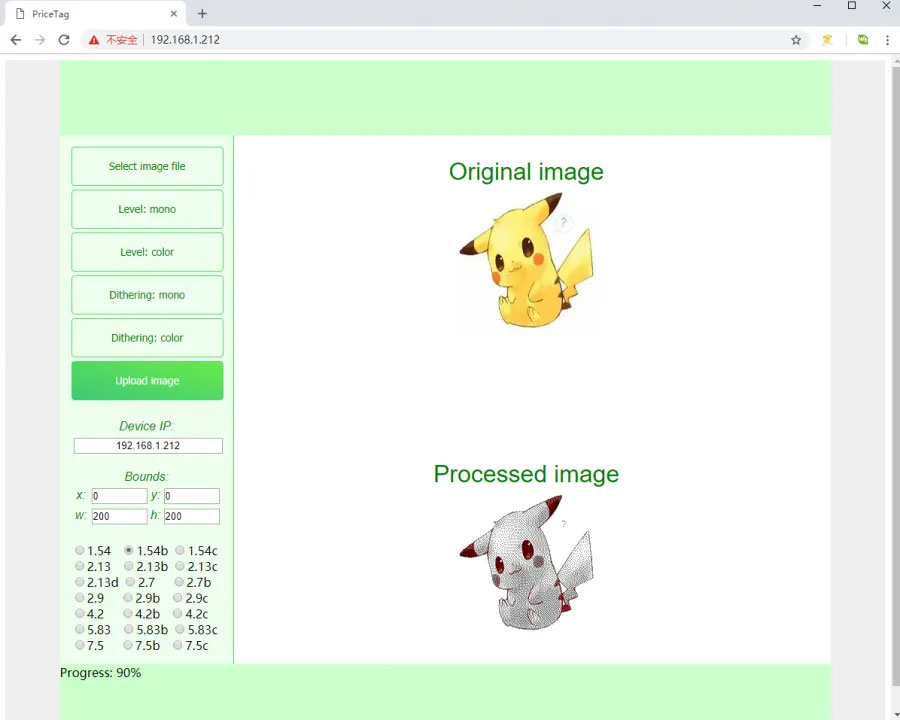

• On a computer or mobile phone (ensure the device is connected to the same WiFi network as the ESP32), open a browser, enter the ESP32's IP address in the address bar, and open it. The operation interface will appear as shown below:




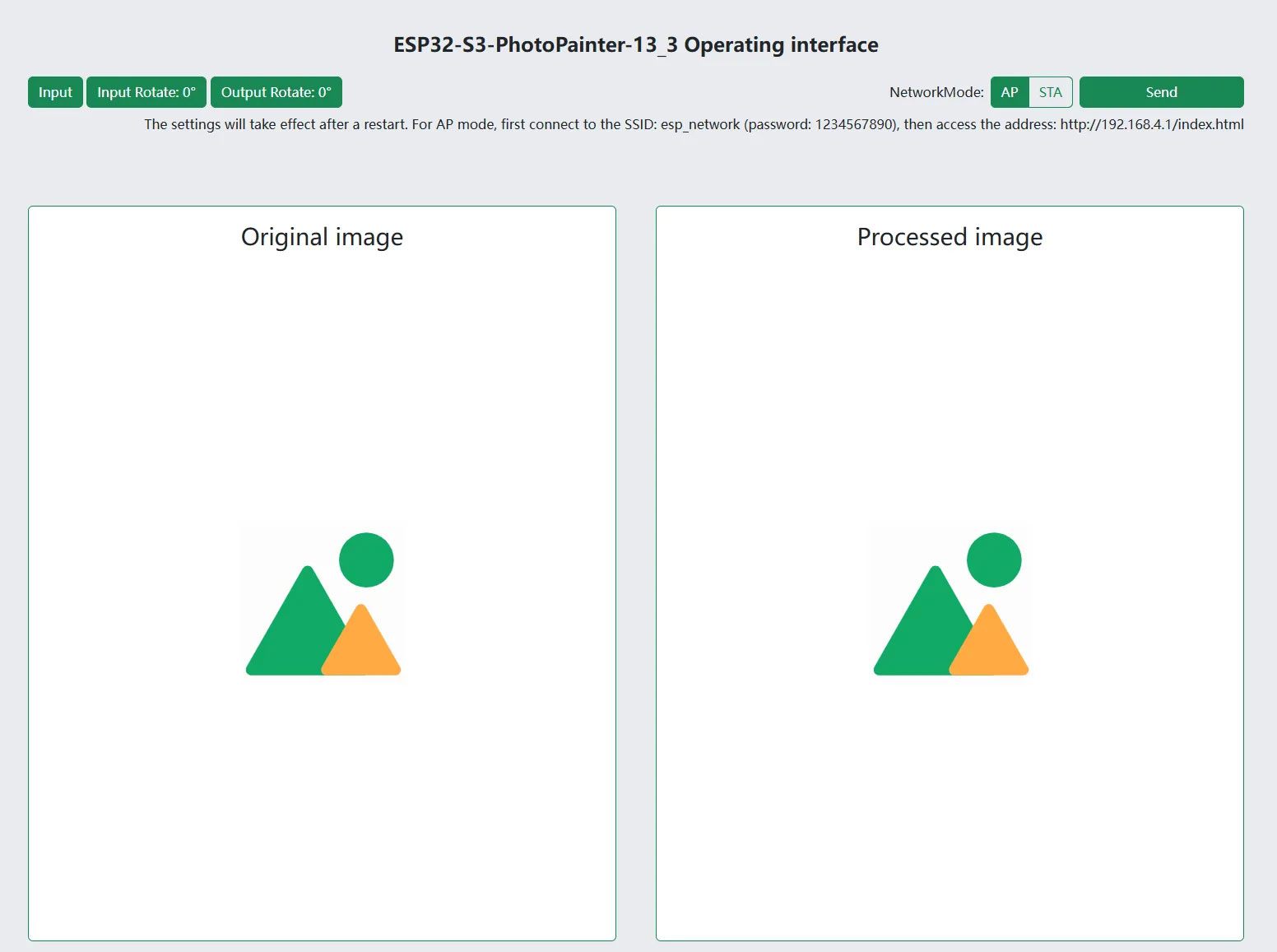

• The interface is divided into five areas: Image Operation Area:

  • Select Image file: Click to select an image from the computer or phone
  • Level: mono: Black‑and‑white color‑level image processing algorithm
  • Level: color: Multi‑color color‑level image processing algorithm (effective only for multi‑color screens)
  • Dithering: mono: Black‑and‑white dithering image processing algorithm
  • Dithering: color: Multi‑color dithering image processing algorithm (effective only for multi‑color screens)
  • Update image: Upload the image
  • IP Information Display Area: Shows the IP address of the currently connected module
  • Image Size Setting Area: Here x and y set the starting position for display, relative to the selected image file. For example, if you select an 800x480 image but the connected e‑Paper screen is 2.9 inches, the screen cannot display the whole image. The algorithm automatically crops a portion starting from the top‑left corner. Setting x and y allows you to customize the starting crop position. w and h are the resolution of the current e‑Paper screen. W and h represent the resolution of the current e-Paper screen.
  WARNING

  If you change the x and y values, you need to click the processing algorithm button again to regenerate the image.

  • Model Selection Area: Here you can select the model of the connected e‑Paper screen
  • Image Display Area: Shows the selected image and the processed result
  INFO

  While uploading an image, the progress will be shown at the bottom.

• In area ①, click Select image file to choose an image, or simply drag and drop an image into the Original image area.

• In area ④, select the corresponding e‑Paper screen model, e.g., 13.3E

• In area ①, click an image processing algorithm, e.g., Dithering: color

• In area ①, click Upload image to upload the image and display it on the e‑paper screen.




This chapter contains the following sections. Please read as needed:

• ESP-IDF Getting Started
• Setting Up Development Environment
• Demo

ESP-IDF Getting Started​

New to ESP32 ESP-IDF development and looking to get started quickly? We have prepared a general Getting Started Tutorial for you.

• Section 1: Environment Setup
• Section 2: Running Examples
• Section 3: Creating a Project
• Section 4: Using Components
• Section 5: Debugging
• Section 6: FreeRTOS
• Section 7: Peripherals
• Section 8: Wi-Fi Programming
• Section 9: BLE Programming

Please Note: This tutorial uses the ESP32-S3-Zero as a teaching example, and all hardware code is based on its pinout. Before you start, it is recommended that you check the pinout of your development board to ensure the pin configuration is correct.

Setting Up Development Environment​

Install the ESP-IDF Development Environment​

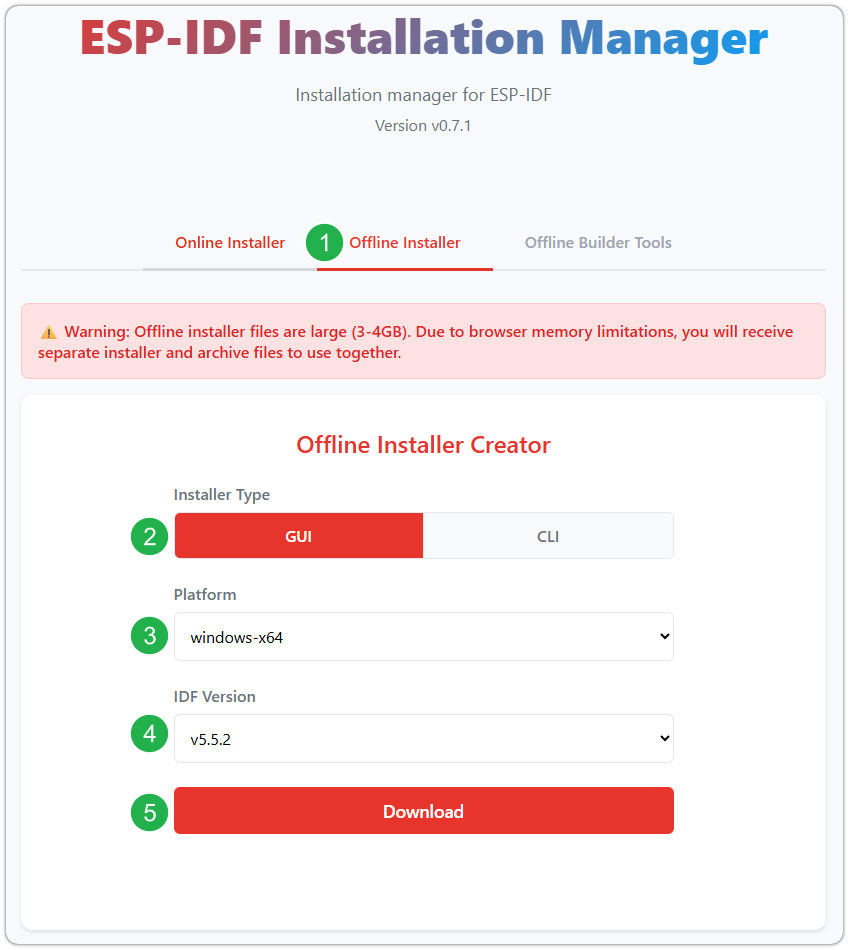

1. Download the installation manager from the ESP-IDF Installation Manager page. This is Espressif's latest cross-platform installer. The following steps demonstrate how to use its offline installation feature.

   Click the Offline Installer tab on the page, then select Windows as the operating system and choose your desired version from the filter bar.




   After confirming your selection, click the download button. The browser will automatically download two files: the ESP-IDF Offline Package (.zst) and the ESP-IDF Installer (.exe).

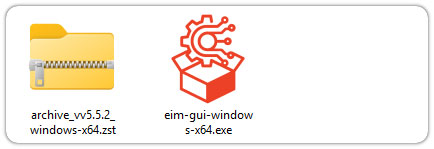

   Please wait for both files to finish downloading.

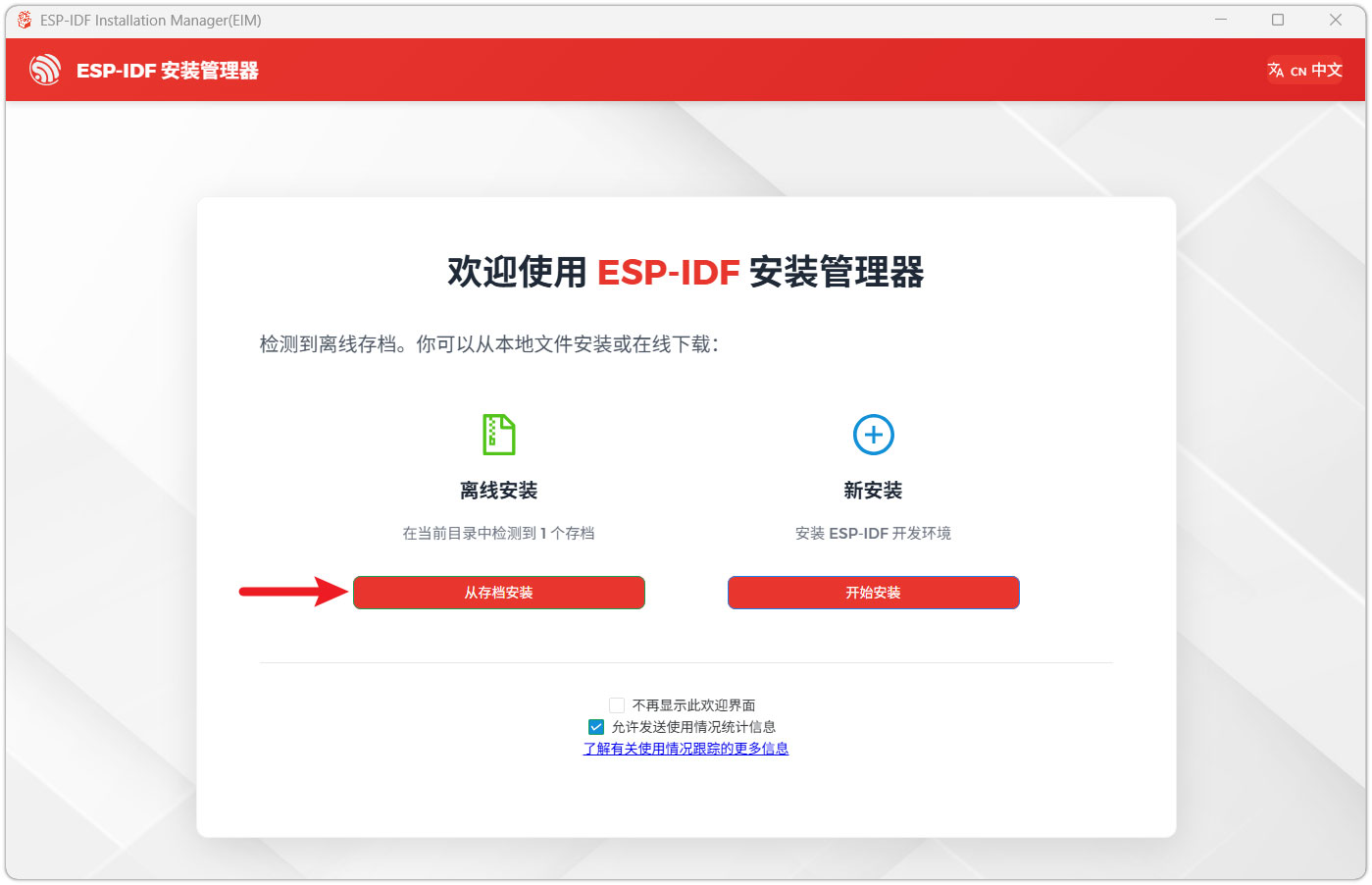

2. Once the download is complete, double-click to run the ESP-IDF Installer (eim-gui-windows-x64.exe).

   The installer will automatically detect if the offline package exists in the same directory. Click Install from archive.

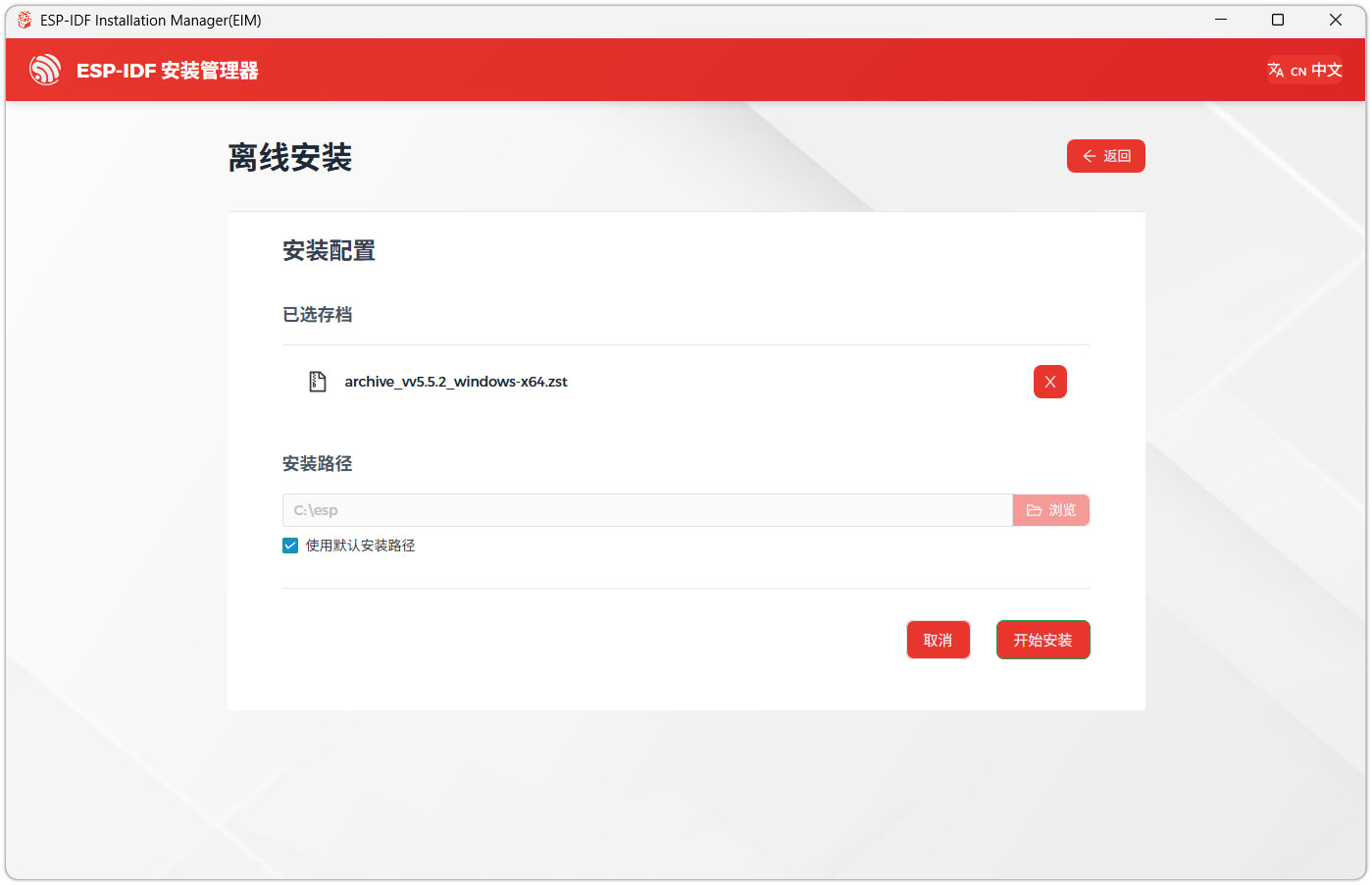

   Next, select the installation path. We recommend using the default path. If you need to customize it, ensure the path does not contain Chinese characters or spaces. Click Start installation to proceed.

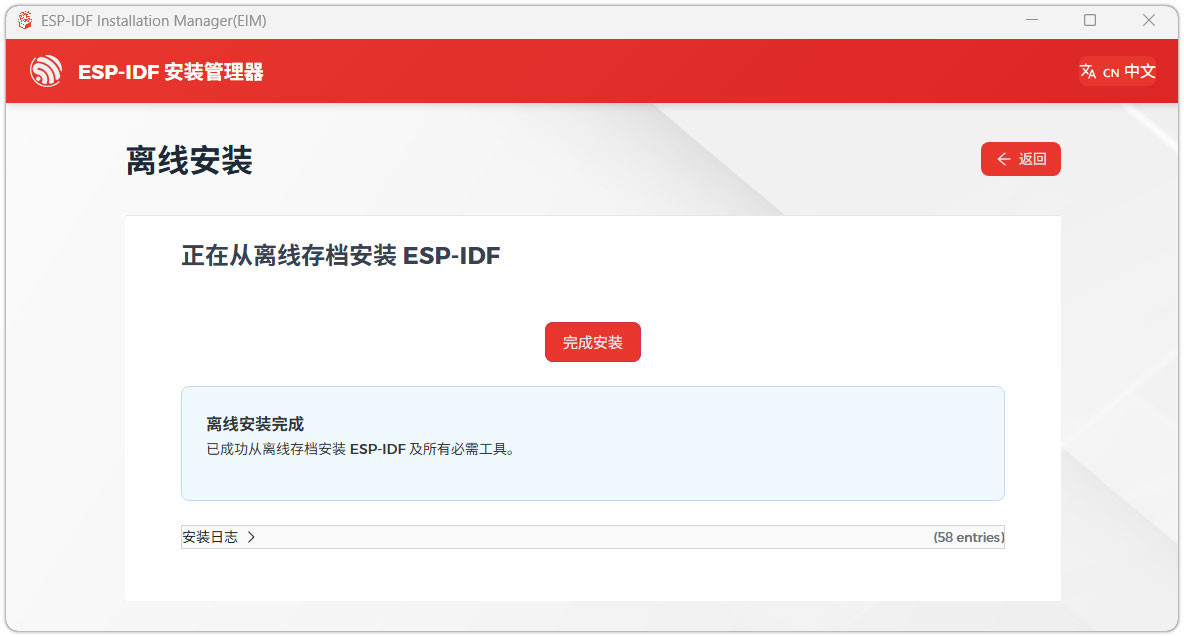

3. When you see the following screen, the ESP-IDF installation is successful.

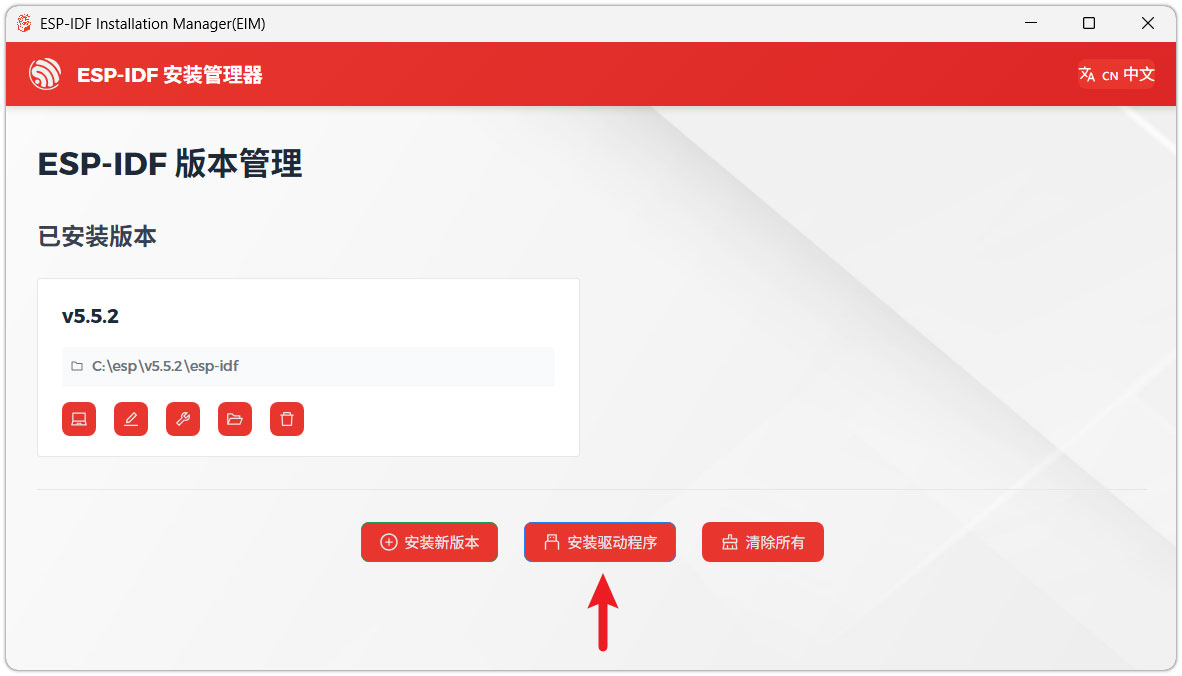

4. We recommend installing the drivers as well. Click Finish installation, then select Install driver.




Install Visual Studio Code and the ESP-IDF Extension​

1. Download and install Visual Studio Code.

2. During installation, it is recommended to check Add "Open with Code" action to Windows Explorer file context menu to facilitate opening project folders quickly.

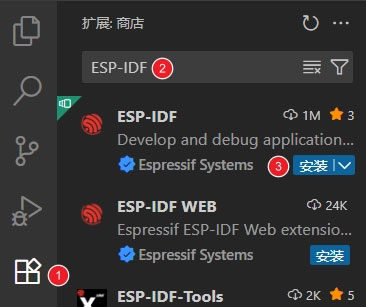

3. In VS Code, click the Extensions icon  in the Activity Bar on the side (or use the shortcut Ctrl + Shift + X) to open the Extensions view.

4. Enter ESP-IDF in the search box, locate the ESP-IDF extension, and click Install.




5. For ESP-IDF extension versions ≥ 2.0, the extension will automatically detect and recognize the ESP-IDF environment installed in the previous steps, requiring no manual configuration.

Demo​

The ESP-IDF demos are located in the ESP-IDF directory of the demo package.

01_ADC_Test​

Demo Description

• The analog voltage connected through the GPIO is converted to digital by the ADC, and then the actual lithium battery voltage is calculated and printed to the terminal.

Hardware Connection

• Connect the board to the computer using a USB cable

Code Analysis

• adc_bsp_init(void): Initializes ADC1, including creating an ADC one-shot trigger unit and configuring Channel 7 of ADC1.
• adc_get_value(float *value,int *data): Reads the value from Channel 7 of ADC1, calculates the corresponding voltage based on the reference voltage and resolution, and stores it at the location pointed to by the passed pointer. Stores 0 if the read fails.
• adc_example(void* parameter): After initializing ADC1, creates an ADC task. This task reads the ADC value every second and calculates the system voltage from the raw ADC reading.

Operation Result

• After the program is compiled and downloaded, you can view the printed ADC values and voltage output by opening the Serial Monitor, as shown in the following image:




02_Mic_test​

Demo Description​

• Demonstrates how to get data from the microphone and then play it through the speaker

Hardware Connection​

• Connect the development board to the computer

Code Analysis

• i2c_master_Init();: Initializes the I2C bus.
• user_ui_init();: Initializes the global UI.
• user_button_init();: Initializes the audio interface.

Operation Result​

• The screen shows nothing.

• Long press the BOOT button to enter recording mode. Speak into the MIC, and it will automatically stop after 3 seconds.

• Click the BOOT button to play the recorded sound. (If no recording exists, the played sound will be very harsh.)

• Serial port prints:




03_Music​

Demo Description​

• Mounts a TF card and reads/plays audio files from it.

Hardware Connection​

• Connect the development board to the computer
• Connect a speaker to the SPK interface.

Code Analysis

• _sdcard_init();: Initializes the TF card and reads the audio files from it.
• i2c_master_init();: Initializes the I2C bus, providing a communication link for configuration command transmission to the ES8311 audio codec.
• audio_player_play(audio_fp);: Starts the audio player, reads the opened MP3 file, and drives the speaker through the ES8311 for playback.

Operation Result​

• The screen shows nothing.
• The speaker plays audio.

04_E-Paper_Example​

Demo Description​

• This is a local ESP‑IDF example for the 13.3inch E6 e-Paper screen. It performs e‑Paper initialization, clears the screen, displays images, and draws basic graphics and text.

Hardware Connection​

• Connect the development board to the computer

Code Analysis

• Display a predefined image:

  #if 1
    EPD_Display(Image6color);
    vTaskDelay(pdMS_TO_TICKS(3000));
  #endif


• Draw basic shapes, Chinese/English text, numbers, and refresh the display:

  #if 1
    Paint_NewImage(Image_Mono, EPD_WIDTH, EPD_HEIGHT, 90, EPD_WHITE);
    Paint_SetScale(6);
    printf("SelectImage:Image\r\n");
    Paint_SelectImage(Image_Mono);
    Paint_Clear(EPD_WHITE);

    Paint_DrawPoint(10, 80, EPD_RED, DOT_PIXEL_1X1, DOT_STYLE_DFT);
    Paint_DrawPoint(10, 90, EPD_BLUE, DOT_PIXEL_2X2, DOT_STYLE_DFT);
    Paint_DrawPoint(10, 100, EPD_GREEN, DOT_PIXEL_3X3, DOT_STYLE_DFT);
    Paint_DrawLine(20, 70, 70, 120, EPD_YELLOW, DOT_PIXEL_1X1, LINE_STYLE_SOLID);
    Paint_DrawLine(70, 70, 20, 120, EPD_YELLOW, DOT_PIXEL_1X1, LINE_STYLE_SOLID);
    Paint_DrawRectangle(20, 70, 70, 120, EPD_BLACK, DOT_PIXEL_1X1, DRAW_FILL_EMPTY);
    Paint_DrawRectangle(80, 70, 130, 120, EPD_BLACK, DOT_PIXEL_1X1, DRAW_FILL_FULL);
    Paint_DrawCircle(45, 95, 20, EPD_BLACK, DOT_PIXEL_1X1, DRAW_FILL_EMPTY);
    Paint_DrawCircle(105, 95, 20, EPD_WHITE, DOT_PIXEL_1X1, DRAW_FILL_FULL);
    Paint_DrawLine(85, 95, 125, 95, EPD_YELLOW, DOT_PIXEL_1X1, LINE_STYLE_DOTTED);
    Paint_DrawLine(105, 75, 105, 115, EPD_YELLOW, DOT_PIXEL_1X1, LINE_STYLE_DOTTED);
    Paint_DrawString_CN(10, 130, "你好 abc", &Font16_UTF8, EPD_BLACK, EPD_WHITE);
    Paint_DrawString_CN(10, 170, "微雪电子", &Font16_UTF8, EPD_WHITE, EPD_BLACK);
    Paint_DrawNum(10, 10, 123456789, &Font12, EPD_BLACK, EPD_WHITE);
    Paint_DrawNum(10, 40, 987654321, &Font12, EPD_WHITE, EPD_BLACK);
    Paint_DrawString_EN(145, 0, "Waveshare", &Font16, EPD_BLACK, EPD_WHITE);
    Paint_DrawString_EN(145, 35, "Waveshare", &Font16, EPD_GREEN, EPD_WHITE);
    Paint_DrawString_EN(145, 70, "Waveshare", &Font16, EPD_BLUE, EPD_WHITE);
    Paint_DrawString_EN(145, 105, "Waveshare", &Font16, EPD_RED, EPD_WHITE);
    Paint_DrawString_EN(145, 140, "Waveshare", &Font16, EPD_YELLOW, EPD_WHITE);

    printf("EPD_Display\r\n");
    EPD_Display(Image_Mono);
    vTaskDelay(pdMS_TO_TICKS(3000));
  #endif


Operation Result​

• The screen refreshes, clears, displays an image, and draws basic graphics and text.

05_SD_Test​

Demo Description

• This example reads BMP images from a TF card and refreshes them on the e-Paper display.

Hardware Connection

• Connect the board to the computer using a USB cable
• Insert the TF card module with a TF card containing a bmp folder with images in the root directory.

Code Analysis

• _sdcard_init: TF card initialization
• GUI_ReadBmp_RGB_6Color("/sdcard/bmp/13in3E.bmp", 0, 0);: Image decoding

Operation Result

• Serial port prints TF card information.
• Reads and displays images from the TF card.





06_xiaozhi-esp32​

Hardware Connection

• Connect the board to the computer using a USB cable
• Copy all files from the TF card folder to sdcard, then insert the TF card module

Demo Description

1. First download the Demo using your preferred method. After extracting, copy all files from the TF card directory to sdcard.
2. The first boot will trigger a network configuration process. The voice will announce "Entering network configuration mode". At this point, use your phone to connect to Xiaozhi-xxx (where xxx is variable).

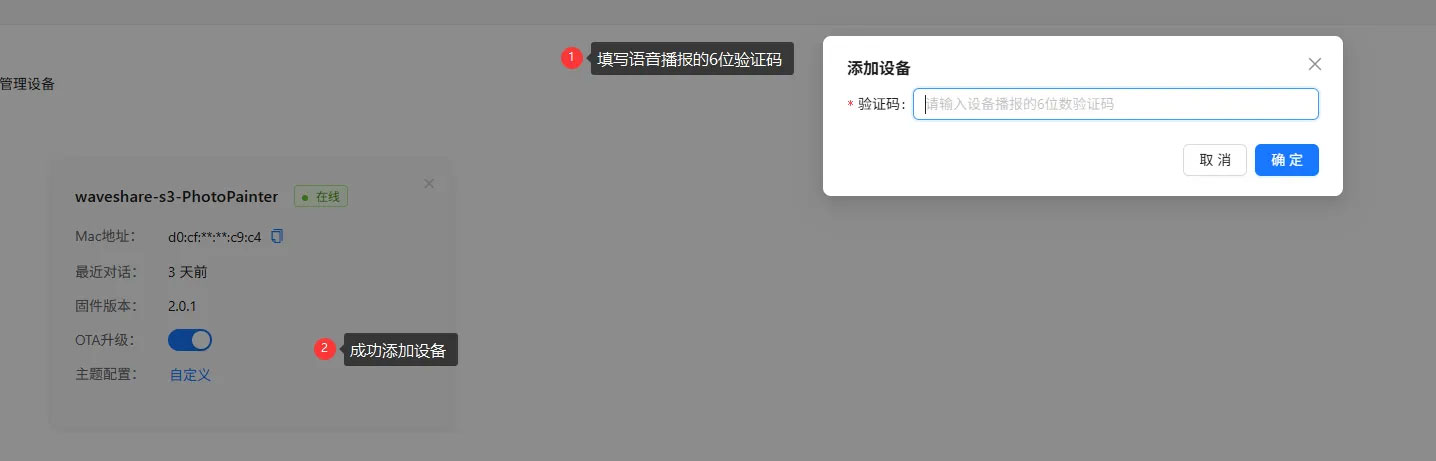

3. After successful network configuration, go to the Xiaozhi Console and add the corresponding device.


4. Three working modes: Basic Mode (Mode 1), Local Server Mode (Mode 2), and AI Conversation Mode (Mode 3).

Mode 1​

1. The default mode is AI Conversation Mode (Mode 3). Press and hold the BOOT button to enter mode selection (the voice will announce it). Then press the BOOT button once to select Basic Mode (Mode 1). Press and hold the BOOT button again to enter this mode.
2. Add photos you want to display to the img directory on the TF card. Only 24‑bit BMP images with resolutions of 1600x1200 or 1200x1600 are accepted.
3. Press the BOOT button once to display an image from the img directory.
4. Press the BOOT button to cycle through images.

Mode 2​

1. Press and hold the BOOT button to enter mode selection; press the BOOT button twice, then press and hold the BOOT button again to enter this mode.
2. Use your phone or computer to connect to the Wi-Fi esp_network with password 1234567890. After successful connection, go to the image selection interface as shown:


3. On the web page, you can directly select, preview, and push images to the e‑paper display.
4. For AP mode: first connect your phone or computer to the Wi-Fi with SSID esp_network (password: 1234567890), then visit http://192.168.4.1/index.html.
5. For STA mode: first configure the network using Mode 3, then visit http://esp32-s3-photopainter-13_3.local/index.html.

Mode 3​

1. Press and hold the BOOT button to enter mode selection; press the BOOT button three times, then press and hold the BOOT button again to enter this mode.
2. After initialization is complete, wake up the device with the wake word "Hello, Xiaozhi".
3. After waking up, you can converse normally.
4. Through conversation, you can retrieve and display the number of images in the img directory on the TF card.
5. Regarding AI‑generated images: for example, you can say "Help me generate an image of the moon". To use this feature, you need to configure Volcanic Engine. Refer to Volcanic Engine Text‑to‑Image Configuration for details.

Volcanic Engine Text‑to‑Image Configuration​

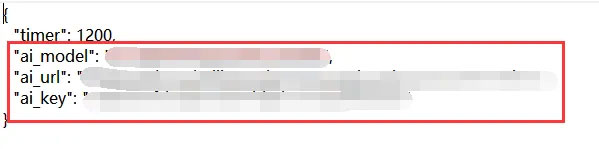

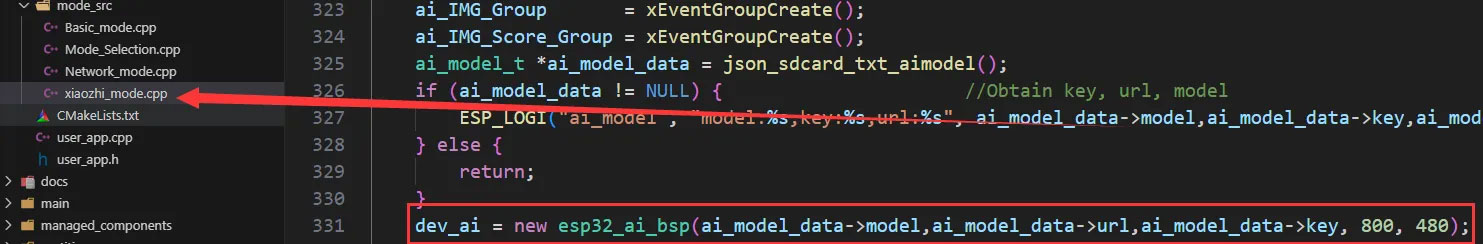

1. Firstly, you need to obtain the access key, model name, and URL. Currently, a test model is being used, which will be discontinued later. Users need to configure their own models. The relevant code section and configuration in the config.txt file are shown below:

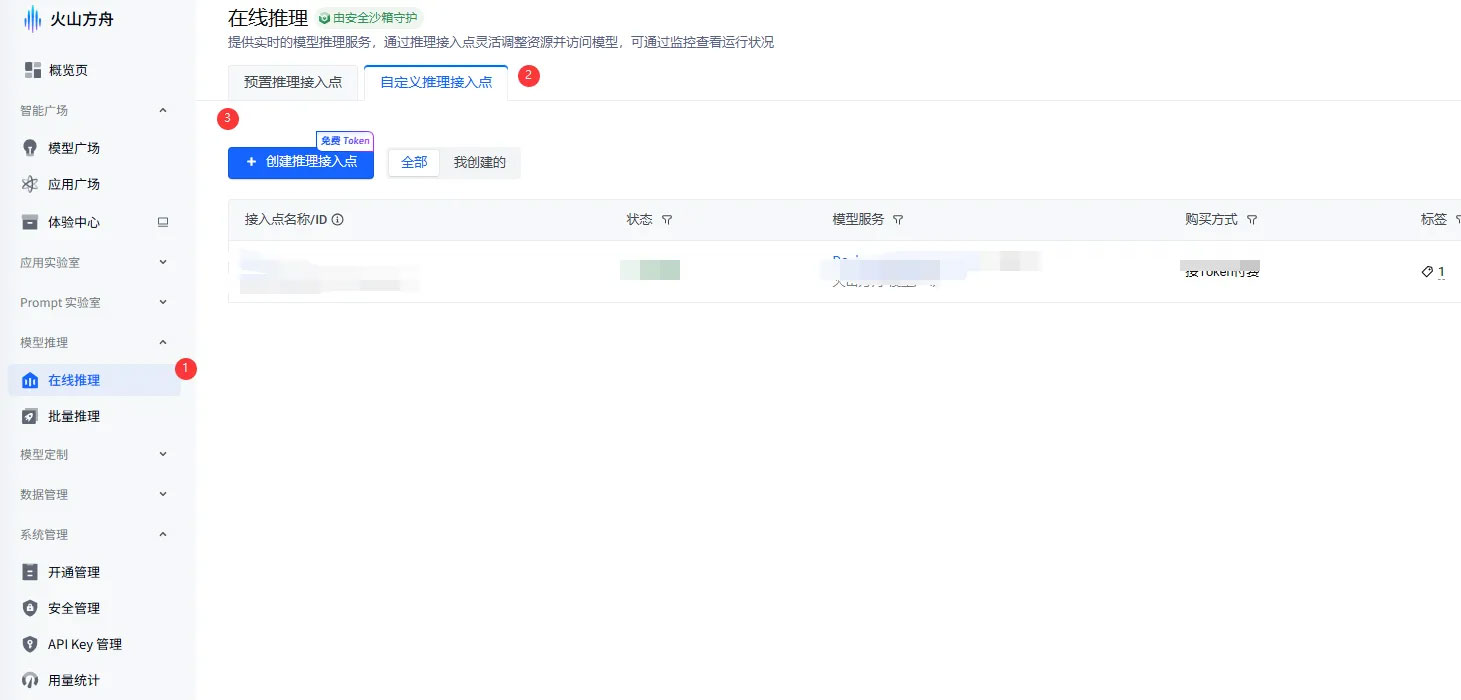

2. Go to the Volcanic Engine Console

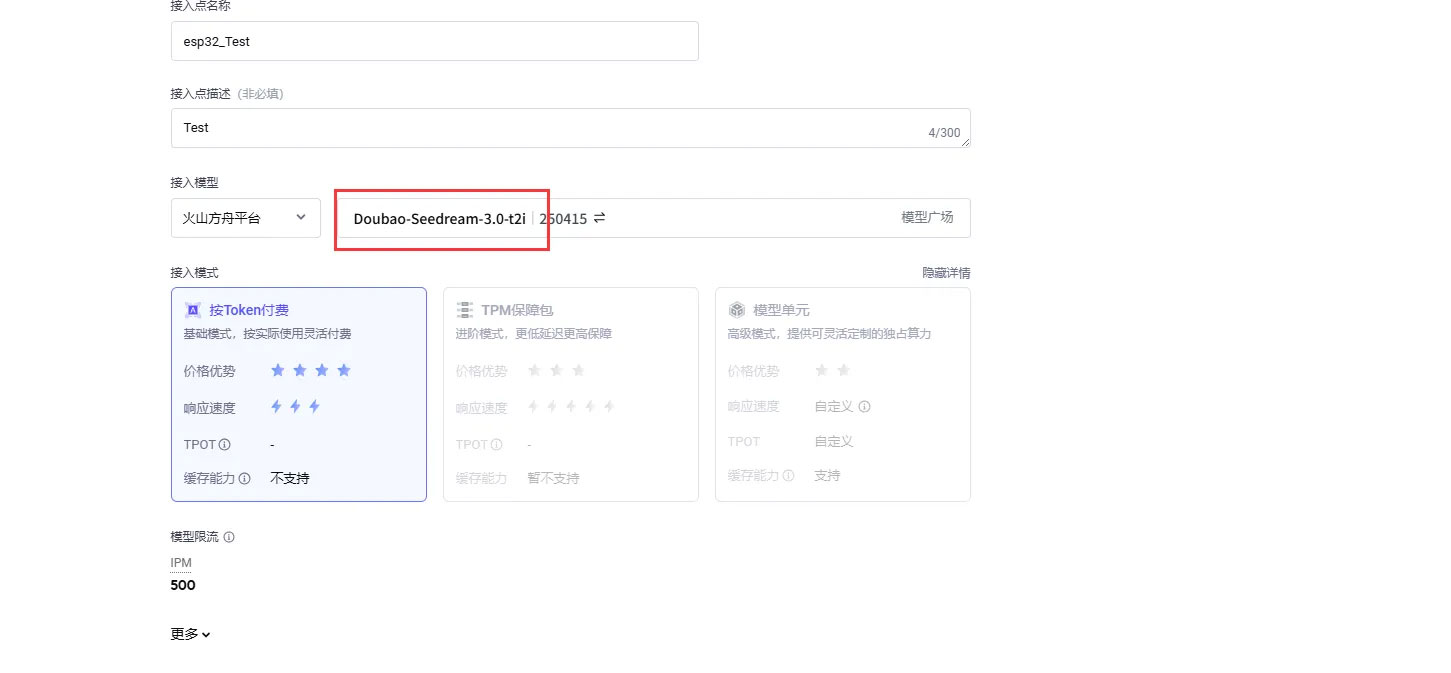

3. Create the corresponding model. Be careful not to select the wrong model, as shown:

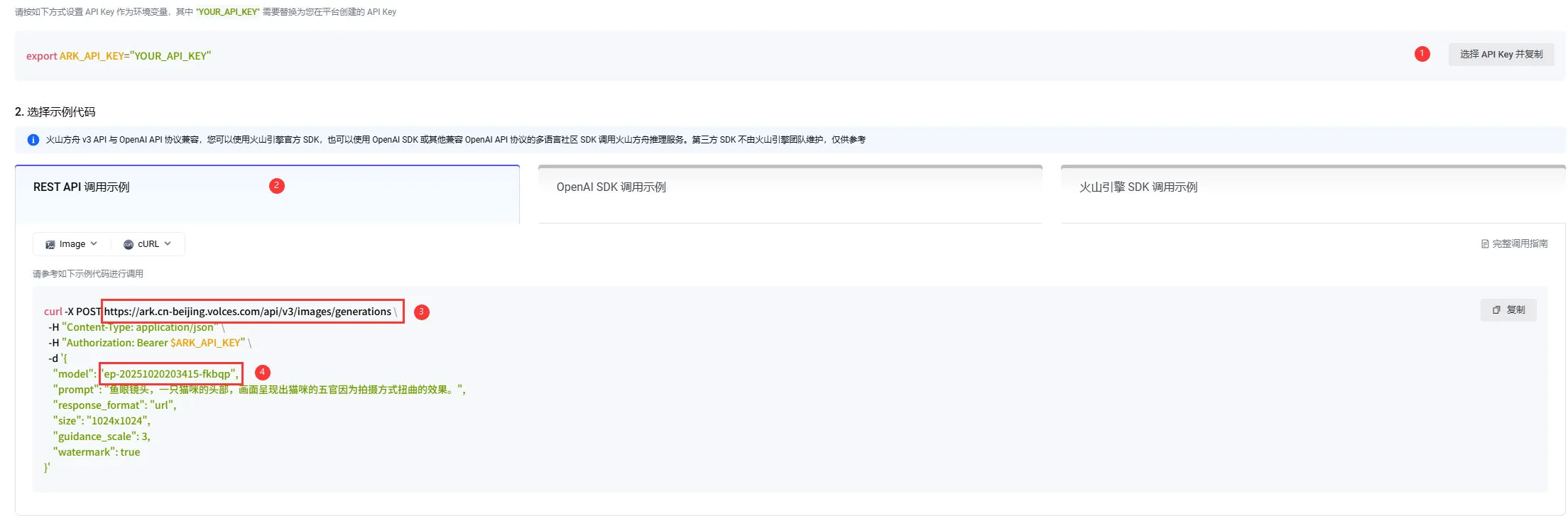

4. Copy the corresponding key, model, and URL as shown:


5. Paste the copied url, model, and key into the corresponding key‑value fields in the config.txt file located in the sdcard->img directory (see step 1, second image). New users can claim free Tokens.

1. Hardware Resources​

Development Board Design Files

• Schematic

2. Technical Manuals​

• ESP32-S3 Chip Official Manuals

  • Datasheet
  • Technical Reference Manual

• Datasheets

  • 13.3inch e-Paper (E) User Manual
  • ES8311 Datasheet
  • ES8311 User Manual
  • ES7210 Datasheet
  • ETA6098 Datasheet

3. Demo​

• ESP32-S3-ePaper-13.3E6 Demo (Github)

4. Software Tools​

• Arduino:
  • Arduino IDE Official Download Link
  • ESP32-Arduino Official Documentation
  • Arduino-ESP32 Offline Component Package
• VScode:
  • VScode Official Download Link
• Firmware Flashing Tool:
  • Flash_download_tool
  • ESP32 Web Flashing Firmware

Support

Monday-Friday (9:30-6:30) Saturday (9:30-5:30)

Email: services01@spotpear.com
