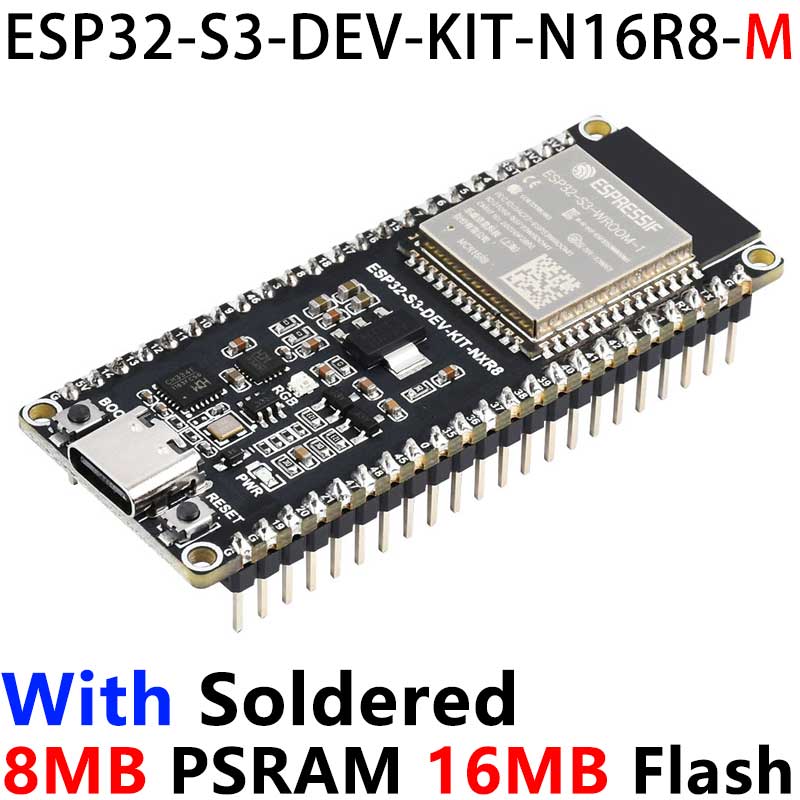

ESP32 S3 Development Board ESP32-S3-WROOM-1-N8R8 N16R8 WiFi Bluetooth

$12.99

Brand:Spotpear
SKU:0101580
Date:2024-10-23 08:18
No:
In Stock

The ESP32-S3-DEV-KIT-N8R8 is a compact-size microcontroller development board with multiple digital interfaces. Adopts ESP32-S3-WROOM-1-N8R8 module, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, built-in 512 KB SRAM (TCM) and 8MB PSRAM; Onboard CH343 and CH334 chips for USB and UART development via USB-C port. Compatible with the pinout of ESP32-S3-DevKitC-1 development board, more convenient to use and expand a variety of peripheral modules.

ESP32-S3 Microcontroller
Wi-Fi Development Board

Supports Development Environments Such As ESP-IDF, Arduino, MicroPython,Etc

Onboard ESP32-S3-WROOM-1 series module


Version And Pinheader Options

Features

This product is a compact-size microcontroller development board with multiple digital interfaces.

Adopts ESP32-S3-WROOM-1 series module, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, built-in 512 KB SRAM (TCM) and 8MB PSRAM; Onboard CH343 and CH334 chips for USB and UART development via USB-C port. Compatible with the pinout of ESP32-S3-DevKitC-1 development board, more convenient to use and expand a variety of peripheral modules.

You can choose ESP-IDF, Arduino, MicroPython, or other development environments in software so that you can easily and quickly get started and apply it to the product.

Key features include:

  • Adopts ESP32-S3-WROOM-1 series module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
  • Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, options For 8MB/16MB memory
  • Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
  • Type-C connector, easier to use
  • Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
  • Rich peripheral interfaces, compatible with the pinout of ESP32-S3-DevKitC-1 development board, offers strong compatibility and expandability
  • Castellated module allows soldering directly to carrier boards
  • Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
Supports ESP-IDF, Arduino, MicroPython
Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started

ESP32-S3 Designed For AIoT Applications
Powered By Xtensa 32-Bit LX7 Dual-Core Processor With Frequency Up To 240 MHz
Powerful AI Computing Capability & Reliable Security Features

WIFI And BLE 5 Support
ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 B/G/N) With 40 MHz Of Bandwidth Support
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

Function Block Diagram

Pinout Definition
Compatible With The Pinout Of ESP32-S3-DevKitC-1 Development Board

Onboard Resources

Product Show

Outline Dimensions
