Raspberry Pi 7.5 inch e-Paper link (H) RYBW 800x480 For Arduino / Jetson Nano / STM32

Raspberry Pi 7.5 inch e-Paper link (H) RYBW 800x480 For Arduino / Jetson Nano / STM32

$52

Brand：SpotPear

SKU：010606300000

Date：2025-04-28 17:24

Part Number：

7.5inch-e-Paper-(H) 7.5inch-e-Paper-HAT-(H)

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

7.5 inch e-Paper red, yellow, black and white electronic ink screen module version 800 × 480 pixels SPI communication

7.5inch e-Paper Display Recommend

7.5inch-e-Paper

7.5inch-e-Paper-HAT

7.5inch-e-Paper-(B)

7.5inch-e-Paper-HAT-(B)

7.5inch-e-Paper-(H)

7.5inch NFC-Powered e-Paper

7.5inch-NFC-Powered-e-Paper-V2

7.5″ E-Paper (H)

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

Version Options

Features At A Glance

No backlight required, the last screen display can be kept for a long time after power failure
The power consumption is very low, basically only consuming power when refreshing
Based on Raspberry Pi 40PIN GPIO interface design, suitable for Raspberry Pi series motherboards and Jetson Nano
Reserved SPI control interface, can be connected to Raspberry Pi / Jetson Nano / Arduino / STM32 and other main control boards
Onboard level conversion chip, compatible with 3.3V and 5V microcontroller interfaces
Provide complete supporting manuals (driver board schematics, Raspberry Pi / Jetson Nano / Arduino / STM32 and other sample programs)

Specifications

OPERATING VOLTAGE	Raw display: 3.3V	DISPLAY COLOR	Red/Yellow/Black/White
OPERATING VOLTAGE	with driver board: 3.3V/5V	DISPLAY COLOR	Red/Yellow/Black/White
INTERFACE	3-wire SPI, 4-wire SPI	GREY SCALE	2
OUTLINE DIMENSIONS	Raw display: 170.20 × 111.20 × 1.20 (mm)	FULL REFRESH TIME	22s
OUTLINE DIMENSIONS	driver board: 65.00 × 30.50 (mm)	FULL REFRESH TIME	22s
DISPLAY SIZE	163.20 × 97.92 (mm)	REFRESH POWER	<80mW
DOT PITCH	0.204 × 0.204 (mm)	STANDBY CURRENT	<0.01uA (almost none)
RESOLUTION	800 × 480 pixels	VIEWING ANGLE	>170°

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.

E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Based on Raspberry Pi 40PIN

Interface design

Applicable to Raspberry Pi series motherboards, Jetson Nano

The picture is for display only. This product does not include Raspberry Pi or Jetson Nano motherboard.

Reserved SPI control interface

Can be connected to Raspberry Pi / Jetson Nano / Arduino / STM32 and other main control boards

VCC	3.3V/5V
GND	Ground
DIN	SPI MOSI pin
SCLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data / Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output
PWR	Power control pin

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Product Show

* for reference only, Please refer to the Package Content for detailed part list

Outline Dimensions

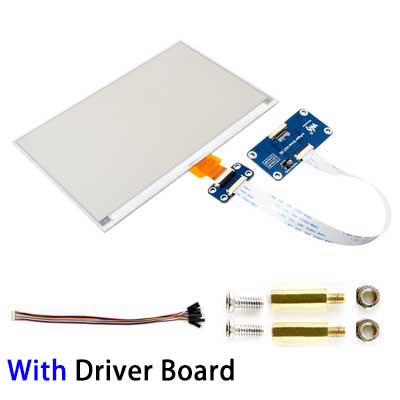

[] 7.5inch-e-Paper-(H)

[] 7.5inch-e-Paper-HAT-(H)
