Electronic EYE 0.71 inch Round LCD Display Screen For Arduino Raspberry Pi ESP32 Pico STM32

Electronic EYE 0.71 inch Round LCD Display Screen For Arduino Raspberry Pi ESP32 Pico STM32

$4.9

Brand：WaveShare

SKU：0305028

Date：2024-11-25 17:14

Part Number：

0.71inch LCD Module

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

Electronic EYE 0.71inch Round LCD Display Screen Arduino Raspberry Pi ESP32 Pico STM32

【Ntoes】

[] It Can not be used alone. It Can not display after power on.

[] It needs to be used with an additional motherboard such as Arduino/STM32

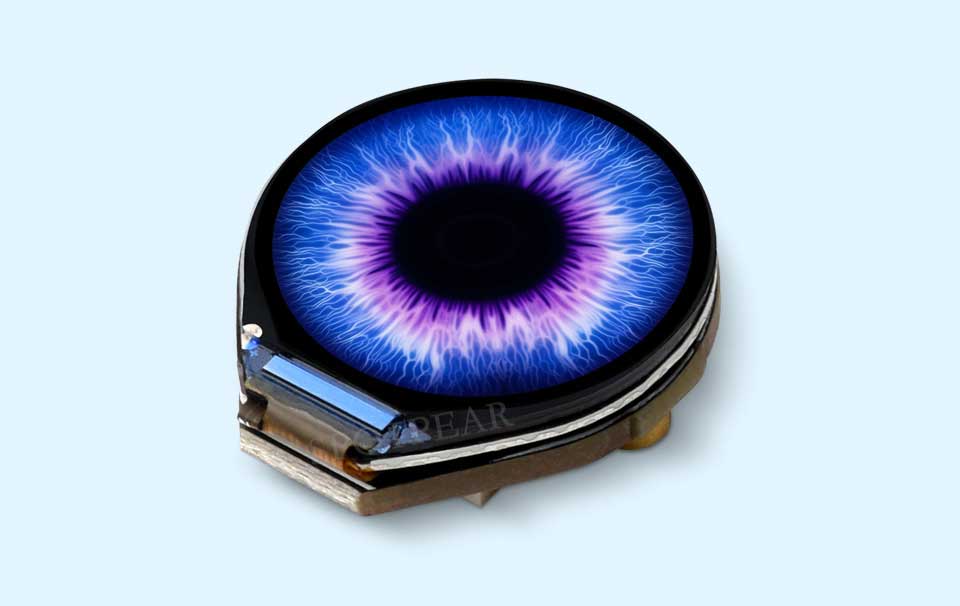

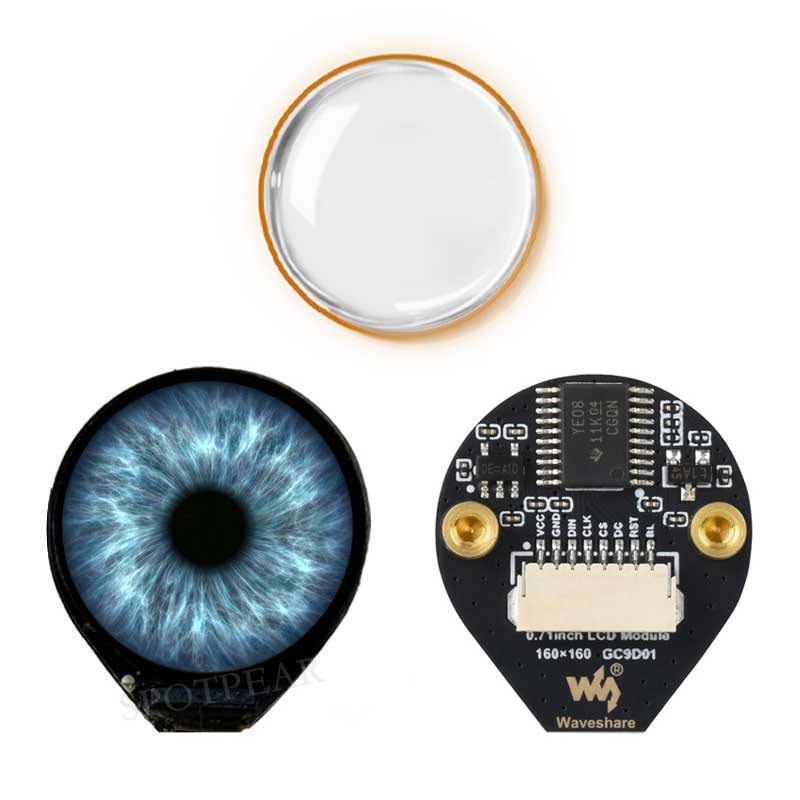

【Product display】

* for reference only, the ESP32-C3-Zero is NOT included.

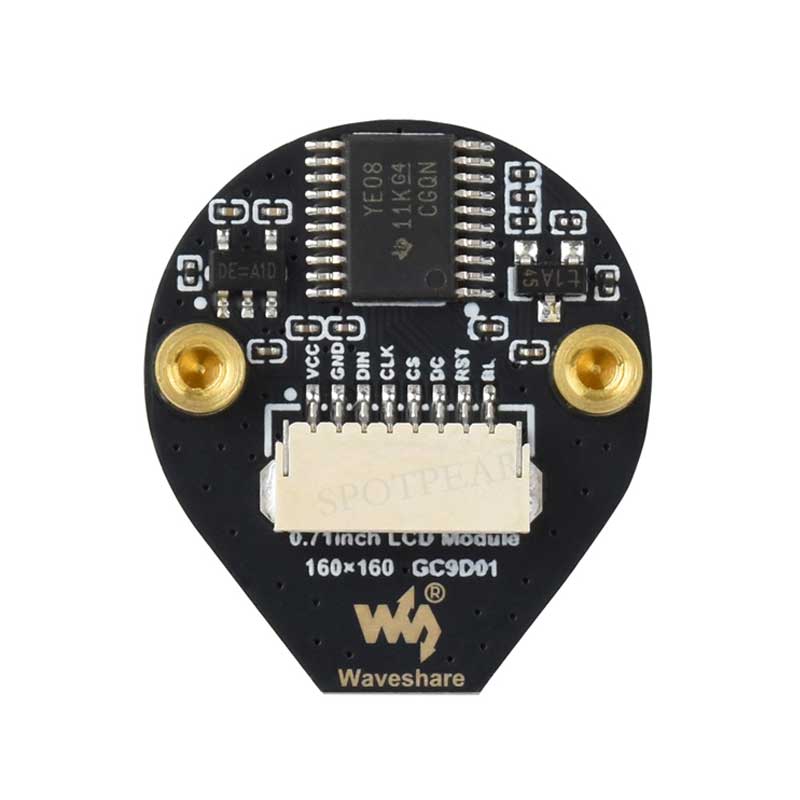

0.71inch LCD Display Module

IPS Panel, 160×160 Resolution, Embedded GC9D01 Driver, Using SPI Bus

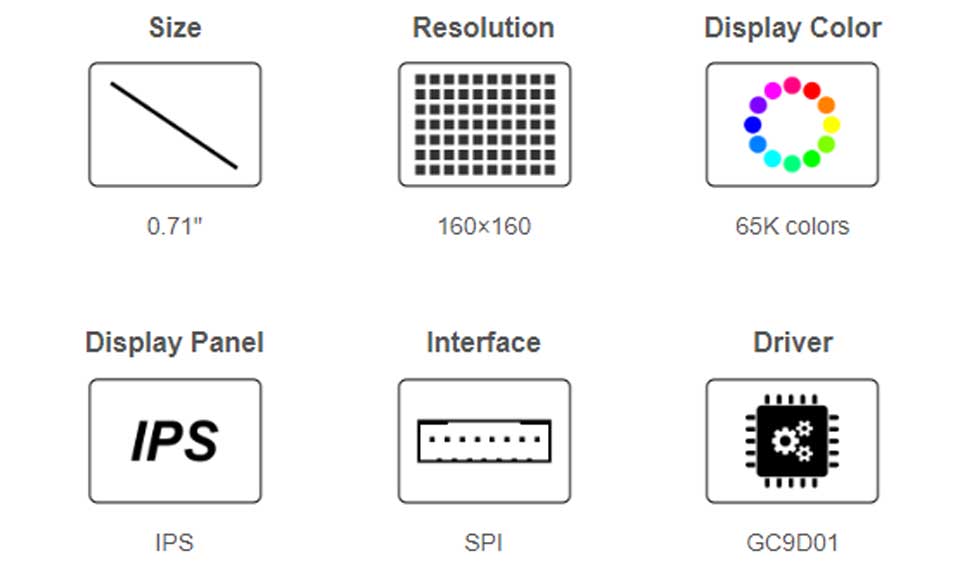

Features At A Glance

Adopts 0.71inch round LCD display, IPS panel, wide viewing angle
160×160 resolution, 65K colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi Pico / ESP32 / Arduino

Specifications

OPERATING VOLTAGE	3.3V / 5V	RESOLUTION	160 × 160 pixels
COMMUNICATION INTERFACE	4-wire SPI	DISPLAY SIZE	18 × 18 (mm)
DISPLAY PANEL	IPS	PIXEL PITCH	37.5 × 112.5 (μm)
DRIVER	GC9D01	DIMENSIONS	20.12 × 22.3 (mm)

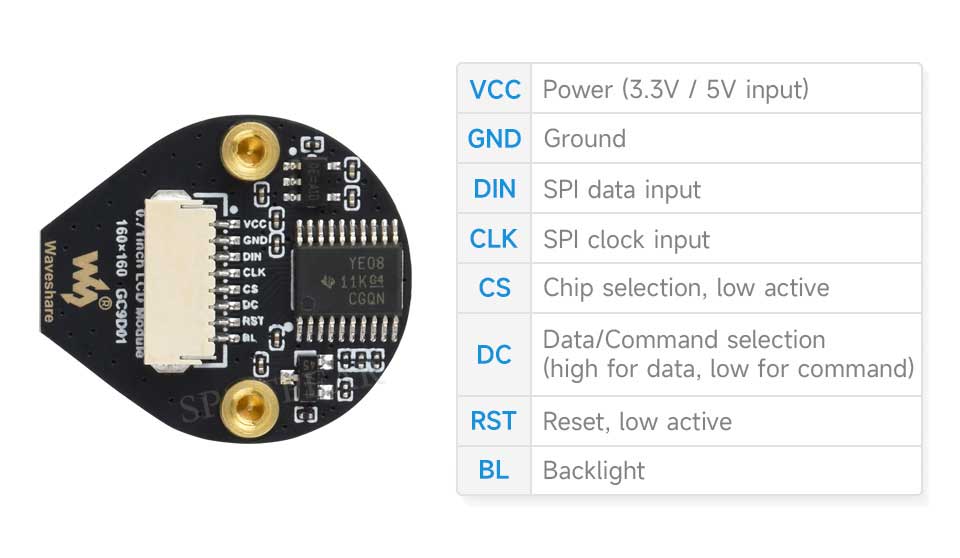

Controlled Via SPI Bus

Supports Controller Boards Like Raspberry Pi Pico / ESP32 / Arduino

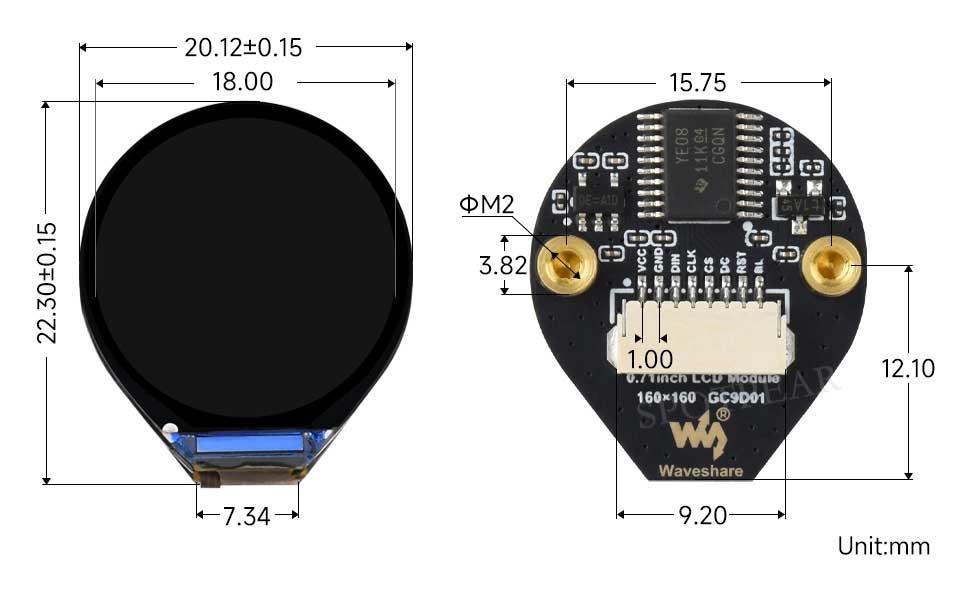

Outline Dimensions

[] 0.71inch LCD Module
