4.2inch-e-Paper-G User Guide

Overview

Parameters

Size	4.2inch
Driver Board Size	103.0mm × 78.5mm
Display Size	84.8mm × 63.6mm
Outline Dimensions (raw display)	91.00mm × 77.00mm × 1.00mm
Operating Voltage	3.3V / 5V (IO level voltage should be the same as the supply voltage)
Communication Interface	SPI
Dot Pitch	0.212mm × 0.212mm
Resolution	400 × 300
Display Color	Black, White, Red, Yellow
Grayscale	2
Refresh Time	21s
Refresh Power	<30 mW（typ.）
Sleep Current	< 0.01uA (close to 0)
Operating Temperature	0 ~ 40 ℃
Storage Temperature	-25 ~ 70 ℃

Refresh time: The refresh time is based on experimental test data, and there may be errors in the actual refresh time. The actual results shall prevail. There will be a flickering effect during the global refresh process, which is a normal phenomenon.
Refresh power consumption: The power consumption data is experimental test data, and the actual power consumption may have certain errors due to the presence of the driver board and actual usage. The actual results shall prevail.
Refresh at low temperatures may cause a color cast, and it is necessary to stand still at 25°C for 6 hours before refreshing.

Communication Method

CSB (CS): Slave chip selection signal, low active. When CS is low level, the chip is enabled.
SCL (SCK/SCLK): Serial clock signal.
D/C (DC): Data/Command control signal, writes commands at a low level; writes data/parameter at a high level.
SDA (DIN): Serial data signal.
Timing sequence: CPHL=0, CPOL=0 (that is, SPI mode 0).

Note: For specific information about SPI communication, you can search for information online.

Working Principle

This product is an e-Paper device adopting the image display technology of Microencapsulated Electrophoretic Display, MED. The basic principle is that the charged nanoparticles suspended in the liquid are subjected to the electric field to produce migration. The e-Paper screen display patterns by reflecting the ambient light, so it has no background light requirement. Under ambient light, the e-Paper screen still has high visibility with a wide viewing angle of almost 180 degrees. It is the ideal choice for e-reading.

Programming Principle

For four-color e-Paper ink screen, we can refer to grayscale images with four tones for understanding, though there are still some differences.
To save memory space, the ink screen compresses the pixels:
Black: corresponds to 00b
White: corresponds to 01b
Yellow: corresponds to 10b
Red: corresponds to 11b
Let's take 4 pixels as an example:

pixel	1		2		3		4
bit	0	1	2	3	4	5	6	7
Stored data	0	0	0	1	1	0	1	1
Color	Black		White		Yellow		Red
byte	0x1B

Writing data 0x1B to register 0x10 sets four pixels on the ink screen to black, white, yellow, and red colors respectively

Precautions

The screen supports partial refresh. Please note that when using it, you cannot always use partial refresh to refresh the screen. You need to perform a full refresh of the screen after several partial refreshes. Otherwise, the screen display effect will be abnormal.
When three-color or multi-color ink screens are produced in batches, there will be a certain color difference. This is a normal phenomenon. It is recommended to store the screen with the white side facing up. Before use, power on and do several whitening operations.
Note that the screen cannot be powered on for a long time. When the screen does not refresh, the screen must be set to sleep mode or power off. Otherwise, the screen will remain in a high voltage state for a long time, which will damage the diaphragm and cannot be repaired.
When using the e-paper screen, it is recommended that the refresh interval is at least 180s, and refreshed at least every 24 hours. If the e-paper screen is not used for a long time, it should be whitened and stored. (Refer to the data sheet for specific storage environment requirements)
After the screen enters sleep mode, the image data sent will be ignored, and it can only be refreshed normally after re-initialization.
Control the 0x3C or 0x50 (refer to the data sheet for details) register to adjust the border color. In the example demo, you can adjust the Border Waveform Control register or VCOM AND DATA INERTVAL SETTING to set it.
If you find that the data of the created image is displayed incorrectly on the screen, it is recommended to check whether the image size is set correctly, and try again by changing the width and height settings.
The working voltage requirement for an ink screen is 3.3V. If you purchase a raw display and need to work in a 5V environment when designing the circuit, it is recommended to perform level conversion processing. The new version of the driver board (Rev2.1 and subsequent versions) has added a level processing circuit, which can support both 3.3V and 5V working environments simultaneously. The old version can only support 3.3V working environment. When using it, you can first confirm the version number (which is under the board name).
The FPC cable of the screen is relatively fragile. Please note: do not bend the cable in the vertical direction of the screen to avoid the cable being torn; do not repeatedly bend the cable excessively to avoid the cable breaking; do not bend the cable toward the front of the screen to prevent the cable from being disconnected from the panel. During debugging and R&D, it is recommended to fix the wiring before use.
The ink screen screen is relatively fragile, so be careful to avoid falling, colliding, or pressing hard.
We recommend that customers first use the sample demo we provide and use the corresponding development board to test after getting the screen.

Picture Processing

Picture production and conversion of multi-color e-Paper

Picture production

Preparation

Software required: Adobe PhotoShop CC, Paint

Introduction

The Floyd-Steinberg dithering algorithm is ideal for displaying rich layers with a small number of colors. This allows for more color combinations and better shadow rendering of the original image. It is especially suitable for various use scenarios of e-Paper screens.
Here's how to convert a normal image into a Floyd-Steinberg scatter chart.
If you are interested in the actual algorithm, you can learn about our algorithm porting in ESP32 and ESP8266. Here, no further elaboration will be given.

Operation Steps

Preparation: Download Color table to your PC, and extract it to get the following files, we need to use N-color.act or 4-color.act, 6-color.act.

1. Create a new Photoshop project, set the width and height according to the actual resolution of the e-Papre screen, and use RGB color in the color mode. If the screen resolution used is 800*480, change the width to 800 pixels and the height to 480 pixels.

2. Prepare the corresponding materials, copy them into the project, and adjust parameters such as size and contrast (similar to the steps involved in general Photoshop image processing).

3. Select File - Store in the format used for the web and device.

4. Select Load Color table as shown below. Load the Color table provided in the Preparation section.

5. For seven-color pictures, load N-color.act, then click Save to save as a gif file. It is then converted to BMP format for use on this module.
For four-color pictures, load 4-color.act, then click Save to save as a gif file. It is then converted to BMP format for use on this module.
For six-color pictures, load 6-color.act, then click Save to save as a gif file. It is then converted to BMP format for use on this module.

6. Open the GIF file with Paint, save it as a 24-bit BMP picture.

7. At this point, the picture has been made, and it can be used in the TF card of the Raspberry Pi or e-Paper Shield module, or converted into an array for other embedded devices according to the next section.

Picture Data Conversion

Download Demos

Four-color app: Four-color picture conversion app
E6 full-color app: E6 full-color picture conversion app
Seven-color app: Seven-color picture conversion app
Source code: Demo source code

Note: This application is provided for your convenience and is open source, and our company does not provide technical support for it

Bug Resolution

If your computer is win10/win11 and you do not have VS (Microsoft Visual Studio) or other Microsoft development tools installed, you may encounter error prompts: "ucrtbased.dll" and "vcruntime 140d.dll".
This means that these two components are missing from your computer, and the solution is as follows:
1. Install VS (Microsoft Visual Studio) or other Microsoft development tools (Visual C++ Redistributable, etc.).
2. Use the two component files provided by us

Put these two files in the directory C:\Windows\System32 and restart your computer

Conversion Steps

Put the produced picture and the corresponding exe application in the same folder, you can put multiple pictures at the same time.
Drag and drop the picture onto the exe file, and the demo will convert the picture into a fixed name. c file.
Double-click on the cmd file, and the demo will convert all the pictures in the folder that match the size into a .c file with the corresponding names.
Four-color single picture demonstration (click on the picture to view the demonstration)

Four-color multi-picture demonstration (click on the picture to view the demonstration)

Seven-color single picture demonstration (click on the picture to view the demonstration)

Seven-color multi-picture demonstration (click on the picture to view the demonstration)

Raspberry Pi

Hardware Connection

Please refer to the pin corresponding table below:

Raspberry Pi connection pin correspondence
e-Paper	Raspberry Pi
e-Paper	BCM2835 encoding	Board physical pin number
VCC	3.3V	3.3V
GND	GND	GND
DIN	MOSI	19
CLK	SCLK	23
CS	CE0	24
DC	25	22
RST	17	11
BUSY	24	18

Enable SPI Interface

Open the Raspberry Pi terminal and enter the following command to enter the configuration interface:

sudo raspi-config
Select Interfacing Options -> SPI -> Yes to enable the SPI interface

Restart Raspberry Pi:

sudo reboot

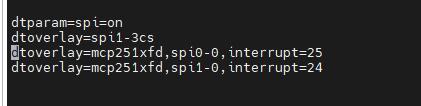

Check /boot/config.txt and you can see that 'dtparam=spi=on' has been written to

To ensure that SPI is not occupied, it is recommended that other driver overlays be temporarily turned off. You can use ls /dev/spi* to check the SPI occupancy. The terminal output /dev/spidev0.0 and /dev/spidev0.1 indicates that the SPI situation is normal

Run C Demo

Install lg library

#Open the Raspberry Pi terminal and run the following commands:
wget https://github.com/joan2937/lg/archive/master.zip
unzip master.zip
cd lg-master
make
sudo make install
# For more information, please refer to the source code: https://github.com/gpiozero/lg

Install gpiod library (optional)

#Open the Raspberry Pi terminal and run the following commands:
sudo apt-get update
sudo apt install gpiod libgpiod-dev

Install BCM2835 (optional)

#Open the Raspberry Pi terminal and run the following commands:
wget http://www.airspayce.com/mikem/bcm2835/bcm2835-1.71.tar.gz
tar zxvf bcm2835-1.71.tar.gz
cd bcm2835-1.71/
sudo ./configure && sudo make && sudo make check && sudo make install
# For more information, please refer to the official website: http://www.airspayce.com/mikem/bcm2835/

Install wiringPi (optional)

#Open the Raspberry Pi terminal and run the following commands:
sudo apt-get install wiringpi
#For Raspberry Pi systems after May 2019 (those earlier may not require execution), an upgrade may be necessary:
wget https://project-downloads.drogon.net/wiringpi-latest.deb
sudo dpkg -i wiringpi-latest.deb
gpio -v
# Run gpio -v and version 2.52 will appear. If it does not appear, there is an installation error.

#Bullseye branch system uses the following command:
git clone https://github.com/WiringPi/WiringPi
cd WiringPi
./build
gpio -v
# Run gpio -v and version 2.60 will appear. If it does not appear, there is an installation error.

Download the demo (you can skip it if you have already downloaded it)

wget https://files.waveshare.com/wiki/4.2inch%20e-Paper%20Module%20(G)/4in2_e-Paper_G.zip
unzip 4in2_e-Paper_G.zip -d 4in2_e-Paper_G
cd 4in2_e-Paper_G/RaspberryPi_JetsonNano/

Alternate decompression method

sudo apt-get install p7zip-full
7z x 4in2_e-Paper_G.zip -O./4in2_e-Paper_G
cd 4in2_e-Paper_G/RaspberryPi_JetsonNano/

Download the demo via GitHub (alternative method, skip if already downloaded)

Currently, accessing GitHub is not very smooth. It is recommended to use the above method to download from our official website.

git clone https://github.com/waveshare/e-Paper.git
cd e-Paper/E-paper_Separate_Program/4in2_e-Paper_G/RaspberryPi_JetsonNano/

Compiler demo (Note: -j4 means using 4 threads for compilation, the number can be modified by yourself)

# It is now in 4in2_e-Paper_G/RaspberryPi_JetsonNano
cd c
sudo make clean
sudo make -j4

Run demo

sudo ./epd

Run Python Demo

Install function library

sudo apt-get update
sudo apt-get install python3-pip
sudo apt-get install python3-pil
sudo apt-get install python3-numpy
sudo pip3 install spidev

Install function library (python2)

sudo apt-get update
sudo apt-get install python-pip
sudo apt-get install python-pil
sudo apt-get install python-numpy
sudo pip install spidev

Install gpiozero library (the system has installed it by default, if it is not installed, please follow the following command to install it)

sudo apt-get update
# python3
sudo apt install python3-gpiozero
# python2
sudo apt install python-gpiozero

Download the demo (you can skip it if you have already downloaded it)

wget https://files.waveshare.com/wiki/4.2inch%20e-Paper%20Module%20(G)/4in2_e-Paper_G.zip
unzip 4in2_e-Paper_G.zip -d 4in2_e-Paper_G
cd 4in2_e-Paper_G/RaspberryPi_JetsonNano/

Alternate decompression method

sudo apt-get install p7zip-full
7z x 4in2_e-Paper_G.zip -O./4in2_e-Paper_G
cd 4in2_e-Paper_G/RaspberryPi_JetsonNano/

Download the demo via GitHub (alternative method, skip if already downloaded)

Currently, accessing GitHub is not very smooth. It is recommended to use the above method to download from our official website.

git clone https://github.com/waveshare/e-Paper.git
cd e-Paper/E-paper_Separate_Program/4in2_e-Paper_G/RaspberryPi_JetsonNano/

Run demo

# Make sure it is in 4in2_e-Paper_G/RaspberryPi_JetsonNano/
cd python/examples/
python3 epd_4in2g_test.py

Arduino

Hardware Connection

Use an 8PIN cable to connect, please refer to the pin corresponding table below:

Arduino connection pin correspondence
e-Paper	Arduino UNO	Mega2560
VCC	5V	5V
GND	GND	GND
DIN	D11	D51
CLK	D13	D52
CS	D10	D10
DC	D9	D9
RST	D8	D8
BUSY	D7	D7

Install IDE

Arduino IDE Windows Installation Tutorial

Run Demo

In the data interface download the Demo, then unzip it and enter the 4in2_e-Paper_G directory to see the following content

Open the demo: 4in2_e-Paper_G\Arduino_R4\Arduino_R4.ino

In the Arduino IDE, select the corresponding development board (Board) and port (Port) in the Tools menu

Finally, click Upload, and the upload is as follows (Arduino 1.8.13)

Jetson Nano

Hardware Connection

Use an 8PIN cable to connect, please refer to the pin corresponding table below:

Jetson nano connection pin correspondence
e-Paper	Jetson Nano Developer Kit
e-Paper	BCM2835 encoding	Board physical pin number
VCC	3.3V	3.3V
GND	GND	GND
DIN	10(SPI0_MOSI)	19
CLK	11(SPI0_SCK	23
CS	8(SPI0_CS0)	24
DC	25	22
RST	17	11
BUSY	24	18

Run C Demo

Download the demo (you can skip it if you have already downloaded it)

wget https://files.waveshare.com/wiki/4.2inch%20e-Paper%20Module%20(G)/4in2_e-Paper_G.zip
unzip 4in2_e-Paper_G.zip -d 4in2_e-Paper_G
cd 4in2_e-Paper_G/RaspberryPi_JetsonNano/

Alternate decompression method

sudo apt-get install p7zip-full
7z x 4in2_e-Paper_G.zip -O./4in2_e-Paper_G
cd 4in2_e-Paper_G/RaspberryPi_JetsonNano/

Download the demo via GitHub (alternative method, skip if already downloaded)

Currently, accessing GitHub is not very smooth. It is recommended to use the above method to download from our official website.

git clone https://github.com/waveshare/e-Paper.git
cd e-Paper/E-paper_Separate_Program/4in2_e-Paper_G/RaspberryPi_JetsonNano/

Compiler demo (Note: JETSON specifies the device as jetson nano, if not specified, the default is Raspberry Pi; -j4 means using 4 threads for compilation, the number can be modified by yourself)

# It is now in 4in2_e-Paper_G/RaspberryPi_JetsonNano
cd c
sudo make clean
sudo make JETSON -j4

Run demo

sudo ./epd

Run Python Demo

Install function library

sudo apt-get update
sudo apt-get install python3-numpy
sudo apt-get install python3-pip
sudo pip3 install Jetson.GPIO

Download the demo (you can skip it if you have already downloaded it)

wget https://files.waveshare.com/wiki/4.2inch%20e-Paper%20Module%20(G)/4in2_e-Paper_G.zip
unzip 4in2_e-Paper_G.zip -d 4in2_e-Paper_G
cd 4in2_e-Paper_G/RaspberryPi_JetsonNano/

Alternate decompression method

sudo apt-get install p7zip-full
7z x 4in2_e-Paper_G.zip -O./4in2_e-Paper_G
cd 4in2_e-Paper_G/RaspberryPi_JetsonNano/

Download the demo via GitHub (alternative method, skip if already downloaded)

Currently, accessing GitHub is not very smooth. It is recommended to use the above method to download from our official website.

git clone https://github.com/waveshare/e-Paper.git
cd e-Paper/E-paper_Separate_Program/4in2_e-Paper_G/RaspberryPi_JetsonNano/

Run demo

# Make sure it is in 4in2_e-Paper_G/RaspberryPi_JetsonNano/
cd python/examples/
python3 epd_4in2g_test.py

Sunrise X3 Pi

Hardware Connection

Use an 8PIN cable to connect, please refer to the pin corresponding table below:

Sunrise X3 Pi connection pin correspondence
e-Paper	Sunrise X3 Pi
e-Paper	BCM encoding	Board physical pin number
VCC	3.3V	3.3V
GND	GND	GND
DIN	MOSI	19
CLK	SCLK	23
CS	CE0	24
DC	25	22
RST	17	11
BUSY	24	18

Enable SPI

SPI is turned on by default. If it is turned off accidentally, please follow the following methods to turn it on.

Enter command: sudo srpi-config

Run Python Demo

The corresponding library has been installed in the function. If you accidentally uninstall it, please use the following command to install it.

sudo apt-get update
sudo apt-get install python-pip
sudo apt-get install python-pil
sudo apt-get install python-numpy
sudo pip install Hobot.GPIO
sudo pip install spidev

Download the demo (you can skip it if you have already downloaded it)

wget https://files.waveshare.com/wiki/4.2inch%20e-Paper%20Module%20(G)/4in2_e-Paper_G.zip
unzip 4in2_e-Paper_G.zip -d 4in2_e-Paper_G
cd 4in2_e-Paper_G/RaspberryPi_JetsonNano/

Alternate decompression method

sudo apt-get install p7zip-full
7z x 4in2_e-Paper_G.zip -O./4in2_e-Paper_G
cd 4in2_e-Paper_G/RaspberryPi_JetsonNano/

Download the demo via GitHub (alternative method, skip if already downloaded)

Currently, accessing GitHub is not very smooth. It is recommended to use the above method to download from our official website.

git clone https://github.com/waveshare/e-Paper.git
cd e-Paper/E-paper_Separate_Program/4in2_e-Paper_G/RaspberryPi_JetsonNano/

Run demo

# Make sure it is in 4in2_e-Paper_G/RaspberryPi_JetsonNano/
cd python/examples/
python3 epd_4in2g_test.py

STM32

Hardware Connection

Use an 8PIN cable to connect, please refer to the pin corresponding table below:

STM32 connection pin correspondence
e-Paper	STM32
VCC	3.3V
GND	GND
DIN	PA7
CLK	PA5
CS	PA4
DC	PA2
RST	PA1
BUSY	PA3

Run Demo

Click to download the Demo, then unzip it and enter the 4in2_e-Paper_G directory to see the following content

Use Keil to open epd-demo.uvprojx in the 4in2_e-Paper_G\STM32-F103ZET6\MDK-ARM directory
Open Keil's compilation toolbar (which is generally open) < br/>

Click Compile

Make sure the appropriate programmer is connected, then click LOAD to download the demo to the microcontroller

ESP32/8266

ESP32

For more details, please click on the url below to view
https://www.waveshare.com/wiki/E-Paper_ESP32_Driver_Board

ESP8266

For more details, please click on the url below to view
https://www.waveshare.com/wiki/E-Paper_ESP8266_Driver_Board

Resources

It provides a full set of documents, procedures, data manuals, etc.

Documents

Demos

Development Resources

Raspberry Pi Documentation

FAQ

Software Issues

Question: The following occurs when Raspberry Pi runs a python demo

Answer:

Enter command: ls /dev/spi*
The result may appear as shown in the figure
This is because the SPI interface is occupied in the /boot/config.txt file
The solution is as follows:
- Remove the occupation of spi0-0 in the /boot/config.txt file
- Modify the position of the image in the /e-Paper/RaspberryPi_JetsonNano/lib/waveshare_epd/epdconfig.py file to 0,1

Question: STM32 drives the e-Paper, but the MDK compilation display space is not enough?

Answer:

Our example demo uses STM32f103ZET6, if the customer modifies to other model in the MDK, such as STM32F103RBT6, the RAM space becomes smaller, and you need to modify the stack size and heap size in the startup file on the original basis.

Question: Questions about data sheet. When does the font transmit Data Start Transmission 1, and when does it use Data Start Transmission 2?

Answer:

When transmitting B/W data, use Data Start Transmission 1; When transmitting RED data, use Data Start Transmission 2.

Question: Why can't I display Chinese on the e-Paper?

Answer:

The Chinese font library of our example demo uses GB2312 encoding. Please change your xxx_test.c file to GB2312 encoding format, compile and download it, and it will display normally.

Question: Why does e-Paper display a black border?

Answer:

The border display color can be set through the Border Waveform Control register or the VCOM AND DATA INTERVAL SETTING register.

Question: Multiple locations are partially refreshed, how many times does the font appear lighter after being refreshed?

Answer:

In this case, the customer needs to reduce the number of refreshing positions and perform a screen clearing after refreshing 5 times.

Question: When the e-Paper is in deep sleep mode, there may be an issue that the screen refresh will not be clean when waking up for the first time. How can I solve this problem?

Answer:

The process of waking up the e-Paper is actually a process of re-powering on, so when the EPD wakes up, it needs to perform a screen clearing action first to minimize residual images.

Question: When testing the demo, the demo keeps getting stuck at e-Paper busy?

Answer:

May be caused by SPI driver failure:
- 1. First check if the wiring is correct.
- 2. Check if SPI is enabled and if the parameters are configured correctly. (Baud rate, mode and other parameters)

Question: Why can't the image be displayed after partial refresh and then full refresh?

Answer:

When switching from partial refresh to full refresh on the e-Paper, a full refresh initialization function needs to be added.

Question: Why does the printing information work normally but the e-Paper does not respond when running the python demo?

Answer:

It may be that a C language demo based on the BCM2835 library has been run before. At this time, you need to restart the Raspberry Pi and then run the python demo.

Question: Error ImportError: No module named Image when running python demo?

Answer:

Use the command "sudo apt-get install python-imaging" to install the imaging function library.

Hardware Issues

Question: Can the Arduino 5V drive the e-Paper?

Answer:

Yes, there is now a level translation chip onboard that supports 5V drive.

Question: What should we pay attention to when designing a driver board?

Answer:

The rated input voltage of the e-Paper is 2.3~3.6V. If it is a 5V system, level conversion is required. In addition, the voltage should not be lower than 2.5V to avoid affecting the display effect of the e-Paper.
For device selection, you can use the model in the schematic diagram we provide or select according to the data sheet.

Question: Can I use analog SPI?

Answer:

Yes, please note that the timing needs to be correct.

Question: Why is the BUSY pin always busy?

Answer:

Confirm if SPI communication is normal.
Confirm if the BUSY pin is properly initialized to input mode.
It may be that there is no normal reset. Try to shorten the duration of the low level during the reset. (Due to the addition of a power-off switch in the driver circuit, resetting the low level for too long can cause the driver board to lose power and result in reset failure.)
If the busy function has a send 0x71 command, you can try to comment it out.

Question: What are the specifications of the e-Paper cable interface?

Answer:

1.64 inch, 2.36 inch, 3 inch, 0.5mm pitch, 26pin
1.02inch, 0.5mm pitch, 30pin
4.37inch, 7.3inch, 0.5mm pitch, 50pin
The rest (non-parallel port) are 0.5mm pitch, 24pin

Question: What type of connector does the e-Paper use?

Answer:

Cable socket 0.5-XXpin rear flip 2.0H (FPC connector).

Screen Issues

Question: What is the usage environment of the e-Paper?

Answer:

[Working conditions] Temperature range: 0~40°C (the seven-color screen is: 15~35°C); humidity range: 35%~65%RH.
[Storage conditions]: Temperature range: below 30°C; Humidity range: below 55%RH; Maximum storage time: 6 months.
[Transportation conditions]: temperature range: -25~50°C; Maximum shipping time: 10 days.
[After unpacking]: Temperature range: 20°C±5°C; Humidity range: 50±5%RH; Maximum storage time: Complete assembly within 72 hours.

Question: Precautions for refreshing the e-Paper

Answer:

Refresh mode:
- Full refresh: The e-Paper will flash multiple times during the refresh process (the number of flashes depends on the refresh time). The flashing is to remove residual images to achieve the best display effect.
- Partial refresh: The e-Paper screen has no flickering effect during the refresh process. Users who use the partial refresh function should pay attention to performing a "full refresh" operation to clear the residual images after refreshing several times. Otherwise, the residual image problem will become more and more serious and even damage the screen. (Currently, only some black and white e-Paper screens support partial refresh, please refer to the product page description for details.)
Refresh frequency:
- During use, it is recommended that customers set the refresh interval of the e-Paper screen to at least 180 seconds. (Except for products that support partial refresh function)
- During the standby process (that is, after the refresh operation), it is recommended that customers set the e-Paper screen to sleep mode or power off (the power supply of the e-Paper can be disconnected with an analog switch) to reduce power consumption and extend the life of the e-Paper screen. (If some e-ink screens are powered on for a long time, the screen may be damaged and cannot be repaired.)
- During the use of multi-color e-Paper screen, it is recommended that customers update the display screen at least once every 24 hours. (If the screen remains the same image for a long time, it may burn out and be difficult to repair.)
Usage Scenarios:
- The e-Paper screen is recommended for indoor use, not for outdoor use.
- If the usage scenario is outdoors, we cannot guarantee its display effect. If the screen is damaged due to outdoor use, we do not provide warranty service.
- The following are some protections for outdoor use. We do not guarantee that the e-Paper can be used normally after taking these protections.
  - Avoid direct sunlight on the e-Paper screen, and at the same time take ultraviolet protection measures, because charged particles will dry out under strong light for a long time, resulting in inactivation and cannot be refreshed, which is irreversible.
  - Use 3M tape to completely cover the white plastic part on the e-Paper connection cable. Complete coverage or no tape will have different reactions under ultraviolet light.
  - Place the e-Paper in a relatively cool area, such as under the shade of trees or under the shadow of eaves.
- When designing e-Paper products, customers should determine whether the use environment meets the requirements of e-Paper screens.

Question: What is the number of refresh times/lifespan of the e-Paper screen?

Answer:

Ideally, with normal use, it can be refreshed 1,000,000 times (1 million times).

Question: Why does the screen refresh (full refresh) has a serious residual image problem that cannot be fixed after a period of use?

Answer:

When the development board is powered on for a long time, after each refresh operation, it is recommended to set the screen to sleep mode or directly cut off the power, otherwise the screen may be burned when the e-Paper is in a high voltage state for a long time.

Question: Can the e-Paper screen be refreshed again after entering deep sleep mode?

Answer:

Yes, but you need to redo the e-paper initialization operation with the software.

Question: Why does it show image offset?

Answer:

The SPI rate may be too high, causing data loss, try to reduce the SPI rate.
Insufficient power supply or unstable power supply causes data loss.
The data cable is too long and causes data loss, and the extension cable should not exceed 20cm.

Question: What is a waveform file of an e-Paper screen and what does it do?

Answer:

The gray scale of electrophoresis e-paper is determined by the spatial position of the particles in the microcapsule or microcup, and the electrophoresis phenomenon occurs between black particles and white particles under the action of voltage, and the voltage timing that prompts the electrophoretic movement of the particles is the driving waveform of the e-paper. The driving waveform is the core part of the e-paper display, and the optimization of the driving waveform will directly affect the display effect of the display. The drive waveform file is a parameter formed to describe the voltage timing that causes the electrophoretic motion of the particles, and needs to be called periodically when the e-paper is refreshed.
Different batches of e-paper diaphragms and electrophoretic matrices will have different voltage values when driving the display due to reasons such as materials and manufacturing processes. The relationship between grayscale, voltage, and temperature is reflected in the waveform of the e-Paper screen. Generally speaking, after each batch of electrophoresis matrices is generated, there will be a corresponding waveform file in the form of a .wbf file. The membrane manufacturer will provide the waveform file and electrophoresis matrix to the manufacturer of the e-paper screen, and then the the manufacturer of the e-paper screen integrates the protective board, substrate and driver and provides them to customers later; if the waveform file does not correspond to the screen, it is likely to cause the display to fail or the display effect to be unsatisfactory. Generally, the waveform file has been OTP built into the driver IC of the e-paper screen when it leaves the factory, and some of the demos we provide also call external waveform files to drive the e-paper screen.

Question: What do LUT and OTP stand for?

Answer:

LUT is the abbreviation of LOOK UP TABLE, and OTP is the abbreviation of ONE TIME PROGRAM. The original meaning of LUT is to load waveform files, and waveform files are divided into two types: OTP and REGISTER. OTP is the built-in waveform storage method, and REGISTER is the external waveform storage method.

Question: What is the partial refresh process of e-paper?

Answer:

There are two main types of e-paper screens:
- One is to refresh the background image first.
- The other is to alternately refresh old data and new data.

Question: How to perform partial refresh at different locations at the same time?

Answer:

Simultaneous partial refresh at different locations requires programming, that is, first refresh the data at different locations into the e-paper IC, and finally complete Updata/TurnOnDisplay in a unified manner.

Question: Does the three-color e-Paper have a reddish/yellowish color difference?

Answer:

Yes, there will be some color difference when e-Paper is produced in batches, which is normal. Storing the e-Paper face up can reduce the reddish/yellow cast to a certain extent.
