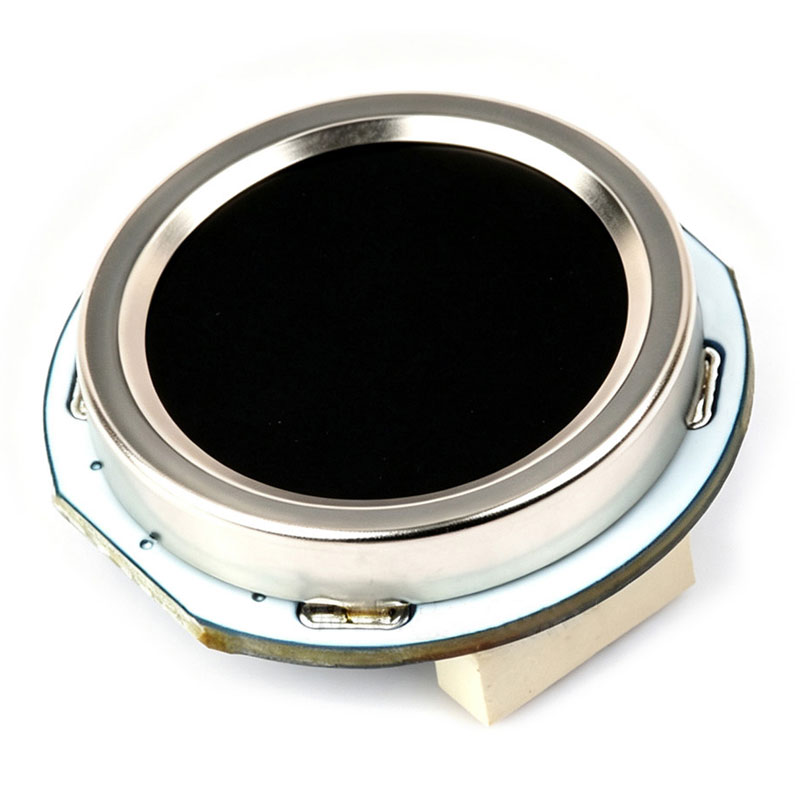

Integrated capacitive fingerprint module UART Fingerprint Sensor (G)

Integrated capacitive fingerprint module UART Fingerprint Sensor (G)

$18.9

Brand：SpotPear

SKU：010310800000

Date：2026-09-08 15:42

Part Number：

UART Fingerprint Sensor (G)

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

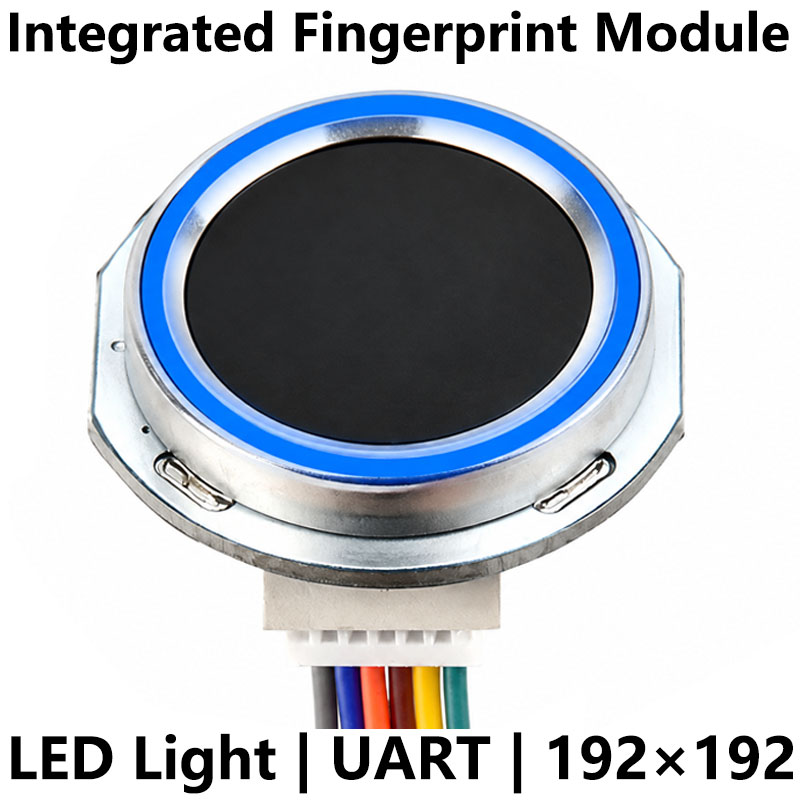

Integrated capacitive fingerprint module with LED, 192×192 resolution, serial communication, commercial-grade fingerprint algorithm, small size and low power consumption.

Integrated capacitive fingerprint module

High-precision fingerprint recognition | Serial communication | Data acquisition window indicator light | Integrated design

Product Features

This product uses a high-performance Cortex core controller and integrates a high-security commercial fingerprint algorithm, supporting functions such as fingerprint enrollment, image acquisition, feature extraction, and fingerprint comparison. No complex fingerprint recognition algorithms are required; secondary development can be performed simply by sending commands via serial port, allowing for rapid integration into various fingerprint recognition applications with high requirements for size and accuracy.

It's easy to use; no knowledge of fingerprint algorithms or internal structures is required. Simple commands are all that's needed to complete the operation.
Built-in commercial algorithms support functions such as fingerprint enrollment, fingerprint comparison, fingerprint image extraction, and fingerprint feature value uploading, offering stable performance and fast recognition speed.
Capacitive fingerprint recognition is highly sensitive; a light touch of the finger on the sensor window is all it takes for rapid recognition.

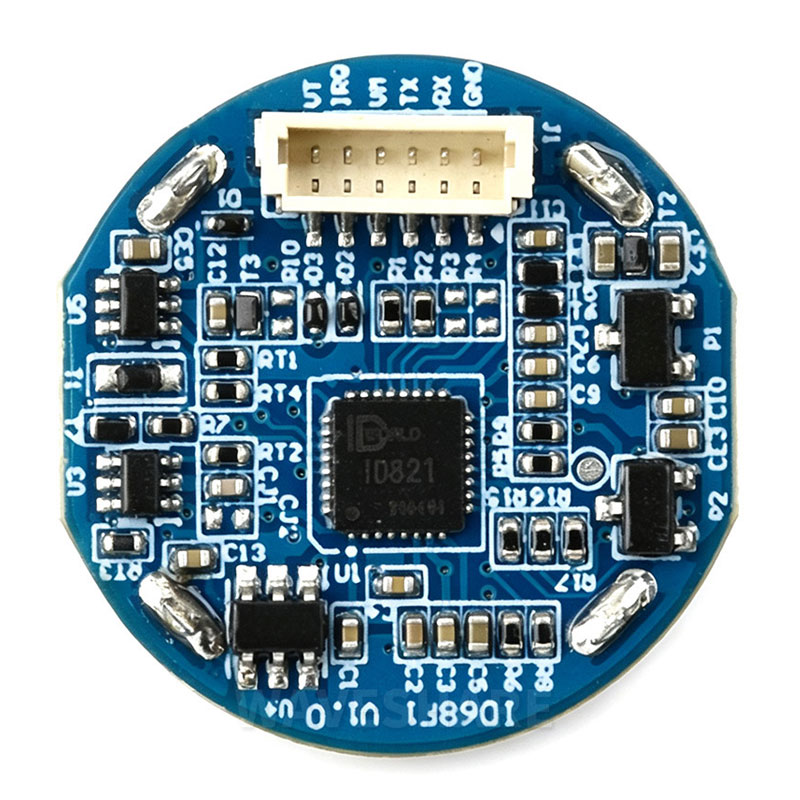

With high hardware integration, the main controller and fingerprint sensor are integrated into one unit, making it easy to embed into small-sized applications.
Built-in human body sensor with power-off sleep and touch wake-up functions, resulting in lower power consumption.

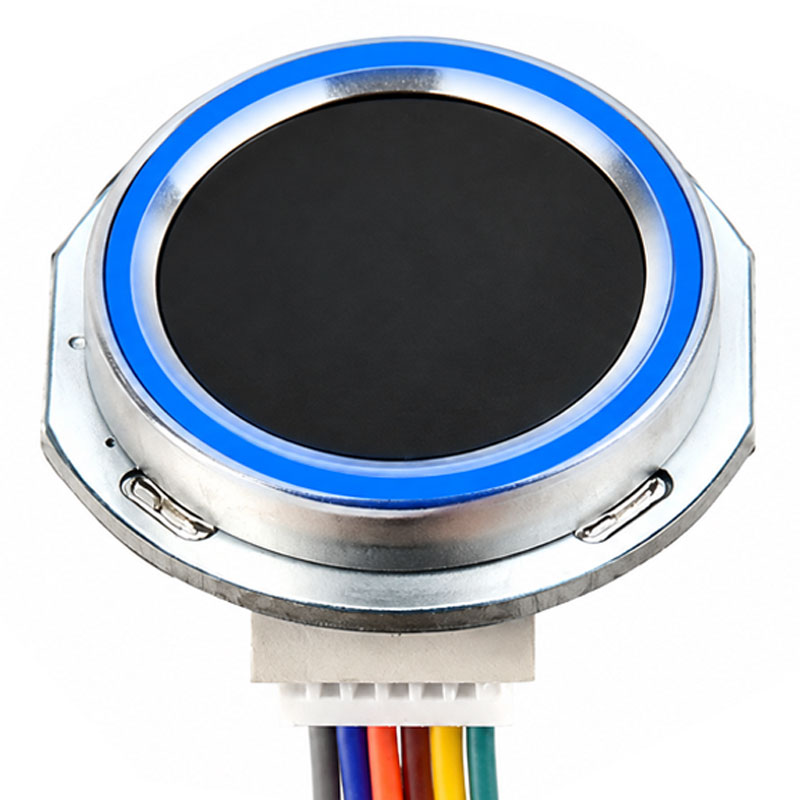

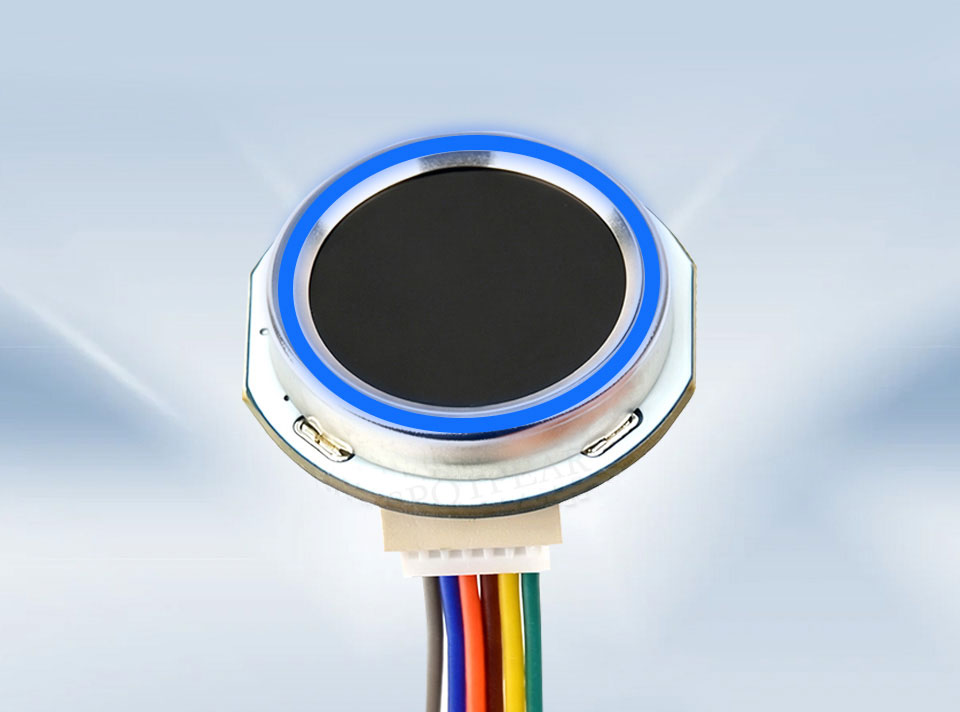

The fingerprint sensor window features an LED indicator to provide fingerprint scanning guidance.
Onboard UART serial communication interface
It facilitates connection to a PC for communication with a host computer, and also supports embedded hardware platforms such as STM32 and Raspberry Pi.

Product Parameters

Sensor type	Capacitive touch sensor
resolution	508DPI
Image pixel array	192 × 192
Fingerprint template size	448 bytes
Sensor size	9.6 × 9.6 (mm)
Fingerprint capacity	1000 sheets
Comparison time	< 0.5s (1 : N，且 N ≤ 500)
False acceptance rate	< 0.001% (Safety level 3)
False rejection rate	< 2% (Safety level 3)
Operating voltage	3.3V
Operating current	< 60mA
Electrostatic test	SD IEC 61000-4-2 LEVEL 4 ±15KV Discharge without Opening
Communication interface	UART (TTL)
Communication baud rate	115200bps (support 9600bps ~ 115200bps)
Work environment	Temperature: -10°C ~ 60°C; Humidity: 0%RH ~ 90%RH (non-condensing)

Application Showcase

The images are for illustrative purposes only. Please refer to the configuration list for detailed specifications.

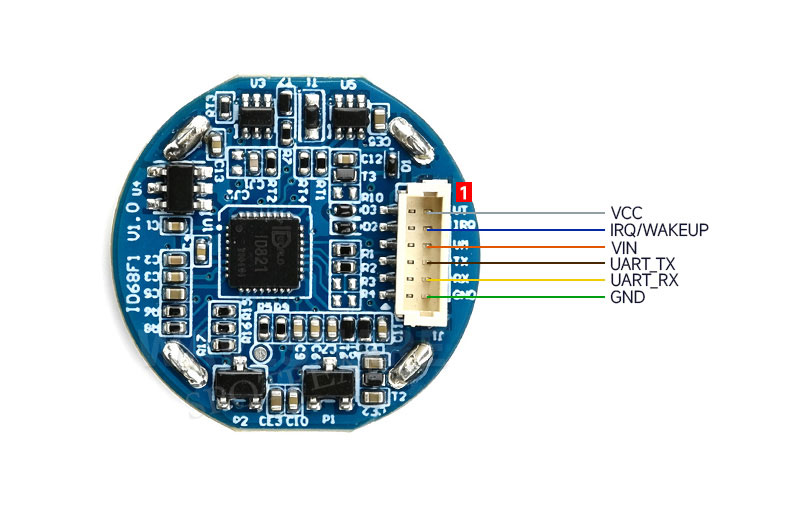

Interface Description

NO	Signal definition	illustrate
1	VCC	The sensor chip is constantly powered (3.3V).
2	IRQ/WAKEUP	Finger-sensing wake-up signal output, high-level output.， A high-level output is triggered by finger touch.
3	VIN	The power supply (+3.3V) is required when ultra-low standby power consumption is needed. This foot needs to be connected to a controllable power source.
4	UART_TX	UART transmission
5	UART_RX	UART Receive
6	GND	public land

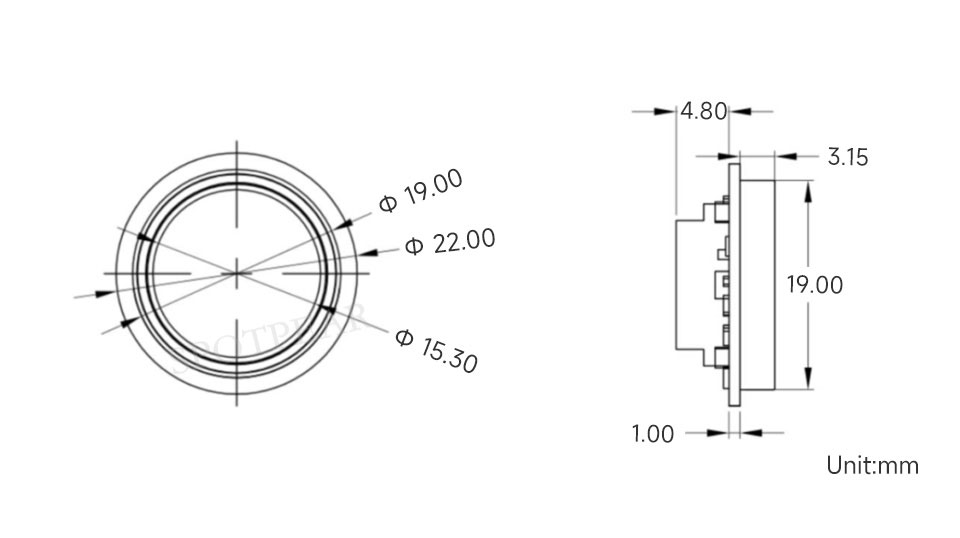

Product Dimensions

[] UART Fingerprint Sensor (G)
