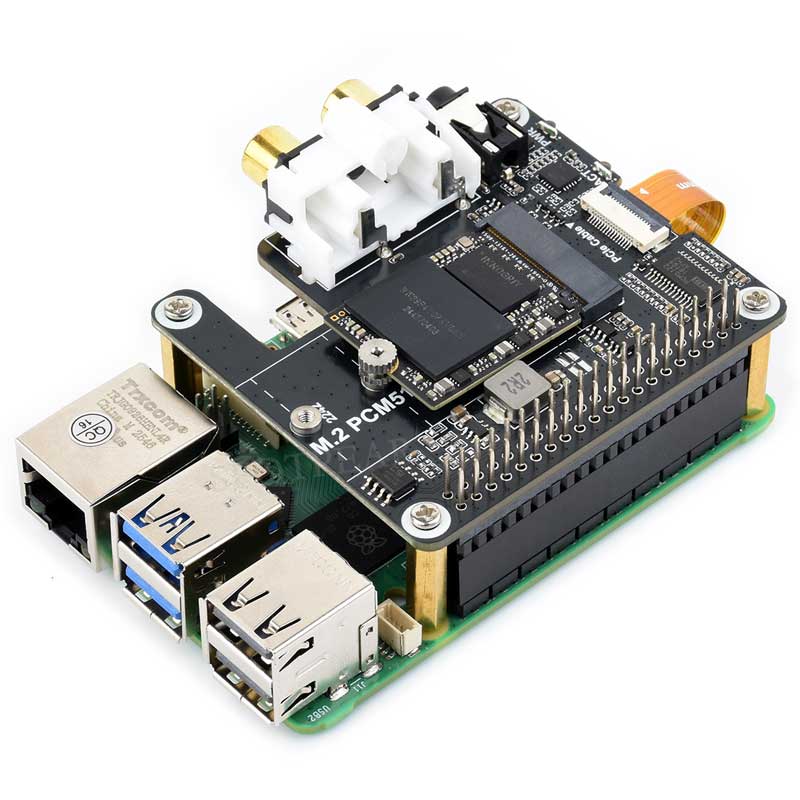

Raspberry Pi 5 PCIe to M.2 NVME and PCM5122 I2S DAC HIFI Expansion Board Driver-Free
Raspberry Pi 5 PCIe to M.2 NVME and PCM5122 I2S DAC HIFI Expansion Board Driver-Free
Raspberry Pi 5 PCIe to M.2 NVME and PCM5122 I2S DAC HIFI Expansion Board Driver-Free
Raspberry Pi 5 PCIe to M.2 NVME and PCM5122 I2S DAC HIFI Expansion Board Driver-Free
Raspberry Pi 5 PCIe to M.2 NVME and PCM5122 I2S DAC HIFI Expansion Board Driver-Free
Raspberry Pi 5 PCIe to M.2 NVME and PCM5122 I2S DAC HIFI Expansion Board Driver-Free
Raspberry Pi 5 PCIe to M.2 NVME and PCM5122 I2S DAC HIFI Expansion Board Driver-Free

Raspberry Pi 5 PCIe to M.2 NVME and PCM5122 I2S DAC HIFI Expansion Board Driver-Free

$15.9

Brand：SpotPear
SKU：010148400000
Date：2026-03-27 14:08
Part Number：
M.2 PCM5122 AUDIO HAT
No：
- +
In Stock
Add to cart
Ask a Question

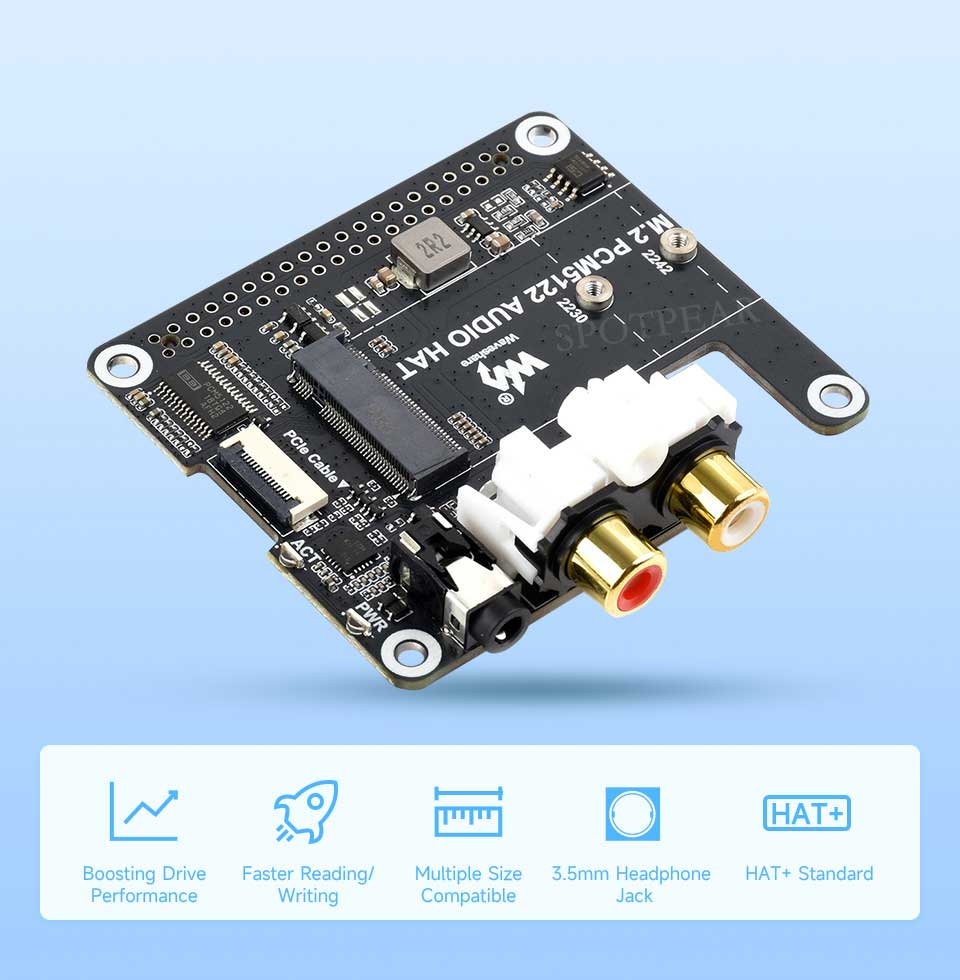

PCIe To M.2 HAT With I2S Audio Extension For Raspberry Pi, Supports NVMe Protocol Solid State Drive, Onboard 3.5mm Headphone Jack And RCA Connector, Driver-free

PCIe To M.2 HAT With I2S Audio

Designed For Raspberry Pi 5, Driver-free, Plug and Play

Features
  • Based on Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
  • Adopts PCM5122 professional stereo DAC chip, controlled through I2C, with audio transmitted via I2S interface
  • Onboard standard 3.5mm headphone jack, supports audio playback via external headphones
  • Built-in RCA connector for use with speaker and other devices in a variety of scenarios
  • Supports sampling frequency up to 384KHz
  • Supports up to 32-bit resolution audio data
  • Supports 2230 / 2242 size M.2 Solid State Drive or M.2 M KEY AI module
  • Supports M.2 M KEY with up to 8 Gbps data rate

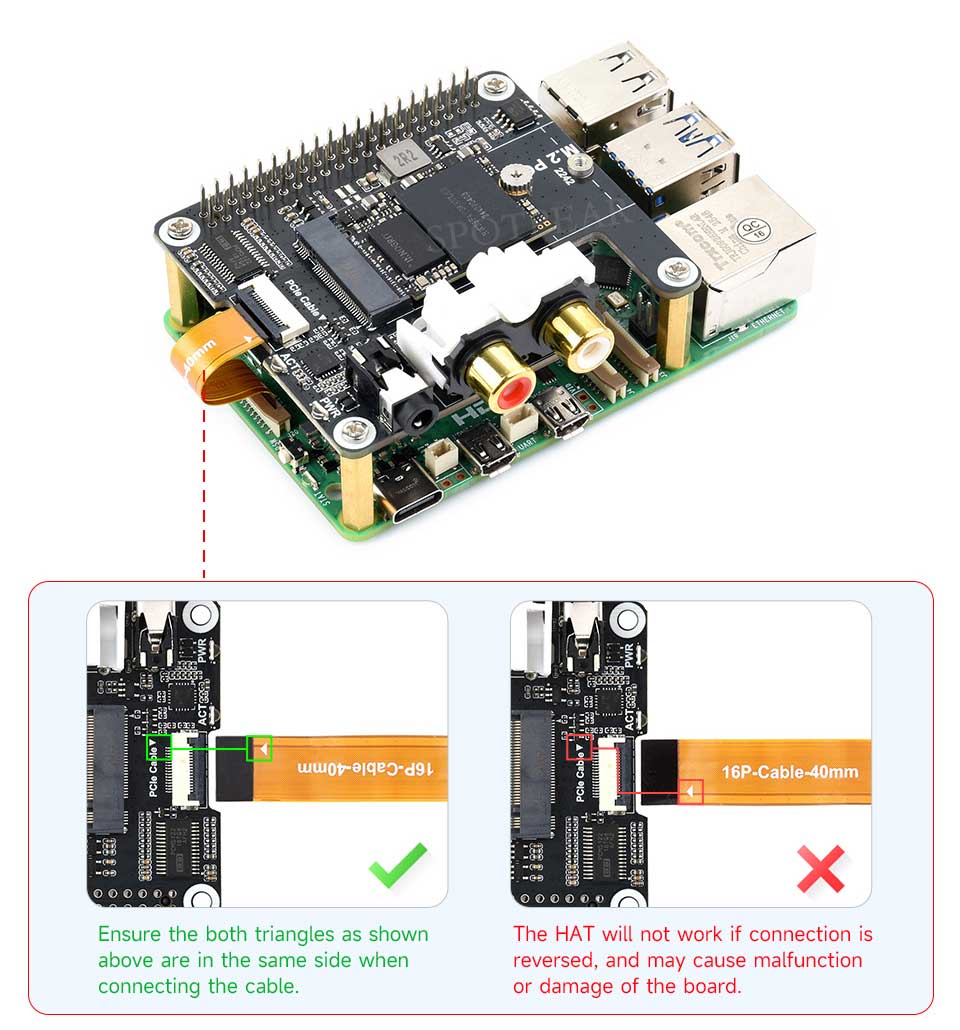

Connecting To PI5 Via 16PIN Cable

Based On 16PIN PCIe Interface Of Raspberry Pi 5

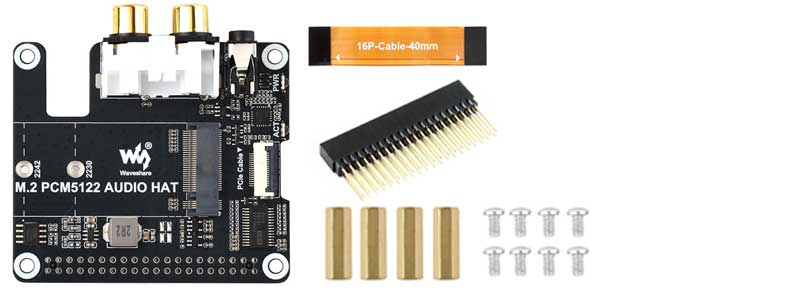

* for reference only, please refer to the package content for detailed part list.

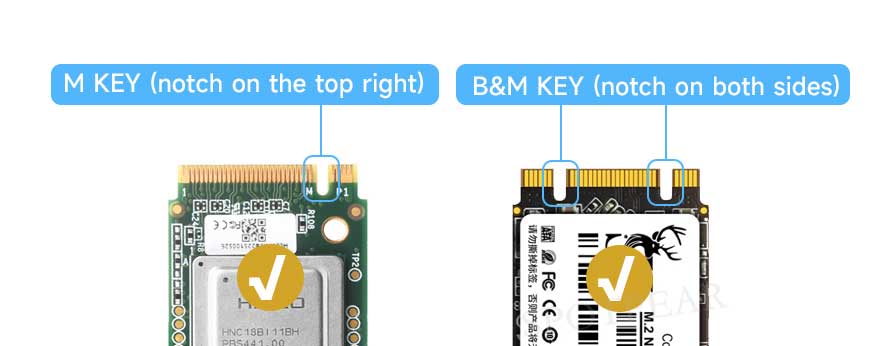

NVMe Drive Protocol Support

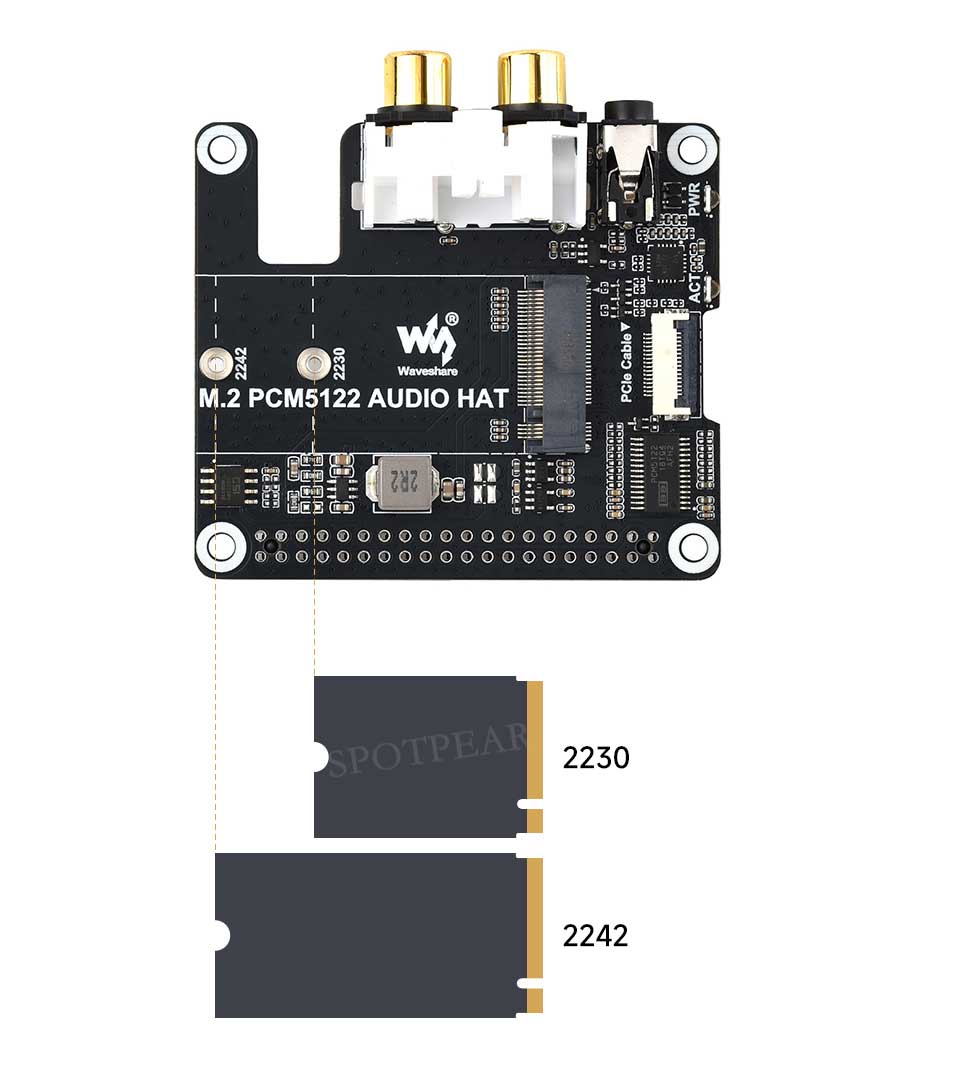

Compatible With 2230 / 2242 Size M.2 Solid State Drive, Supports Gen2 Mode,
Supports M.2 M Key AI Modules And Booting PI5 From Solid State Drive

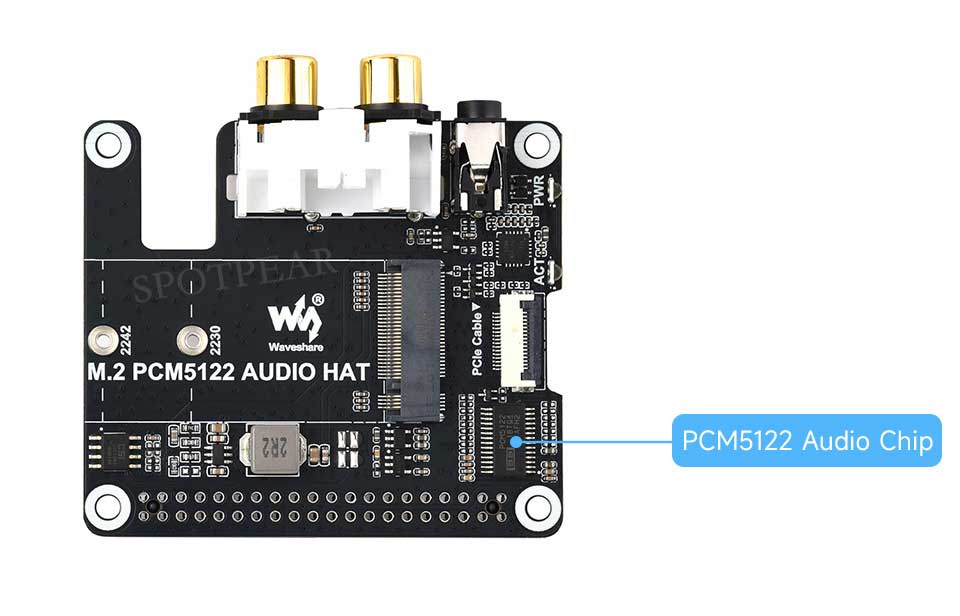

PCM5122 Audio Chip

Stereo Decoder, Controlled Through I2C, With Audio Transmitted Via I2S

NVMe Drive Slot Support


* Only supports the NVMe Protocol Solid State Drives.

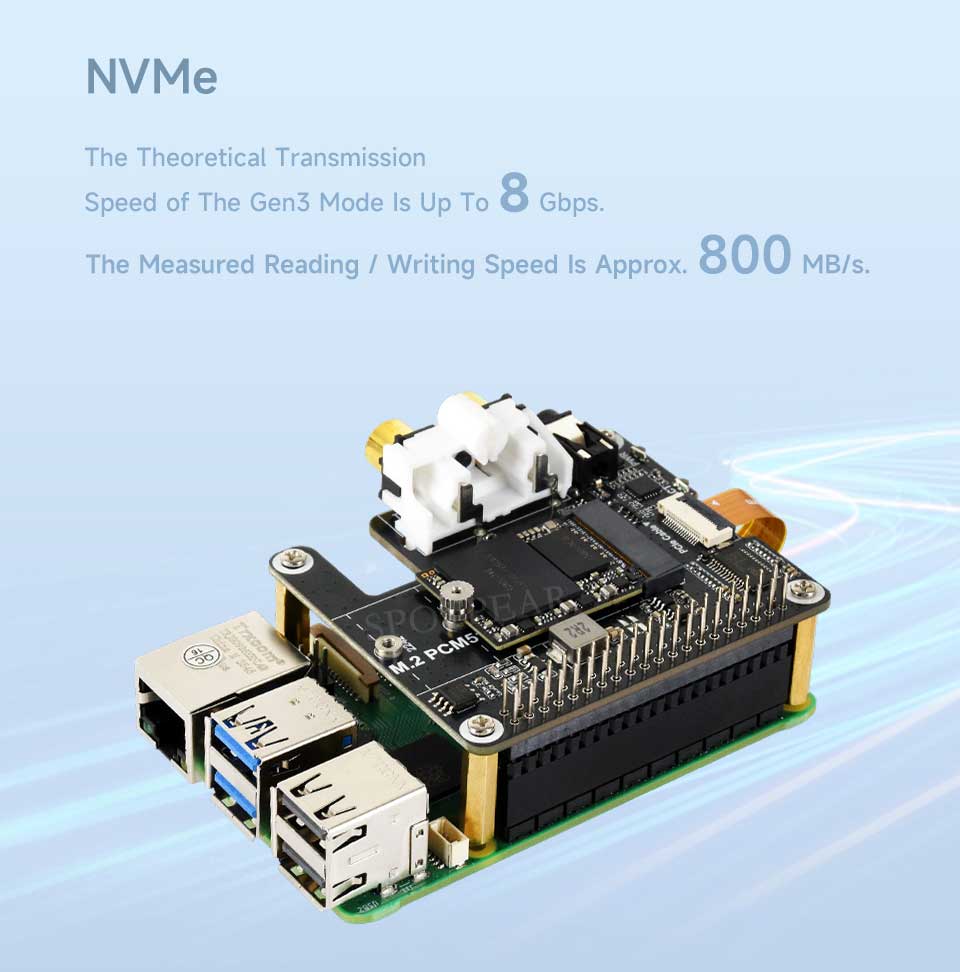

Improves Reading/Writing Speed Of Your Pi

Faster Reading/Writing Speed Compared To The TF Card Slot Of Raspberry Pi, Greatly Improving Reading/Writing Efficiency Of The System Or Files, Supports Booting Pi5 From NVME Solid State Drive

*for reference only, the Raspberry Pi 5 board and other accessories are NOT included,
please refer to the package content for detailed part list.

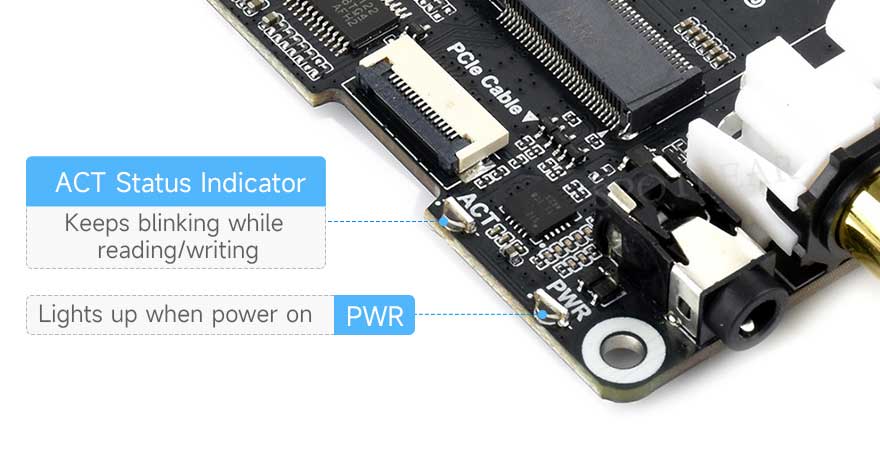

Onboard Dual LED Indicators

Easy To Monitor The Working Status

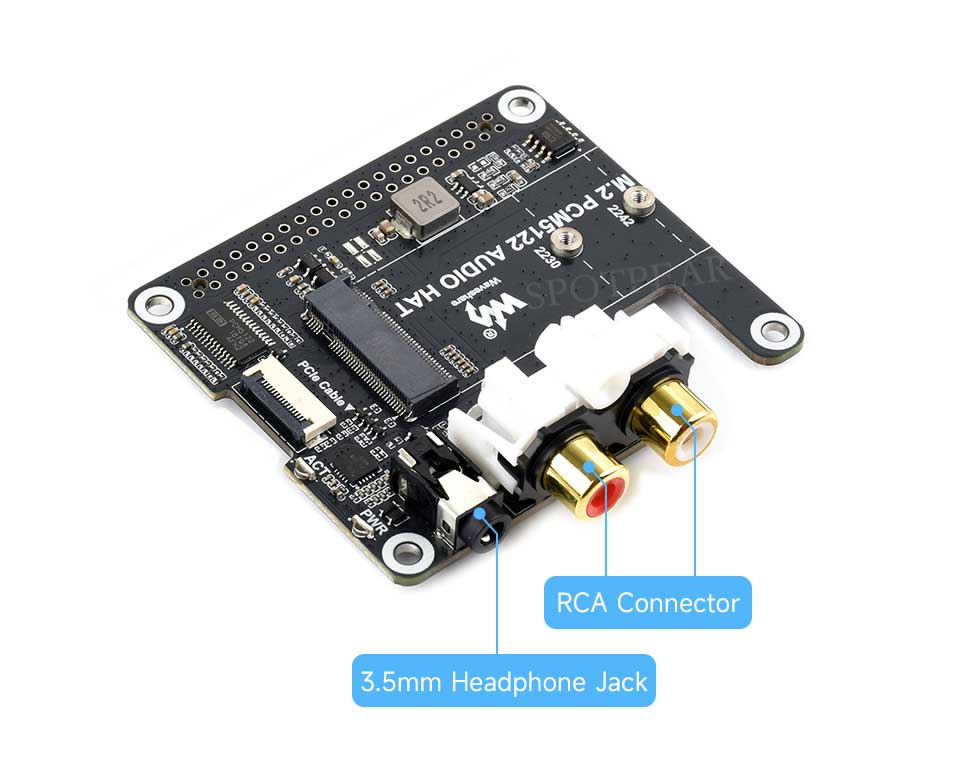

Onboard Headphone Jack & RCA Connector

Onboard Standard 3.5mm Headphone Jack, Supports Audio Playback Via External Headphones, And Features RCA Connector For Connecting External Speaker

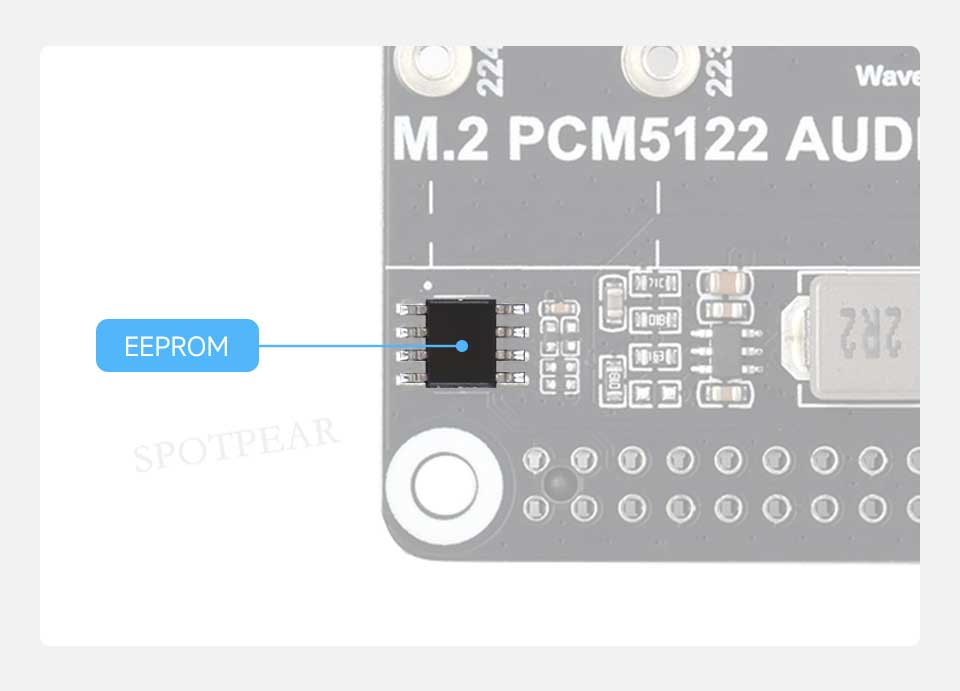

Onboard EEPROM Chip

Used For Automatic Driver Loading In Raspberry Pi OS

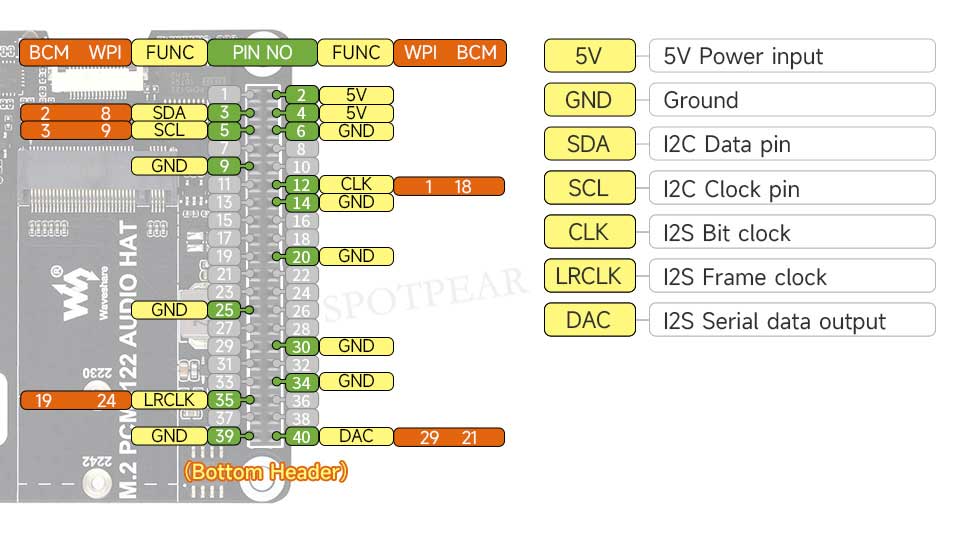

Pin Definition

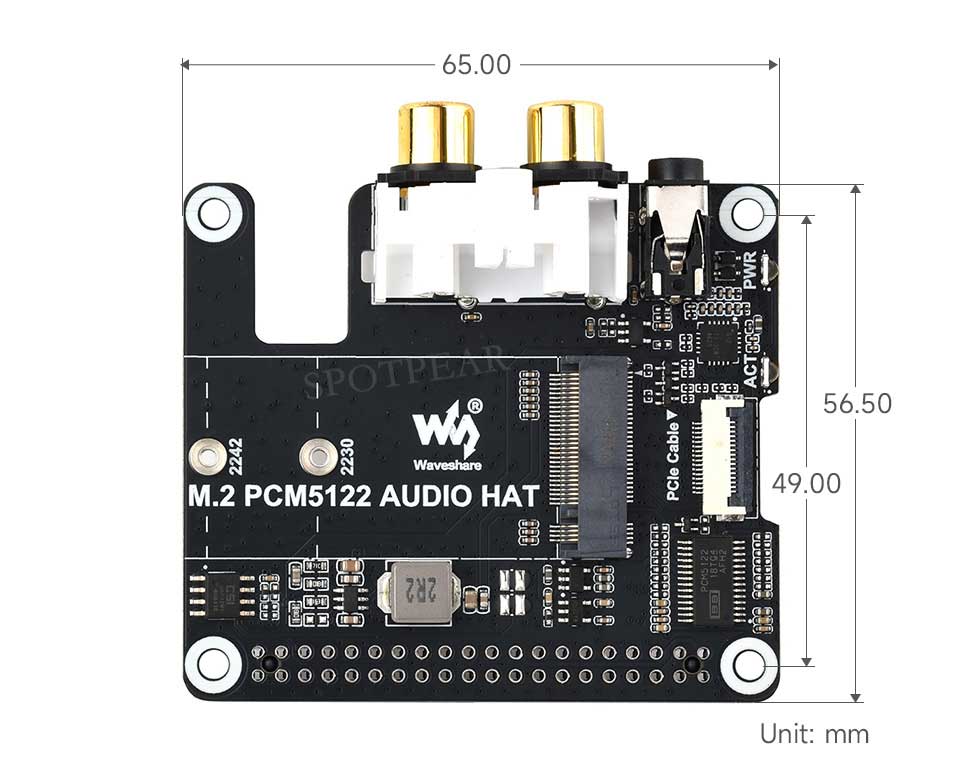

Outline Dimensions
