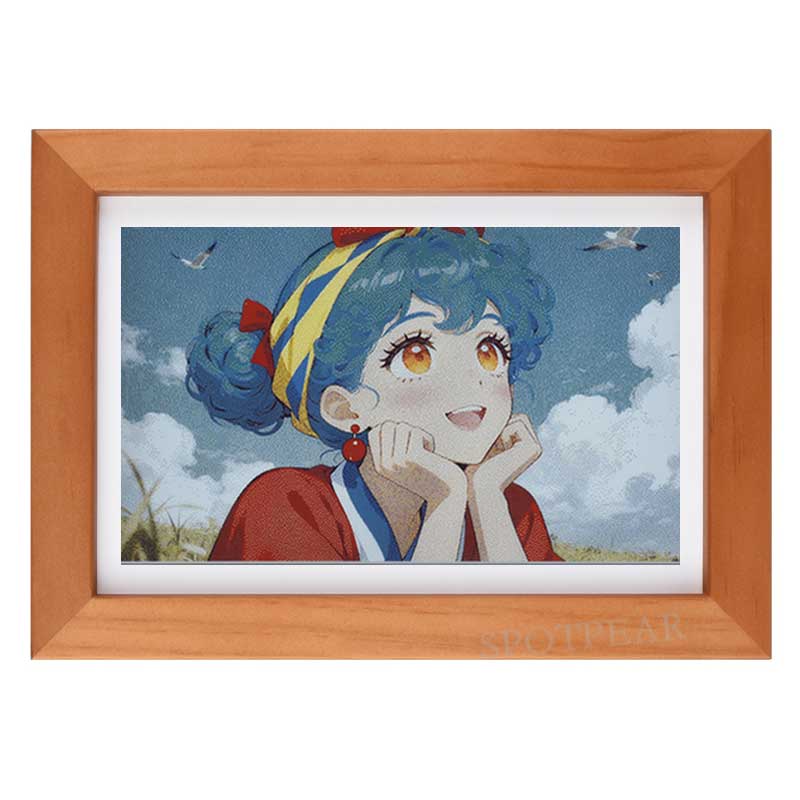

Raspberry Pi Zero Pi0 2W Digital Photo Frame 7.3 inch E6 Full Color E Paper Ink Calendar Art Poster

Raspberry Pi Zero Pi0 2W Digital Photo Frame 7.3 inch E6 Full Color E Paper Ink Calendar Art Poster

$87.9

Brand：SpotPear

SKU：010607600000

Date：2025-11-29 15:16

Part Number：

RPi-Zero-PhotoPainter-ACCE-EN RPi-Zero-PhotoPainter-ACCE-With-Pi2W-EN

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

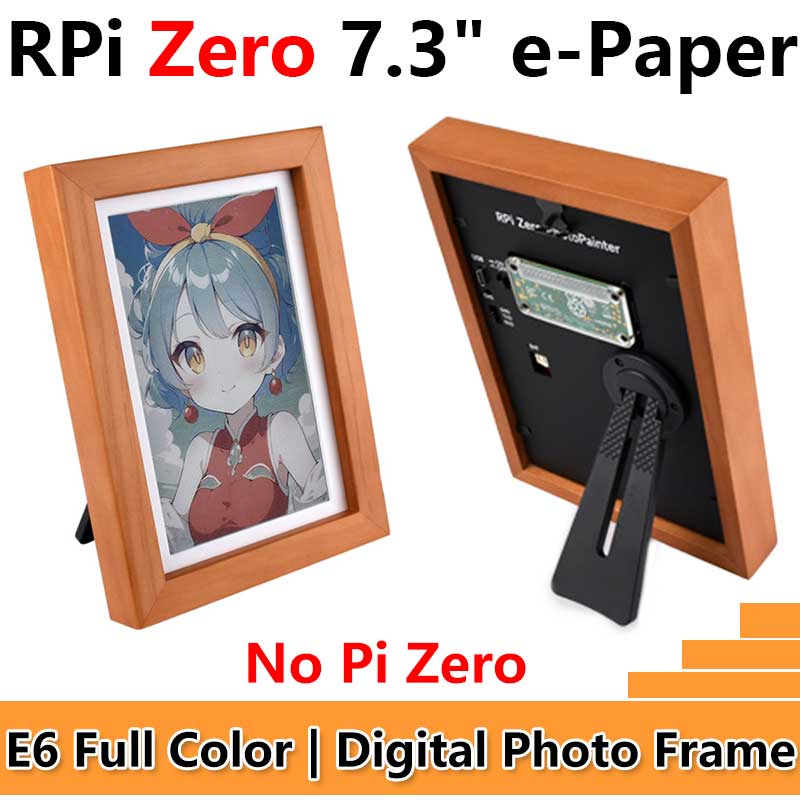

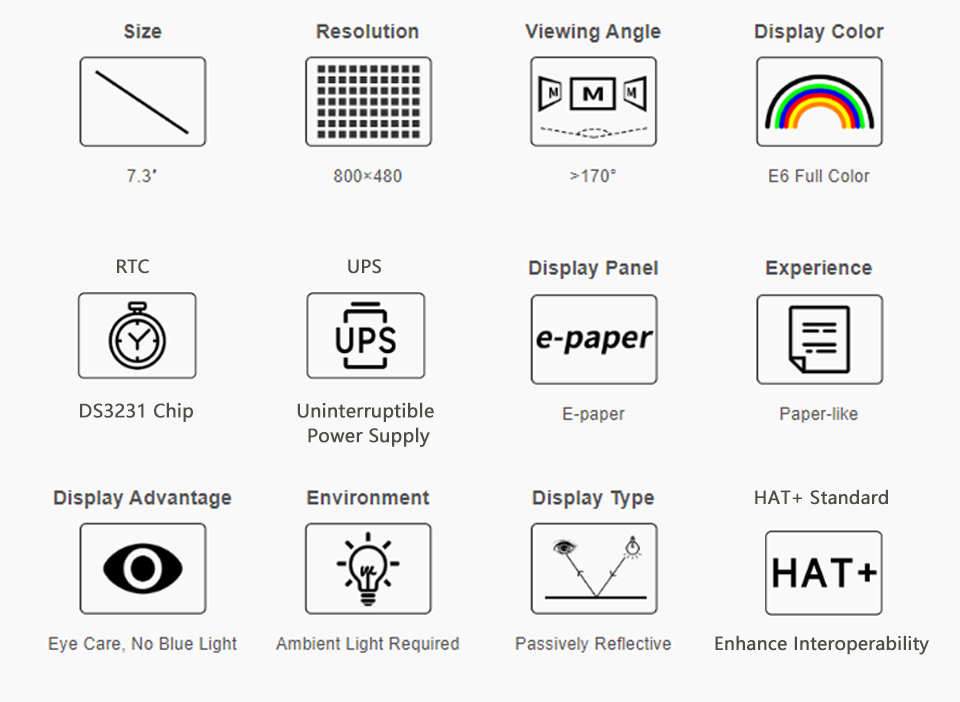

7.3-Inch E6 Full-Color E-Ink Display Solid Wood Photo Frame Ultra-Long Standby 800×480 Resolution

Digital Photo Frame Recommend

PhotoPainter-2.13

PhotoPainter

PhotoPainter (B)

ESP32-S3-PhotoPainter

RPi-Zero-PhotoPainter-ACCE

【Notice】

[] Do not include Raspberry Pi Zero And Li-Battery
[] The Product can not work without Raspberry Pi Zero

7.3-Inch Full-Color e-Paper

Raspberry Pi 7.3-Inch E6 Full-Color E-Ink Solid Wood Photo Frame

Product Features

The screen adopts E Ink Spectra 6 (E6) technology, supporting the display of high-contrast and high-saturation colors.
Six primary colors utilize dithering technology to produce full-color images.
No backlight required, and the last screen content can be retained for a long time after power off.
On-Board High-Precision RTC Clock Chip for Accurate Time Control
A sleek solid wood photo frame, elegant and aesthetically pleasing.
Rotatable Stand & Hanging Hook – Unlimited Usage Scenarios
Open Source Code for Flexible Customization
Adopts the Raspberry Pi HAT+ Standard
- It enhances the interoperability of expansion boards, enabling developers to design and develop more efficiently, use various external devices more effortlessly, and extend the functionality and performance of Raspberry Pi.
On-Board UPS Circuit
- It communicates via the I2C interface, measuring parameters such as battery voltage, current, power, and remaining capacity, while real-time monitoring the module's operating status.
- On-Board Battery Protection Circuit Prevents Overcharging, Over-Discharging, Over-Current, and Short Circuits for Stable and Safer Operation
- On-Board Charging Indicator for Easy Monitoring of Battery Status

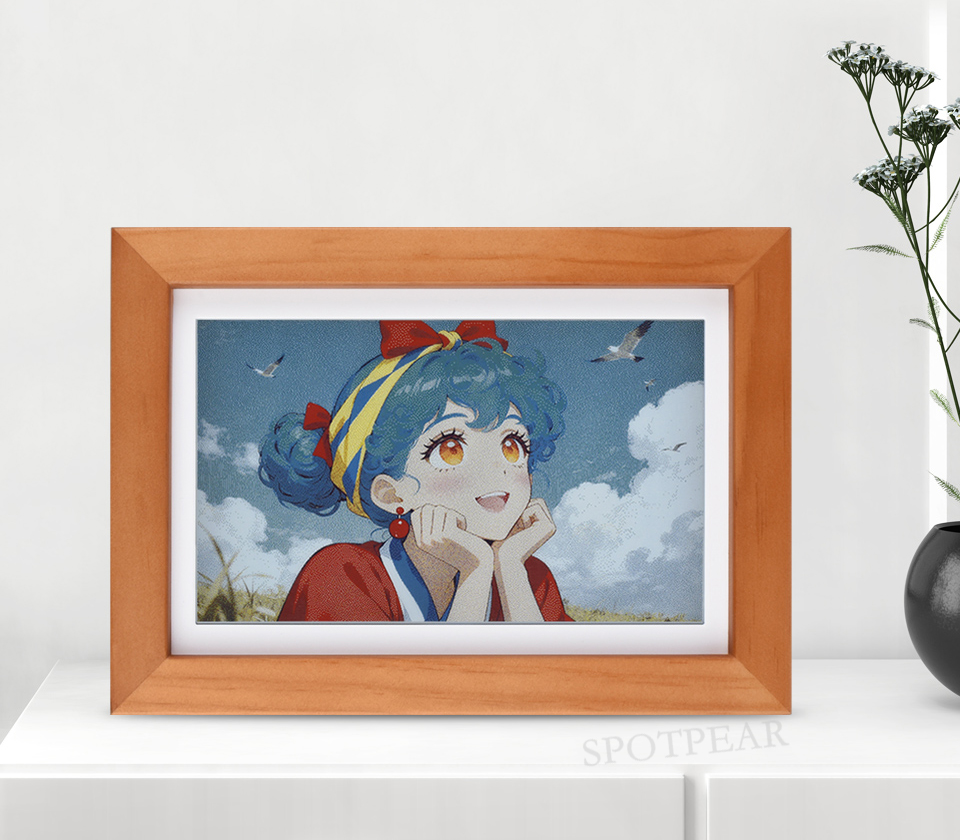

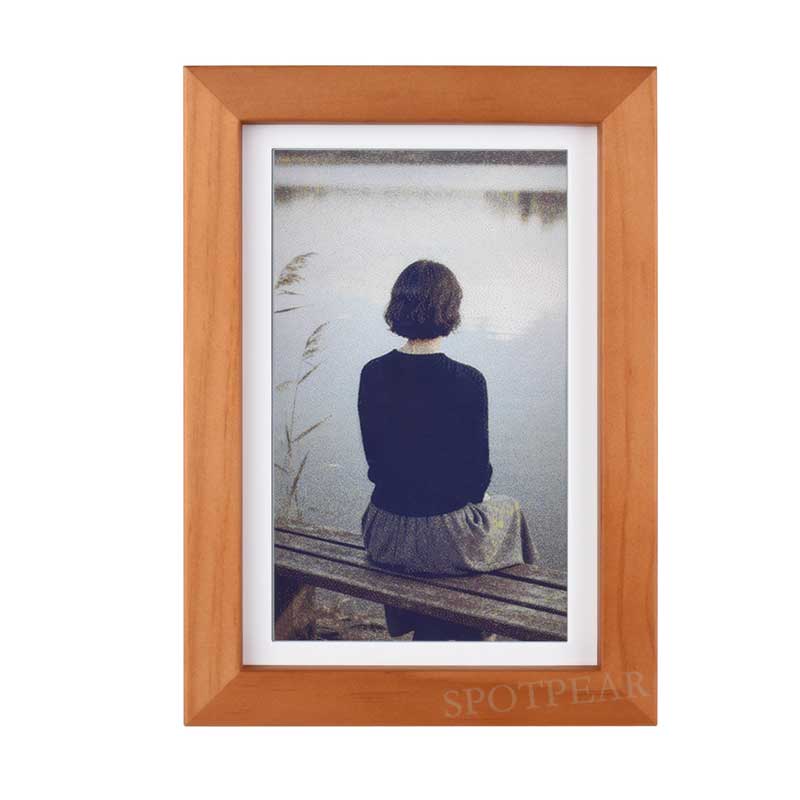

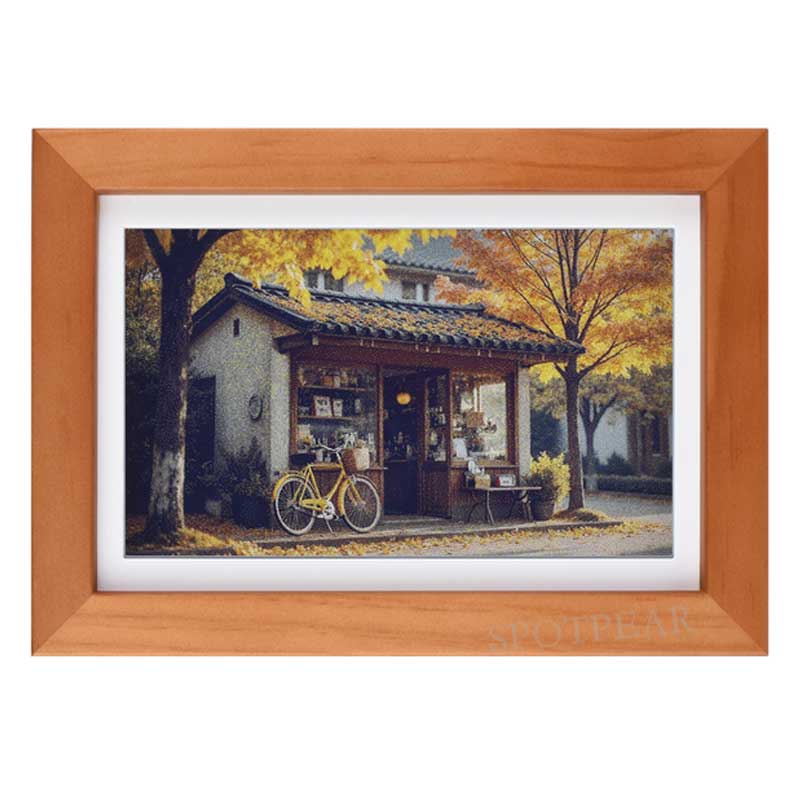

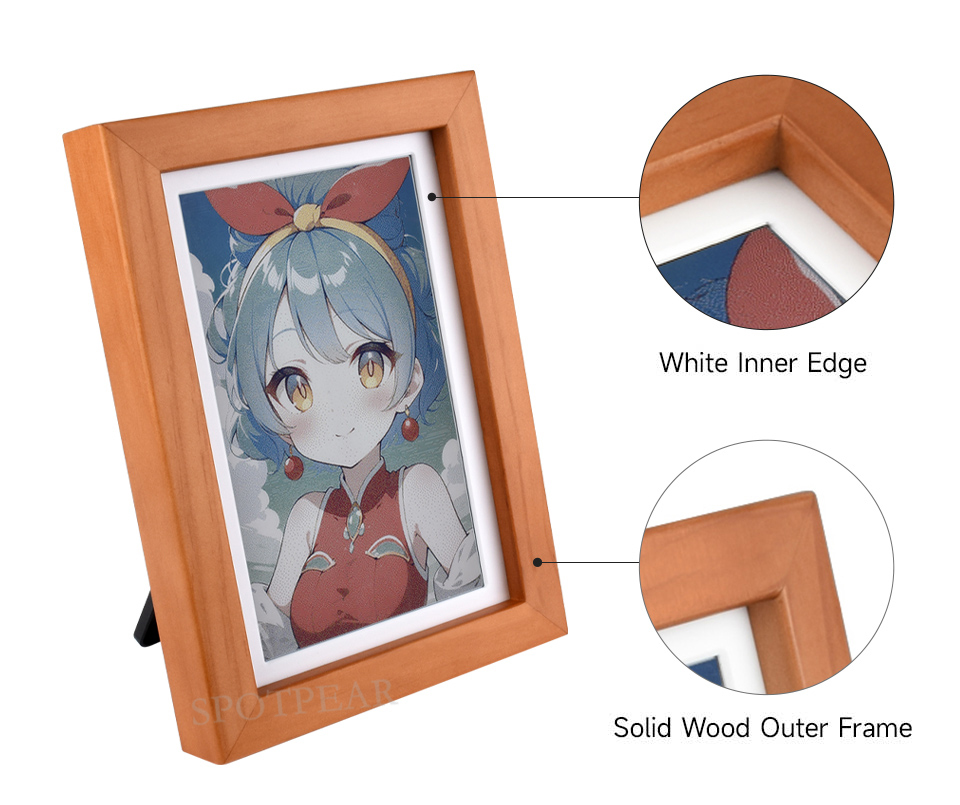

Minimalist Solid Wood Photo Frame

High-Texture Solid Wood Frame – A Perfect Blend of Nature and Texture, with a White Liner that Complements Any Style Without Sacrificing Elegance

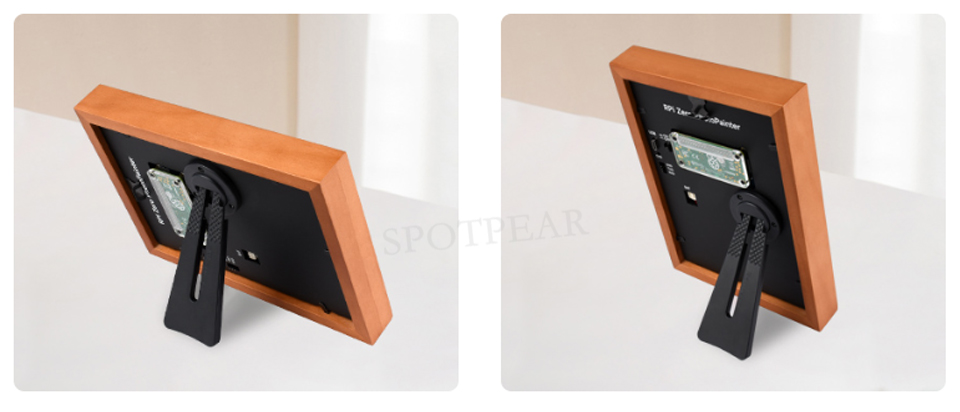

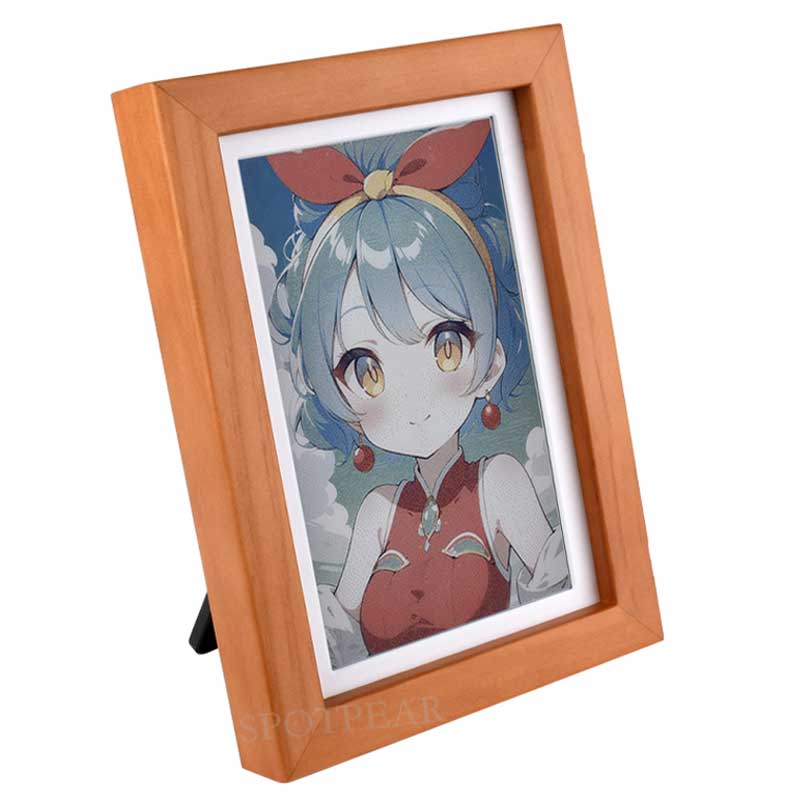

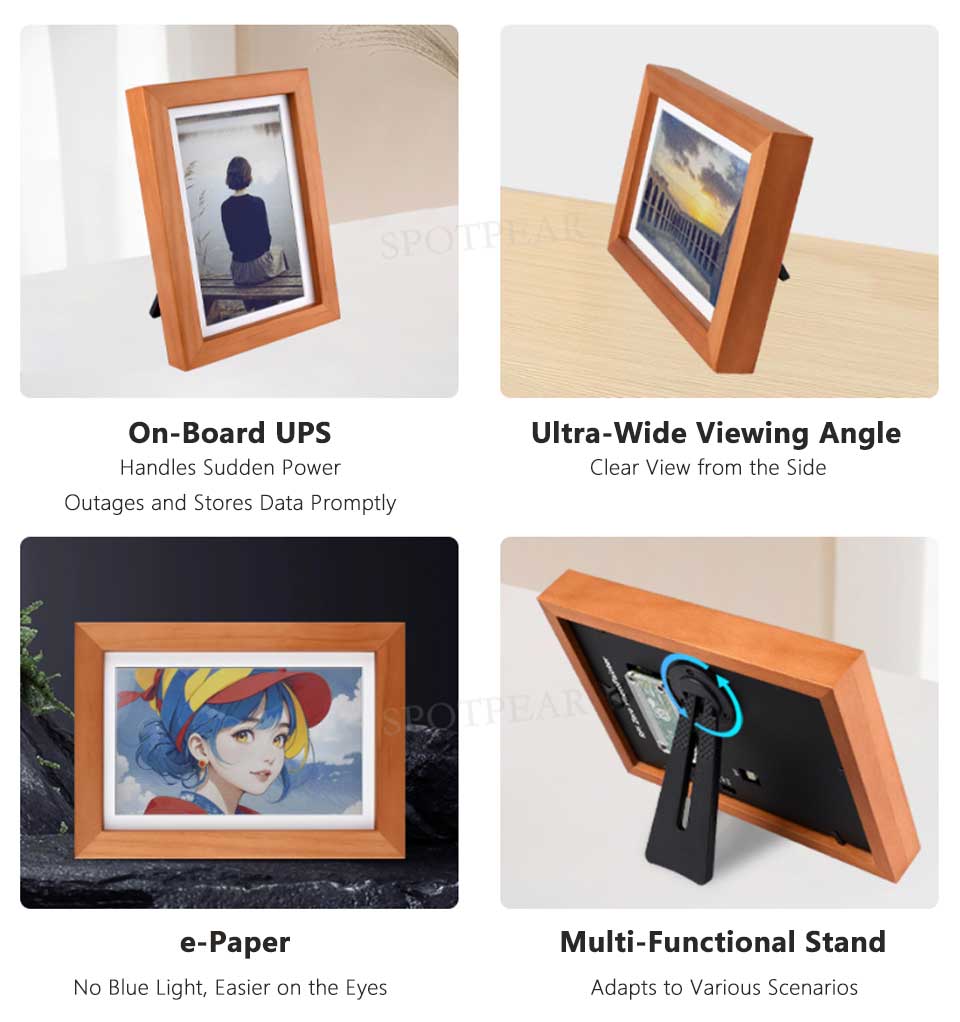

Multi-Functional Stand

Stable Placement & Versatile Usage Across Scenarios

This product does not include the Raspberry Pi Zero+ shown in the images.

Hanging Hook Design

Easy Wall Mounting for More Efficient Space Utilization

Supports simultaneous charging and discharging for uninterrupted power supply

When an external power supply is connected, it will power the system and charge the lithium battery simultaneously.
When the external power supply is disconnected, it will automatically switch to lithium battery power supply without affecting the normal operation of the system.

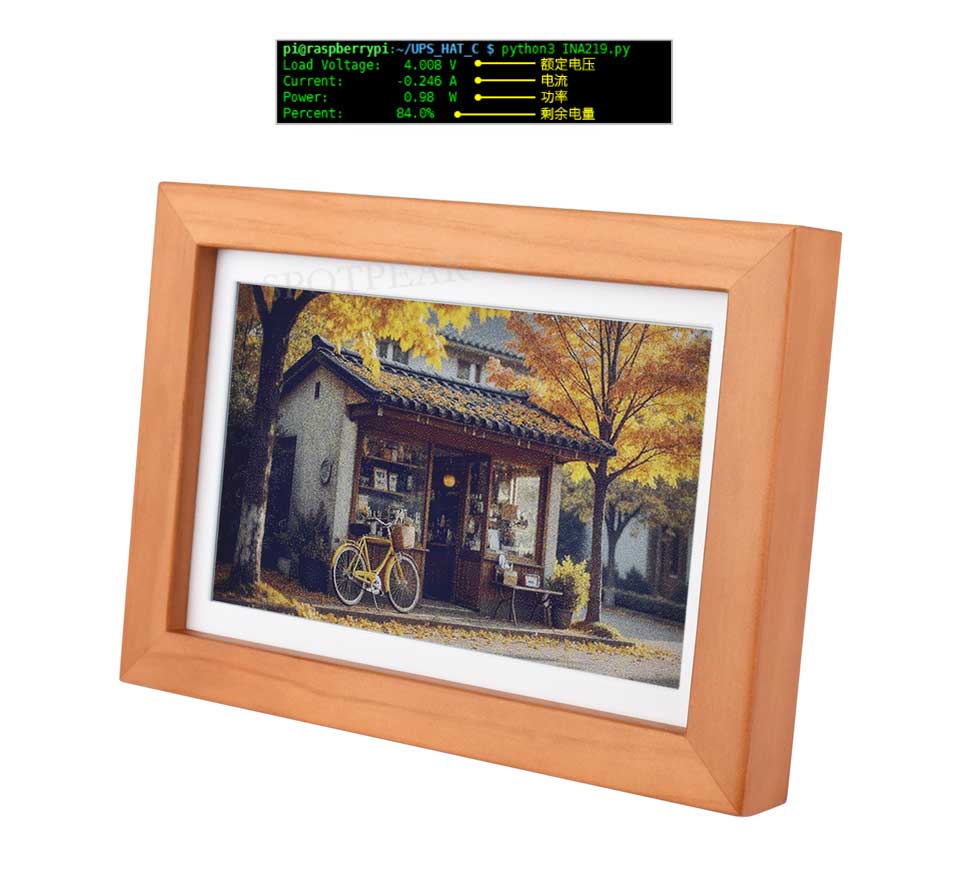

Monitors the module's operating status in real time

It communicates via the I2C interface to measure parameters such as battery voltage, current, power, and remaining capacity.
When an under-voltage condition is detected, the Raspberry Pi can be program-controlled to save data before shutting down,
thus preventing data loss caused by sudden power outages of the Raspberry Pi.

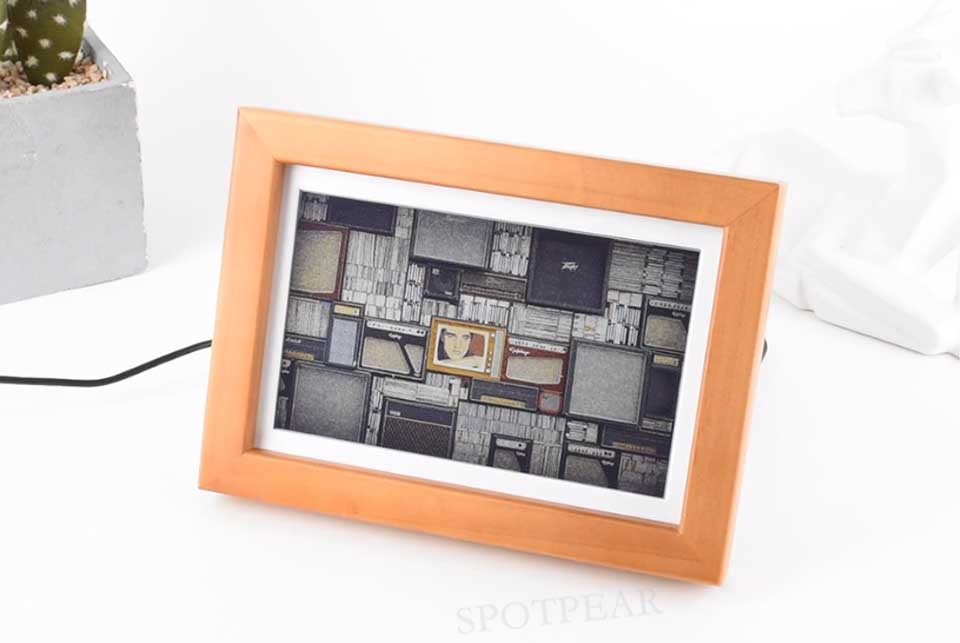

Exquisite Craftsmanship

This product does not include the Raspberry Pi Zero+ shown in the images.

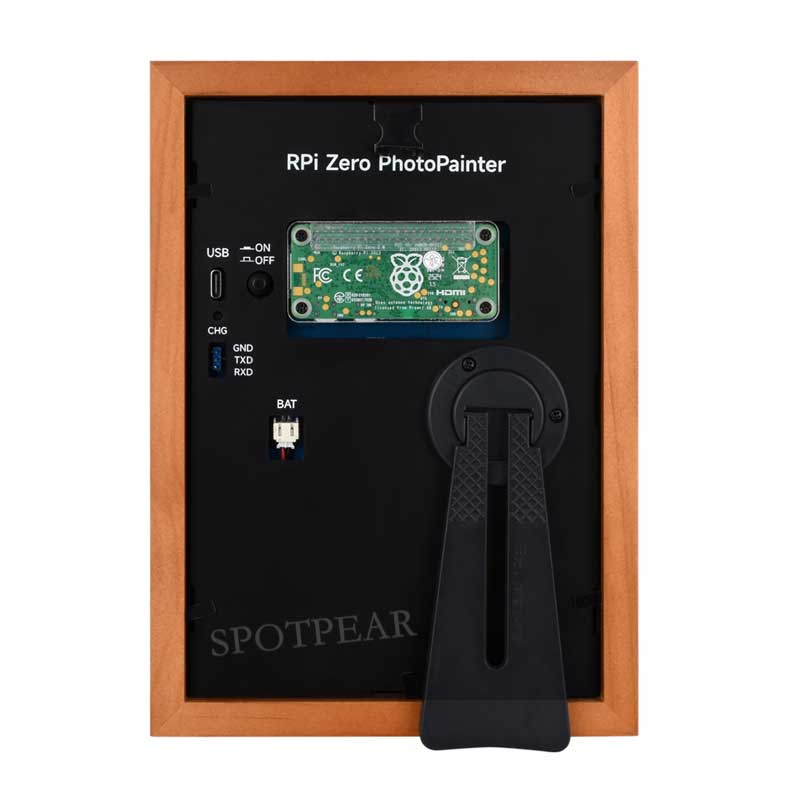

Resource Overview

Raspberry Pi 40PIN Interface
Designed for Connection to Raspberry Pi Zero Series Main Control Boards
USB Type-C
For the overall power supply of the circuit and the charging of the battery
Pushbutton Switch
Used to control the power supply of the entire circuit (excluding battery charging)
Charging Indicator Light
Used to indicate the battery's charging status
UART Debug Interface
Connect to the UART pins of the Raspberry Pi for controlling the board without a network connection.
Lithium Battery Interface
PH2.0 Connector – Compatible with 3.7V lithium batteries and supports simultaneous charging and discharging

INA219
Voltage and Current Monitoring IC
RTC
DS3231 High-Precision RTC Chip
RTC Lithium Battery Interface
Compatible with rechargeable 3V lithium batteries featuring the JST SH1.0 2PIN connector
E-Ink Display Interface
EEPROM
ETA6003
Battery Charging and Discharging IC
SCT12A0DHKR
Boost Converter IC

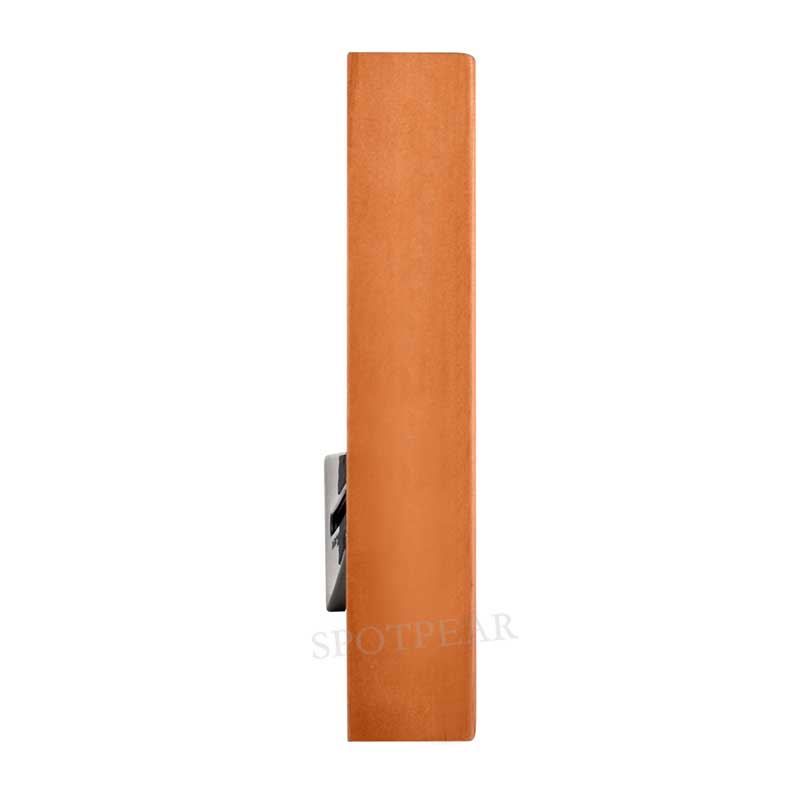

Minimalist Design

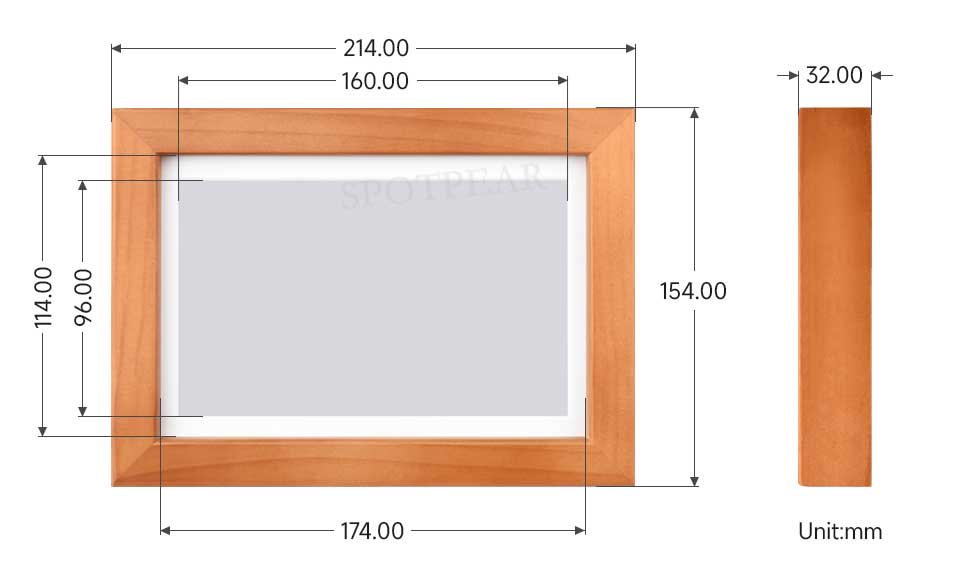

Product Dimensions

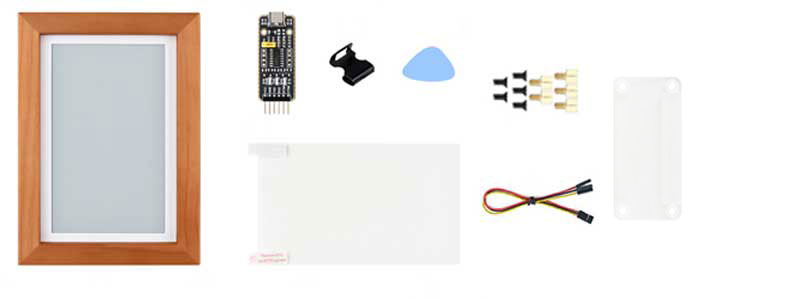

[] RPi-Zero-PhotoPainter-ACCE-EN

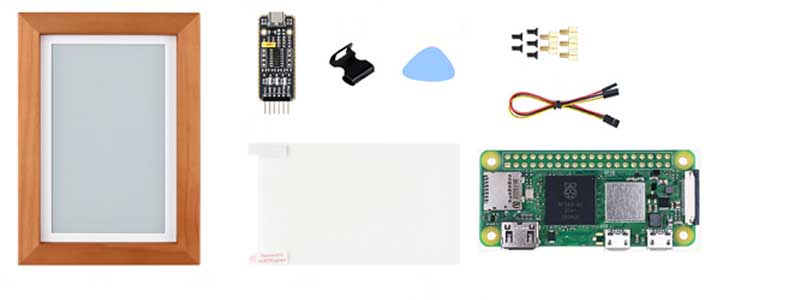

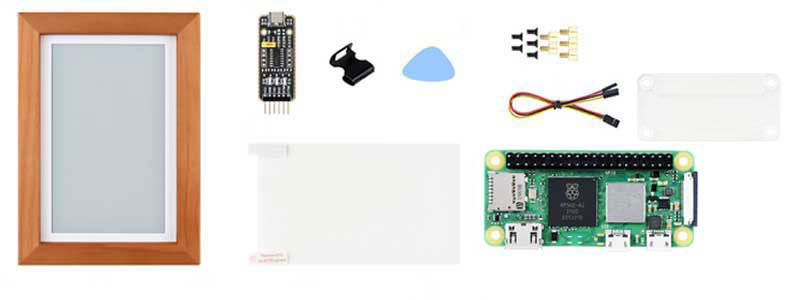

[] RPi-Zero-PhotoPainter-ACCE-With-Pi2W-EN
