Raspberry Pi 5 PoE MINI HAT (J) 5V/5A Power over RJ45 Ethernet 802.3af/at Moudle for Pi5/CM5

Raspberry Pi 5 PoE MINI HAT (J) 5V/5A Power over RJ45 Ethernet 802.3af/at Moudle for Pi5/CM5

$31.9

Brand：SpotPear

SKU：010149100000

Date：2026-05-26 15:51

Part Number：

PoE HAT (J) PoE HAT (J) Acce A

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

PoE / PoE+ HAT (J) For Raspberry Pi 5 / CM 5, 5V / 5A Output, Stable Performance, Isolated Switched-mode Power Supply

PoE HAT (J) For Raspberry Pi 5

Suitable For Raspberry Pi 5 / CM 5, Supports IEEE 802.3af/at Network Standard

5V 5A Output, Compatible With Raspberry Pi 5 Official Case

Version Options

Features At A Glance

The PoE HAT (J) is an IEEE 802.3af/at-compliant PoE+ (Power Over Ethernet) HAT for Raspberry Pi 5 / CM 5. By using with a PoE router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

Standard Raspberry Pi 40PIN GPIO header
Supports IEEE 802.3af/at (PoE / PoE+) Network Standard
Onboard dedicated IC solution for more stable PoE power performance
Adopts isolated switched-mode power supply (SMPS)
Compact and easy to assemble

Specifications

POE HAT (J)
POE POWER INPUT	38V ~ 57V DC input
POWER OUTPUT	GPIO header: 5V 5A (MAX)
DIMENSIONS	64.98 × 64.98mm
NETWORK STANDARD	IEEE 802.3af/at PoE / PoE+

RASPBERRY PI 5 OFFICIAL CASE
INPUT VOLTAGE	5V DC (supplied via four-pin fan header on Raspberry Pi 5)
FAN SPEED CONTROL	Pulse width modulation control with tachometer
MAXIMUM AIRFLOW	2.79 CFM
MAXIMUM FAN SPEED	8000 RPM ±15%
CASE MATERIAL	ABS (base, frame, lid) and PC (fan assembly)

Suitable For Raspberry Pi 5 / CM 5

Standard Raspberry Pi 40PIN GPIO Header, Easy To Assemble Into The Official Case

PoE / PoE+ Support

Providing Both Network Connection And Power Supply For The Raspberry Pi 5 / CM 5 In One Cable

* for reference only, the Raspberry Pi 5 and switch are NOT included, please refer to the package content for detailed part list.

Compatible With Raspberry Pi 5
Official Active Cooler

Installation With Raspberry Pi 5
Official Case

* for reference only, the Raspberry Pi 5 and active cooler are NOT included.

Application Example

With This Product, You Can Use An Ethernet Cable With PoE Function To
Power The Raspberry Pi 5 / CM 5 Directly

* for reference only, please refer to the Package Content for detailed part list

Outline Dimensions

[] PoE HAT (J)

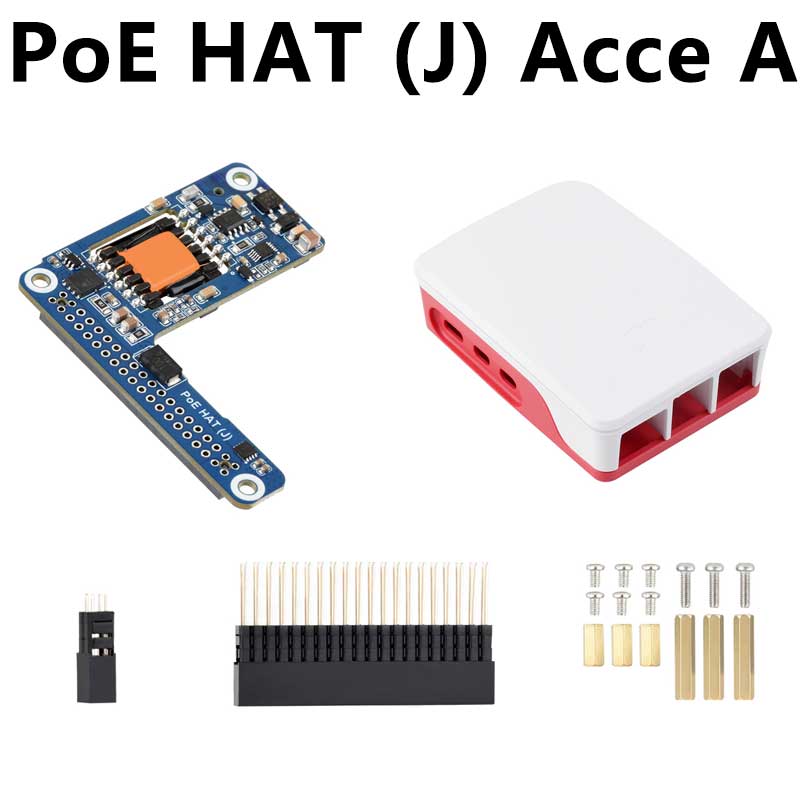

[] PoE HAT (J) Acce A
