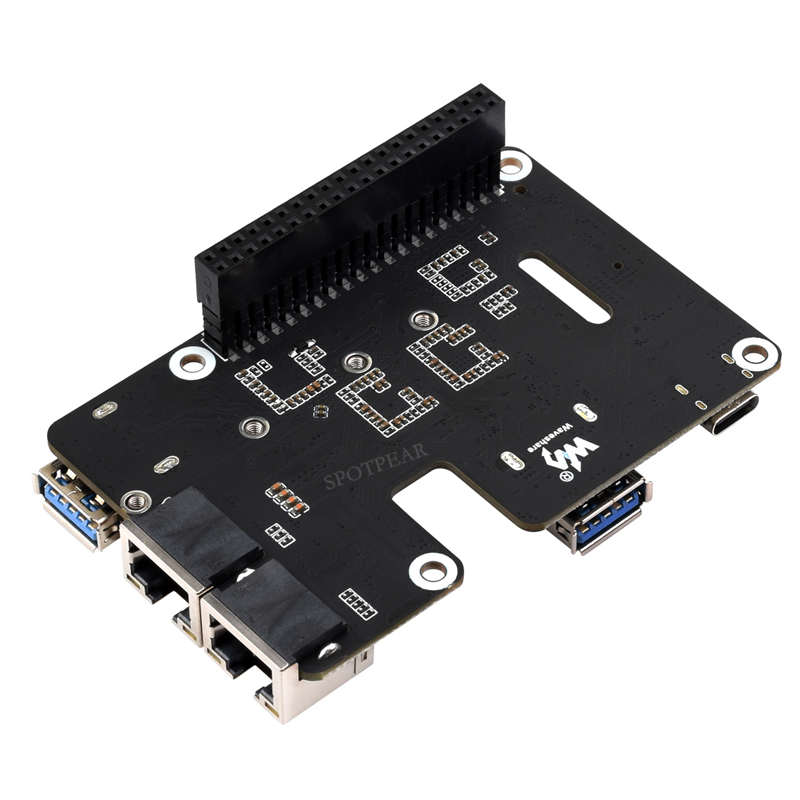

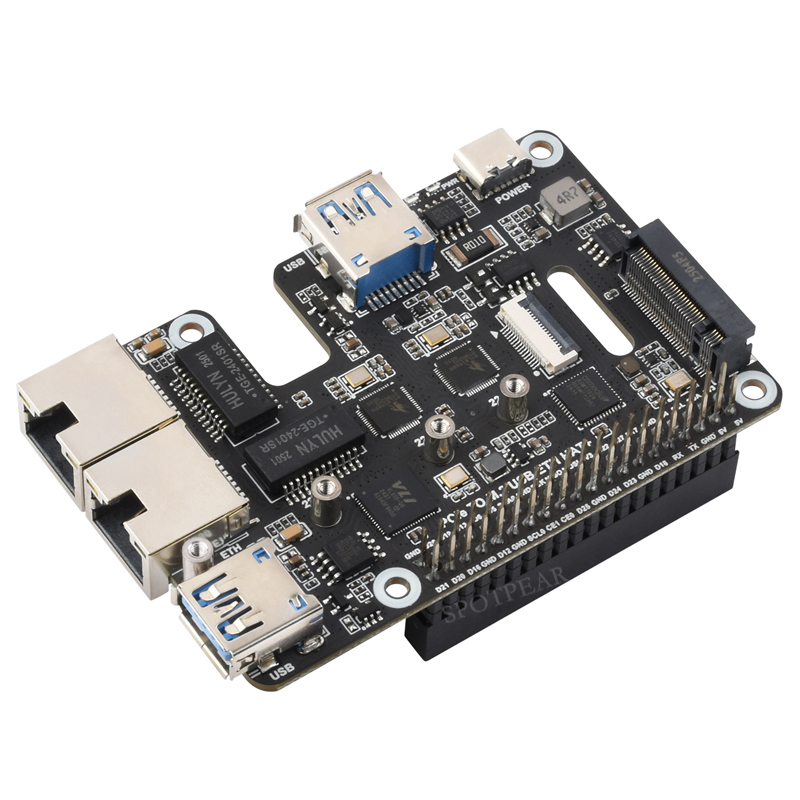

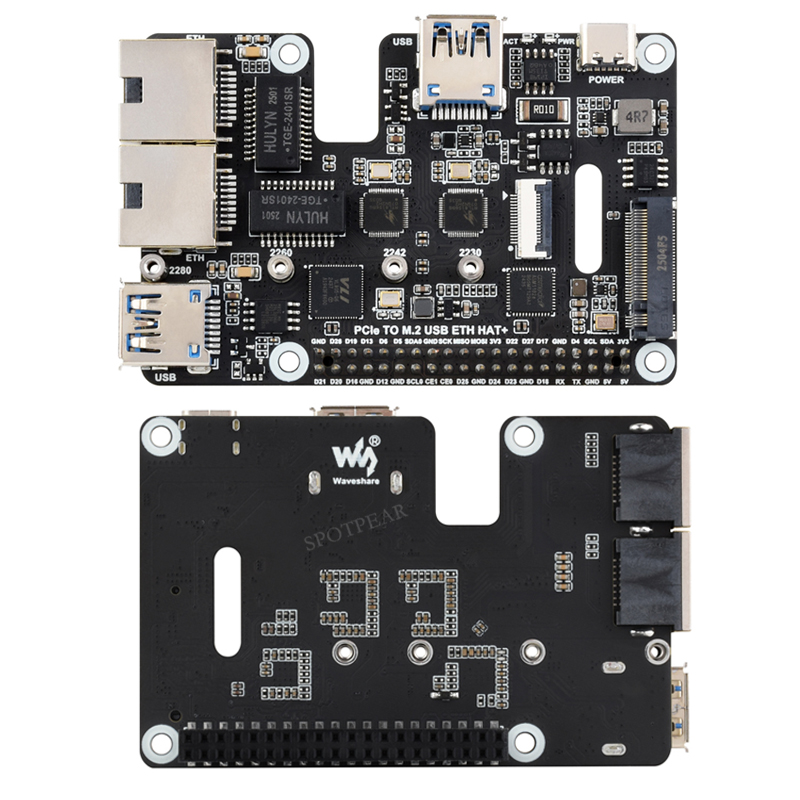

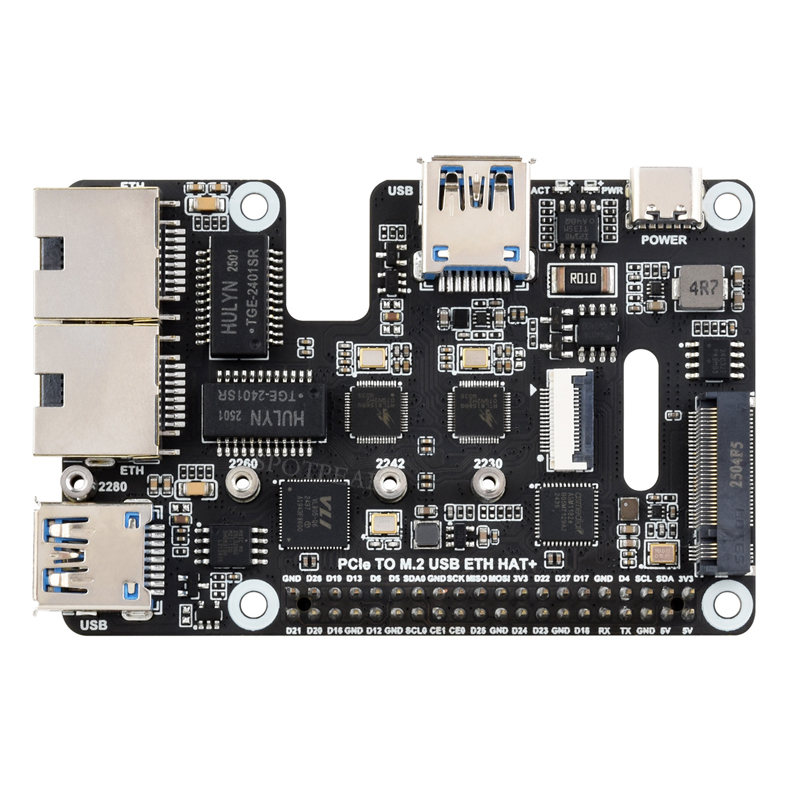

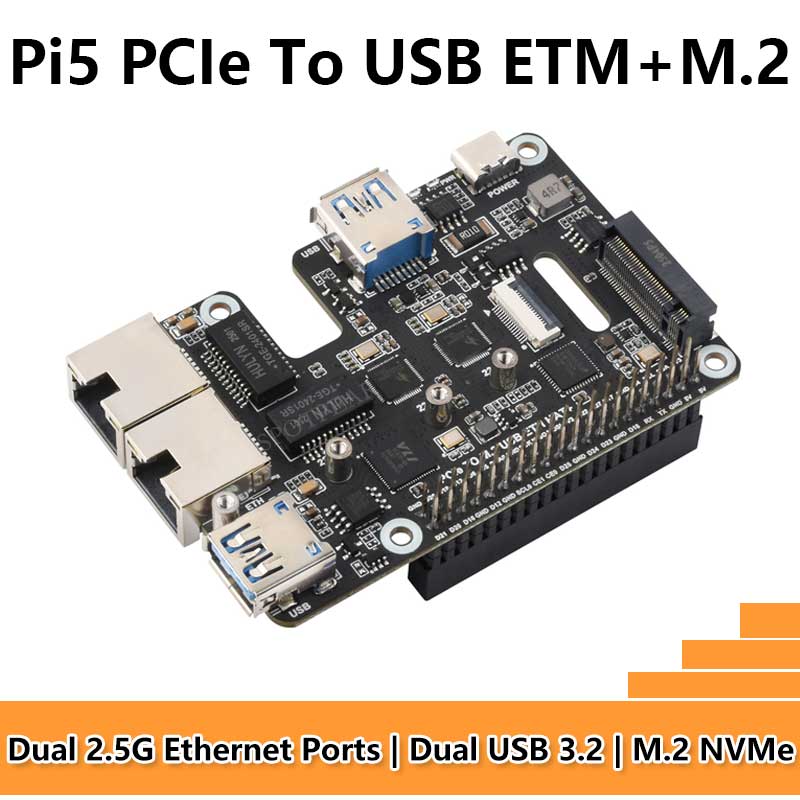

Raspberry Pi 5 PCIe to USB3 HUB Double 2.5G ETH RJ45 and M.2 NVMe SSD PI5 Expansion board HAT+
$44.9
Brand：SpotPear
SKU：010313800000
Date：2025-06-13 15:51
Part Number：
Raspberry Pi 5 PCIe to USB 3.2 Gen1 2.5G Ethernet port and M.2 expansion card PI 5 dedicated Support NVMe hard disk protocol Expand 2 USB 3.2 interfaces and 2 2.5G Ethernet ports HAT+ standard High-speed read and write Driver-free plug and play
PCIe multi-function expansion card
Designed for Raspberry Pi 5, driver-free, plug and play
Dual 2.5G Ethernet | Dual USB 3.2 | M.2 NVMe interface
Connect to Raspberry Pi 5 via 16-pin cable
16PIN PCIe interface design based on Raspberry Pi 5

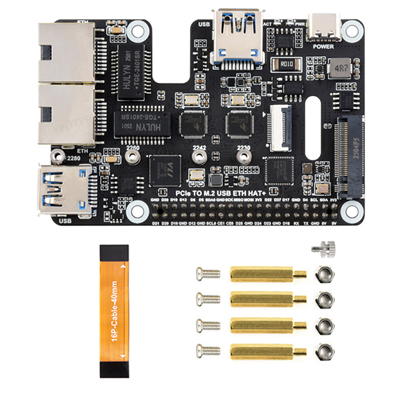

This product does not include Raspberry Pi 5 motherboard and other accessories. Please refer to the configuration list for detailed configuration.
Support NVMe hard drive protocol
Compatible with 2230/2242/2260/2280 size M.2 drives
Supports Gen2 standard, supports booting Raspberry Pi 5 from SSD
Applicable hard disk interface
Note: Only NVMe hard drive protocol is supported
Expand 2 USB 3.2 ports
PCIe expansion 2-way USB 3.2 Gen1 high-speed interface, convenient for connecting more peripherals
Expand 2 2.5G network ports
Equipped with RTL8156B high-performance Gigabit Ethernet chip, network port sunken design
This product does not include Raspberry Pi 5 motherboard and other accessories. Please refer to the configuration list for detailed configuration.
Upgrade your Raspberry Pi to get new life
Compared with the Micro SD interface of Raspberry Pi, it has faster reading and writing speeds, significantly speeds up system or file transfers, and supports NVMe SSD to boot Raspberry Pi
This product does not include Raspberry Pi 5 motherboard and other accessories. Please refer to the configuration list for detailed configuration.
Onboard dual LED indicators
The working status of the equipment is clear at a glance
Real-time control of hard drive power status
Onboard power monitoring chip and EEPROM, real-time feedback of power status, more stable operation
Installation Instructions
Stick thermal paste on the surface of the Raspberry Pi, install the official radiator, and then assemble the expansion board.
This product does not include Raspberry Pi 5 motherboard and other accessories. Please refer to the configuration list for detailed configuration.
Product size
