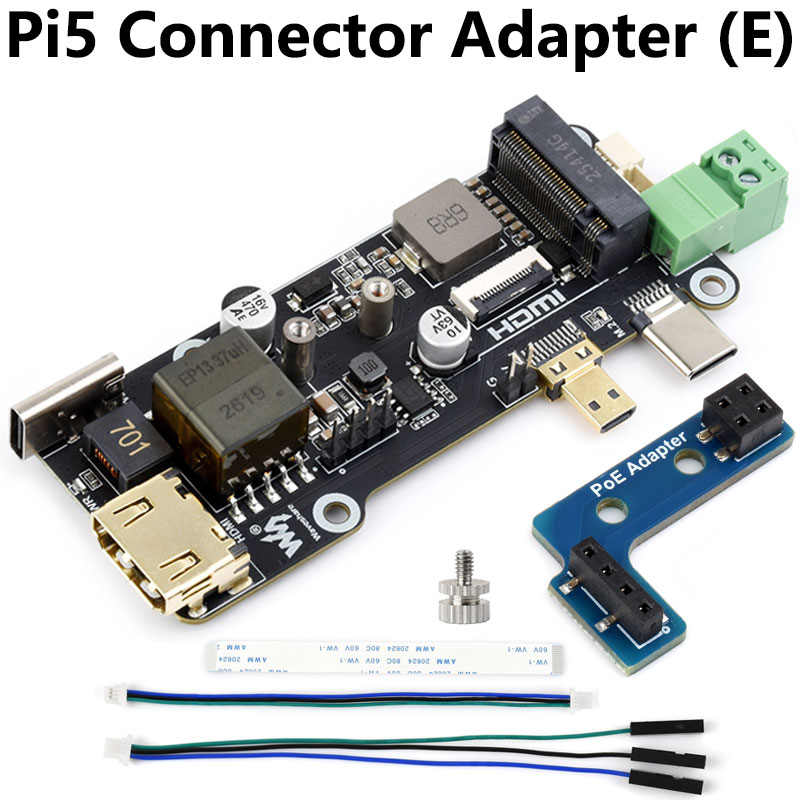

Raspberry Pi 5 Multi functional ETH POE Power Adapter Board PCIe to M.2 NVMe SSD
$25.9
Brand：SpotPear
SKU：010149400000
Date：2026-08-07 15:56
Part Number：
Raspberry Pi Multi-Function Adapter Board: 4K Output, Onboard PoE Power Supply and PCIe to M.2 Interface Circuit, Supports Raspberry Pi 5 and NVMe Hard Drive Protocol
RPi Multi-Function Adapter Board
Supports Raspberry Pi 5, 4K Output
Onboard 2.5G PoE Ethernet Port, Supports NVMe Protocol M.2 Solid State Drive,
High-Speed Reading / Writing, Improves Working Efficiency
The M.2 interface connects to the Raspberry Pi 5 via PCIe.
16-pin PCIe interface design based on Raspberry Pi 5
The images are for illustrative purposes only. Please refer to the configuration list for detailed specifications.
PoE connects to Raspberry Pi 5 via an adapter board.
PoE Interface Design Based on Raspberry Pi
The images are for illustrative purposes only. Please refer to the configuration list for detailed specifications.
Supports NVMe hard drive protocol
Compatible with 2230/2242 form factor M.2 SSDs, supporting Gen2 and Gen3 modes.
Supports booting Pi 5 from SSD.
Supports PoE (Power over Ethernet)
A single network cable connected to a PoE device is all that's needed to enable the Raspberry Pi to connect to the internet and receive power.
The image is for illustrative purposes only. This product is not compatible with Raspberry Pi 5 and switches.
Easy to connect to HDMI
Convert the Micro HDMI to an HDMI female port for easier connection.
The images are for illustrative purposes only. Please refer to the configuration list for detailed specifications.
Supports three power supply methods
Choose between Type-C power supply, 7~24V terminal block power supply, or PoE power supply.
Supports 4K output
Assembly Example
The images are for illustrative purposes only. Please refer to the configuration list for detailed specifications.
Product Dimensions
