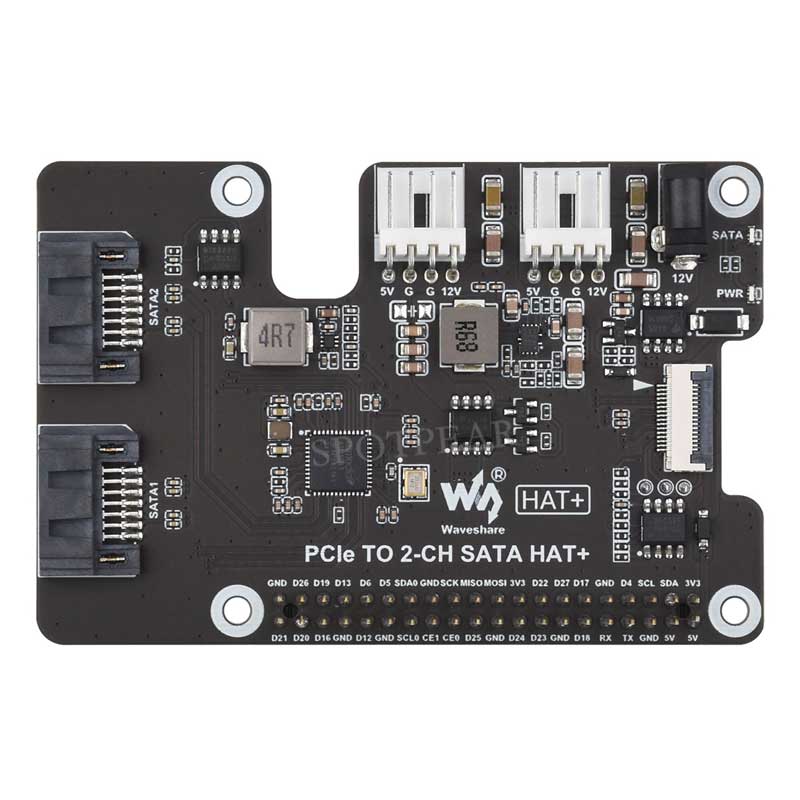

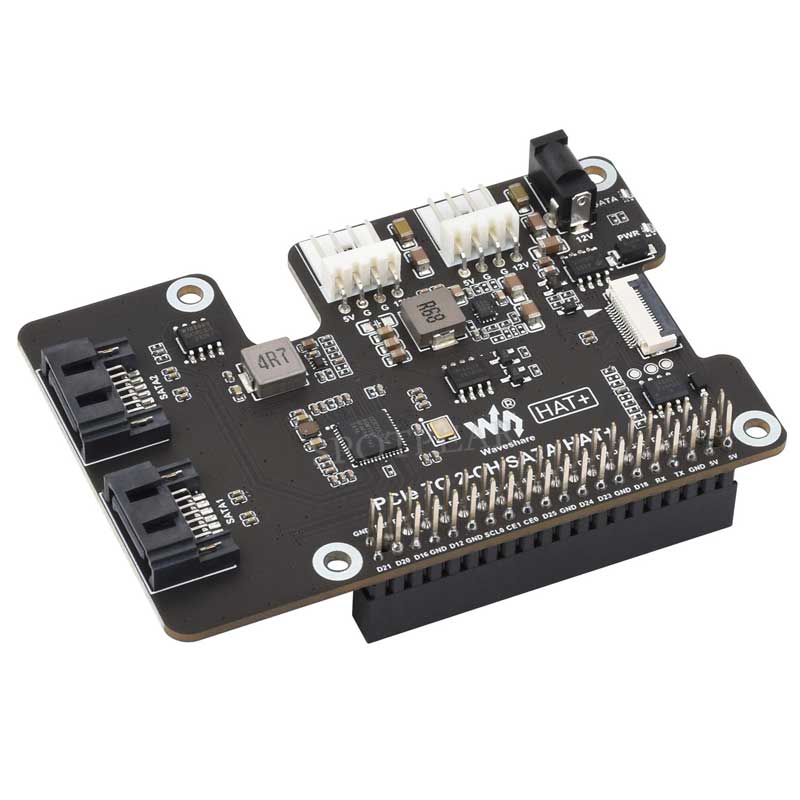

Raspberry Pi 5 PCIe to SATA Expansion Board with EEPROM HAT+
Raspberry Pi 5 PCIe to SATA Expansion Board with EEPROM HAT+
Raspberry Pi 5 PCIe to SATA Expansion Board with EEPROM HAT+
Raspberry Pi 5 PCIe to SATA Expansion Board with EEPROM HAT+
Raspberry Pi 5 PCIe to SATA Expansion Board with EEPROM HAT+
Raspberry Pi 5 PCIe to SATA Expansion Board with EEPROM HAT+
Raspberry Pi 5 PCIe to SATA Expansion Board with EEPROM HAT+

Raspberry Pi 5 PCIe to SATA Expansion Board with EEPROM HAT+

$15.9

Brand：SpotPear
SKU：010314200000
Date：2025-07-09 14:03
Part Number：

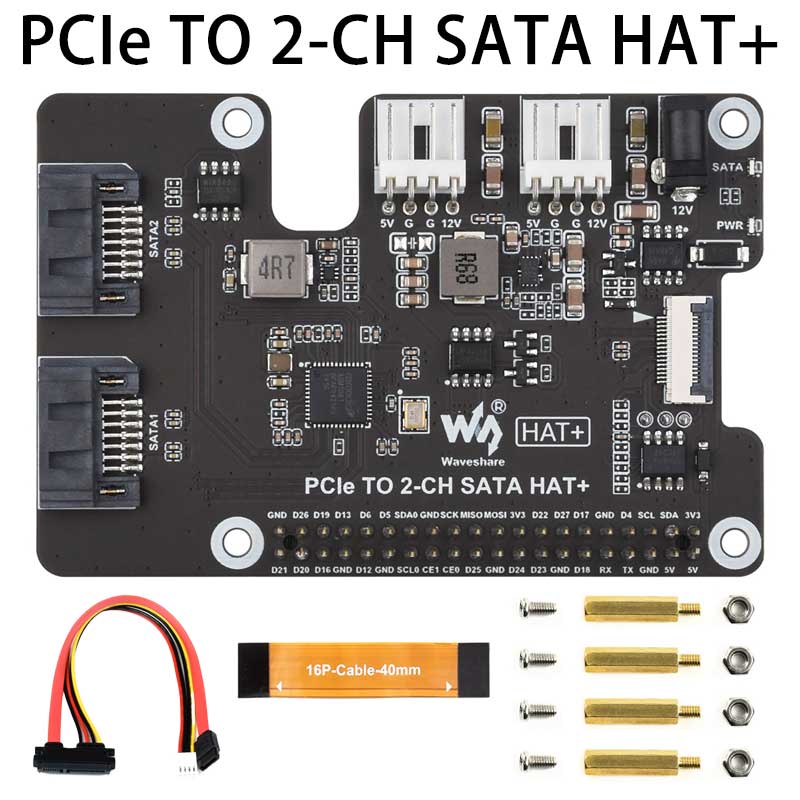

PCIe TO 2-CH SATA HAT+
No：
- +
In Stock
Add to cart
Ask a Question

PCIe to dual channel SATA expansion board for Raspberry Pi 5 Supports SATA hard disk protocol Onboard dual LED indicator EEPROM supports HAT+ standard

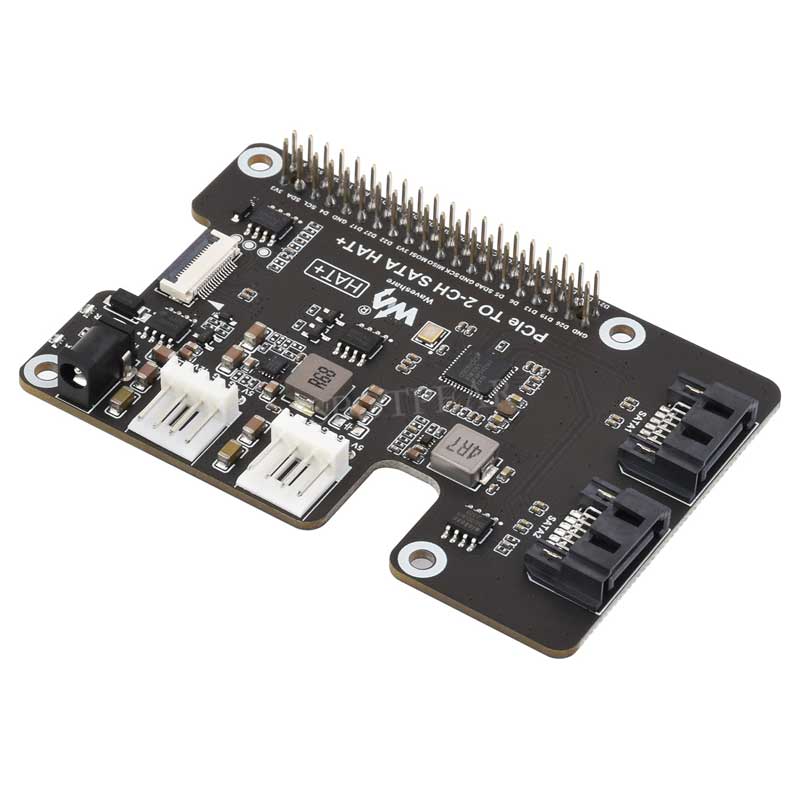

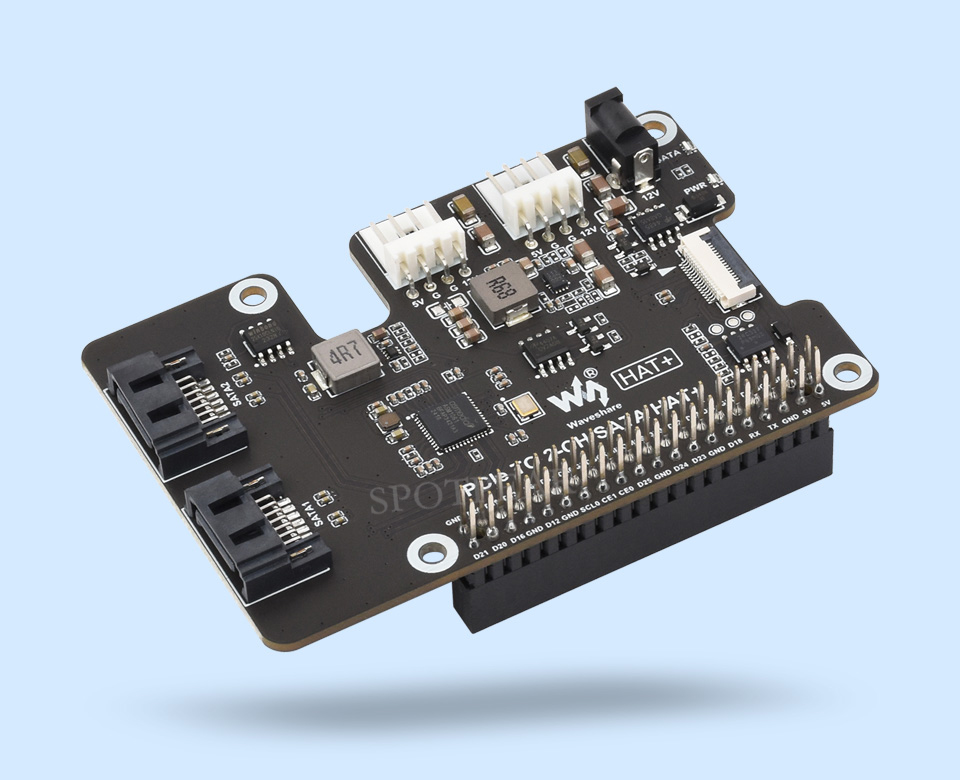

PCIe to Dual Channel SATA Expansion Board

Designed specifically for Raspberry Pi 5, driver-free, plug and play

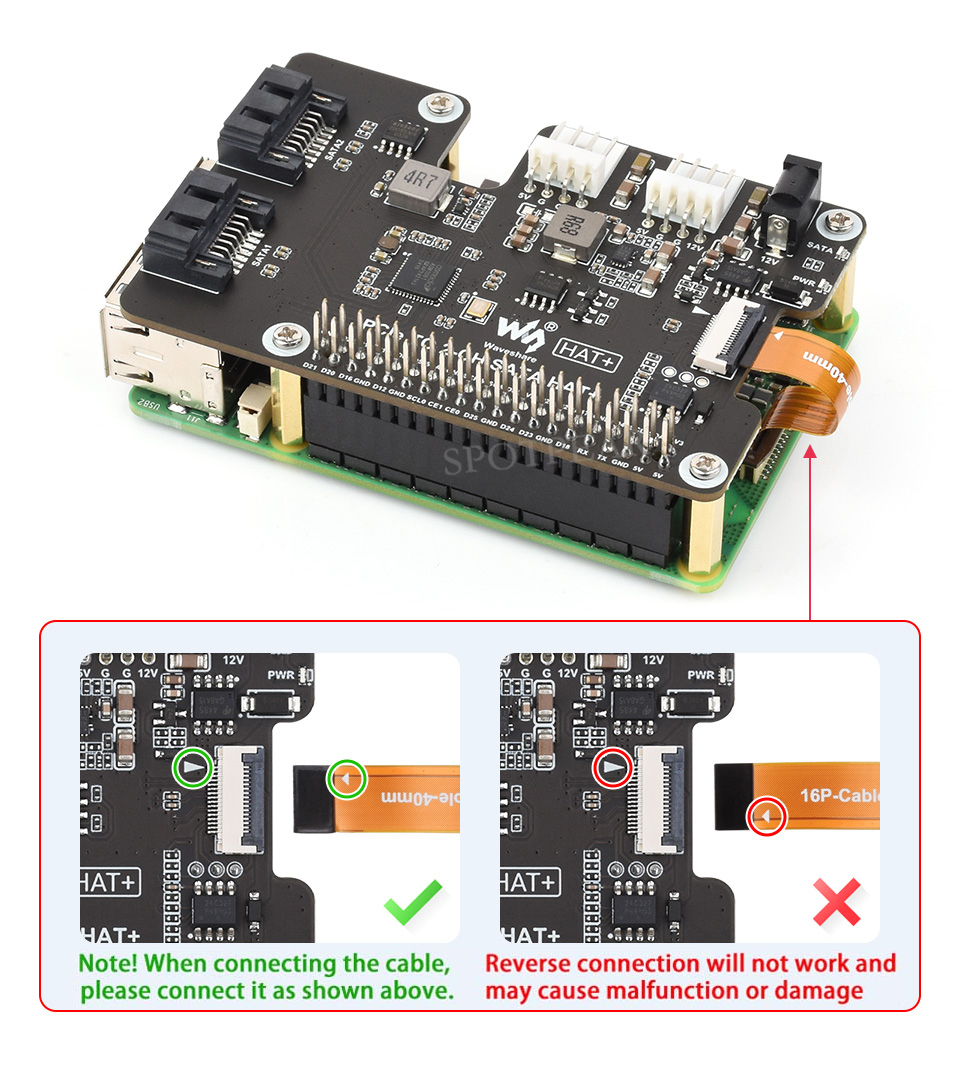

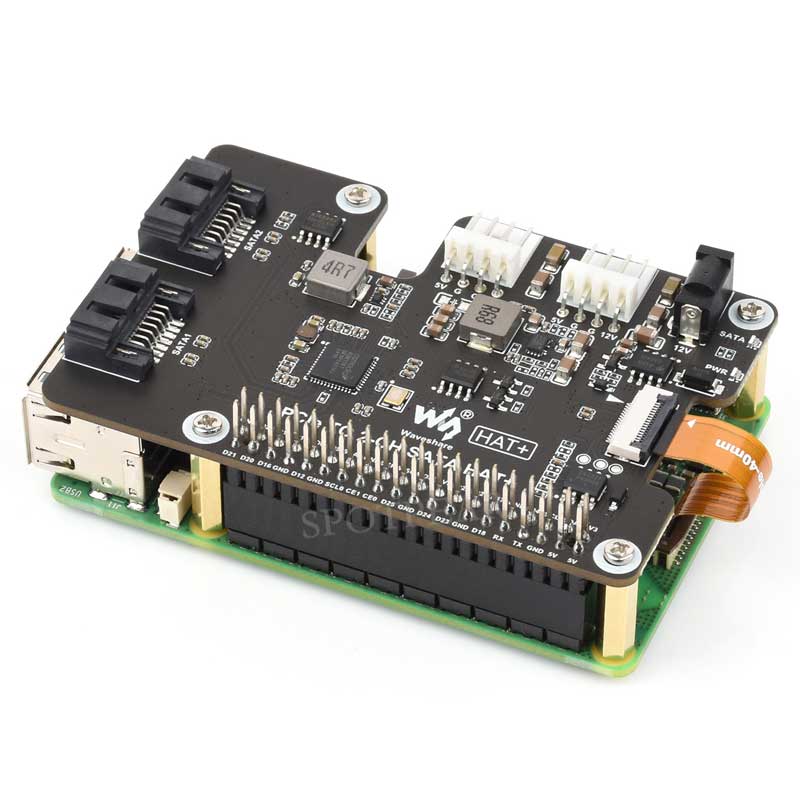

Can be connected to Raspberry Pi 5 via 16-pin cable

16PIN PCIe interface design based on Raspberry Pi 5

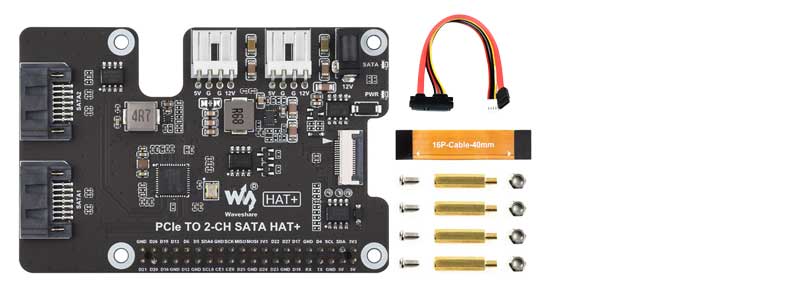

The pictures are for display only. Please refer to the configuration list for detailed configuration.

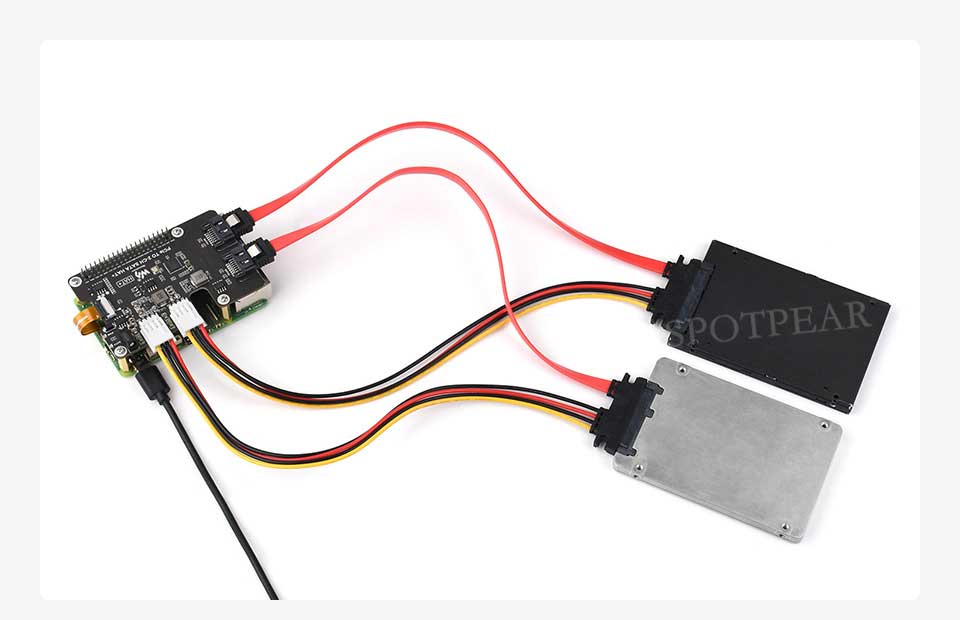

Support SATA hard disk portocol

Dual-channel SATA hard disk interface, supporting Gen3 standard


PCIe to 2-way high-speed SATA3.0

Compliant with SATA3.0 (SATA Gen3) standard, PCIe Gen2 standard

The pictures are for display only. Please refer to the configuration list for detailed configuration.

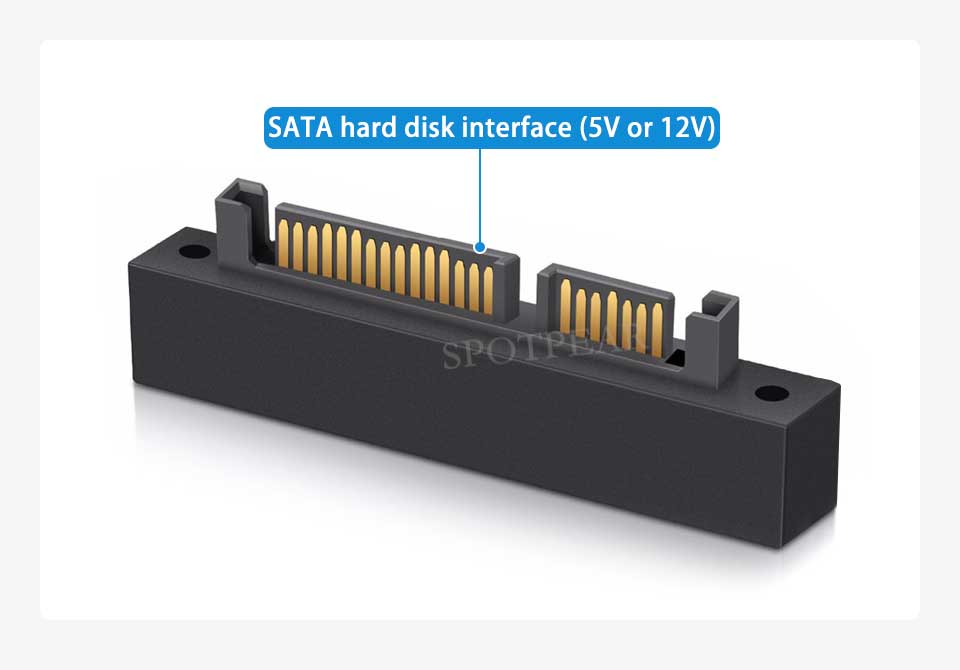

Applicable hard disk interface


Note: Only supports SATA hard disk protocol

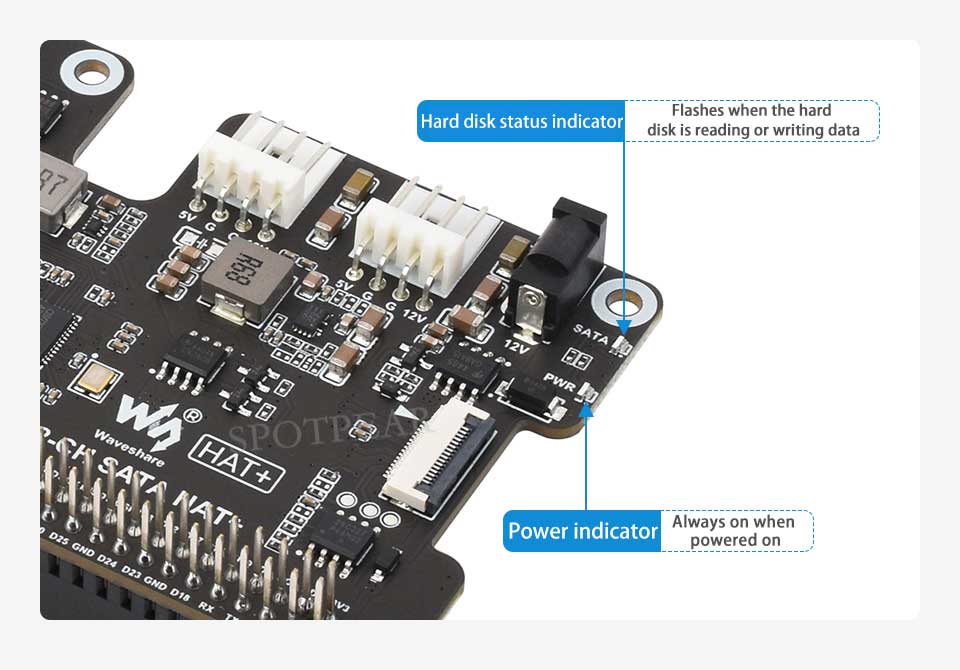

Onboard dual LED indicators

The working status of the equipment is clear at a glance

Onboard EEPROM

Stores HAT ID and product information

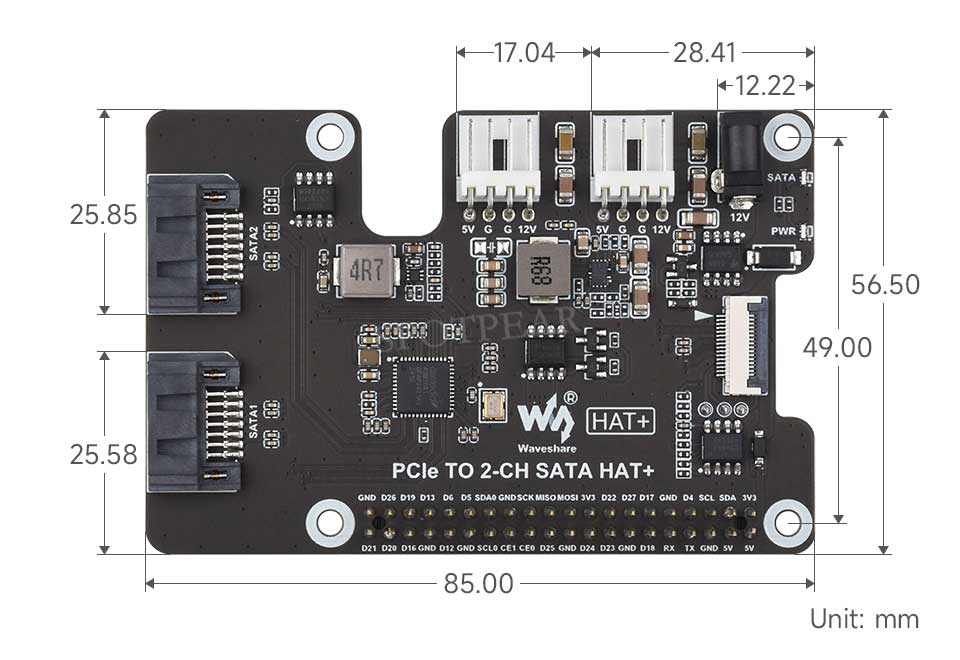

Product size
