Features​

• Adopts Espressif ESP32-C6 as the main chip
• Equipped with a high-performance 32-bit RISC-V processor, clock frequency up to 160MHz
• Built-in 512 KB SRAM, 320 KB ROM, onboard 16MB Flash
• Onboard 1.14inch 240×135 pixels, 65K colors, IPS LCD display
• Integrated 2.4 GHz Wi-Fi 6 and Bluetooth 5 (LE) dual-mode wireless communication
• Onboard TF card slot for external TF card storage of images or files
• Onboard 3PIN UART, 3PIN GPIO, and 4PIN I2C interfaces
• Includes a plastic case and relevant connecting cables
• Provides comprehensive open-source examples and resources, facilitating programming learning and project development

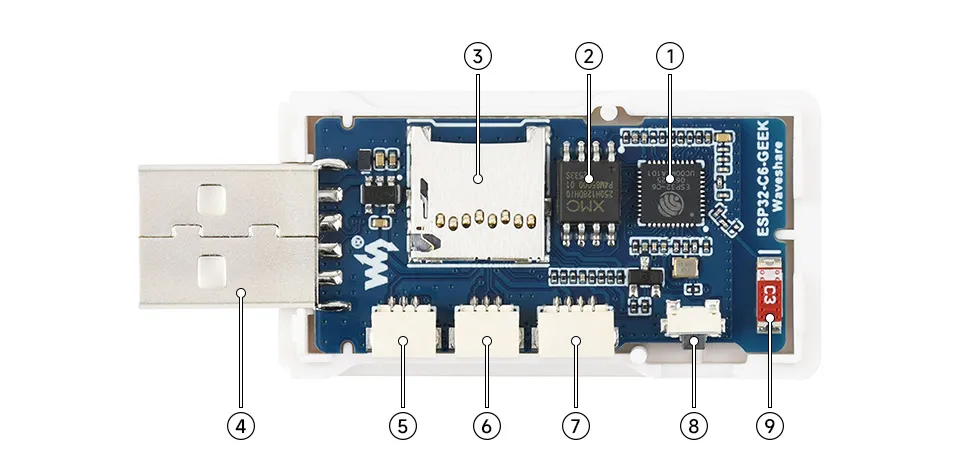

Onboard Resources​

1. ESP32-C6 supports Wi-Fi and Bluetooth SoC, operating at 160MHz
2. 16MB NOR-Flash for data storage
3. TF card slot
4. USB-A Port
5. UART header can be used to implement a USB-to-serial adapter function
6. GPIO header brings out available IO functional pins for easy expansion
7. I2C header can be used to test target boards
8. BOOT button used for device startup and functional debugging
9. Onboard antenna supports 2.4GHz Wi-Fi 6 (802.11 b/g/n) and Bluetooth 5 (LE)

LCD Screen Specifications​

SPI Communication Protocol:

Note: The SPI interface here is specifically designed for screen display, therefore the data line from slave to master (MISO) is omitted.

• RESX is the Reset pin; it is pulled low during module power-up and is normally set to 1.

• CSX is the slave chip select pin; the chip is enabled only when CS is low

• D/CX is the data/command control pin of the chip. When DC = 0, commands are written; when DC = 1, data is written.

• SDA is the data transmission pin, specifically for RGB data.

• SCL is the SPI communication clock pin.

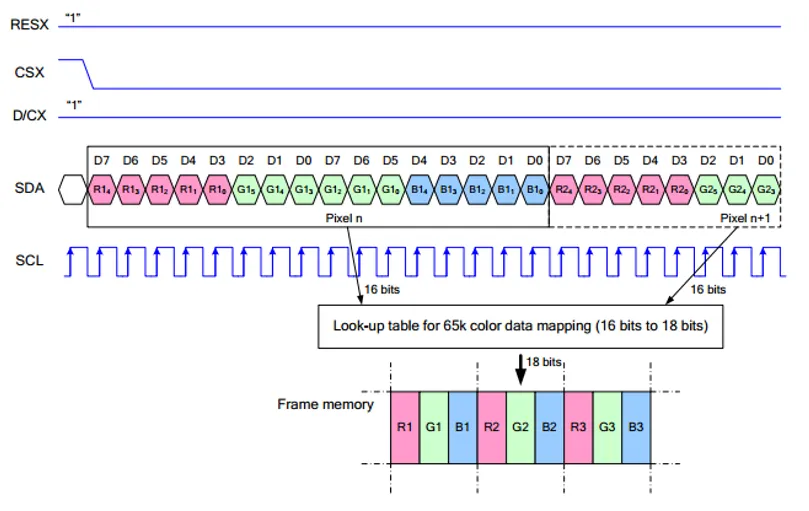

For SPI communication, data transmission follows a specific timing sequence, which are determined by the combination of clock phase (CPHA) and clock polarity (CPOL):

• The level of CPHA determines whether data is captured on the first or second clock transition edge of the serial synchronous clock. When CPHA = 0, data is captured on the first transition edge;

• The level of CPOL determines the idle level of the serial synchronous clock. CPOL = 0 means the idle state is low level.

As can be seen from the diagram, data transmission begins at the first falling edge of SCL. One clock cycle transmits 1 bit of data, using SPI0 mode, transmitted bit by bit with the Most Significant Bit (MSB) first and the Least Significant Bit (LSB) last...

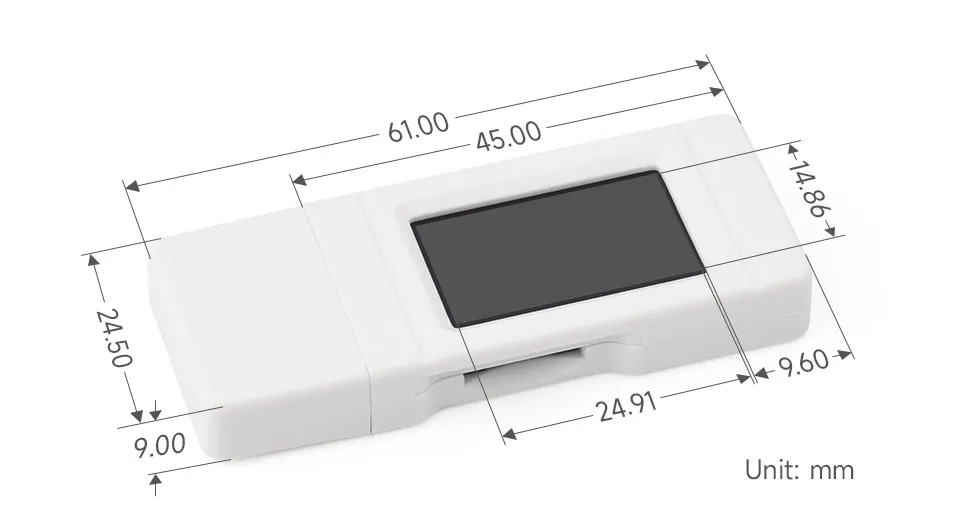

Dimensions​

This chapter includes the following sections, please read as needed:

• Arduino Getting Started Tutorial
• Setting Up Development Environment
• Example

Arduino Getting Started Tutorial​

New to Arduino ESP32 development and looking for a quick start? We have prepared a comprehensive Getting Started Tutorial for you.

• Section 0: Getting to Know ESP32
• Section 1: Installing and Configuring Arduino IDE
• Section 2: Arduino Basics
• Section 3: Digital Output/Input
• Section 4: Analog Input
• Section 5: Pulse Width Modulation (PWM)
• Section 6: Serial Communication (UART)
• Section 7: I2C Communication
• Section 8: SPI Communication
• Section 9: Wi-Fi Basics
• Section 10: Web Server
• Section 11: Bluetooth
• Section 12: LVGL GUI Development
• Section 13: Comprehensive Project

Note: This tutorial uses the ESP32-S3-Zero as a reference example, and all hardware code is based on its pinout. Before you start, we recommend checking the pinout of your development board to ensure the pin configuration is correct.

Setting Up Development Environment​

1. Installing and Configuring Arduino IDE​

Please refer to the tutorial Installing and Configuring Arduino IDE Tutorial to download and install the Arduino IDE and add ESP32 support.

2. Installing Libraries​

To run the demo, you need to install the corresponding library.

You can click this link to download the example package for the ESP32-C6-GEEK development board. The Arduino\libraries directory within the package already includes all the library files required for this tutorial.

Installation Steps:

1. Unzip the downloaded example package.

2. Copy all folders (Arduino_DriveBus, GFX_Library_for_Arduino, etc.) in the Arduino\libraries directory to the Arduino library folder.

   INFO

   The path to the Arduino libraries folder is typically: c:\Users\<Username>\Documents\Arduino\libraries.

   You can also locate it within the Arduino IDE via File > Preferences, by checking the "Sketchbook location". The library folder is the libraries folder under this path.

3. For other installation methods, please refer to: Arduino Library Management Tutorial.

3. Other Tips​

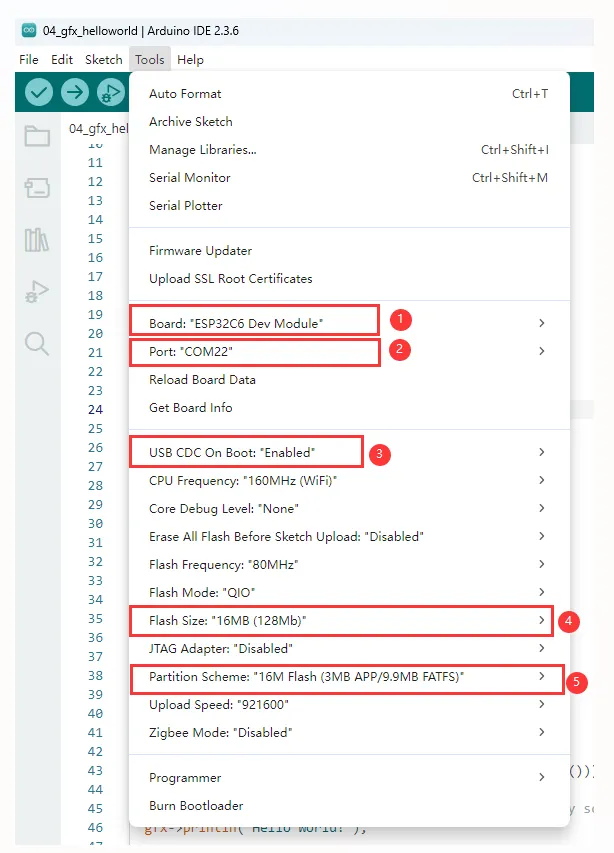

You need to select and configure the development board for ESP32-C6-GEEK.

1. Select the ESP32C6 Dev Module for ESP32-C6-GEEK.
2. Select the USB port.
3. The ESP32-C6-GEEK uses the ESP32-C6 native USB interface, not a UART-to-USB bridge. For serial communication:

   • The printf() function can be used directly;

   • To use the Serial.println() function, additional configuration is required: enable the "USB CDC On Boot" option in the IDE's Tools menu, or declare an HWCDC object in your code to handle USB serial communication.

4. Select 16MB Flash
5. Select a Partition Table of the appropriate size

Example​

The Arduino examples are located in the Arduino/examples directory of the example package.

01_OneButton​

This example demonstrates how to use the ESP32-C6-GEEK's Boot button as a multi-function button, capable of performing different actions such as single-click, double-click, or long-press. It is suitable for learning ESP32-C6 button interaction and LCD display. You can observe LCD changes through button operations to test its reliability.

Code​

Code Analysis​

• Button event binding:

  button.attachLongPressStart(LongPressStart, &button);
  button.attachClick(Click, &button);
  button.attachDoubleClick(DoubleClick, &button);
  button.setLongPressIntervalMs(1000);


• Continuous monitoring:

  void loop() {
  // keep watching the push button:
  button.tick();
  delay(10);
  }


• Button event callback:

  void LongPressStart(void *oneButton)
  {
    LCD_Clear(BLACK);
    Paint_DrawString_EN(50, 50, "LongPress", &Font24, BLACK, RED);
  }

  void Click(void *oneButton)
  {
    LCD_Clear(BLACK);
    Paint_DrawString_EN(75, 50, "Click", &Font24, BLACK, YELLOW);
  }

  void DoubleClick(void *oneButton)
  {
    LCD_Clear(BLACK);
    Paint_DrawString_EN(35, 50, "DoubleClick", &Font24, BLACK, BLUE);
  }

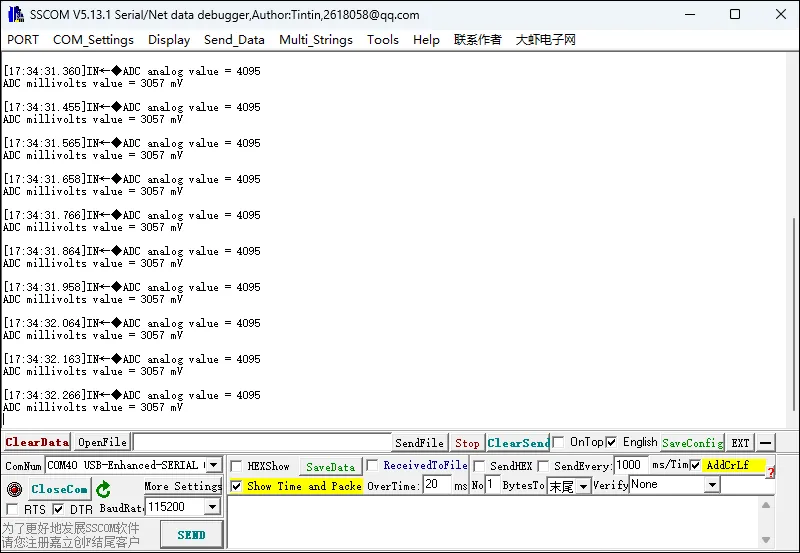

02_ADC_Read​

This example uses the GPIO interface of the ESP32-C6-GEEK to perform ADC sampling, reading voltages within the 3.3V range. Pay attention to common grounding and do not exceed the measurement range during use. It is suitable for learning analog input on the ESP32-C6. You can read analog values from specific pins, observe changes, and test stability.

Hardware Connection​

Connect both ends of an SH1.0 3PIN cable to the development board and the voltage source under test.

• The pin connected to GPIO6 on the development board is used to read the measured voltage.
• The GND pin on the development board (the GND of the I2C or UART interface can be used) is connected to the GND pin of the voltage source under test, ensuring a common ground connection.

Code​

Code Analysis​

• Initialize the backlight control pin to a low level.

• Enable serial communication, set the baud rate to 115200.

• Set the ADC resolution to 12-bit.

    void setup() {
    analogWrite(DEV_BL_PIN,0);
    Serial.begin(115200);      //The serial port is initially configured
    analogReadResolution(12);  //Set ADC resolution to 12 bits (0-4096)
    }


• Define variables to store the raw ADC value and the voltage value.

• Read the raw ADC value and the voltage value from the specified pin.

• Output the ADC value via the serial port.

    void loop() {
    // Define two variables to hold the original value and the voltage value (millivolts) collected by the ADC
    int analogOriginalValue = 0;
    int analogVoltsValue = 0;

    analogOriginalValue = analogRead(ADC1_CHANNEL_0);         // Read the ADC raw value
    analogVoltsValue = analogReadMilliVolts(ADC1_CHANNEL_0);  // Read ADC voltage values (millivolt range)

    // Upload read ADC values:
    Serial.printf("ADC analog value = %d\n",analogOriginalValue);
    Serial.printf("ADC millivolts value = %d mV\n",analogVoltsValue);

    delay(3000);
    }


03_IIC_BME68X_Sensor​

This example uses the I2C hardware interface of the ESP32-C6-GEEK to drive an I2C module. The example demonstrates using a BME680 sensor, printing data output via the serial port. It is suitable for learning how the ESP32-C6 interacts with BME68X sensors. You can set pins and communication modes, read various data, and test compatibility and stability.

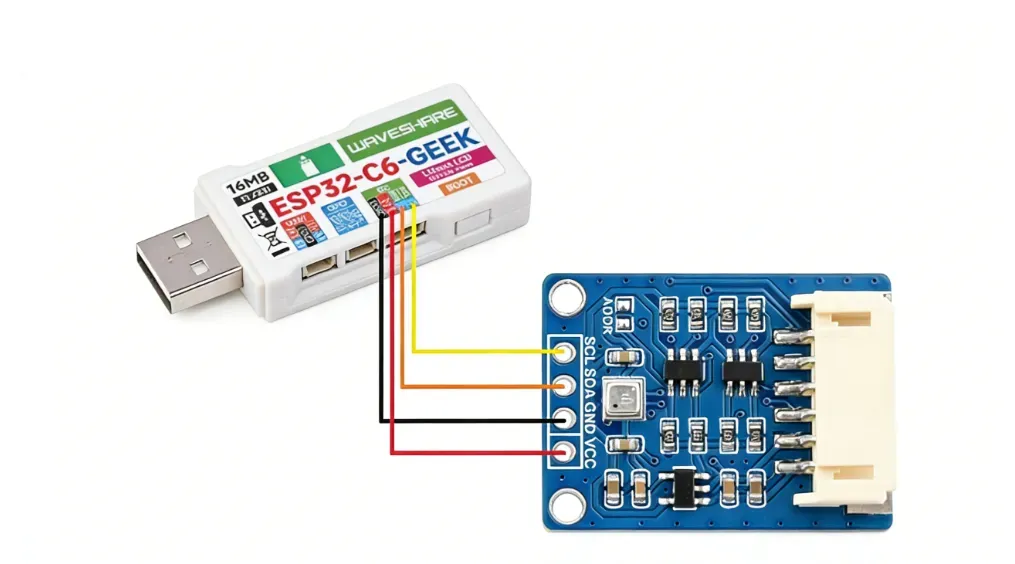

Hardware Connection​

Code​

Code Analysis​

• Use analogWrite to set the backlight control pin PIN_BL to 0, turning off the backlight.

• Use Wire.begin(PIN_SDA, PIN_SCL) to initialize I2C communication (the commented SPI.begin() indicates SPI mode is also possible but is not enabled here).

• Initialize serial communication, set the baud rate to 115200.

• Wait for the serial port connection to be ready.

• Initialize the BME68X sensor according to the configured communication method (I2C here). If an error or warning occurs during initialization, corresponding information will be output via serial.

• Set the sensor's temperature, pressure, and humidity measurement configurations, and configure the heater.

• Output a header row for the data via serial, including timestamp, temperature, pressure, humidity, gas resistance, and status.

  setup() {
  {
    analogWrite(PIN_BL,0);
    Wire.begin(PIN_SDA, PIN_SCL);     //I2C mode
    //SPI.begin();    //SPI mode
    Serial.begin(115200);
    delay(100);
    Serial.println(PIN_SDA);
    Serial.println(PIN_SCL);

    while (!Serial)
      delay(10);

    /* initializes the sensor based on SPI library */
    //bme.begin(PIN_CS, SPI);     //SPI mode
    bme.begin(ADD_I2C, Wire);     //I2C mode

    if(bme.checkStatus())
    {
      if (bme.checkStatus() == BME68X_ERROR)
      {
        Serial.println("Sensor error:" + bme.statusString());
        return;
      }
      else if (bme.checkStatus() == BME68X_WARNING)
      {
        Serial.println("Sensor Warning:" + bme.statusString());
      }
    }

    /* Set the default configuration for temperature, pressure and humidity */
    bme.setTPH();

    /* Set the heater configuration to 300 deg C for 100ms for Forced mode */
    bme.setHeaterProf(300, 100);

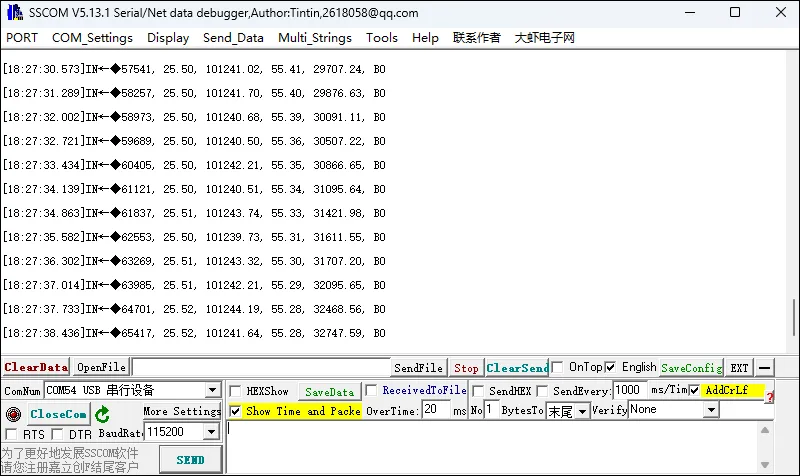

    Serial.println("TimeStamp(ms), Temperature(deg C), Pressure(Pa), Humidity(%), Gas resistance(ohm), Status");
  }

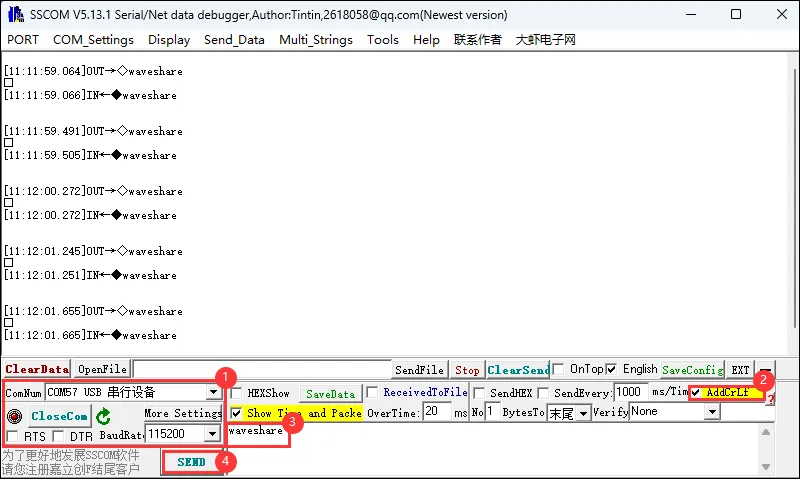

04_UART0​

This example opens the UART0 serial port on the ESP32-C6-GEEK. By opening a serial debug assistant, serial communication can be performed. It is suitable for learning serial communication on the ESP32-C6, receiving data and outputting it.

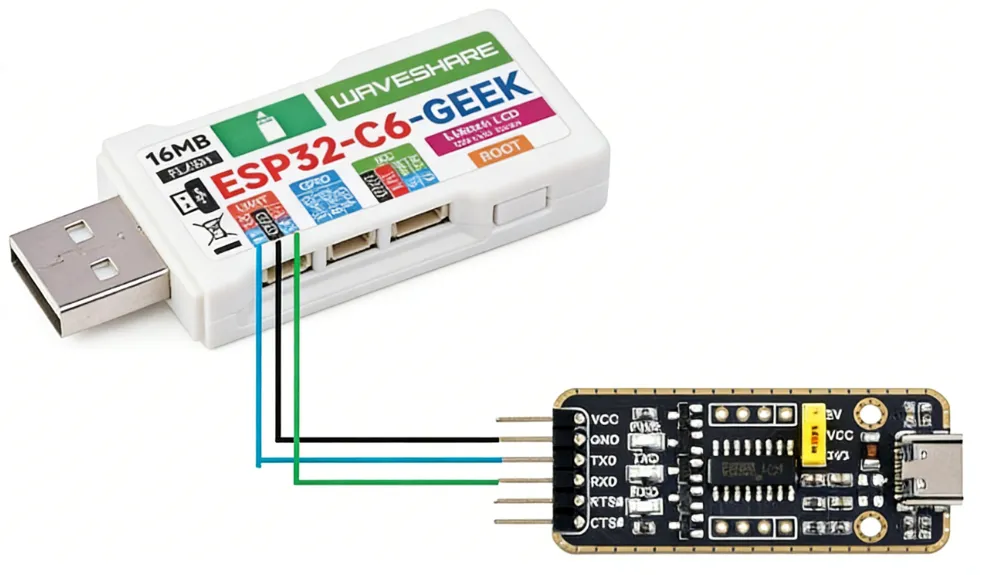

Hardware Connection​

Code​

Code Analysis​

• Check if there is data available to read from the serial port. If data is available, enter a loop to process the input data.

• Create a character array buffer to store input data and a variable bufferSize to record the amount of data in the buffer.

• In the loop, read one character at a time and store it in the buffer, while incrementing the buffer size.

• When the buffer is full (reaches the array size) or a newline character is read, output the data in the buffer via serial, then delay for 10 milliseconds.

• Finally, reset the buffer size to 0 and use the memset function to clear the buffer, preparing for the next input.

  void loop() {
    if (Serial.available()) {
      char buffer[256];                 // Buffer to store input data
      size_t bufferSize = 0;  // Current size of data in buffer

      while (Serial.available() > 0) {
        char input = Serial.read();
        buffer[bufferSize++] = input;   // Store input in buffer
        // Check if the buffer is full, or a newline character is received
        if (bufferSize >= sizeof(buffer) || input == '\n') {
        // Send the entire buffer via Serial2
          Serial.println(buffer);
          delay(10);
        // Reset buffer and size for the next input
          bufferSize = 0;
          memset(buffer, 0, sizeof(buffer));
        }
      }
    }
  }


05_LCD_Button​

This example uses the Boot button of the ESP32-C6-GEEK to achieve a short press to turn on the LCD and switch to the next image, and a long press to turn off the LCD. It is suitable for learning button interaction and LCD image display on the ESP32-C6. You can switch images and control the backlight through button operations to test stability.

Code​

Code Analysis​

• When the button is clicked, this function is called. It switches the display to different images (gImage_pic1, gImage_pic2, gImage_pic3) based on different click values:

    void Click(void *oneButton)
  {
    LCD_SetBacklight(1000);
    Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 0, BLACK);
    click++;
    if(click >= 4)click = 1;
    switch(click)
    {
      case 1:
      Paint_DrawImage(gImage_pic1, 0, 0, 135, 240);
      break;
      case 2:
      Paint_DrawImage(gImage_pic2, 0, 0, 135, 240);
      break;
      case 3:
      Paint_DrawImage(gImage_pic3, 0, 0, 135, 240);
      break;
    }
  }


06_LCD_Time​

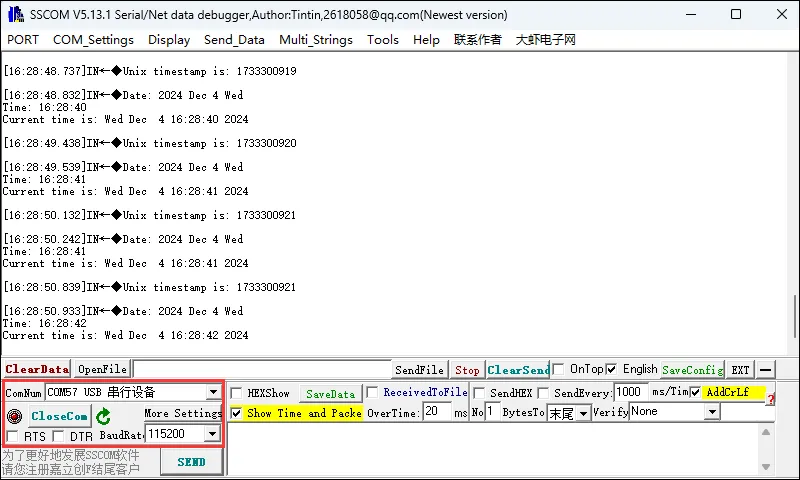

This example uses the ESP32-C6-GEEK to connect to Wi-Fi, obtain the current time, and display the time and date on both the LCD and a serial debug assistant. It is suitable for learning Wi-Fi connection and time synchronization on the ESP32-C6. You can connect to a specific network, synchronize time, display the date and time on the LCD, and test stability and accuracy.

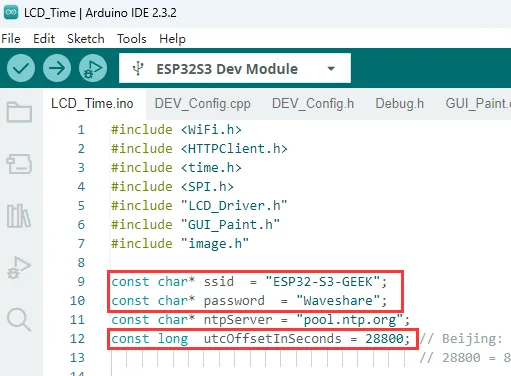

Additional Preparation​

Use a PC to open a hotspot. Set the network band to "Any available frequency". Modify ssid and password to the Wi-Fi name and password you want to connect to. utcOffsetInSeconds is the time zone for which we need to obtain the time. For example, Beijing, UTC+8 (East 8th zone), is 8 * 60 *60=28800.

Note: When the ESP32-C6-GEEK operates in STA mode and connects to the same Wi-Fi network as the PC, the Wi-Fi network the ESP32-C6-GEEK connects to must have a 2.4GHz band. If there is no 2.4GHz band, set the network band to "Any available frequency". Here, we directly choose "Any available frequency".

Code​

Code Analysis​

• Display "Wifi Connecting..." on the LCD to indicate that the device is attempting to connect to Wi-Fi. Initiate the connection process using WiFi.begin(ssid, password) with the specified network name and password, and enter a loop to wait for a successful connection. During this process, print "Connecting to WiFi..." to the serial monitor every 1000 milliseconds to inform the user of the connection progress. Once the connection is successful, clear the LCD screen and display "Wifi Connected", preparing for subsequent network-dependent operations.

    void setup() {
    Serial.begin(115200);

    Config_Init();
    LCD_Init();
    LCD_SetBacklight(100);
    Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, WHITE);
    Paint_SetRotate(90);
    LCD_Clear(BLACK);
    delay(1000);

    while (!Serial);
    Paint_DrawString_EN(20, 50, "Wifi Connecting...", &Font20, BLACK, GREEN);
    WiFi.begin(ssid, password);
    while (WiFi.status() != WL_CONNECTED) {
      delay(1000);
      Serial.println("Connecting to WiFi...");
    }
    LCD_Clear(BLACK);
    Paint_DrawString_EN(20, 50, "Wifi Connected", &Font20, BLACK, GREEN);
    Serial.println("Connected to WiFi");
    //Acquisition time
    configTime(utcOffsetInSeconds, 0, ntpServer);
    while (!time(nullptr)) {
      delay(1000);
      Serial.println("Waiting for time sync...");
    }
    LCD_Clear(BLACK);
    Serial.println("Time synced successfully");
  }

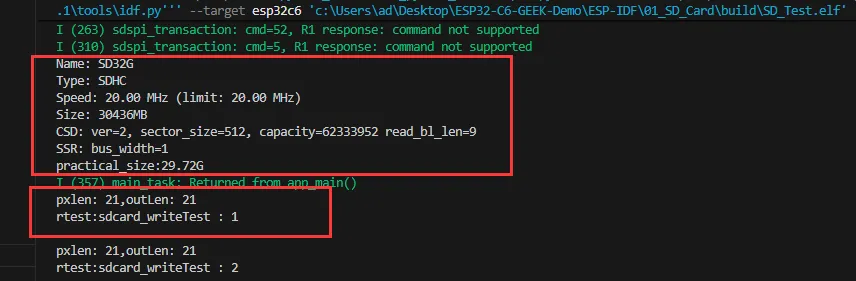

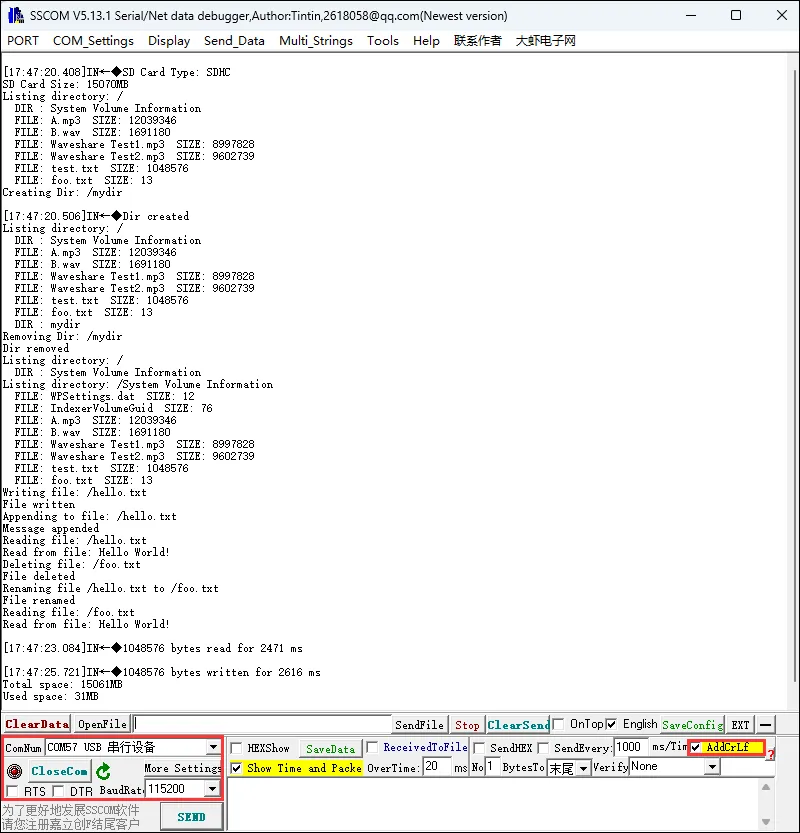

07_SD_Test​

This example uses the TF card slot of the ESP32-C6-GEEK. Insert a TF card into the slot and open a serial debug assistant. You will see the ESP32-C6-GEEK performing file operations (create, read, update, delete) on the TF card. It is suitable for learning TF card interaction on the ESP32-C6, performing various file operations, and testing stability and reliability.

Code​

Code Analysis​

• Initialize serial communication, start the HSPI bus and set the clock divider, then attempt to initialize the TF card connected to specific pins. If successful, determine the TF card type and display its capacity. After that, perform a series of tests on file system operations on the TF card, such as listing directories, creating and deleting directories, reading and writing files, renaming files, and testing read/write performance, while outputting the total space and used space of the TF card.

    void setup() {
    Serial.begin(115200);
    while (!Serial){
      delay(10);
    }

  #ifdef REASSIGN_PINS
    SPI.begin(sck, miso, mosi, cs);
    if (!SD.begin(cs)) {
  #else
    if (!SD.begin()) {
  #endif
      Serial.println("Card Mount Failed");
      return;
    }
    uint8_t cardType = SD.cardType();

    if (cardType == CARD_NONE) {
      Serial.println("No TF card attached");
      return;
    }

    Serial.print("TF Card Type: ");
    if (cardType == CARD_MMC) {
      Serial.println("MMC");
    } else if (cardType == CARD_SD) {
      Serial.println("SDSC");
    } else if (cardType == CARD_SDHC) {
      Serial.println("SDHC");
    }else{
      Serial.println("UNKNOWN");
    }

    uint64_t cardSize = SD.cardSize() / (1024 * 1024);
    Serial.printf("TF Card Size: %lluMB\n", cardSize);

    listDir(SD, "/", 0);
    createDir(SD, "/mydir");
    listDir(SD, "/", 0);
    removeDir(SD, "/mydir");
    listDir(SD, "/", 2);
    writeFile(SD, "/hello.txt", "Hello ");
    appendFile(SD, "/hello.txt", "World!\n");
    readFile(SD, "/hello.txt");
    deleteFile(SD, "/foo.txt");
    renameFile(SD, "/hello.txt", "/foo.txt");
    readFile(SD, "/foo.txt");
    testFileIO(SD, "/test.txt");
    Serial.printf("Total space: %lluMB\n", SD.totalBytes() / (1024 * 1024));
    Serial.printf("Used space: %lluMB\n", SD.usedBytes() / (1024 * 1024));
    }


08_SD_LCD​

This example uses the TF card slot of the ESP32-C6-GEEK to read images from the TF card. After saving photo images to the TF card, insert the TF card into the slot. The ESP32-C6-GEEK can read the photos from the TF card and display them on the LCD. It is suitable for learning the interaction between the ESP32-C6, TF card, and TFT screen. You can read JPEG images from the TF card and display them on the screen, testing stability and reliability.

TF Card Preparation​

Use a card reader to save the photos from the path .\ESP32-C6-GEEK-Demo\Arduino\pic onto the TF card, or save your own photos. For optimal display, modify the image size to 240×135.

Hardware Connection​

Connect both ends of an SH1.0 3PIN cable to the development board and the voltage source under test.

• The pin connected to GPIO6 on the development board is used to read the measured voltage.
• The GND pin on the development board (the GND of the I2C or UART interface can be used) is connected to the GND pin of the voltage source under test, ensuring a common ground connection.

Code​

Code Analysis​

• Decode the JPEG image and draw it centered on the TFT display.

    void renderJPEG() {
    uint16_t *pImg;
    uint16_t mcu_w = JpegDec.MCUWidth;
    uint16_t mcu_h = JpegDec.MCUHeight;
    uint32_t jpeg_width = JpegDec.width;
    uint32_t jpeg_height = JpegDec.height;

    Serial.print("270-degree rotation: ");
    Serial.print(jpeg_width);
    Serial.print(" x ");
    Serial.println(jpeg_height);

    uint16_t rotated_width = jpeg_height;   // 135
    uint16_t rotated_height = jpeg_width;   // 240

    uint16_t x_pos = (LCD_WIDTH - rotated_width) / 2;
    uint16_t y_pos = (LCD_HEIGHT - rotated_height) / 2;

    Paint_Clear(WHITE);

    while (JpegDec.read()) {
      pImg = JpegDec.pImage;

      uint16_t mcu_x = JpegDec.MCUx * mcu_w;
      uint16_t mcu_y = JpegDec.MCUy * mcu_h;

      for (int y = 0; y < mcu_h; y++) {
        for (int x = 0; x < mcu_w; x++) {
          uint16_t orig_x = mcu_x + x;
          uint16_t orig_y = mcu_y + y;

          if (orig_x >= jpeg_width || orig_y >= jpeg_height) continue;

          // Rotation formula:
          uint16_t screen_x = x_pos + (jpeg_height - orig_y - 1);
          uint16_t screen_y = y_pos + orig_x;

          if (screen_x < LCD_WIDTH && screen_y < LCD_HEIGHT) {
            uint16_t color = pImg[x + y * mcu_w];
            Paint_SetPixel(screen_x, screen_y, color);
          }
        }
      }
    }

    JpegDec.abort();
  }


09_BLE_LCD​

This example enables Bluetooth BLE on the ESP32-C6-GEEK. Use a mobile phone to open a Bluetooth debug assistant, connect to the ESP32-C6-GEEK, and perform BLE communication with the phone. Messages sent and received are displayed on the LCD. It is suitable for learning how the ESP32-C6 interacts with BLE and LCD, acting as a BLE server to send/receive data and display it on the LCD, testing stability and reliability.

Code​

Operation Result​

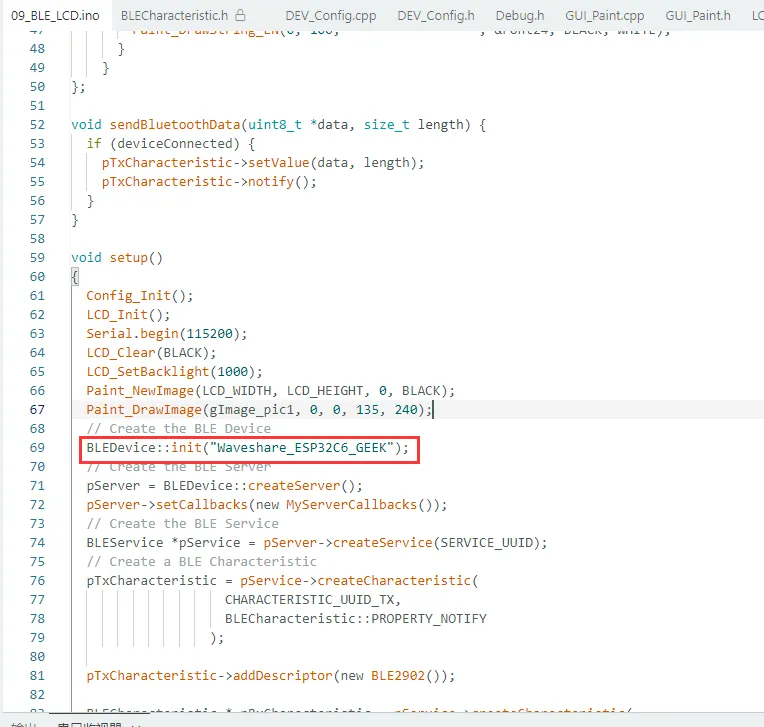

Waveshare_ESP32C6_GEEK in BLEDevice::init("Waveshare_ESP32C6_GEEK") is the Bluetooth name.

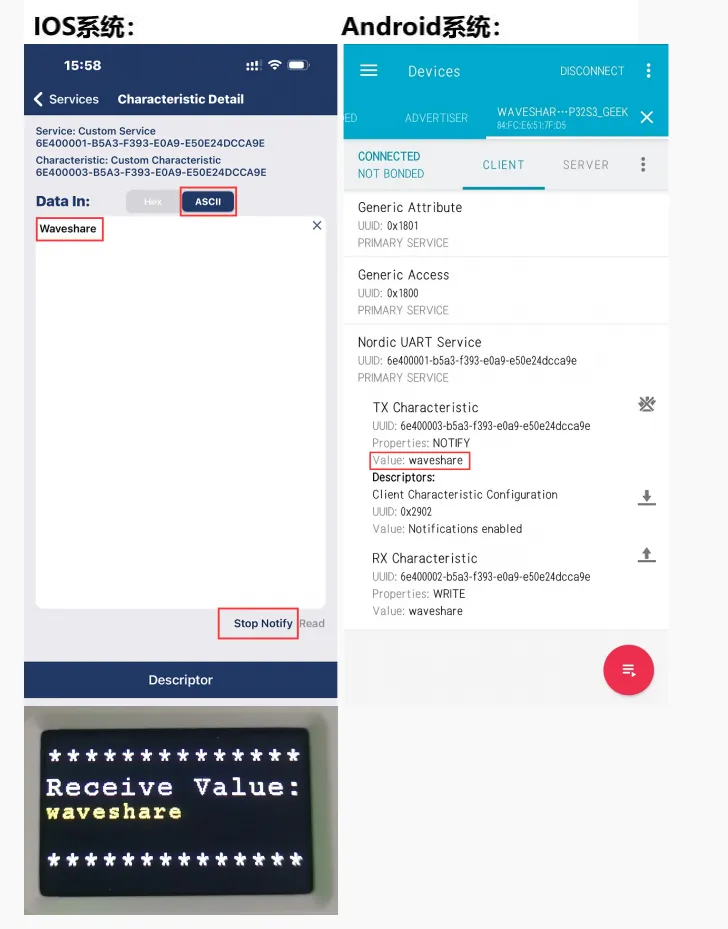

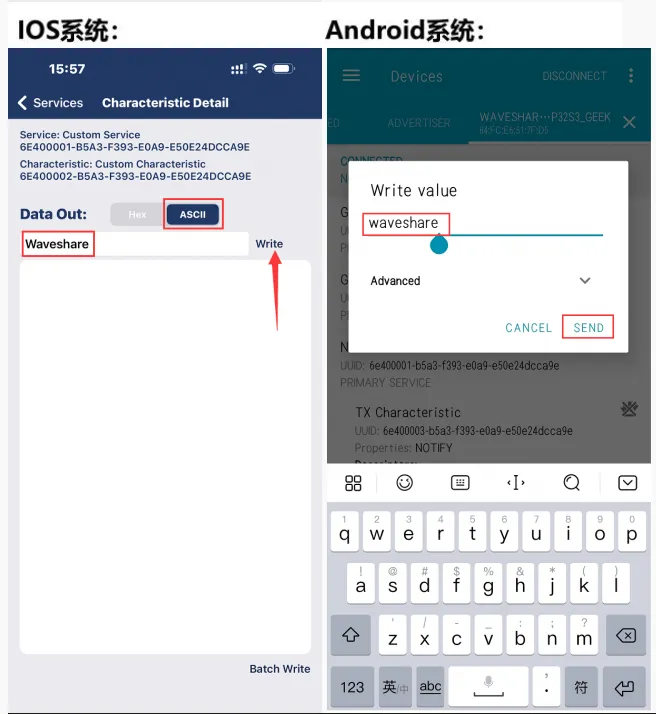

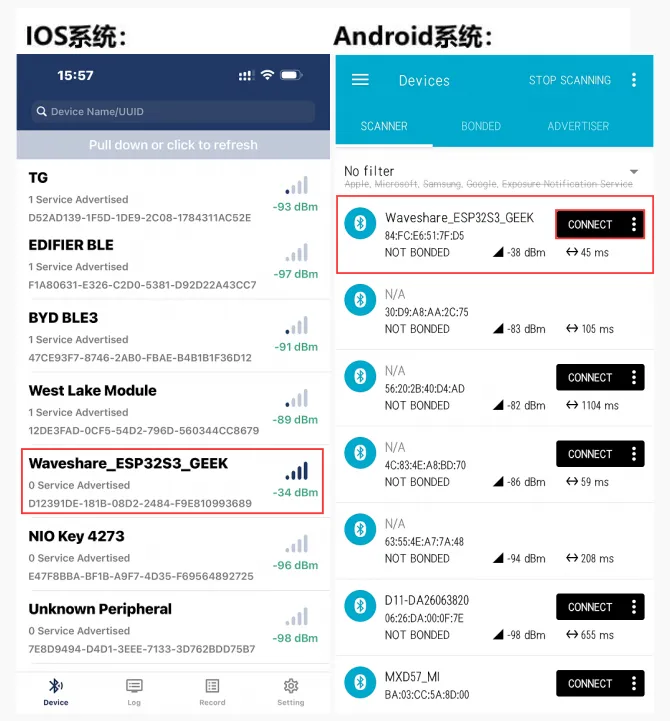

• Use the mobile phone's Bluetooth debug assistant to scan and connect to the device.




• Use the mobile Bluetooth debug assistant to send a Bluetooth message to the ESP32-C6-GEEK. Upon receiving the message, the ESP32-C6-GEEK will display it on the LCD, and the serial debug assistant will print the message content.







• In the mobile Bluetooth debug assistant, open the receive settings. Connect the ESP32-C6-GEEK to a PC using a USB to UART adapter. Open a serial debug assistant on the PC. Send a serial message converted to a Bluetooth message to the phone. Note: When sending, check "AddCrLf". The sent message content will be displayed on the LCD. Observe on the mobile phone whether the Bluetooth message is received.










10_BLE_UART​

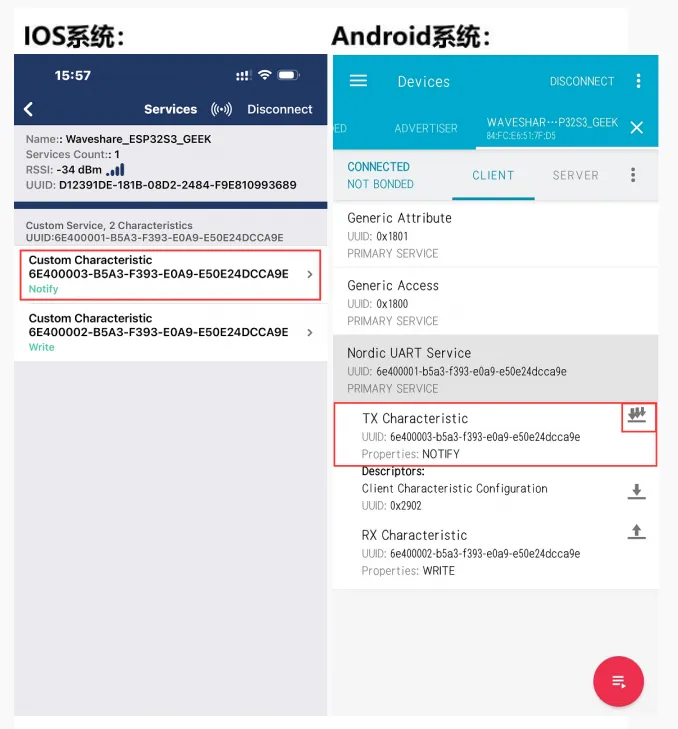

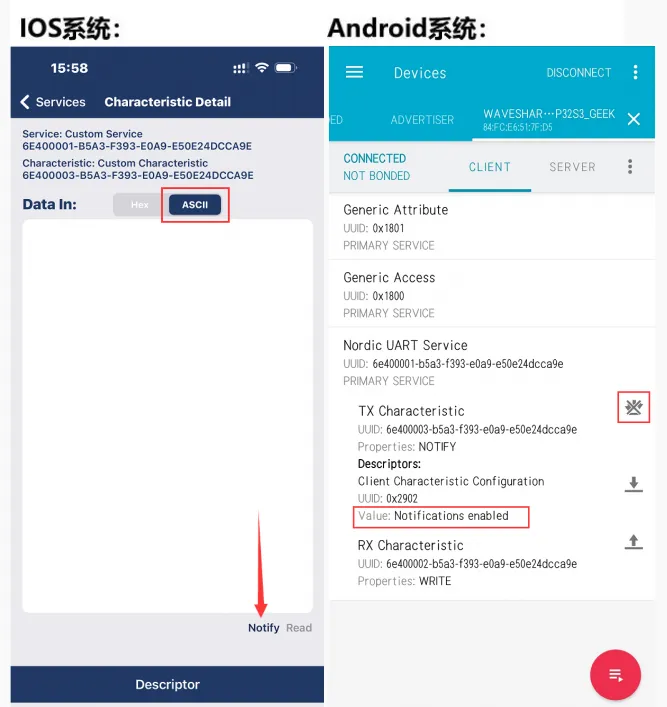

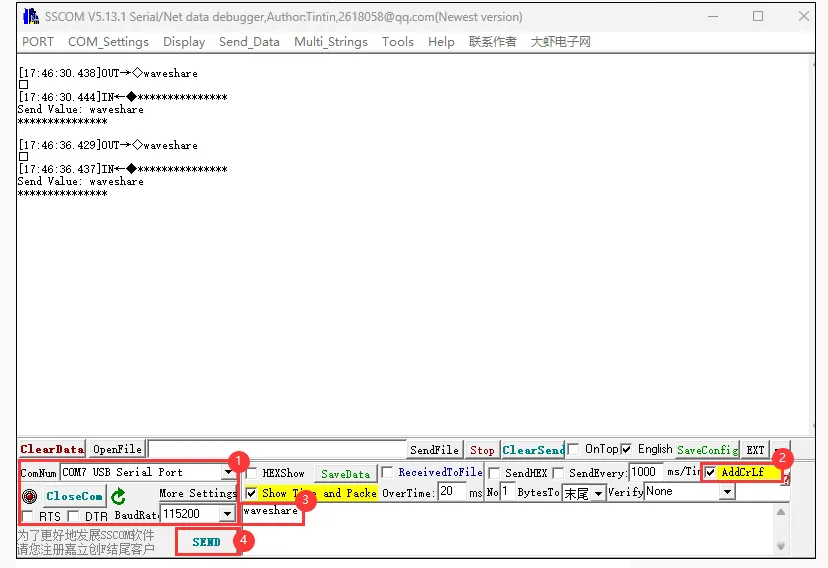

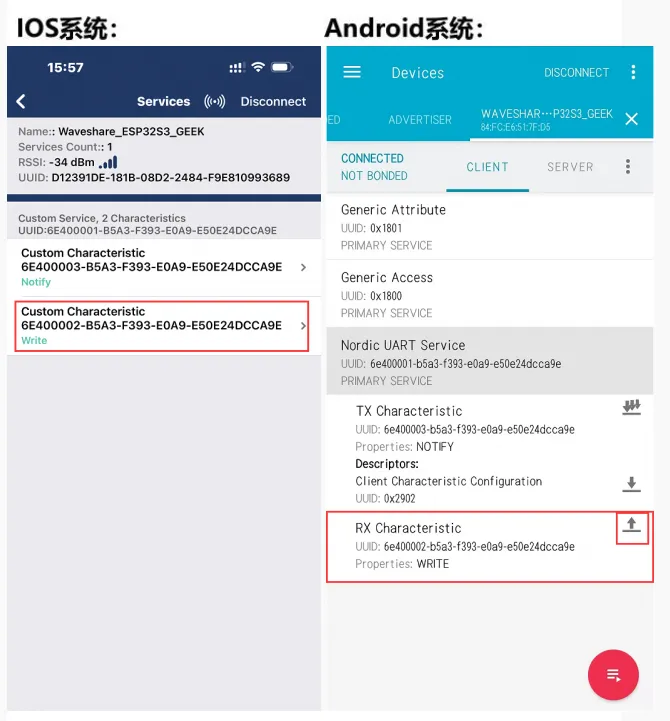

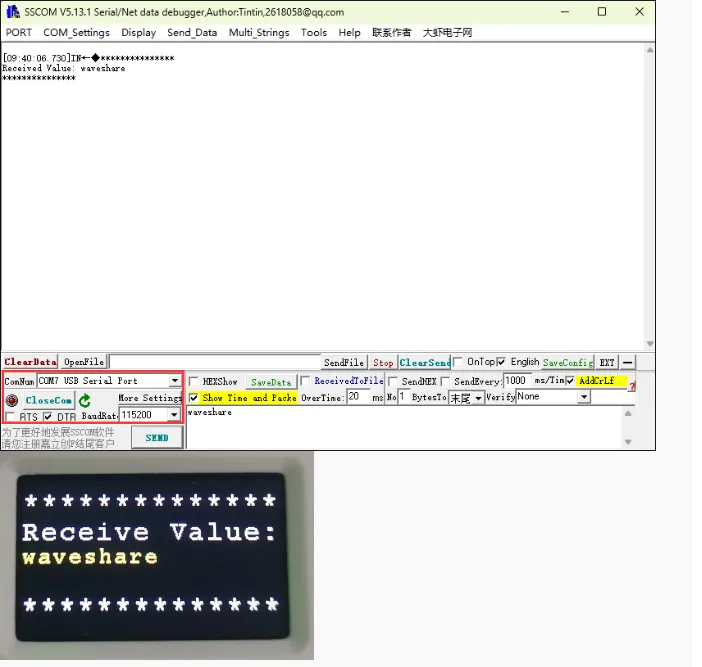

This example enables Bluetooth BLE on the ESP32-C6-GEEK. Use a mobile phone to open a Bluetooth debug assistant, connect to the ESP32-C6-GEEK, and perform BLE communication with the phone. Messages sent and received are displayed via the serial port. The operation is the same as 09_BLE_LCD, but the LCD is not enabled. It uses UART to display message content, significantly reducing power consumption. For the operation procedure, please see 09_BLE_LCD.

11_BLE_Keyboard​

• This example allows the ESP32-C6-GEEK to be used as a Bluetooth keyboard. Connect the ESP32-C6-GEEK to a PC via Bluetooth to perform a series of single-key or key combination operations. It is suitable for simulating a BLE keyboard with the ESP32-C6-GEEK, sending text and key commands, and testing stability and reliability.
• Press the Boot button to reboot and exit the program.

Code​

Code Analysis​

• Bluetooth name

    BleKeyboard bleKeyboard("ESP32-C6-GEEK", "Waveshare", 100);


Check if the Bluetooth keyboard is connected. If connected:

• Output the prompt "Sending 'Waveshare'..." to the serial port, then use the print method to send the string "Waveshare".
• Output the prompt "Sending Enter key..." to the serial port, then use the write method to send the Enter key (KEY_RETURN).
• Output the prompt "Sending Ctrl+Alt+Delete..." to the serial port. Press the left Ctrl, left Alt, and Delete keys in sequence, delay for 100 milliseconds, then release all keys.
• Output the prompt "Waiting 5 seconds..." to the serial port, then delay for 5000 milliseconds, waiting for the next loop.

  void loop() {
  if(bleKeyboard.isConnected()) {
    Serial.println("Sending 'Waveshare'...");
    bleKeyboard.print("waveshare");

    delay(500);

    Serial.println("Sending Enter key...");
    bleKeyboard.write(KEY_RETURN);

    delay(500);

    Serial.println("Sending Ctrl+Alt+Delete...");
    bleKeyboard.press(KEY_LEFT_CTRL);
    bleKeyboard.press(KEY_LEFT_ALT);
    bleKeyboard.press(KEY_DELETE);
    delay(100);
    bleKeyboard.releaseAll();
  }

  Serial.println("Waiting 5 seconds...");
  delay(5000);
}

Operation Result​

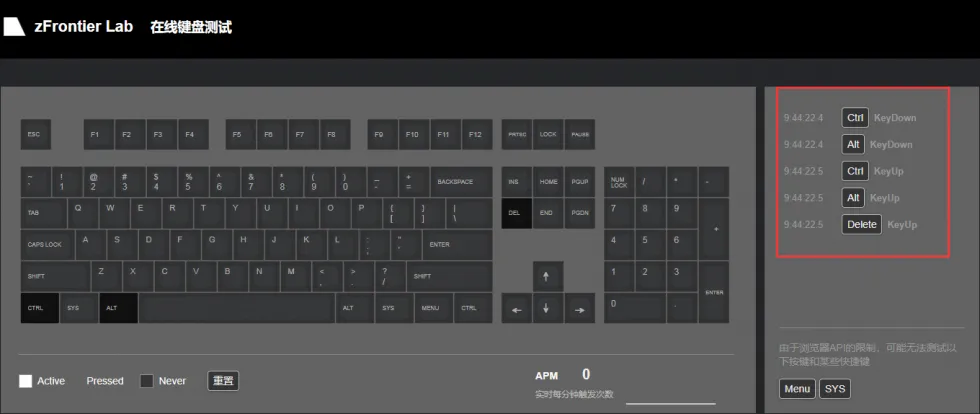

• Use the PC to turn on Bluetooth, scan and connect to the device.
• Once successfully connected, a series of keyboard operations (output "Waveshare", Ctrl+Alt+Delete) will be performed every 5 seconds.
• Press the Boot button to reboot and exit the program.
• You can view the values of individual keys in the BleKeyboard.h file located in the libraries folder.

12_WIFI_AP_LCD​

This example enables the Wi-Fi AP mode on the ESP32-C6-GEEK. After a PC connects to its Wi-Fi, you can log in to the IP address and control the LCD display of the ESP32-C6-GEEK via a web interface to show images. It is suitable for learning how the ESP32-C6-GEEK interacts with Wi-Fi and LCD, acting as a Wi-Fi Access Point to communicate with clients and display content on the LCD, testing stability and reliability.

Code​

Code Analysis​

• Initialize related configurations and the LCD display.

• Call WIFI_AP_Init() to initialize the Wi-Fi Access Point.

    void setup()
  {
    Config_Init();
    LCD_Init();
    Serial.begin(115200);
    LCD_SetBacklight(100);
    Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, WHITE);
    Paint_SetRotate(90);
    LCD_Clear(0x000f);

    WIFI_AP_Init();
  }


• Monitor if any client connects to the server via WiFiClient client = server.available();.

• Call the WIFI_LCD_Control(client) function to handle the connected client. This may perform operations related to LCD display, with specific functionality depending on the implementation of that function.

  void loop()
  {
    WiFiClient client = server.available();   // listen for incoming clients
    WIFI_LCD_Control(client);
  }


Operation Result​

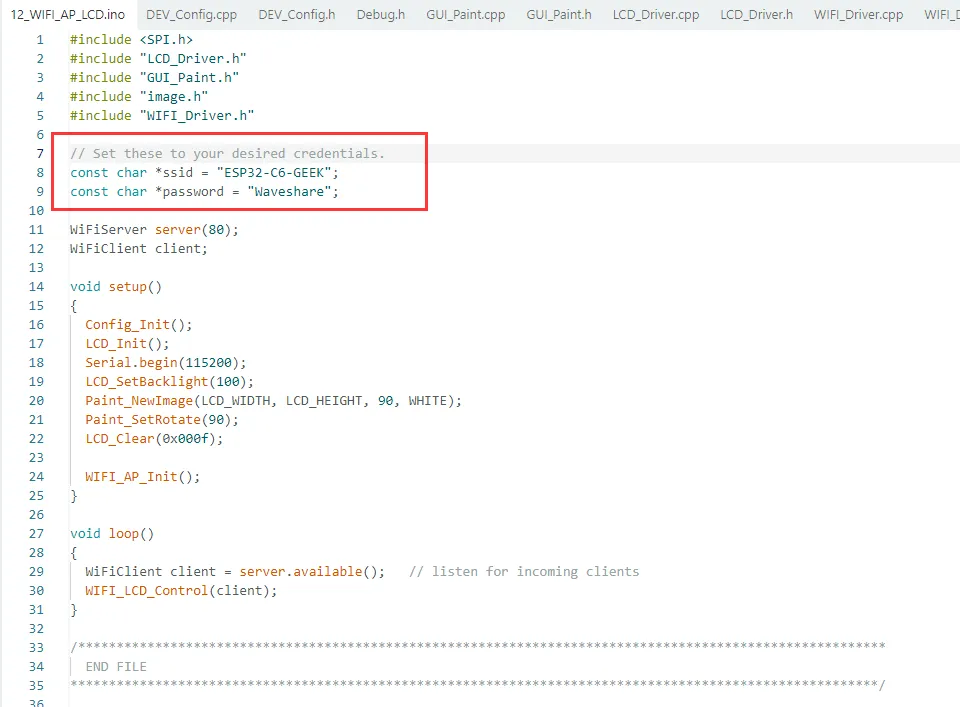

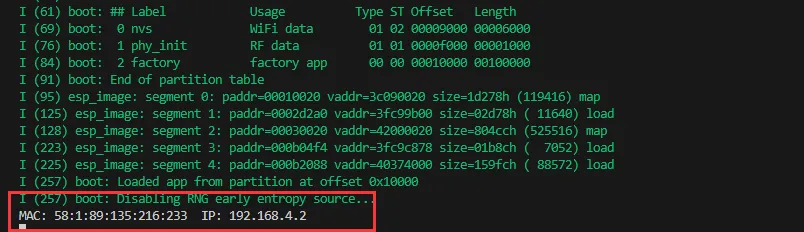

The ssid is the AP name (ESP32-C6-GEEK) created by the ESP32-C6-GEEK, and the password is the password (Waveshare) to connect to the AP.

• Use a PC to connect to the AP of the ESP32-C6-GEEK, and enter the password Waveshare.
• If the program is successfully flashed but the PC cannot detect the Wi-Fi, power cycle the development board and try again.
• The LCD will display the IP address of the HTTP server.

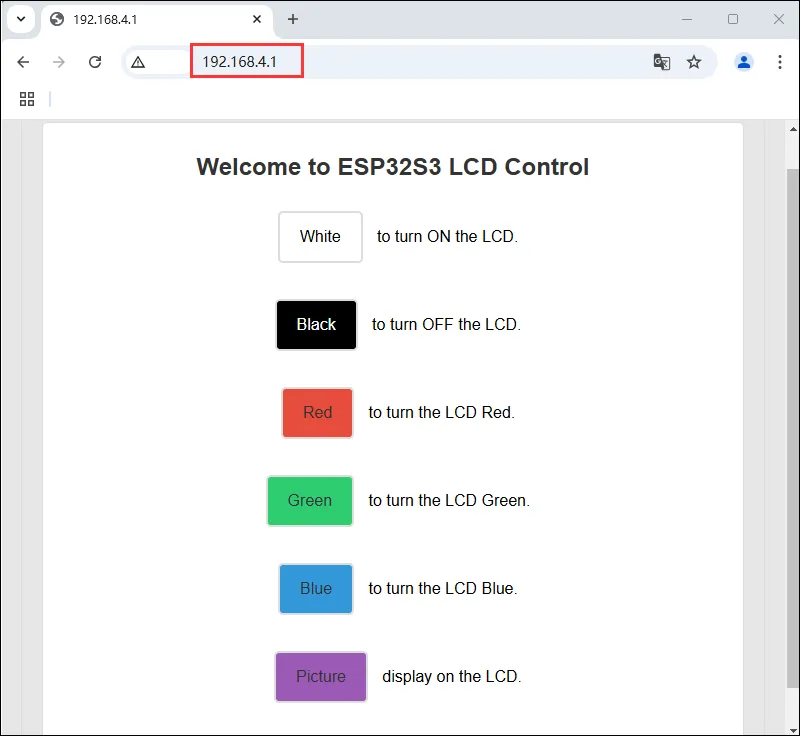

Use a browser to log in to the IP: 192.168.4.1. Control the LCD of the ESP32-C6-GEEK via buttons on the server. Press different buttons and observe the changes on the LCD. For more LCD display functions, refer to the LCD Program Description.

13_WIFI_TCP_Client​

This example enables the STA mode of Wi-Fi on the ESP32-C6-GEEK. After connecting to the same Wi-Fi network as a PC or mobile phone, it acts as a TCP Client to access a TCP Server created by the PC or phone, establishes TCP communication with them, and displays the received content on the LCD. It is suitable for learning the interaction between the ESP32-C6-GEEK, Wi-Fi, and LCD. After connecting to Wi-Fi, it attempts to connect to a server, sends/receives data, and displays it on the LCD, testing stability and reliability.

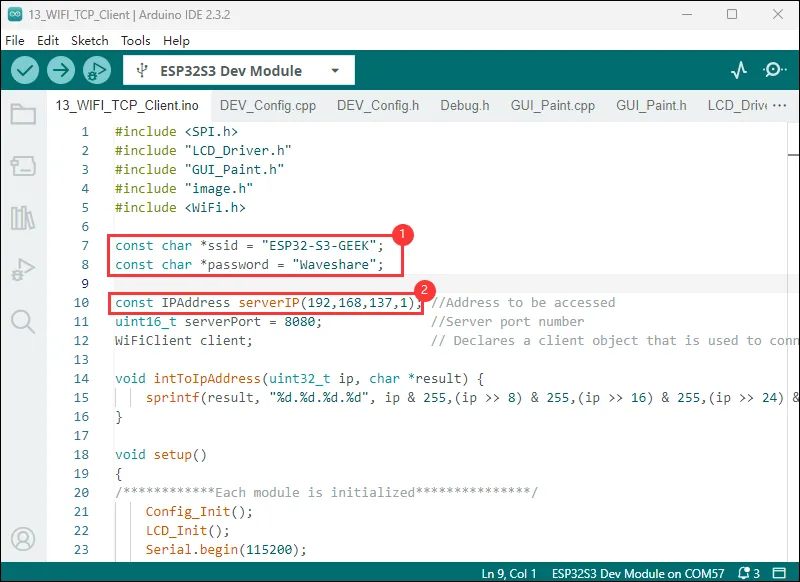

Code Modification​

1. Use a PC to open a hotspot, set the network band to "Any available frequency". Ensure the ssid and password in the program match the Wi-Fi name and password you want to connect to.

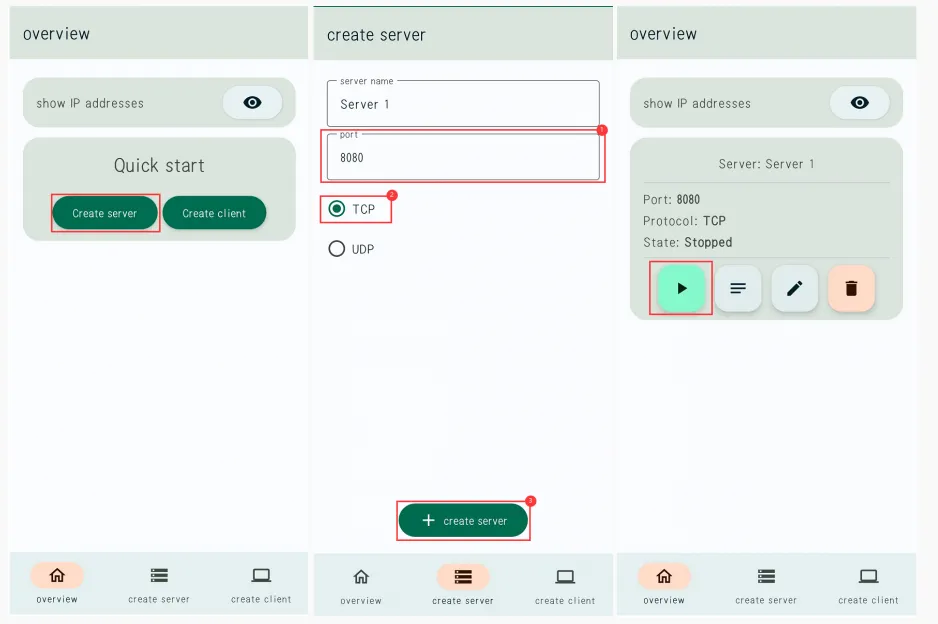

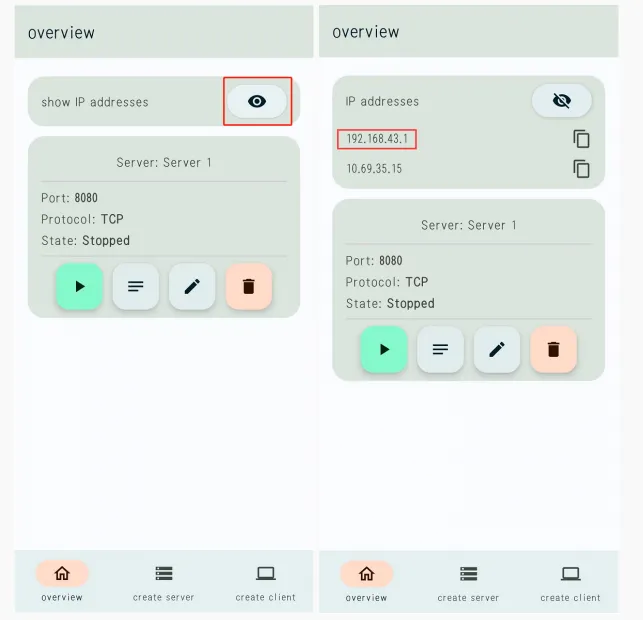

2. Download the Network Debug Assistant, and modify it to your local IP address (the following 192.168.137.1 is an example IP address).



Code​

Code Analysis​

• Use the sprintf function to convert the passed IP address integer into a string in dotted-decimal format and store it in the character array pointed to by the result pointer.

    void intToIpAddress(uint32_t ip, char *result) {
    sprintf(result, "%d.%d.%d.%d", ip & 255,(ip >> 8) & 255,(ip >> 16) & 255,(ip >> 24) & 255);
  }


Operation Result​

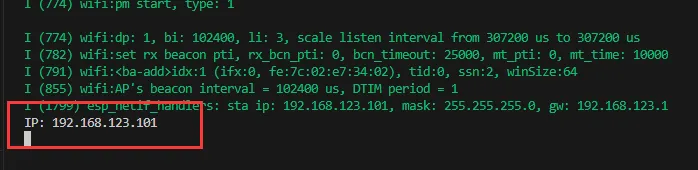

• The LCD screen shows an attempt to connect, and after a few moments it shows that it is connected

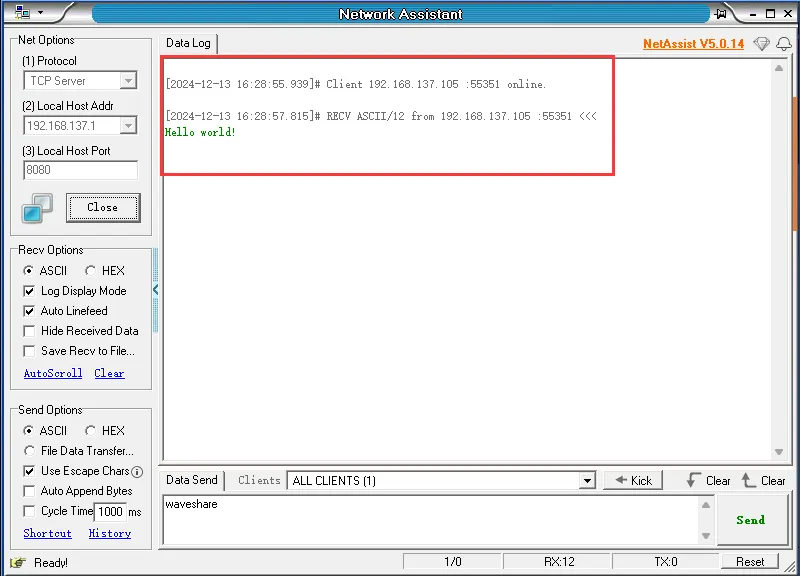

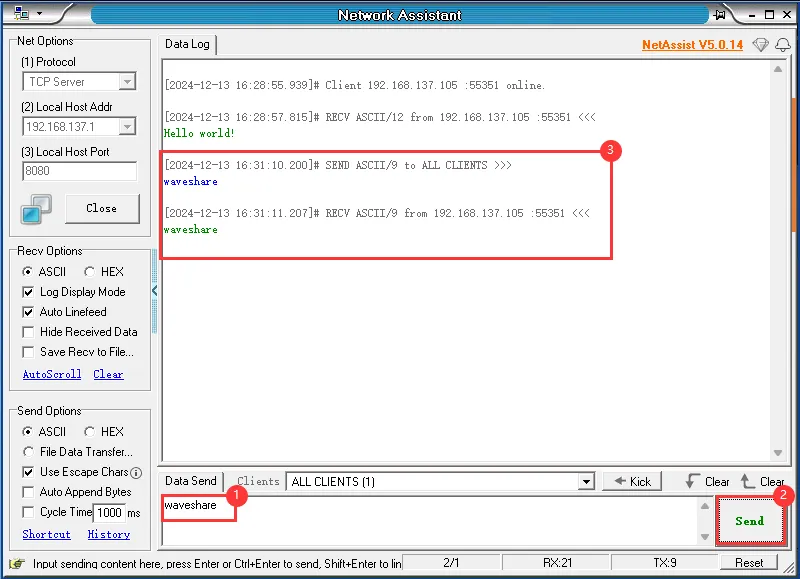

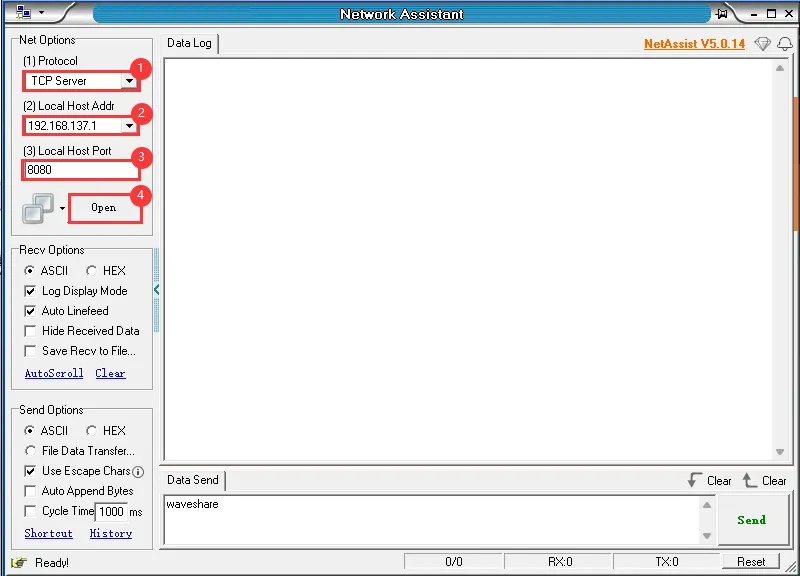

• Modify the NetAssist parameters: set the protocol type to TCP Server, the local IP address to match the one in the program, and the local port to 8080. Click "Open" to establish a connection and TCP communication with the ESP32-C6-GEEK (TCP Client).

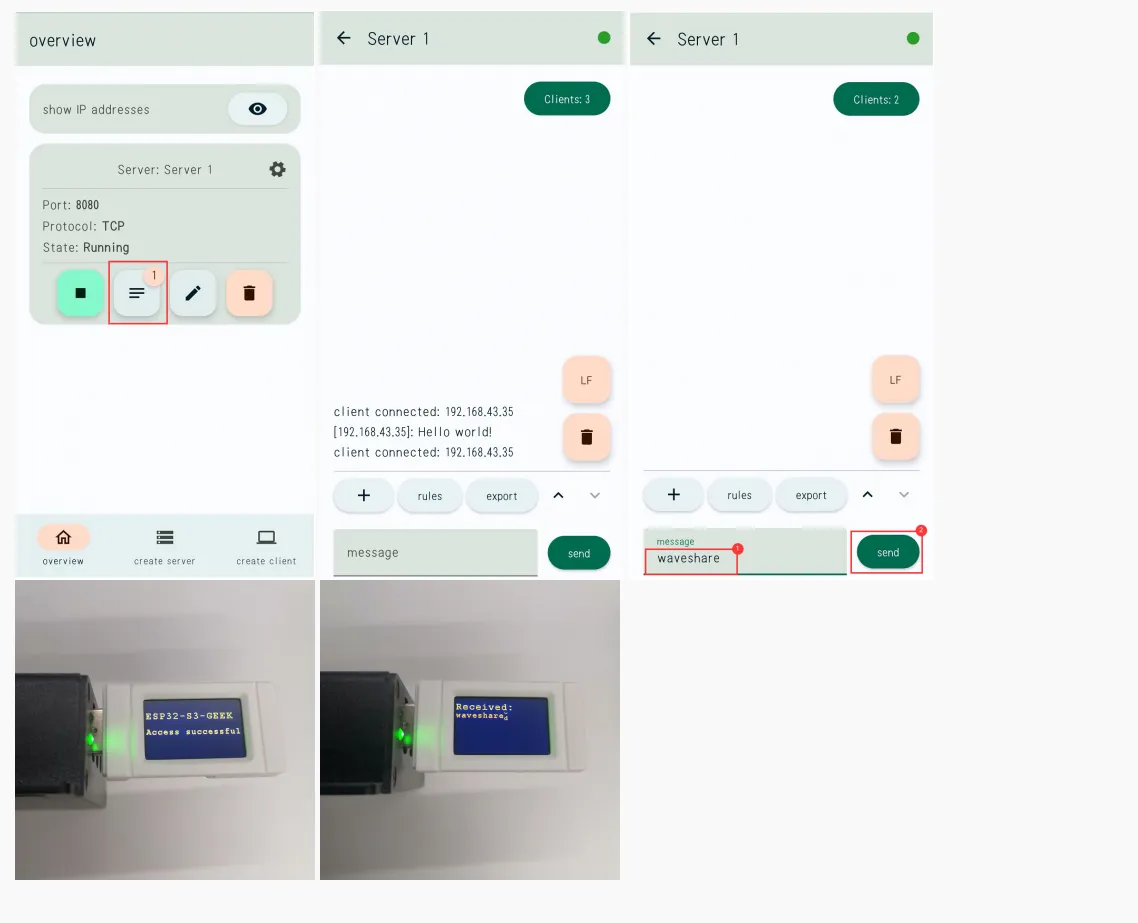

• After a successful connection, the TCP Server will receive the TCP message "Hello world" sent by the ESP32-C6-GEEK, and the LCD will display "Access successful".


• Send a TCP message from the PC-side TCP Server to the ESP32-C6-GEEK. If sent successfully, the ESP32-C6-GEEK, acting as a TCP Client, will receive the message and display its content on the LCD.


• You can also use a mobile phone to open a hotspot. The hotspot name and password should be the same as above, and select the 2.4GHz band.
• After opening the hotspot, use a TCP debug assistant on the phone to perform TCP communication with the ESP32-C6-GEEK.


• Modify the serverIP in the code to the IP address (192.168.6.123) of the TCP server created by the mobile phone at last.


• After flashing the code and a successful connection, the TCP Server will receive the TCP message "Hello world" sent by the ESP32-C6-GEEK, and the LCD will display "Access successful". You can send TCP messages from the mobile TCP Server to the ESP32-C6-GEEK. If sent successfully, the ESP32-C6-GEEK, acting as a TCP Client, will receive the message and display its content on the LCD.



14_WIFI_TCP_Server​

This example enables the STA mode of Wi-Fi on the ESP32-C6-GEEK. After connecting to a hotspot opened by a PC, it creates a TCP Server. The PC creates a TCP Client to access the ESP32-C6-GEEK, establishing TCP communication between them. The GEEK displays the received content on the LCD. It is suitable for learning the interaction between the ESP32-C6-GEEK, Wi-Fi, and LCD. It acts as a Wi-Fi server, receives client data and displays it on the LCD, testing stability and reliability.

Code Modification​

• Use a PC to open a hotspot, set the network band to "Any available frequency". Ensure the ssid and password in the program match the Wi-Fi name and password you want to connect to.

Code​

Code Analysis​

• Use the sprintf function to convert the passed IP address integer into a string in dotted-decimal format and store it in the character array pointed to by the result pointer.

    void intToIpAddress(uint32_t ip, char *result) {
    sprintf(result, "%d.%d.%d.%d", ip & 255,(ip >> 8) & 255,(ip >> 16) & 255,(ip >> 24) & 255);
  }


Operation Result​

• After successful flashing, the LCD displays:


• After Wi-Fi connection, the LCD will display the TCP Server IP. Open a TCP Client in a serial debug assistant to connect and communicate with the ESP32-C6-GEEK (TCP Server).

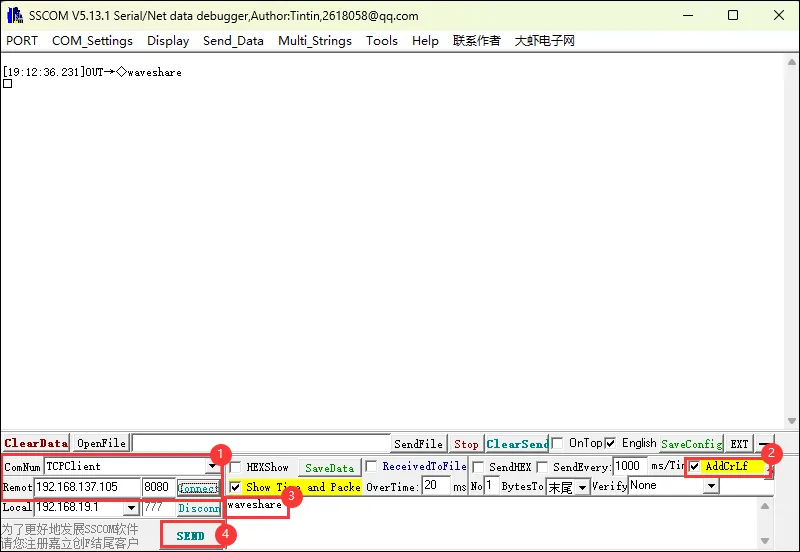

  • ①. Modify the port name to "TCPClient", set the remote address to the IP displayed on the LCD screen, port 8080, and click Connect.
  • ②. Check AddCrLf.
  • ③. Enter the message.
  • ①. Click Send.


• After the message is sent successfully, the LCD screen displays:



15_WIFI_Web_Server​

This example enables the AP mode of Wi-Fi on the ESP32-C6-GEEK. After a PC connects to its Wi-Fi, open a serial debug assistant. Send messages to the GEEK via the HTTP webpage created by the ESP32-C6-GEEK, and observe the received content on the serial debug assistant and LCD. It is suitable for learning the interaction between the ESP32-C6-GEEK, Wi-Fi, and LCD. It acts as a Wi-Fi Access Point server, handles client requests, and tests stability and reliability.

Hardware Connection​

• Connect the UART interface of the ESP32-C6-GEEK to a PC using a USB to UART tool, and open a serial debug assistant.



Code​

Code Analysis​

• Initialize related configurations and the LCD display.

• Call WIFI_AP_Init() to initialize the Wi-Fi Access Point.

    void setup()
  {
    Config_Init();
    LCD_Init();
    Serial.begin(115200);
    LCD_SetBacklight(100);
    Paint_NewImage(LCD_WIDTH, LCD_HEIGHT, 90, WHITE);
    Paint_SetRotate(90);
    LCD_Clear(0x000f);

    WIFI_AP_Init();
  }


Operation Result​

• After successful flashing, use a PC to connect to the AP of the ESP32-C6-GEEK.
• The LCD will display the IP address of the HTTP server. Use a browser to log in to the IP: 192.168.4.1.

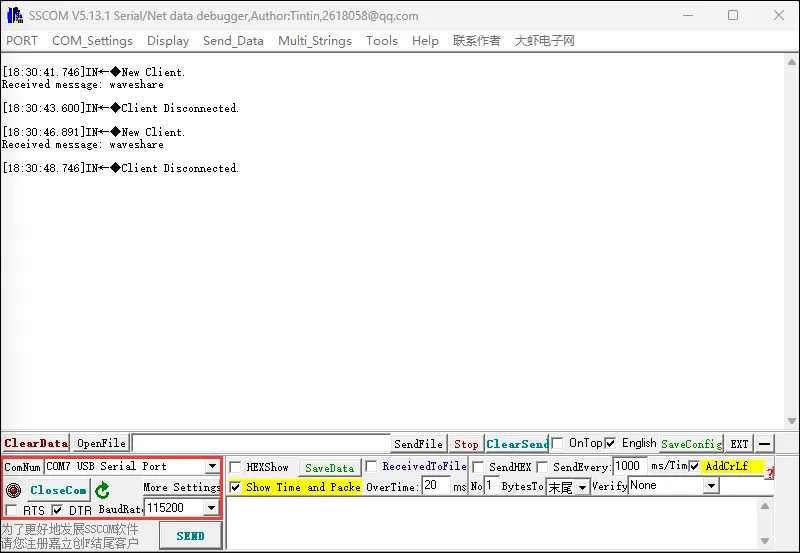

• Connect the UART interface of the ESP32-C6-GEEK to a PC using a USB to UART tool, and open a serial debug assistant.
• You can enter text content on the HTTP Web page and send an HTTP request to the ESP32-C6-GEEK. The received content will be displayed on both the serial debug assistant and the LCD.







16_MQTT_sub_pub​

This example enables the STA mode of Wi-Fi on the ESP32-C6-GEEK. After connecting to Wi-Fi, it uses the Waveshare Cloud Platform for MQTT communication, subscribing to and publishing topics to achieve long-distance information transmission. It is suitable for learning the interaction between the ESP32-C6-GEEK, Wi-Fi, MQTT, and LCD. It connects to Wi-Fi and an MQTT server, sends/receives JSON data and displays it on the LCD, testing stability and reliability.

Code​

Code Analysis​

• Convert the received byte array into a string inputString.

• Find specific JSON fields within the string, such as "data" and "key" (these can be modified to specific data identifiers according to actual needs).

• Extract the value of the "builtIn" field and perform different operations based on that value. If the value is 0, display "close!" on the LCD; otherwise, display "open!". Also output the corresponding information via the serial port.

  void callback(char* topic, byte* payload, unsigned int length) {
    String inputString;
    for (int i = 0; i < length; i++) {
      inputString += (char)payload[i];
    }
    Serial.println(inputString);
    int dataBegin = inputString.indexOf("\"data\"");
    if (dataBegin == -1) {
      Serial.println(F("Missing 'data' field in JSON."));
      return;
    }

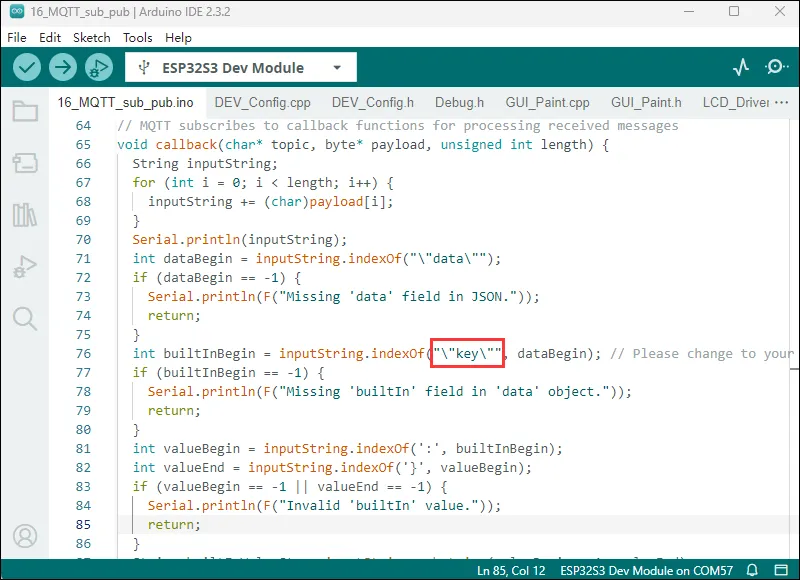

    int builtInBegin = inputString.indexOf("\"key\"", dataBegin); // Please change to your data identifier
    if (builtInBegin == -1) {
      Serial.println(F("Missing 'builtIn' field in 'data' object."));
      return;
    }
    int valueBegin = inputString.indexOf(':', builtInBegin);
    int valueEnd = inputString.indexOf('}', valueBegin);
    if (valueBegin == -1 || valueEnd == -1) {
      Serial.println(F("Invalid 'builtIn' value."));
      return;
    }
    String builtInValueStr = inputString.substring(valueBegin + 1, valueEnd);
    int builtInValue = builtInValueStr.toInt();
    if (builtInValue == 0) {
      LCD_Clear(BLACK);
      Paint_DrawString_EN(75, 55, "close!", &Font24, BLACK, GREEN);
      Serial.println("close!");
    }else{
      LCD_Clear(BLACK);
      Paint_DrawString_EN(75, 55, "open!", &Font24, BLACK, GREEN);
      Serial.println("open!");
    }
  }


• Display "Wifi Connecting..." on the LCD.

• Output the name of the Wi-Fi network being connected to via the serial port.

• After a successful connection, clear the LCD screen and display "Wifi Connected", while also outputting the local IP address via the serial port.

  void setup_wifi() {
    Paint_DrawString_EN(20, 50, "Wifi Connecting...", &Font20, BLACK, GREEN);
    Serial.println();
    Serial.print("Connecting to ");
    Serial.println(ssid);
    WiFi.mode(WIFI_STA);
    WiFi.begin(ssid, password);
    while (WiFi.status() != WL_CONNECTED) {
      delay(500);
      Serial.print(".");
    }
    LCD_Clear(BLACK);
    Paint_DrawString_EN(20, 50, "Wifi Connected", &Font20, BLACK, GREEN);
    Serial.println("IP address: ");
    Serial.println(WiFi.localIP());
  }


Code Modification​

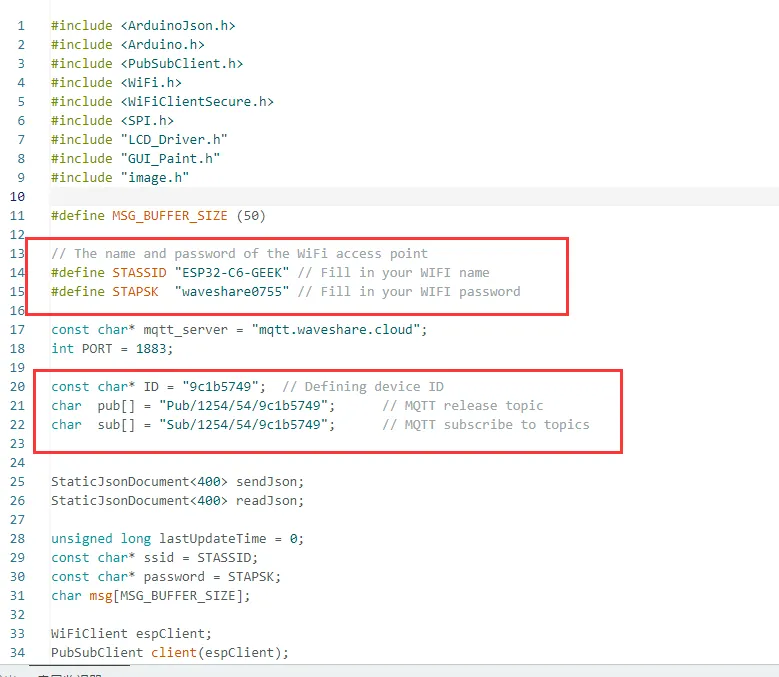

The hotspot name and password you open must match those in the code. After registering an account and creating a device on the Waveshare Cloud Platform, you can view the device's Client ID, Pub Topic, Sub Topic from the "View Address" of the newly created device on the platform. Write these into the example program for assignment, so the ESP32-C6-GEEK can connect to your own cloud platform device.

In the callback function, you can modify the recognized identifier to the device property identifier you created on the cloud platform.

Operation Result​

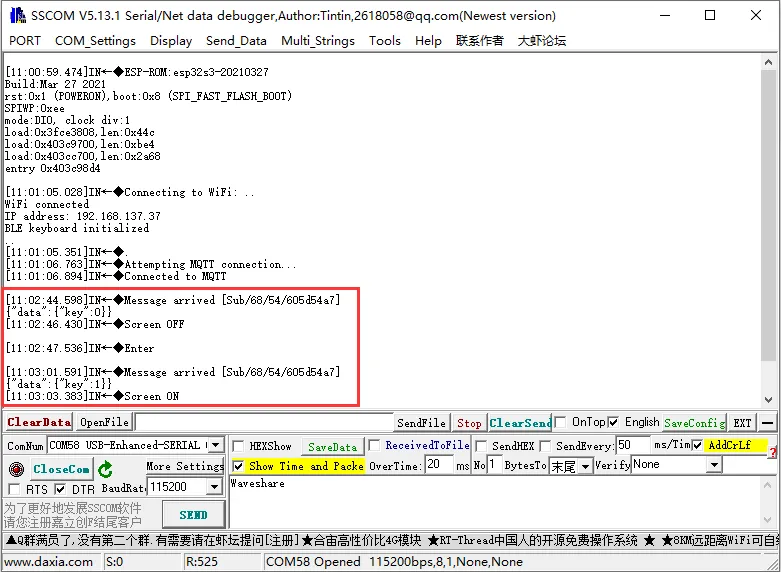

• Flash the code. After connecting to Wi-Fi, check if the device enters the online state on the Waveshare Cloud Platform. If not, try refreshing the webpage or using a USB to UART adapter to connect to a PC and view the Wi-Fi and MQTT connection status via a serial debug assistant. The connection status of Wi-Fi and MQTT will also be displayed on the LCD screen.

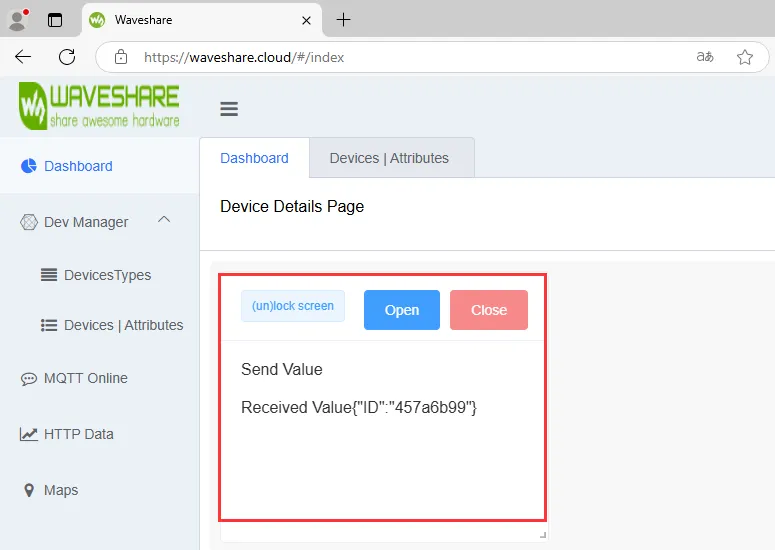

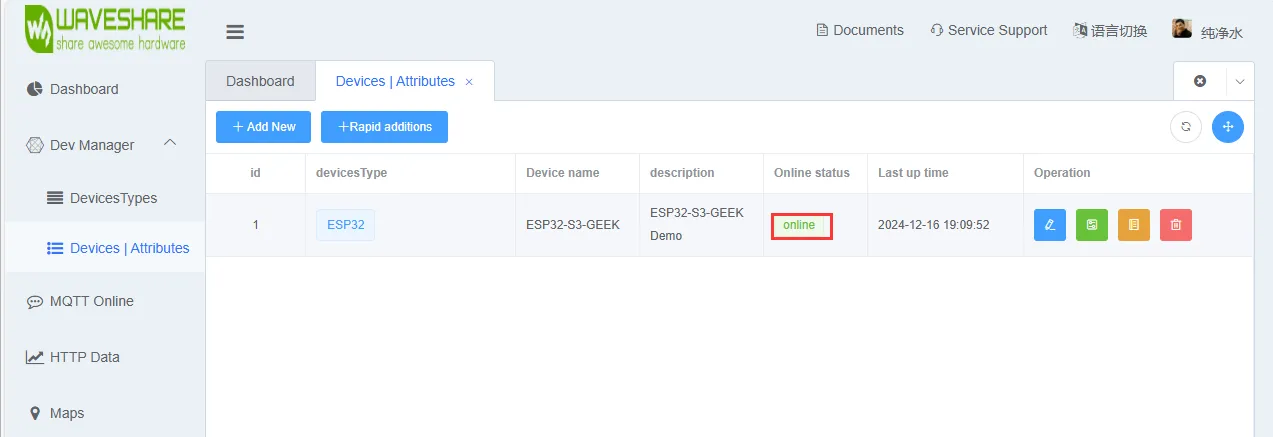

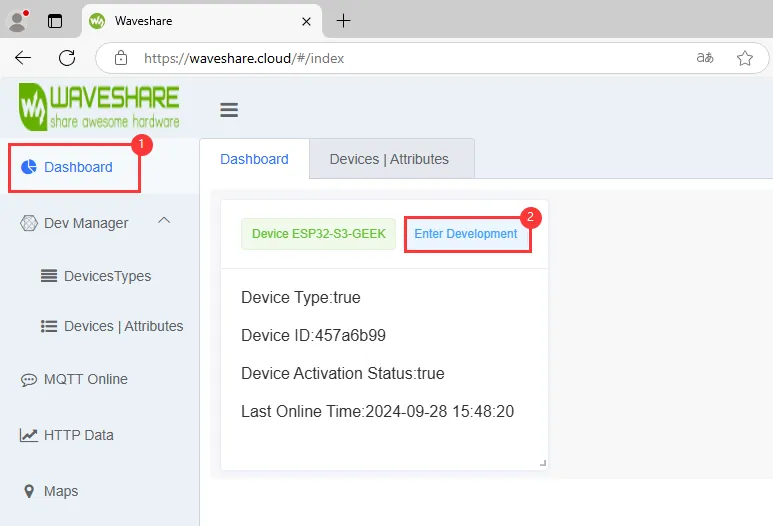

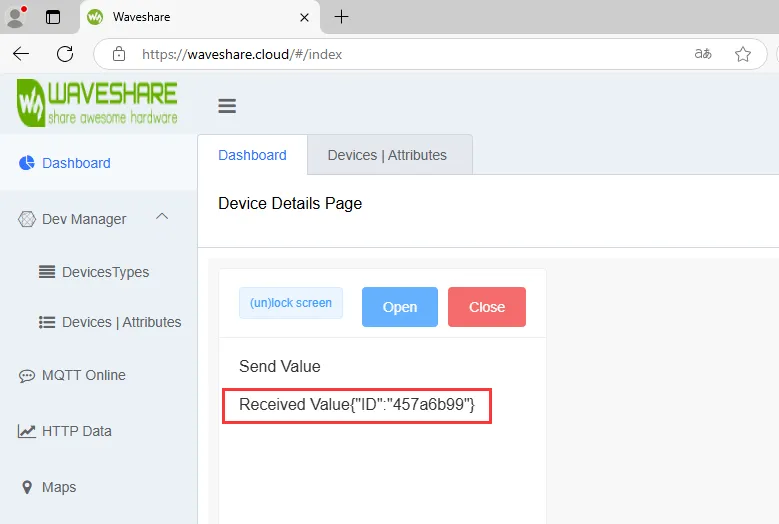

• After the ESP32-C6-GEEK successfully connects to the Waveshare Cloud, you can send MQTT messages via the Dashboard.

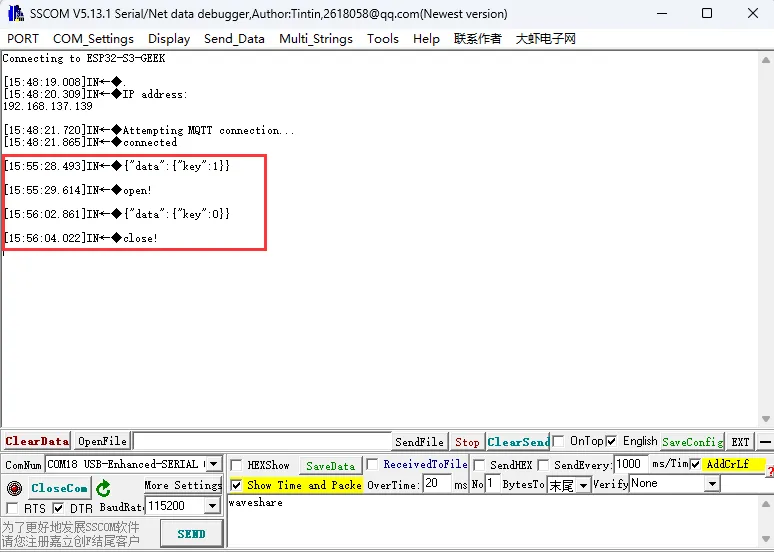

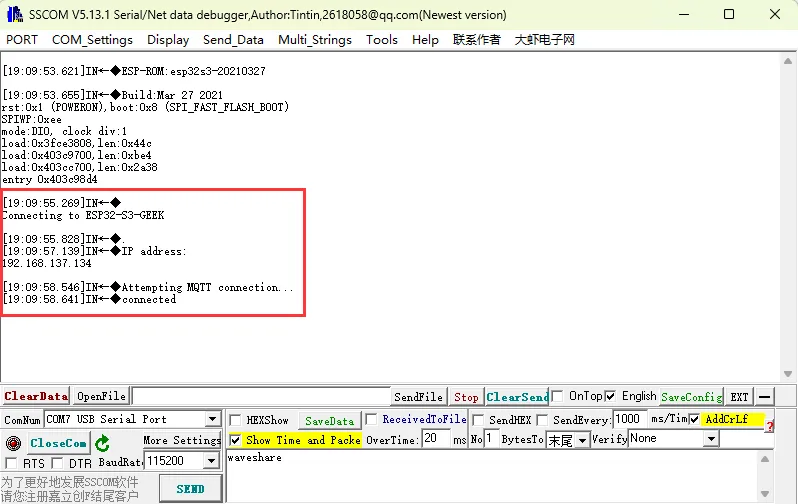

• We can see different feedback on the LCD and serial debug assistant for changes in the device property value (e.g., "key"). Also, in the device's received values on the Waveshare Cloud, we can see the data sent by the ESP32-C6-GEEK to the cloud device (the received value is your own Client ID; you can later send back the return value of "key" or status to the Waveshare Cloud). This achieves MQTT data uplink and downlink, topic subscription and publication.





17_MQTT_BLE_Keyboard​

This example enables the STA mode of Wi-Fi and Bluetooth on the ESP32-C6-GEEK. After connecting to Wi-Fi and Bluetooth, it uses the Waveshare Cloud Platform to achieve remote Bluetooth screen locking and password input for unlocking, with more key combinations awaiting your development. It is suitable for integrating BLE keyboard, Wi-Fi, and MQTT on the ESP32-C6-GEEK, controlling LCD display, and testing stability and reliability.

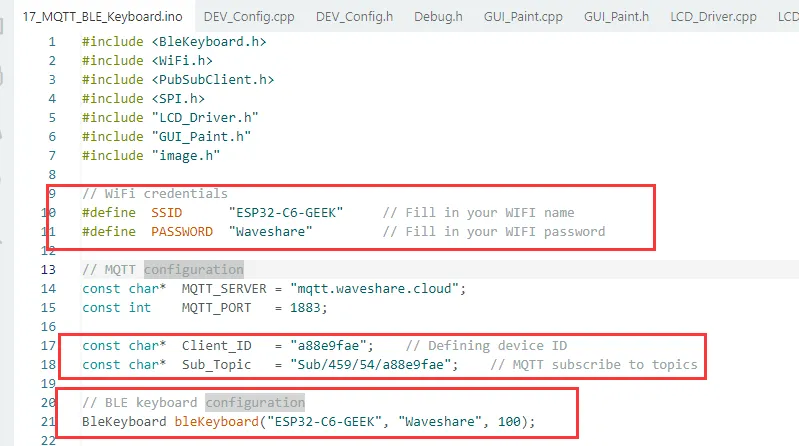

Code​

Code Analysis​

• Acts as the callback function for MQTT subscription, used to process received messages.

• Prints the topic of the received message, then converts the received byte array into a string.

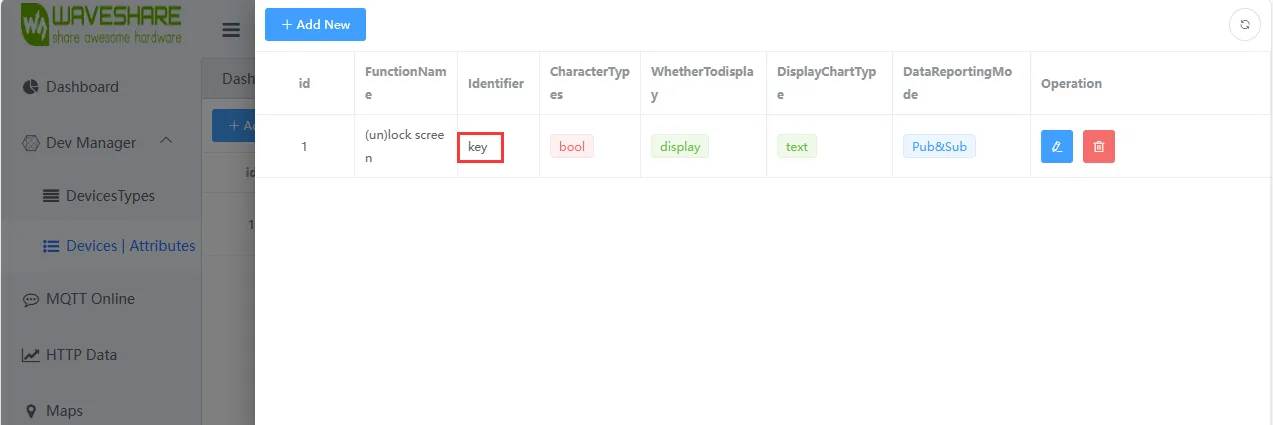

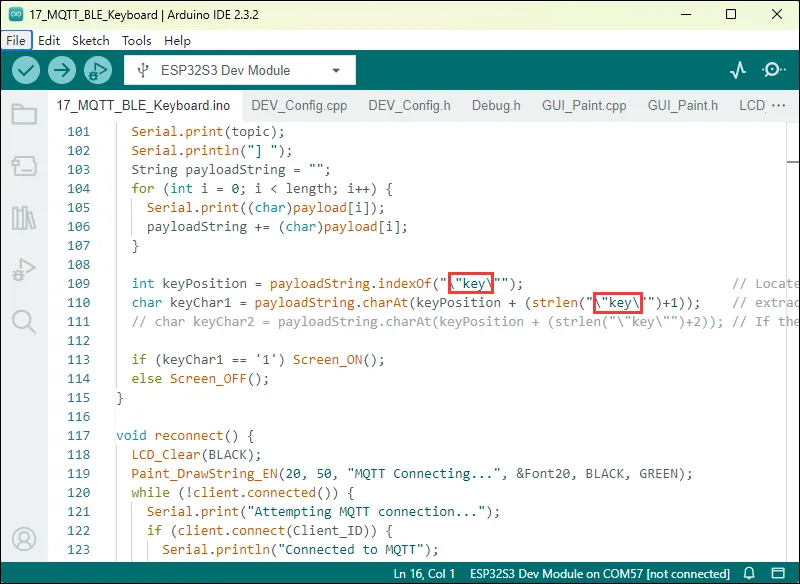

• Finds the specific JSON field "key" within the string. If your identifier is not "key", you need to modify the code.

• Extracts the value of the "key" field, and calls the Screen_ON or Screen_OFF function depending on whether the value is "1" or something else.

    void callback(char* topic, byte* payload, unsigned int length) {
    Serial.print("Message arrived [");
    Serial.print(topic);
    Serial.println("] ");
    String payloadString = "";
    for (int i = 0; i < length; i++) {
      Serial.print((char)payload[i]);
      payloadString += (char)payload[i];
    }

    int keyPosition = payloadString.indexOf("\"key\"");                           // Locate to "key", If your identifier is not "key", change it to your own!
    char keyChar1 = payloadString.charAt(keyPosition + (strlen("\"key\"")+1));    // extract the first digit of the "key" value
    // char keyChar2 = payloadString.charAt(keyPosition + (strlen("\"key\"")+2)); // If the extracted value is greater than one digit, add another digit

    if (keyChar1 == '1') Screen_ON();
    else Screen_OFF();
  }


• Outputs the name of the Wi-Fi network being connected to via the serial port.

• Sets the Wi-Fi mode to STA (client mode) and attempts to connect using the specified SSID and password.

• During the connection process, continuously outputs connection status information via the serial port in a loop until the connection is successful.

• After a successful connection, clear the LCD screen and display "Wifi Connected", while also outputting the local IP address via the serial port.

    void setupWiFi() {
    Paint_DrawString_EN(20, 50, "Wifi Connecting...", &Font20, BLACK, GREEN);
    Serial.print("Connecting to WiFi: ");
    WiFi.setSleep(true);
    WiFi.begin(SSID, PASSWORD);
    while (WiFi.status() != WL_CONNECTED) {
      delay(500);
      Serial.print(".");
    }
    LCD_Clear(BLACK);docs
    Paint_DrawString_EN(20, 50, "Wifi Connected", &Font20, BLACK, GREEN);
    Serial.println("\nWiFi connected");
    Serial.println("IP address: " + WiFi.localIP().toString());
  }


Code Modification​

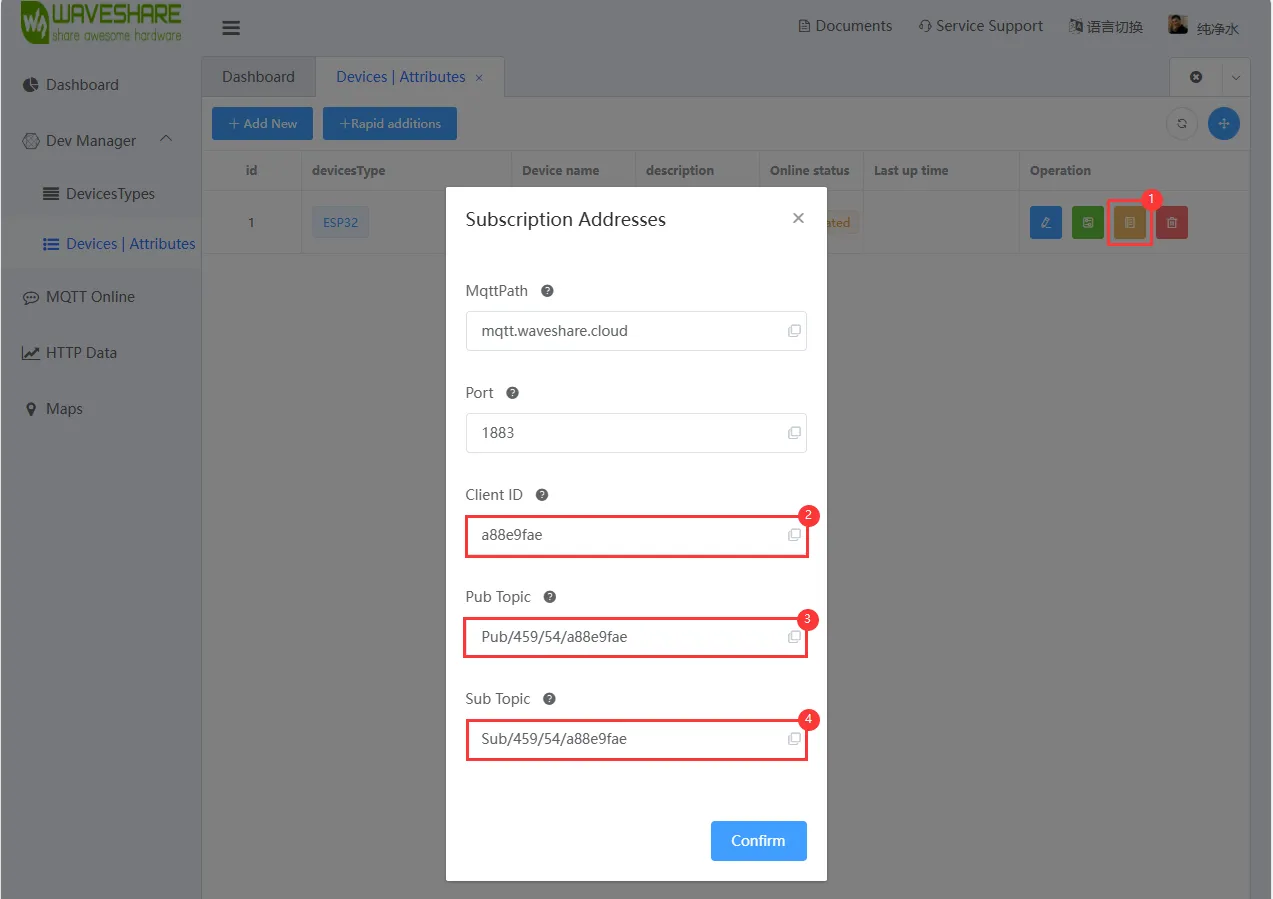

• The hotspot name and password you open must match those in the code (2.4GHz or Any available frequency). After registering an account and creating a device on the Waveshare Cloud Platform, you can view the device's Client ID, Sub Topic from the "View Address" of the newly created device on the platform. Write these into the example program for assignment, so the ESP32-C6-GEEK can connect to your own cloud platform device.
• The Bluetooth name and password you connect to must match those in the code.




• In the callback function, you can modify the recognized identifier to the device property identifier you created on the cloud platform.

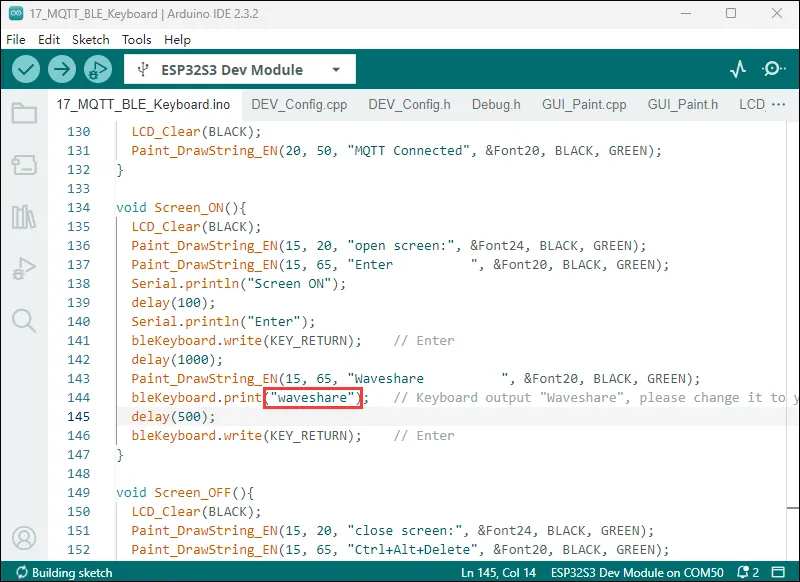

• Modify to the text or password you want to input.



Operation Result​

• Flash the code. After connecting to Wi-Fi, turn on the PC's Bluetooth function to pair and connect the device. Check if the device enters the online state on the Waveshare Cloud Platform. If not, try refreshing the webpage or using a USB to UART adapter to connect to a PC and view the Wi-Fi and MQTT connection status via a serial debug assistant. The connection status of Wi-Fi and MQTT will also be displayed on the LCD screen.




• After the ESP32-C6-GEEK successfully connects to the Waveshare Cloud, you can log in to the Waveshare Cloud Dashboard via a mobile phone for remote control.


• We can see different feedback on the LCD and serial debug assistant for changes in the device property value (e.g., "key"). Later, you can also modify the keys in the callback function to combinations like Ctrl+C, Ctrl+V, etc., to DIY your own remote-control Bluetooth keyboard.


• You can also test which keys are pressed by the Bluetooth control of the ESP32-C6-GEEK using the Keyboard Tester website.
• Open the keyboard tester interface on your PC, control it via your mobile phone, and the keyboard tester interface will display which keys are being pressed.



This chapter includes the following two sections, please read as needed:

• Setting Up Development Environment
• Example

Setting up the Development Environment​

Install the ESP-IDF Development Environment​

1. Download the installation manager from the ESP-IDF Installation Manager page. This is Espressif's latest cross-platform installer. The following steps demonstrate how to use its offline installation feature.

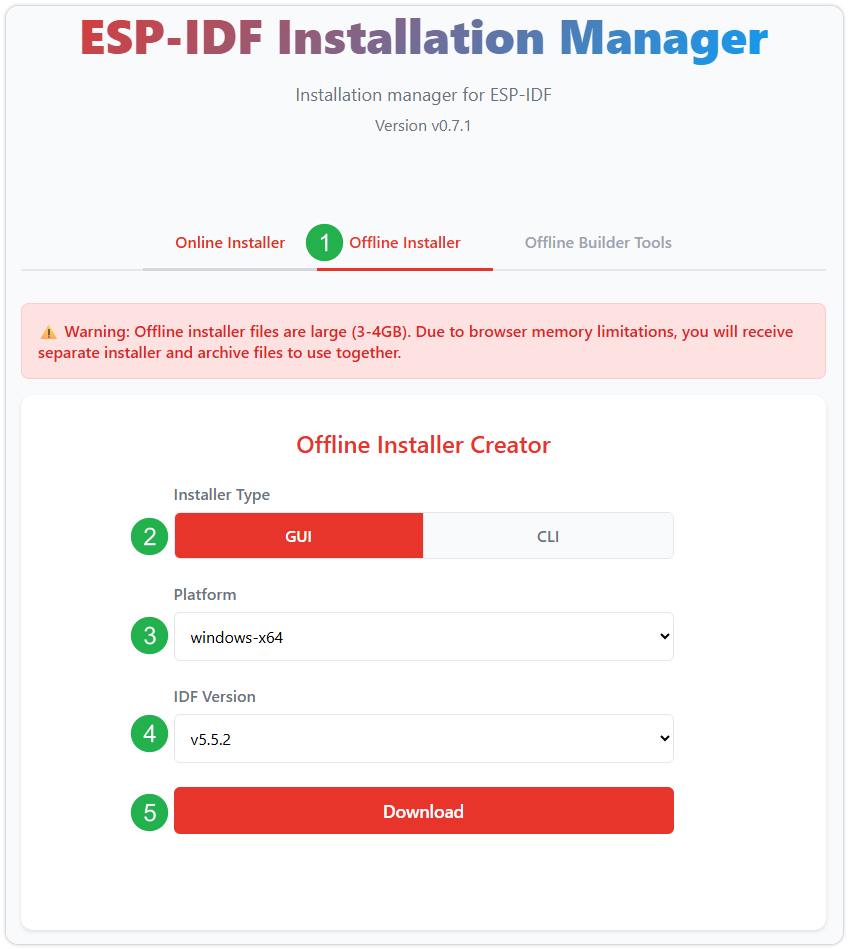

   Click the Offline Installer tab on the page, then select Windows as the operating system and the ESP-IDF version you need (the version shown in the screenshot is for reference only — choose the version that fits your actual needs).




   After confirming your selection, click the download button. The browser will automatically download two files: the ESP-IDF Offline Package (.zst) and the ESP-IDF Installer (.exe).




   Please wait for both files to finish downloading.

2. Once the download is complete, double-click to run the ESP-IDF Installer (eim-gui-windows-x64.exe).

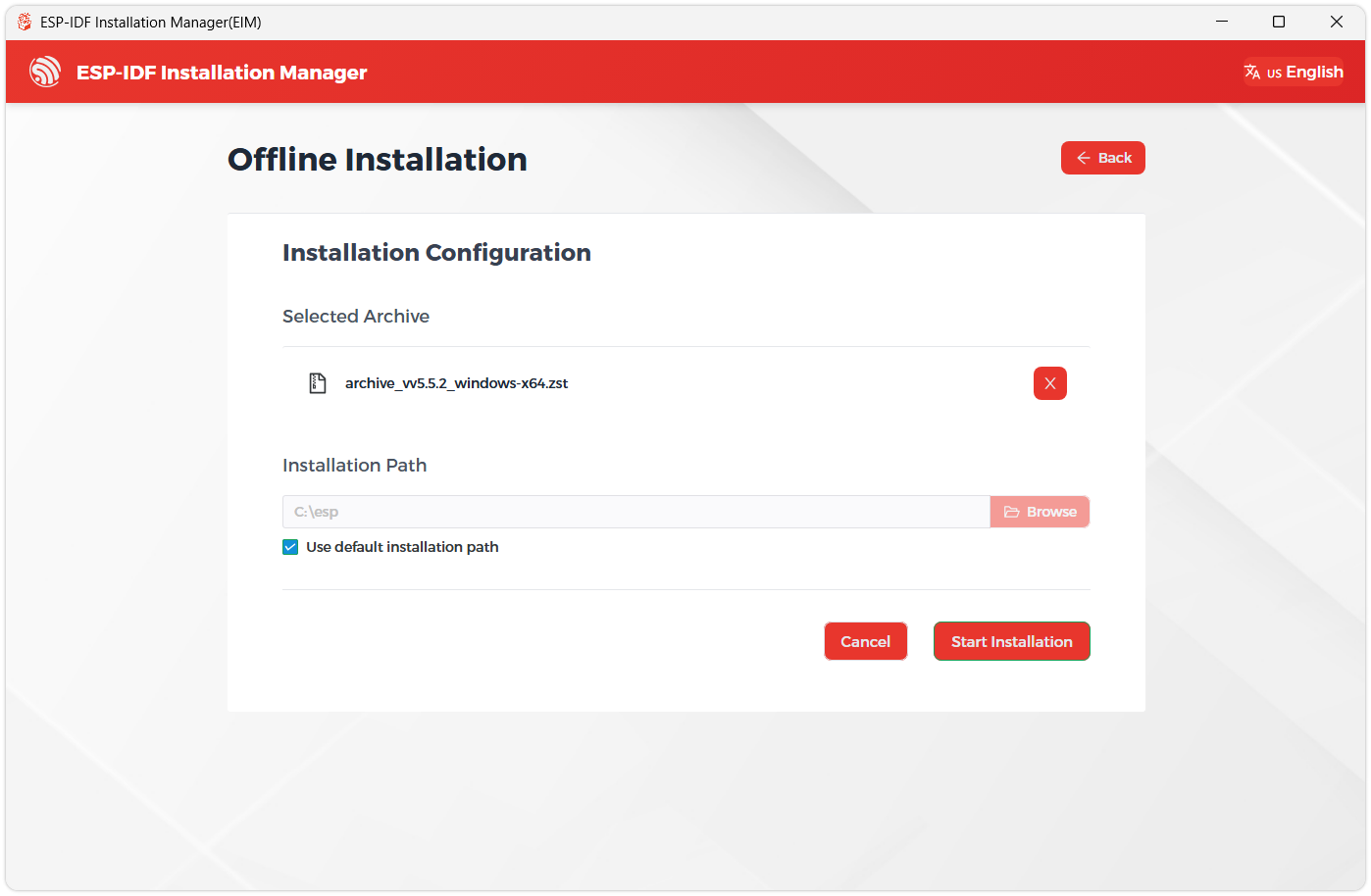

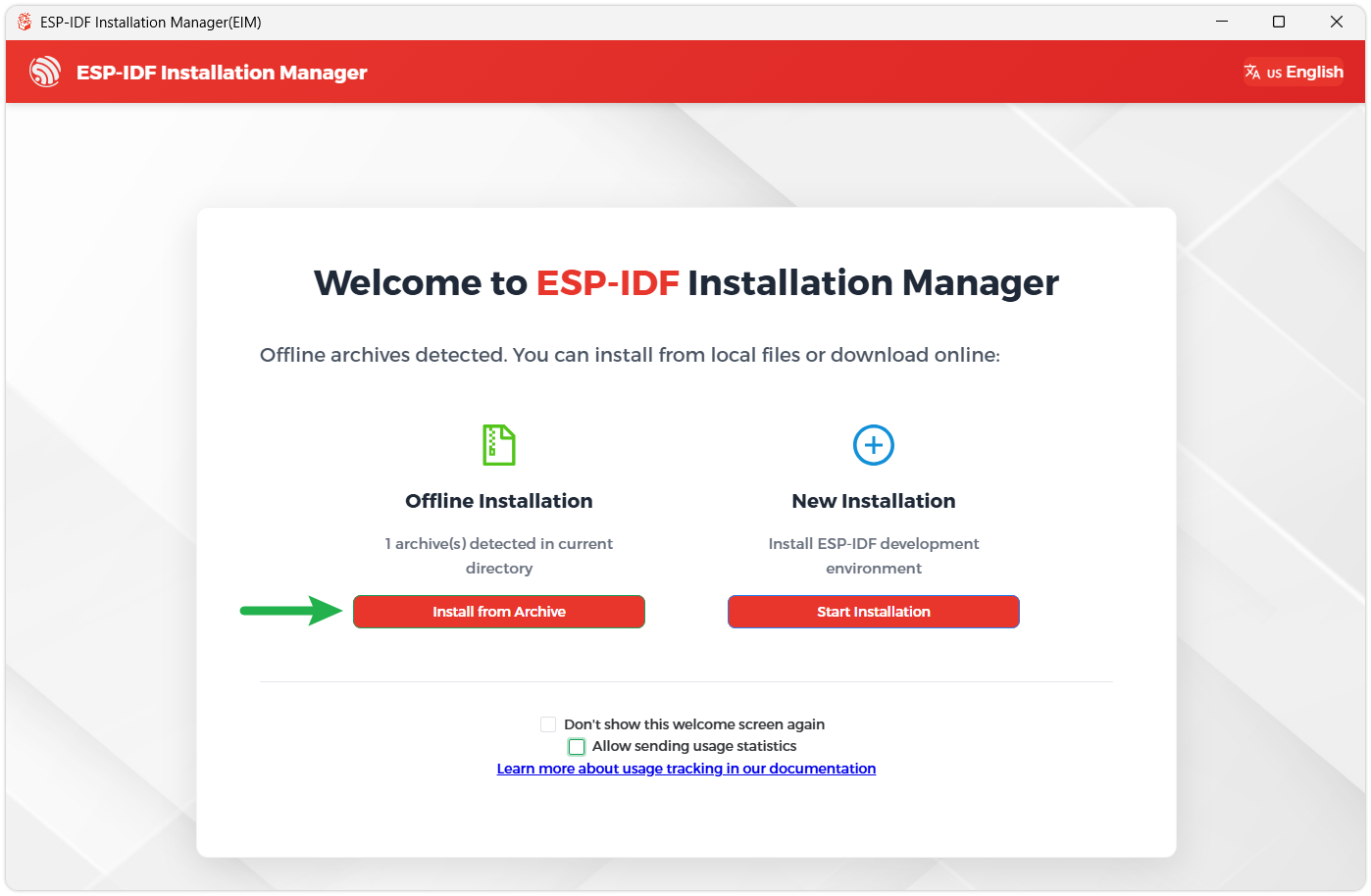

   The installer will automatically detect if the offline package exists in the same directory. Click Install from archive.




   Next, select the installation path. We recommend using the default path. If you need to customize it, ensure the path does not contain Chinese characters or spaces. Click Start installation to proceed.

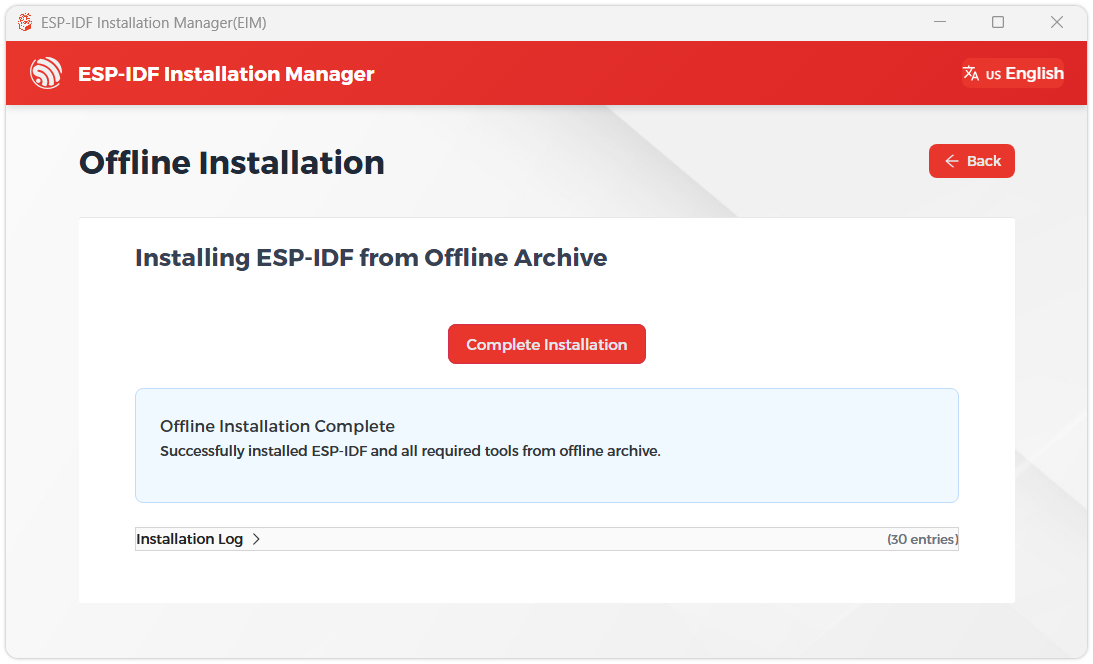

3. When you see the following screen, the ESP-IDF installation is successful.

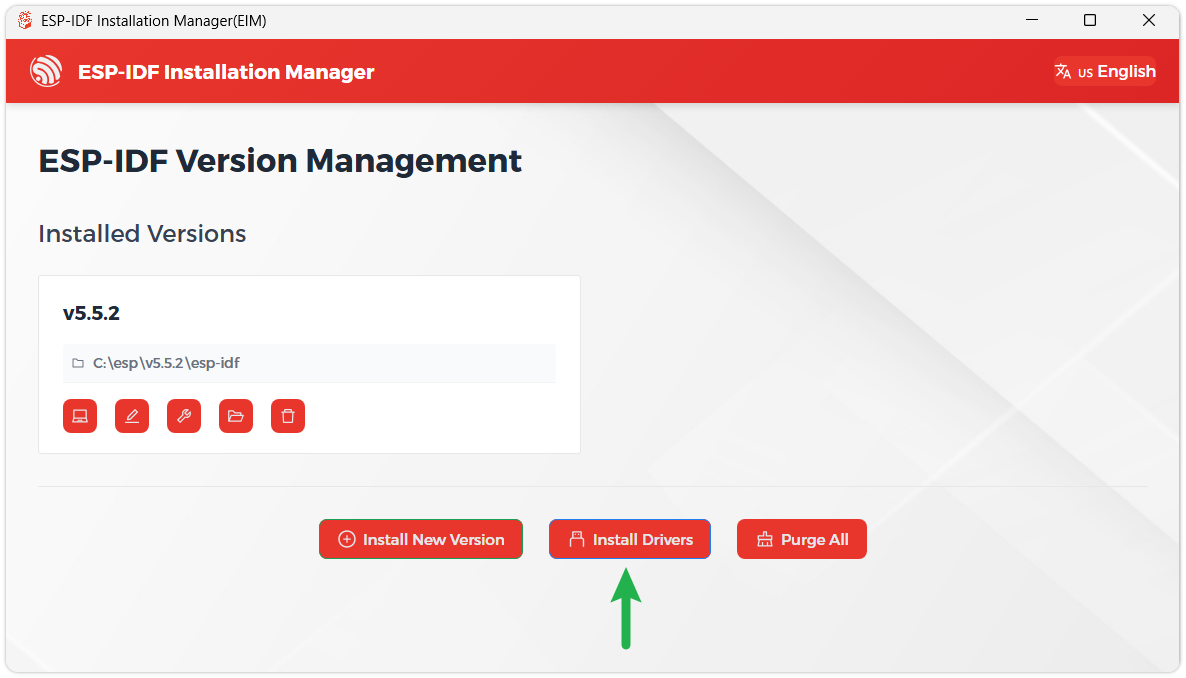

4. We recommend installing the drivers as well. Click Finish installation, then select Install driver.




Install Visual Studio Code and the ESP-IDF Extension​

1. Download and install Visual Studio Code.

2. During installation, it is recommended to check Add "Open with Code" action to Windows Explorer file context menu to facilitate opening project folders quickly.

3. In VS Code, click the Extensions icon  in the Activity Bar on the side (or use the shortcut Ctrl + Shift + X) to open the Extensions view.

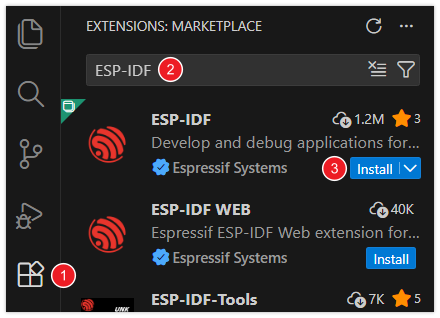

4. Enter ESP-IDF in the search box, locate the ESP-IDF extension, and click Install.




5. For ESP-IDF extension versions ≥ 2.0, the extension will automatically detect and recognize the ESP-IDF environment installed in the previous steps, requiring no manual configuration.

Example​

The ESP-IDF examples are located in the ESP-IDF directory of the example package.

01_SD_Card​

This demo demonstrates how to use ESP32-C6-GEEK to test the read and write functions of the TF card

Additional Preparation

• Insert the TF card into the card slot (TF card needs to be formatted as FAT32)

Code Analysis

• Initialize the TF card using SDSPI mode:

    SD_card_Init();


• Test TF card read/write functionality:

   example_sdcard_task();


02_WIFI_AP​

This demo can set the development board as a hotspot, allowing phones or other devices in STA mode to connect to the development board.

Code Analysis

• In the file softap_example_main.c, find SSID and PASSWORD, and then your phone or other device in STA mode can use the SSID and PASSWORD to connect to the development board.

    #define EXAMPLE_ESP_WIFI_SSID      "waveshare_esp32"
    #define EXAMPLE_ESP_WIFI_PASSWORD      "wav123456"


03_WIFI_STA​

This example can configure the development board as a STA device to connect to a router, thereby enabling access to the system network.

Code Analysis In the file esp_wifi_bsp.c, find ssid and password, then modify them to the SSID and Password of an available router in your current environment.

  wifi_config_t wifi_config = {
      .sta = {
        .ssid = "PDCN",
        .password = "1234567890",
      },
  };

04_Button​

This example demonstrates how to use the Boot button as a multi-functional button, capable of performing different actions such as single-click, double-click, or long-press.

Code Analysis

• Initialize the Boot button and bind the button event function:

    void button_init(void)
    {
        button_config_t btn_cfg = {0};
        button_gpio_config_t gpio_cfg = {
            .gpio_num = BOOT_BUTTON_NUM,
            .active_level = 0,
            .enable_power_save = true,
        };

        esp_err_t ret = iot_button_new_gpio_device(&btn_cfg, &gpio_cfg, &boot_btn);
        assert(ret == ESP_OK);
        ret |= iot_button_register_cb(boot_btn, BUTTON_SINGLE_CLICK, NULL, button_event_cb, NULL);
        ret |= iot_button_register_cb(boot_btn, BUTTON_DOUBLE_CLICK, NULL, button_event_cb, NULL);
        ret |= iot_button_register_cb(boot_btn, BUTTON_LONG_PRESS_START, NULL, button_event_cb, NULL);
    }


05_lvgl_example​

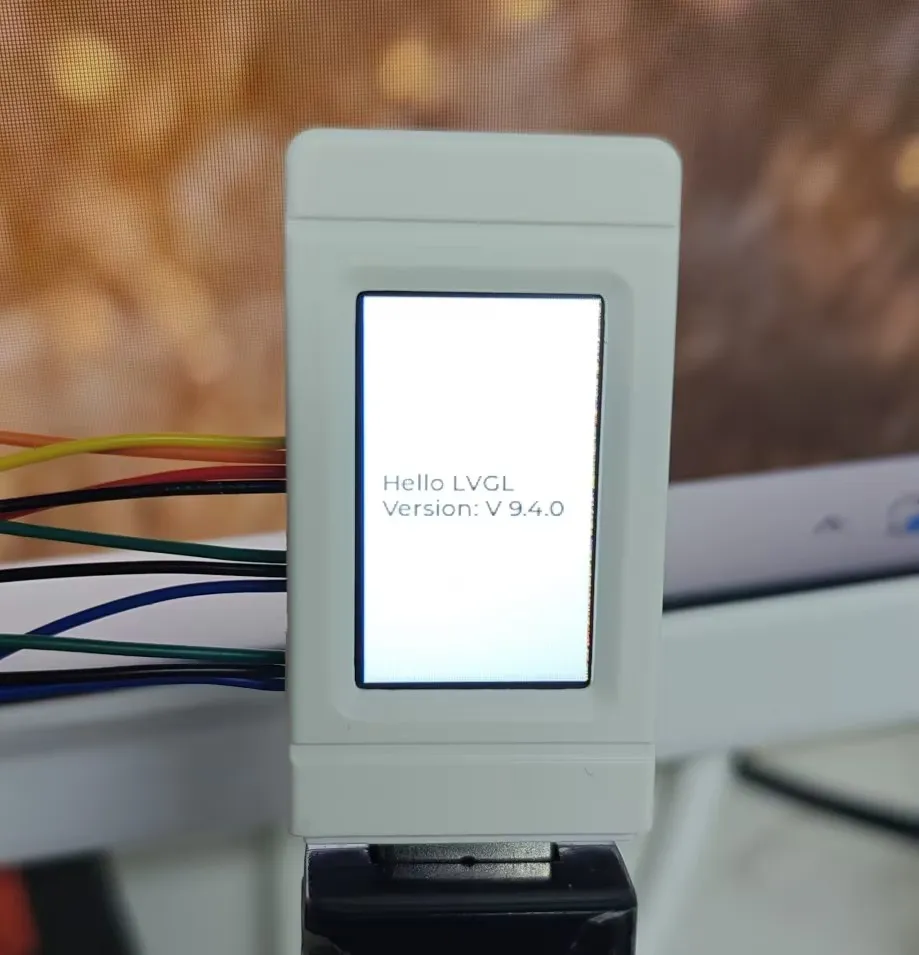

Implement some multi-functional GUI interfaces on the screen by porting LVGL.

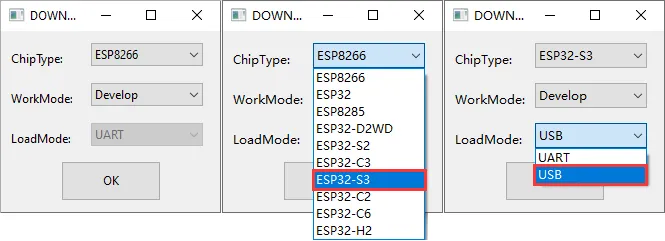

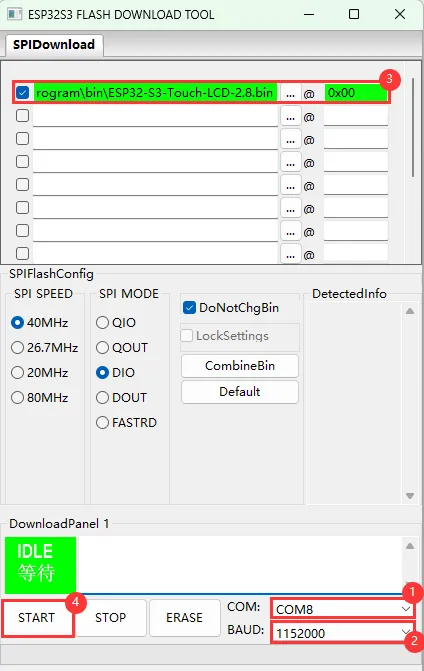

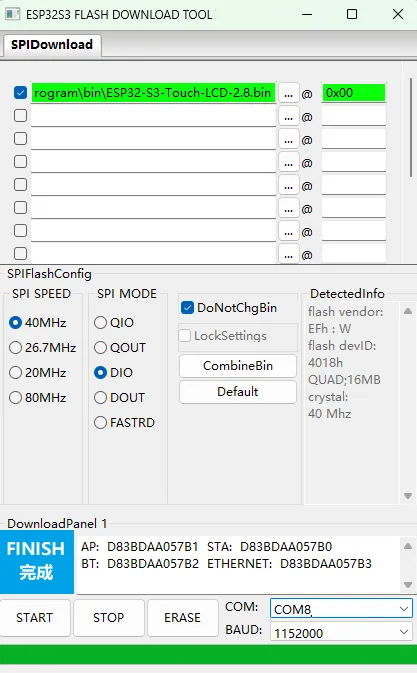

This product provides test firmware that can be flashed directly to verify whether the onboard devices are functioning properly.

• Firmware download: ESP32-C6-GEEK Example. The bin file is located in the Firmware directory of the example package.
• Flash address: 0x00

1. Hardware Resources​

• Development Board Design Files

  • ESP32-C6-GEEK Schematic
  • ESP32-C6-GEEK_V2 Schematic

2. Technical Manuals​

• ESP32-C6 Chip Official Manuals

  • Datasheet
  • Technical Reference Manual

• Datasheets

  • ST7789P3 Datasheet

3. Example​

• Example (GitHub)

4. Software Tools​

• Debugging Tools:
  • Serial Port Debug Assistant
  • Network Debug Assistant
  • iOS Bluetooth Debug Assistant
  • Android Bluetooth Debug Assistant
  • Android TCP Debug Assistant
• Firmware Flashing Tool:
  • Flash_download_tool

Support

Monday-Friday (9:30-6:30) Saturday (9:30-5:30)

Email: services01@spotpear.com
