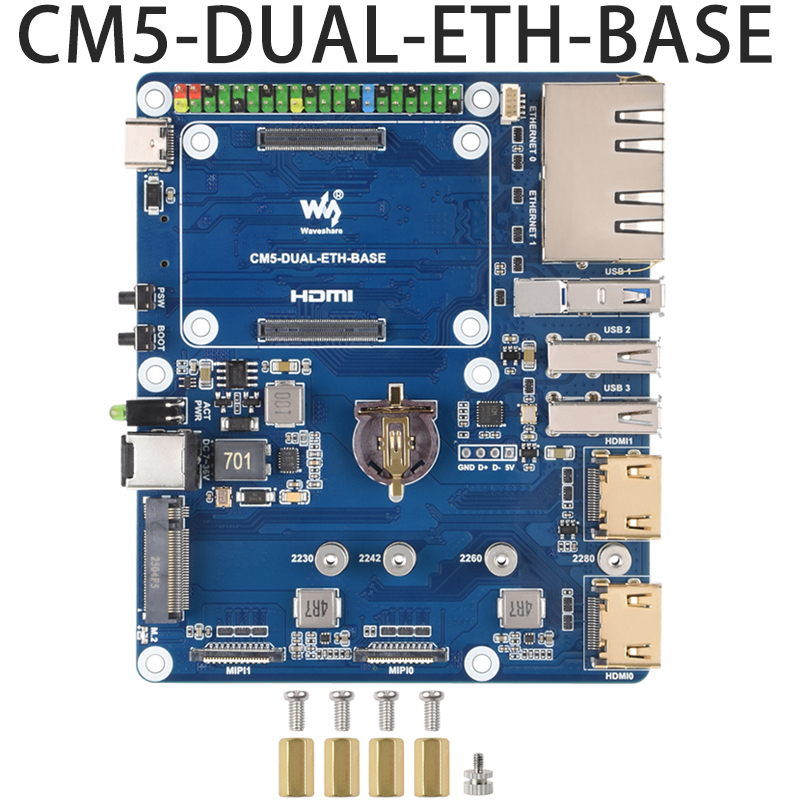

Raspberry Pi CM5 Gigabit/2.5G Dual Ethernet Expansion Board with RJ45 GPIO IO Base
$49.9
Raspberry Pi CM5 Gigabit/2.5G Dual Ethernet Port Expansion Board with RJ45 Ports, Dual 4K Output, Dual MIPI, and 40-pin GPIO
Raspberry Pi Compute Module 5 CM5 Recommend
Raspberry Pi CM5 Dual Ethernet Port Expansion Board
Designed specifically for the Raspberry Pi Compute Module 5 core board
Product Parameters
| CM5 deck | Applies to all versions of Compute Module 5 |
|---|---|
| networking | 1000M Ethernet RJ45 port 2500M Ethernet RJ45 port |
| Connectors | Raspberry Pi 40-pin GPIO header |
| USB | USB 3.2 Gen1 × 1 USB 2.0 × 2 |
| MIPI | 4-lane MIPI interface × 2 (22-pin 0.5mm FFC connector) |
| video | HDMI port × 2, supports dual 4K output |
| M.2 | M.2 M KEY（PCIe Gen2/3 x 1） |
| storage | Onboard Micro SD card slot (for CM5 version without eMMC) |
| Fan connector | 5V, 4-pin JST-SH PWM fan connector |
| other | Onboard EEPROM and encryption chip |
| Power input | 7V~36V wide voltage |
| size | Base plate: 109.0 × 91.5 (mm) |
Connecting to the Compute Module 5 core board
Onboard 40-pin GPIO interface and standard CM5 connector
Supports connection to Compute Module 5 Lite/eMMC series core boards
This picture is for reference only. Please refer to the configuration list for detailed configuration
Support for M.2 NVMe drives
Compared with the Micro SD interface of Raspberry Pi, it has faster reading and writing speed, greatly improving the reading and writing speed of the system or files, and supports NVMe SSD to boot Raspberry Pi.
This picture is for reference only. Please refer to the configuration list for detailed configuration
Applicable M.2 hard drive size
Applicable hard disk interface
Note: Only NVMe hard drive protocol is supported
More rich interfaces
Resource Introduction
- CM5 Connectors
Applies to all versions of Compute Module 5
- 40-pin GPIO interface
Easy access to various HAT/HAT+ modules
- Burning interface
Can be used as an eMMC burning interface
- PSW power button
Long press to force shutdown, short press to soft shut down or start up
- BOOT button
Press before power on, release after power on to enter the burning mode
- STAT LED
Dual-color status LED
- DC power connector
- DC-DC power supply chips
- M.2 M KEY
Supports 2280/2260/2242/2230 NVMe hard drives or AI modules
- M.2 LED
NVMe hard drive flashes when reading or writing
- MIPI interface
Supports access to DSI displays or CSI cameras
- HDMI port
HDMI interface, supports dual 4K output
- RTC battery connector
Used for external RTC battery to maintain real-time clock operation
- USB 2.0 HUB
- USB 2.0 port
Standard USB 2.0 interface
- USB 3.2 Gen1 port
USB 3.2 Gen1 interface supports 5Gbps read and write
- 2500M network port
RJ45 2500M network port, supports 10M / 100M / 1000M / 2500M network access
- 1000M network port
RJ45 1000M network port, supports 10M / 100M / 1000M network access
- FAN port
Easy access to cooling fans, 5V, 4-pin JST-SH PWM fan connector
- EEPROM and encryption chip
- USB to 2500M Ethernet port chip
- Micro SD card port
Used to connect a Micro SD card with a system, only applicable to the CM5 version without eMMC
- Other function pins
Hardware disable function, write protection and chip address selection
- IO-VREF
IO logic voltage switch 3.3V (default) or 1.8V
