PCIe To M.2 Multifunctional PoE Adapter

Supports Raspberry Pi 5, 4K Output

Onboard 2.5G PoE Ethernet Port, Supports NVMe Protocol M.2 Solid State Drive,
High-Speed Reading / Writing, Improves Working Efficiency

Connecting To Pi 5 Via 16PIN Cable

Based On 16PIN PCIe Interface Of Raspberry Pi 5, Expanding To An M.2 M KEY Slot
And An RJ45 Ethernet Port

* for reference only, please refer to the Package Content for detailed part list

High-Performance Ethernet Controller

Onboard Original RTL8125 High-Performance 2.5G Ethernet Controller, Supports Raspberry Pi OS, Driver-Free, Plug And Play

NVMe Solid State Drives Support

Compatible With 2230 / 2242 Size M.2 Solid State Drives
Supports Gen2 Mode, Supports Booting Pi 5 From Solid State Drive

Supports Network Connection
And PoE Power Supply

Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable

* for reference only, the Raspberry Pi 5 and switch are NOT included.

Easy To Connect The HDMI Screen

Converts Micro HDMI Port To HDMI Female Port For Easier Connection

* for reference only, please refer to the Package Content for detailed part list

Three Power Supply Methods

Supports Power Supply Via Type-C Port, 7 ~ 24V Screw Terminal, And PoE Ethernet Port

Supports 4K Outputs

Assembly Example

* for reference only, please refer to the Package Content for detailed part list

Outline Dimensions

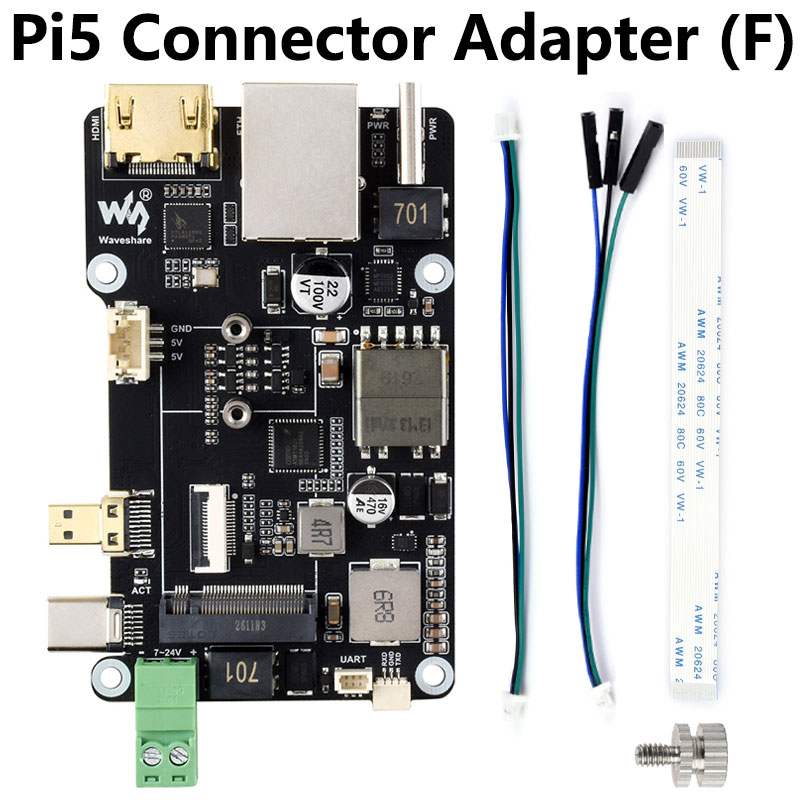

[] 1Pi5 Connector Adapter (F)
